◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

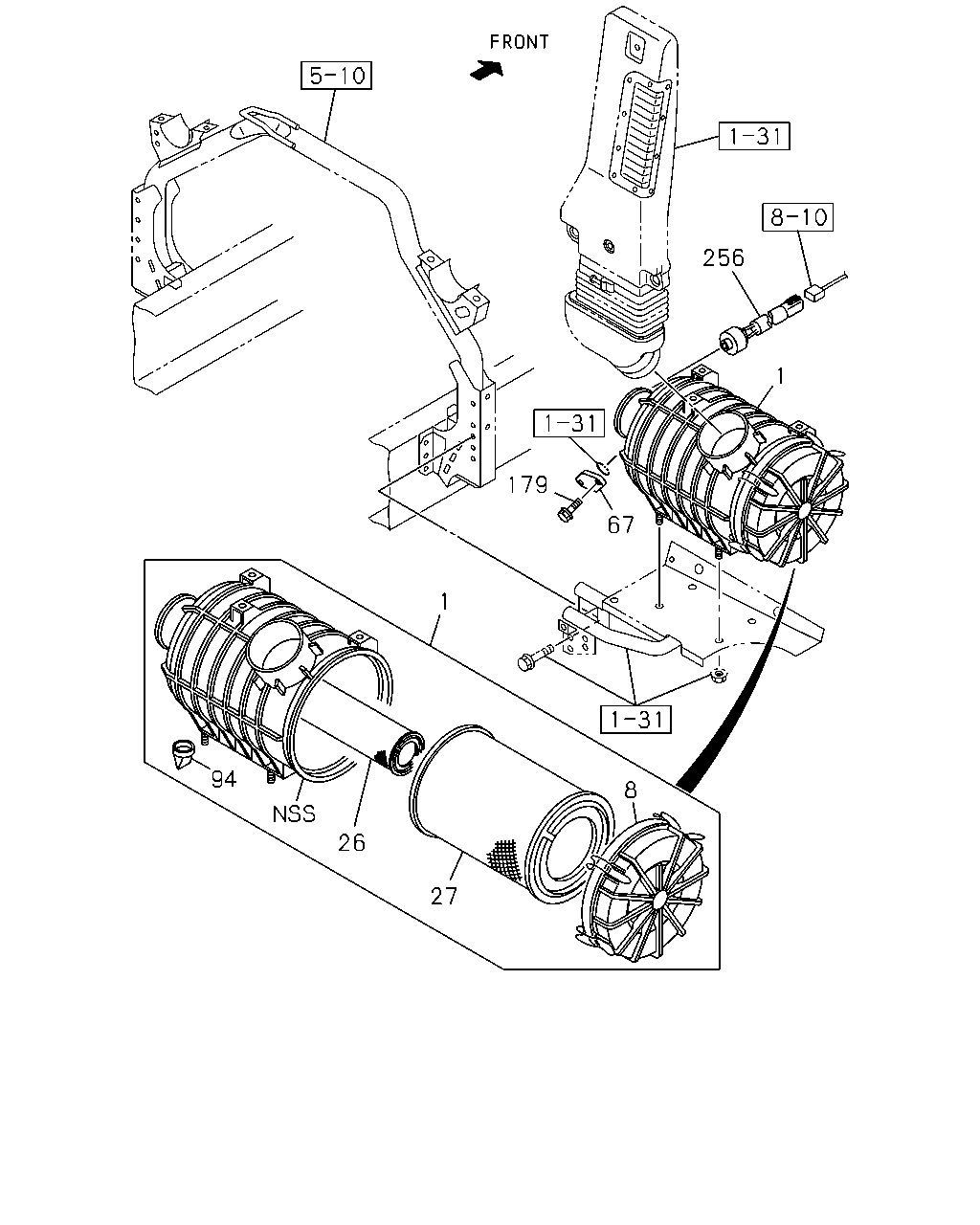

1-30 — AIR CLEANER (#25727) — 22 parça
çizim 142768
256 1 67 179 1 8 27 26 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0808-1102 ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1103- ● ●
8 COVER ASM; ACL
THA 		8-98066-740-0 01 1 0808-1102 ●
8 COVER ASM; ACL
THA 		8-98066-740-0 01 1 1103- ● ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0808-1102 ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1103- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 1103- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 0808-1102 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0808-1102 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1103- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 1103- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 0808-1102 ●
67 COVER; ACL 8-98081-729-0 01 1 0808-1102 ●
67 COVER; ACL 8-98081-729-0 01 1 1103-1208 ● ●
67 COVER; ACL 8-98217-788-0 01 1 1209- ● ●
94 VALVE; VACUATOR
THA 		1-14219-279-0 01 1 0808-1102 ●
94 VALVE; VACUATOR
THA 		1-14219-279-0 01 1 1103- ● ●
179 BOLT; COVER,ACL
M6X16 FLANGE THA 		0-28050-616-0 02 1 1103- ● ●
179 BOLT; COVER,ACL
M6X16 FLANGE THA 		0-28050-616-0 02 1 0808-1102 ●
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0808-1002 ●
256 SENSOR; AIRFLOW 8-98152-742-0 01 1 1003-1102 ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1103- ● ●
