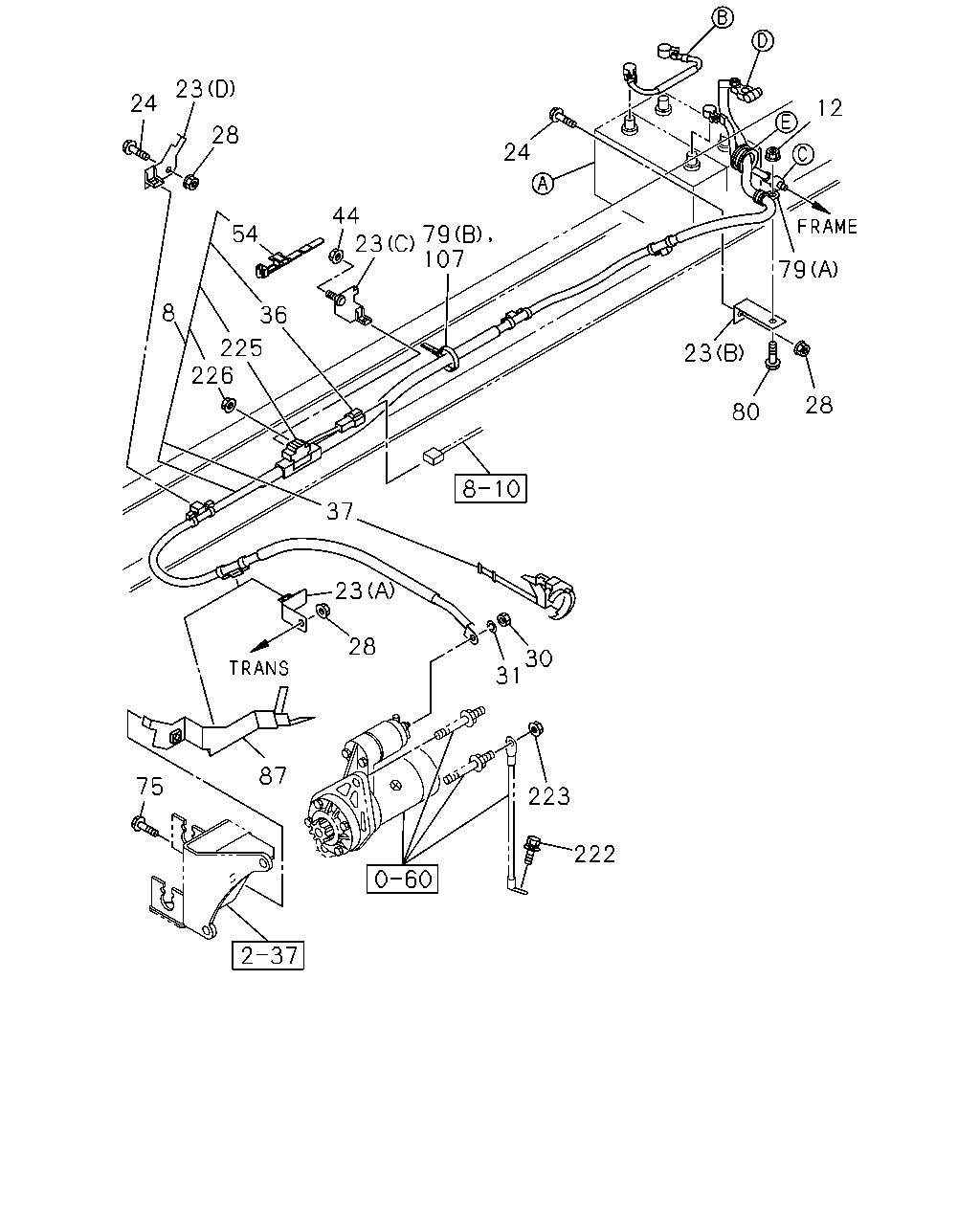

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#25719) — 102 parça

23 24 12 28 24 44 79 23 107 54 79 8 36 225 226 23 28 80 37 23 28 30 31 87 75 223 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97925-251-0	01	1	1001-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97925-252-0	01	1	1001-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> L=1895 THA	8-97924-690-0	01	1	0808-0912
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> L=1895 THA	8-97924-690-0	01	1	1001-1102
8	CABLE; BATTERY,STARTER 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA	8-97925-479-0	01	1	1103-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2375 THA	8-97924-689-0	01	1	0808-0912
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2375 THA	8-97924-689-0	01	1	1001-1102
8	CABLE; BATTERY,STARTER 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97925-480-0	01	1	1103-
12	NUT; BATTERY CABLE CLIP MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1103-
12	NUT; BATTERY CABLE CLIP M8 FLANGE THA	0-91180-108-0	01	1	0808-0808
12	NUT; BATTERY CABLE CLIP MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	01	1	0808-0912
12	NUT; BATTERY CABLE CLIP MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1001-1102
12	NUT; BATTERY CABLE CLIP MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	01	1	1001-1102
12	NUT; BATTERY CABLE CLIP MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	02	1	1103-
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> (C)	8-98044-882-0	01	1	0808-0912
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> (A)	8-98121-187-0	01	1	0808-1102
23	BRACKET; CABLE CLIP TO FRAME MZZ6W M/T<RSA> (E)	8-98077-904-1	01	1	1103-
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	0808-0808
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	0809-0912
23	BRACKET; CABLE CLIP TO FRAME MZW6P M/T<RSZ> (B) L=95	1-82699-085-0	01	1	1001-1102
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	1001-1102
23	BRACKET; CABLE CLIP TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	1103-
23	BRACKET; CABLE CLIP TO FRAME MZW6P M/T<RSZ> (B) L=95	1-82699-085-0	01	1	1103-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98047-277-1	01	1	0808-
24	BOLT; BRKT TO FRAME M8X25 FLANGE THA	0-28650-825-0	01	1	0808-0909
24	BOLT; BRKT TO FRAME MLD6S M/T<X7W> M8X25 FLANGE THA	0-28650-825-0	01	1	0910-1102
24	BOLT; BRKT TO FRAME M8X30 FLANGE THA	0-28650-830-0	01	1	0808-0808
24	BOLT; BRKT TO FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X30 FLANGE THA	0-28650-830-0	01	1	0808-0912
24	BOLT; BRKT TO FRAME MZW6P M/T<RSZ> M8X30 FLANGE THA	0-28650-830-0	01	1	1001-1102
24	BOLT; BRKT TO FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X30 FLANGE THA	0-28650-830-0	01	1	1001-1102
24	BOLT; BRKT TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X30 FLANGE THA	0-28650-830-0	01	1	1103-
24	BOLT; BRKT TO FRAME MZW6P M/T<RSZ> M8X30 FLANGE THA	0-28650-830-0	01	1	1103-
24	BOLT; BRKT TO FRAME M10X30 FLANGE THA	0-28651-030-0	01	1	0808-
28	NUT; BRKT TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	0808-0808
28	NUT; BRKT TO FRAME M10 FLANGE THA	0-91180-110-0	01	1	0808-1102
28	NUT; BRKT TO FRAME M10 FLANGE THA	0-91180-210-0	01	1	1103-
28	NUT; BRKT TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	01	1	1103-
28	NUT; BRKT TO FRAME MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1103-
30	NUT; CABLE,STARTER TO BATTERY M8 THA	0-91110-508-0	01	1	0808-
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2 THA	0-91510-508-0	01	1	0808-
36	FUSIBLE LINK; BATTERY THA	8-97615-498-1	01	1	0808-
37	CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	0808-
44	NUT; BRKT MZZ6W M/T<RSA> M10 FLANGE THA	0-91180-210-0	02	1	1103-
44	NUT; BRKT MLD6S M/T<X7W> M10 FLANGE THA	0-91180-110-0	01	1	0808-0912
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	0808-0912
54	CLIP; BAND,BATTERY CABLE 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> L=175	1-09707-176-1	01	1	1001-1102
75	BOLT; BRKT MZW6P M/T<RSZ> M8X20 FLANGE THA	0-28650-820-0	01	1	1001-1102
75	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1103-
79	CLIP; BATTERY CABLE WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=20 L=50	9-09917-430-0	01	1	0808-1102
79	CLIP; BATTERY CABLE MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=20 L=50	9-09917-430-0	01	1	1103-
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0808-0808
79	CLIP; BATTERY CABLE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) ID=21 L=24	8-98019-191-0	01	1	0809-0912
79	CLIP; BATTERY CABLE MZW6P M/T<RSZ> (A) ID=21 L=24	8-98019-191-0	01	1	1001-1102
79	CLIP; BATTERY CABLE MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) ID=21 L=24	8-98019-191-0	01	1	1001-1102
79	CLIP; BATTERY CABLE MZW6P M/T<RSZ> (A) ID=21 L=24	8-98019-191-0	01	1	1103-
79	CLIP; BATTERY CABLE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) ID=21 L=24	8-98019-191-0	02	1	1103-
80	BOLT; BATTERY CABLE CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0808-0808
80	BOLT; BATTERY CABLE CLIP MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X25 FLANGE THA	0-28650-825-0	01	1	0808-0912
80	BOLT; BATTERY CABLE CLIP MZW6P M/T<RSZ> M8X25 FLANGE THA	0-28650-825-0	01	1	1001-1102
80	BOLT; BATTERY CABLE CLIP MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X25 FLANGE THA	0-28650-825-0	01	1	1001-1102
80	BOLT; BATTERY CABLE CLIP MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X25 FLANGE THA	0-28650-825-0	01	1	1103-
80	BOLT; BATTERY CABLE CLIP MZW6P M/T<RSZ> M8X25 FLANGE THA	0-28650-825-0	01	1	1103-
87	BRACKET; HARNESS MZZ6W M/T<RSA>	8-98171-733-0	01	1	1103-
87	BRACKET; HARNESS MZW6P M/T<RSZ>	8-98126-428-0	01	1	1001-
107	CLIP; BAND L=140 THA	5-09707-031-1	01	1	0808-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0808-
223	NUT; EARTH CABLE M10 FLANGE THA	0-91180-210-0	01	1	0808-
225	BLOCK; TERMINAL THA	8-98029-689-0	01	1	0808-
226	NUT; FUSIBLE LINK M6 W/LK WASHER THA	8-94424-179-0	01	1	0808-

1 2 8 13 112 11 10 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280 THA	8-97924-519-0	01	1	0808-0903
1	CABLE; BATTERY L=280 THA	8-97922-383-0	01	1	0904-
2	CABLE; BATTERY WHEEL BASE 3400MM<34W> L=335 THA	8-97924-725-0	01	1	0808-0908
2	CABLE; BATTERY MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> L=335 THA	8-97924-725-0	01	1	0909-1102
2	CABLE; BATTERY MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=335 THA	8-97924-725-0	01	1	1103-
2	CABLE; BATTERY WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=240 THA	8-97924-520-0	01	1	0808-0912
2	CABLE; BATTERY MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> L=240 THA	8-97924-520-0	01	1	1001-1102
2	CABLE; BATTERY WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=240 THA	8-97924-520-0	01	1	1001-1102
2	CABLE; BATTERY MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=240 THA	8-97924-520-0	01	1	1103-
2	CABLE; BATTERY MZW6P M/T<RSZ> L=240 THA	8-97924-520-0	01	1	1103-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97925-251-0	01	1	1001-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97925-252-0	01	1	1001-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> L=1895 THA	8-97924-690-0	01	1	0808-0912
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> L=1895 THA	8-97924-690-0	01	1	1001-1102
8	CABLE; BATTERY,STARTER 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA	8-97925-479-0	01	1	1103-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2375 THA	8-97924-689-0	01	1	0808-0912
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2375 THA	8-97924-689-0	01	1	1001-1102
8	CABLE; BATTERY,STARTER 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97925-480-0	01	1	1103-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0808-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0808-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=18	1-09891-003-0	01	1	0808-
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> (C)	8-98044-882-0	01	1	0808-0912
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> (A)	8-98121-187-0	01	1	0808-1102
23	BRACKET; CABLE CLIP TO FRAME MZZ6W M/T<RSA> (E)	8-98077-904-1	01	1	1103-
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	0808-0808
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	0809-0912
23	BRACKET; CABLE CLIP TO FRAME MZW6P M/T<RSZ> (B) L=95	1-82699-085-0	01	1	1001-1102
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	1001-1102
23	BRACKET; CABLE CLIP TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	1103-
23	BRACKET; CABLE CLIP TO FRAME MZW6P M/T<RSZ> (B) L=95	1-82699-085-0	01	1	1103-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98047-277-1	01	1	0808-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0808-1408
112	TERMINAL; BATTERY <+> THA	8-98290-356-0	01	1	1409-
