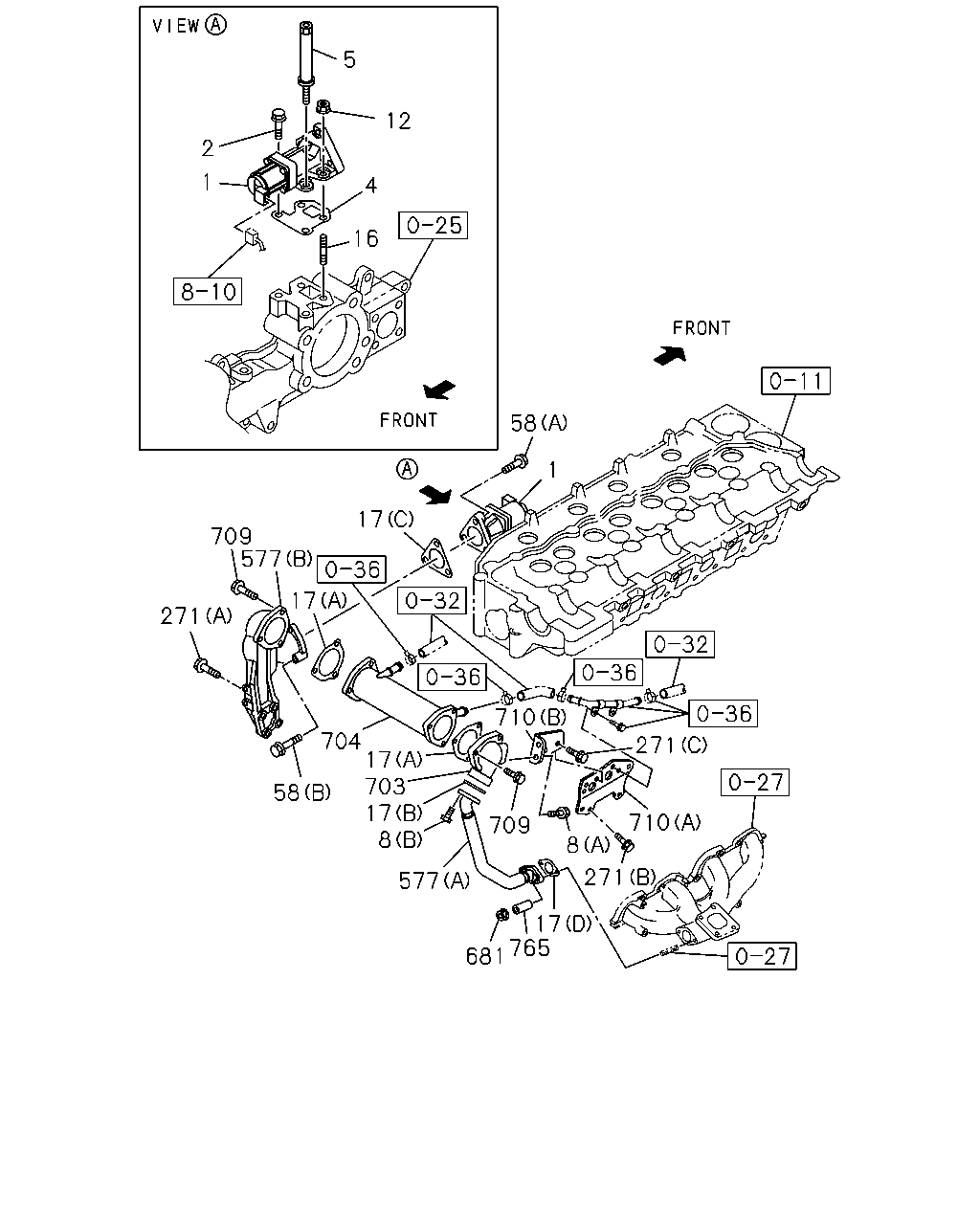

0-57 — EMISSION PIPING (#25717) — 54 parça

5 12 2 1 4 16 58 1 17 709 577 17 271 710 704 17 703 17 8 271 58 710 709 8 271 577 17 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-97377-509-6	01	1	0808-1102	●
1	VALVE; EGR	8-97377-509-8	01	1	1103-	●	●
2	BOLT; EGR VLV M8X25 FLANGE THA	0-28650-825-0	01	1	0808-1102	●
2	BOLT; EGR VLV M8X25 FLANGE THA	0-28650-825-0	01	1	1103-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0808-1102	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1103-	●	●
5	ADAPTER ASM	8-97377-804-0	01	1	0808-1102	●
5	ADAPTER ASM	8-97377-804-0	02	1	1103-1211	●	●
5	ADAPTER ASM	8-97377-804-0	01	1	1212-	●	●
8	BOLT; EGR ADAPTER (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
8	BOLT; EGR ADAPTER (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1103-	●	●
8	BOLT; EGR ADAPTER (B) M8X28 FLANGE	8-98043-528-0	03	1	0808-1102	●
8	BOLT; EGR ADAPTER (B) M8X28 FLANGE	8-98043-528-0	03	1	1103-	●	●
12	NUT; EGR VLV M8 FLANGE THA	0-91180-108-0	02	1	0808-1102	●
12	NUT; EGR VLV M8 FLANGE THA	0-91180-108-0	02	1	1103-	●	●
16	STUD; EGR VLV M8X20 L=32 THA	0-41010-820-0	02	1	0808-1102	●
16	STUD; EGR VLV M8X20 L=32 THA	0-41010-820-0	02	1	1103-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97367-918-0	01	1	0808-1102	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97367-918-0	01	1	1103-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	0808-1102	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	1103-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	02	1	0808-1102	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	02	1	1103-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0808-1102	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	1103-	●	●
58	BOLT; PIPE (B) M8X45 FLANGE THA	0-28050-845-0	02	1	0808-1102	●
58	BOLT; PIPE (B) M8X45 FLANGE THA	0-28050-845-0	02	1	1103-	●	●
58	BOLT; PIPE (A) M8X30 FLANGE THA	0-28650-830-0	02	1	0808-1102	●
58	BOLT; PIPE (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1103-	●	●
271	BOLT; BRKT (B) M8X20 FLANGE THA	0-28050-820-0	02	1	0808-1102	●
271	BOLT; BRKT (B) M8X20 FLANGE THA	0-28050-820-0	02	1	1103-	●	●
271	BOLT; BRKT (A) M12X50 FLANGE THA	0-28151-250-0	03	1	0808-1102	●
271	BOLT; BRKT (A) M12X50 FLANGE THA	0-28151-250-0	03	1	1103-	●	●
271	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	02	1	0808-1102	●
271	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	02	1	1103-	●	●
577	PIPE; AIR,EGR (B)	8-98055-858-2	01	1	0808-1102	●
577	PIPE; AIR,EGR (B)	8-98055-858-2	01	1	1103-	●	●
577	PIPE; AIR,EGR (A)	8-98063-655-1	01	1	0808-1102	●
577	PIPE; AIR,EGR (A)	8-98063-655-2	01	1	1103-	●	●
681	NUT; EGR PIPE M8 FLANGE THA	0-91180-208-0	02	1	0808-1102	●
681	NUT; EGR PIPE M8 FLANGE THA	0-91180-208-0	02	1	1103-	●	●
703	DUCT; EGR	8-98061-100-2	01	1	0808-1102	●
703	DUCT; EGR	8-98061-100-2	01	1	1103-	●	●
704	COOLER ASM; EGR	8-98061-104-0	01	1	0808-1102	●
704	COOLER ASM; EGR	8-98061-104-0	01	1	1103-	●	●
709	BOLT; EGR COOLER M10X30 FLANGE	0-28751-030-0	06	1	0808-0808	●
709	BOLT; EGR COOLER M10X35 FLANGE THA	0-28751-035-0	06	1	0809-1102	●
709	BOLT; EGR COOLER M10X35 FLANGE THA	0-28751-035-0	06	1	1103-	●	●
710	BRACKET; EGR COOLER (A)	8-98092-887-0	01	1	0808-1102	●
710	BRACKET; EGR COOLER (A)	8-98092-887-0	01	1	1103-	●	●
710	BRACKET; EGR COOLER (B)	8-98092-888-0	01	1	0808-1102	●
710	BRACKET; EGR COOLER (B)	8-98092-888-0	01	1	1103-	●	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	0808-1102	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1103-	●	●
