0-40 — FUEL INJECTION SYSTEM (#25712) — 187 parça

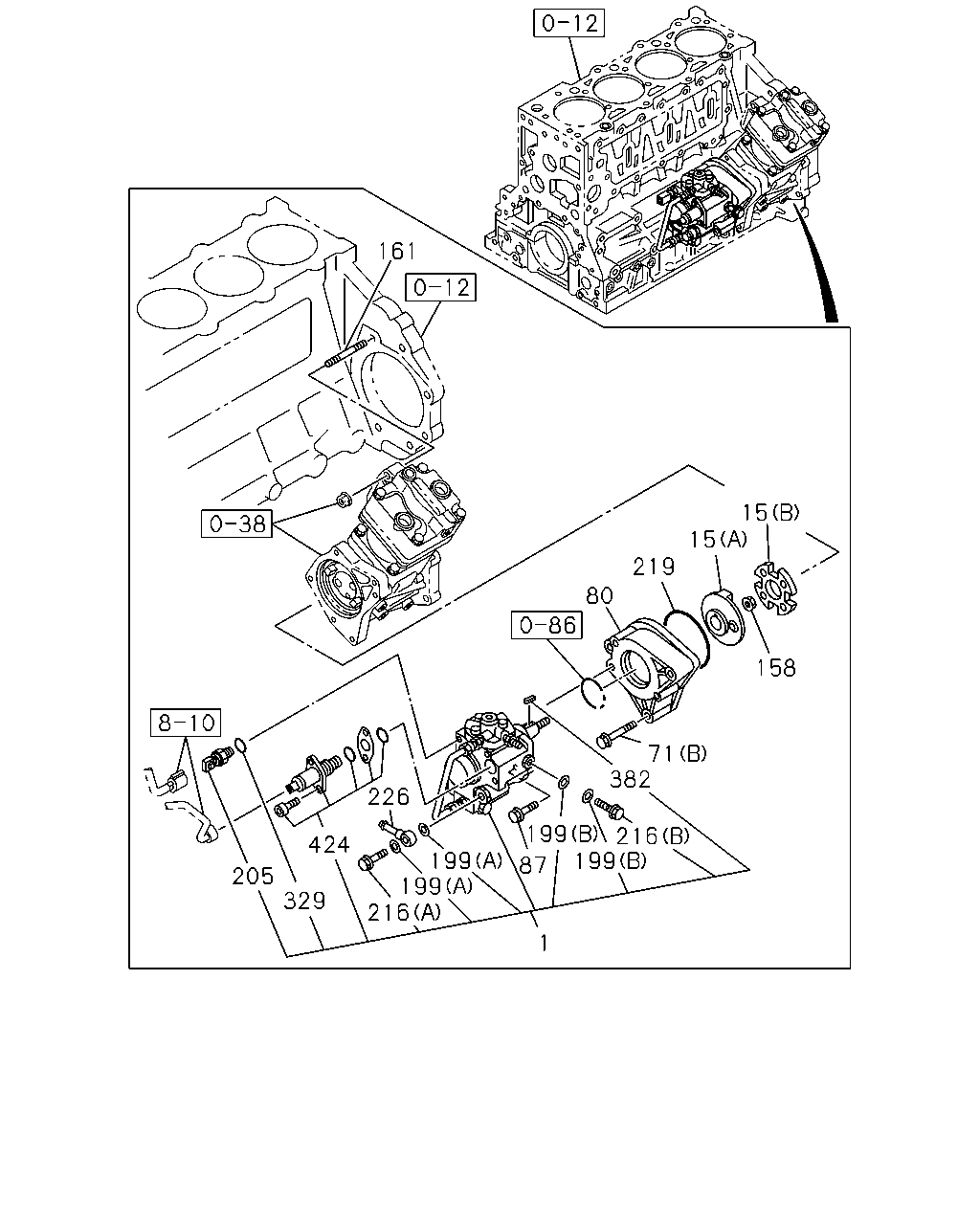

çizim 142736
161 205 329 216 424 226 199 199 87 199 199 216 382 71 158 15 15 219 80 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-4 01 1 0808-1102 ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1103- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0808-1102 ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1103- ● ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0808-1102 ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1103- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 02 1 0808-1102 ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 02 1 1103- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0808-1102 ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1103- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 0808-1102 ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1103- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 0808-1102 ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1103- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 0808-1102 ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 1103- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 0808-1102 ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1103- ● ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 0808-1102 ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 1103- ● ●
87 BOLT; PUMP
M8X40 FLANGE THA 		0-28650-840-0 02 1 0808-1102 ●
87 BOLT; PUMP
M8X40 FLANGE THA 		0-28650-840-0 02 1 1103- ● ●
158 NUT; INJ PUMP
M14 FLANGE THA 		0-91180-114-0 01 1 0808-1102 ●
158 NUT; INJ PUMP
M14 FLANGE THA 		0-91180-114-0 01 1 1103- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0808-0910 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-1102 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1103- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0808-1102 ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1103- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0808-1102 ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1103- ● ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 0808-1102 ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 1103- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0808-1102 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1103- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0808-1102 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1103- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0808-1102 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1103- ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 0808-1102 ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1103- ● ●
226 PIPE; FUEL 8-97353-682-0 01 1 0808-0808 ●
226 PIPE; FUEL 8-98126-332-0 01 1 0809-1102 ●
226 PIPE; FUEL 8-98126-332-0 01 1 1103- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0808-1102 ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1103-1201 ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0808-1102 ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1103-1201 ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 1202- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0808-0905 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-1102 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1103- ● ●

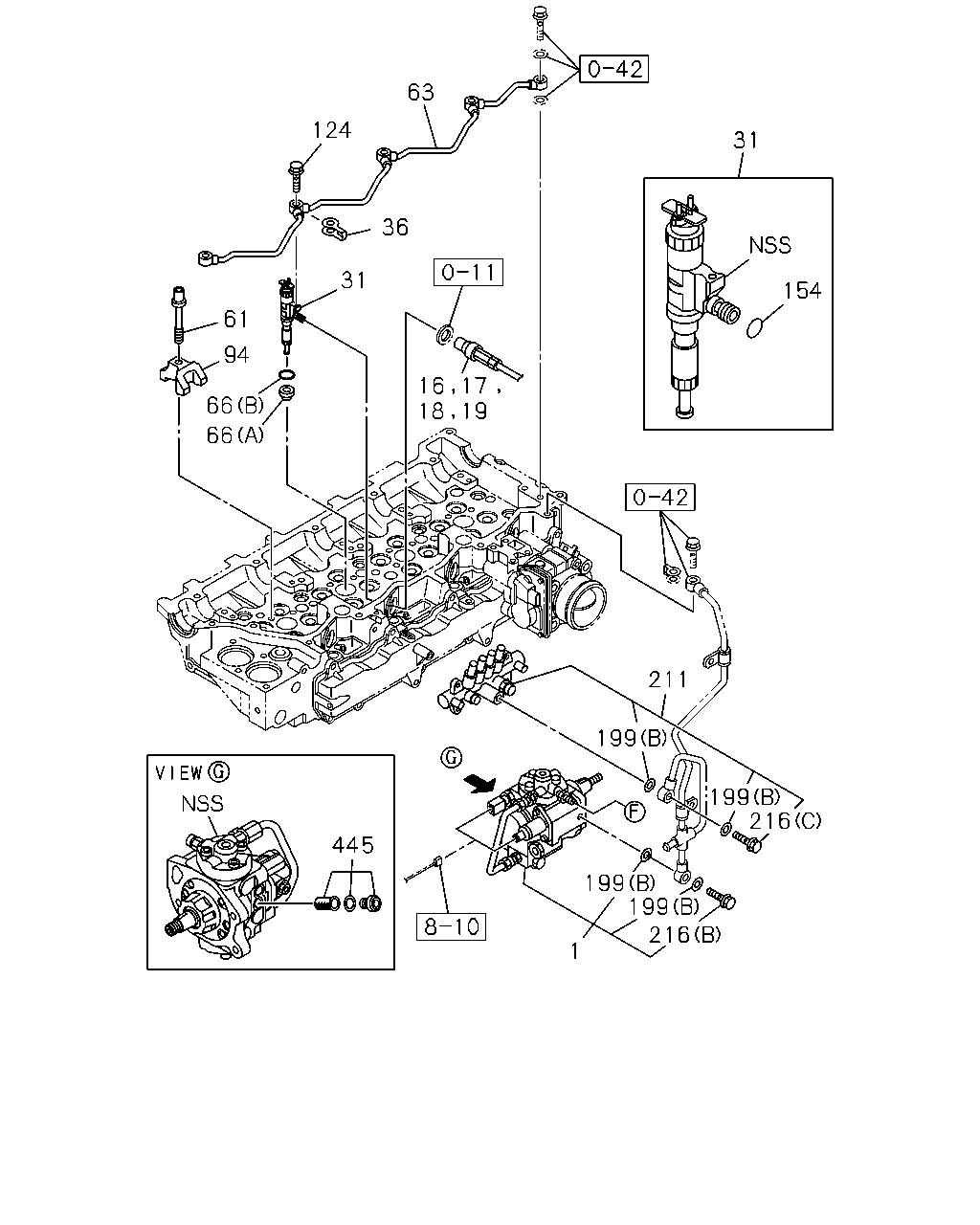

çizim 142744
63 124 31 36 31 154 61 94 66 66 211 199 199 216 445 199 199 216 1 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-4 01 1 0808-1102 ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1103- ● ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0808-1102 ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1103-1103 ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0808-1102 ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1103-1103 ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0808-1102 ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1103-1103 ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0808-1102 ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1103-1103 ● ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-4 04 1 0808-1102 ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1103- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0808-0908 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909-1102 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1103- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0808-1102 ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1103- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0808-1102 ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1103- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0808-1102 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1103- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0808-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-1102 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1103- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0808-1102 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1103- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0808-1102 ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1103- ● ●
154 GASKET; CONNECTOR
ID=11.0 		9-09561-111-0 04 1 0808-1102 ●
154 GASKET; CONNECTOR
ID=11.0 		9-09561-111-0 04 1 1103-1106 ● ●
154 GASKET; CONNECTOR
ID=11.0 ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		0-95690-111-0 04 1 1107- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0808-1102 ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1103- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0808-1102 ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1103- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0808-1102 ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1103- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0808-1102 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1103- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0808-1102 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1103- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0808-1102 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1103- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 1103- ● ●

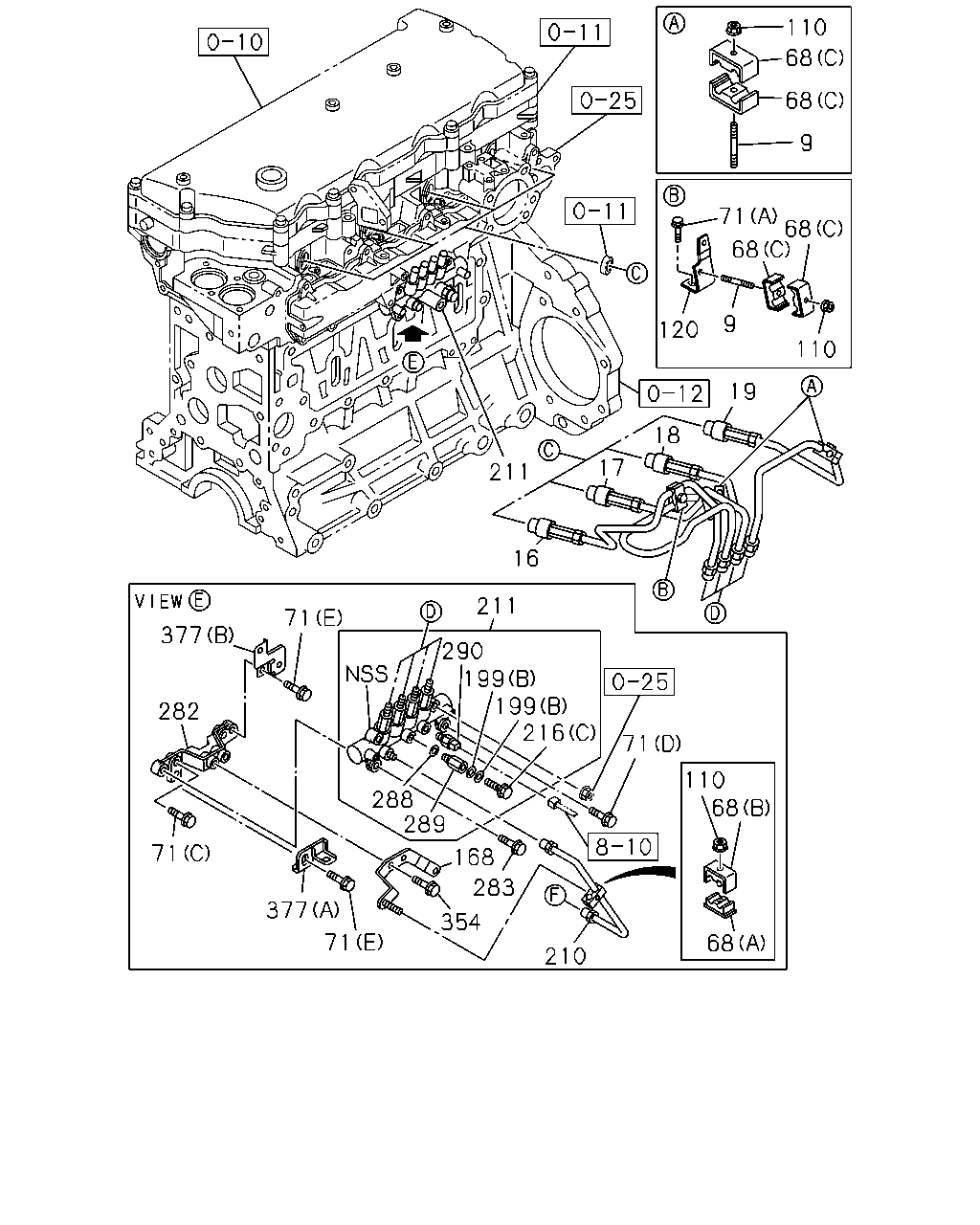

çizim 142746
110 68 68 9 71 68 68 9 120 110 19 18 17 211 16 211 71 377 290 199 199 216 282 71 110 68 288 289 71 168 283 377 354 71 68 210
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X30 L=38 THA 		0-41010-630-0 02 1 0808-1102 ●
9 STUD; CLIP
M6X30 L=38 THA 		0-41010-630-0 02 1 1103- ● ●
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 0808-1102 ●
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 1103- ● ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0808-1102 ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1103-1103 ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0808-1102 ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1103-1103 ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0808-1102 ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1103-1103 ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0808-1102 ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1103-1103 ● ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 01 1 0808-1102 ●
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1103- ● ●
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 01 1 0808-1102 ●
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1103- ● ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 0808-1102 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1103-1405 ● ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 02 1 0808-1102 ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 02 1 1103- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0808-1102 ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1103- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 0808-1102 ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1103- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 0808-1102 ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1103- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 0808-1102 ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 1103- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 0808-1102 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 1103- ● ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 0808-1102 ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1103- ● ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 0808-1102 ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 1103- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0808-1102 ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1103- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0808-1102 ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1103- ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 0808-1102 ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1103- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0808-1102 ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1103- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0808-1102 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1103- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0808-1102 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1103- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0808-1102 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1103- ● ●
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0808-1005 ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-1102 ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1103- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 0808-1102 ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 1103- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0808-1102 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1103- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0808-1102 ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1103- ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0808-0809 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0810-1102 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-1102 ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1103- ● ●
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0910-1102 ●
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 1103- ● ●
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 0808-1102 ●
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
