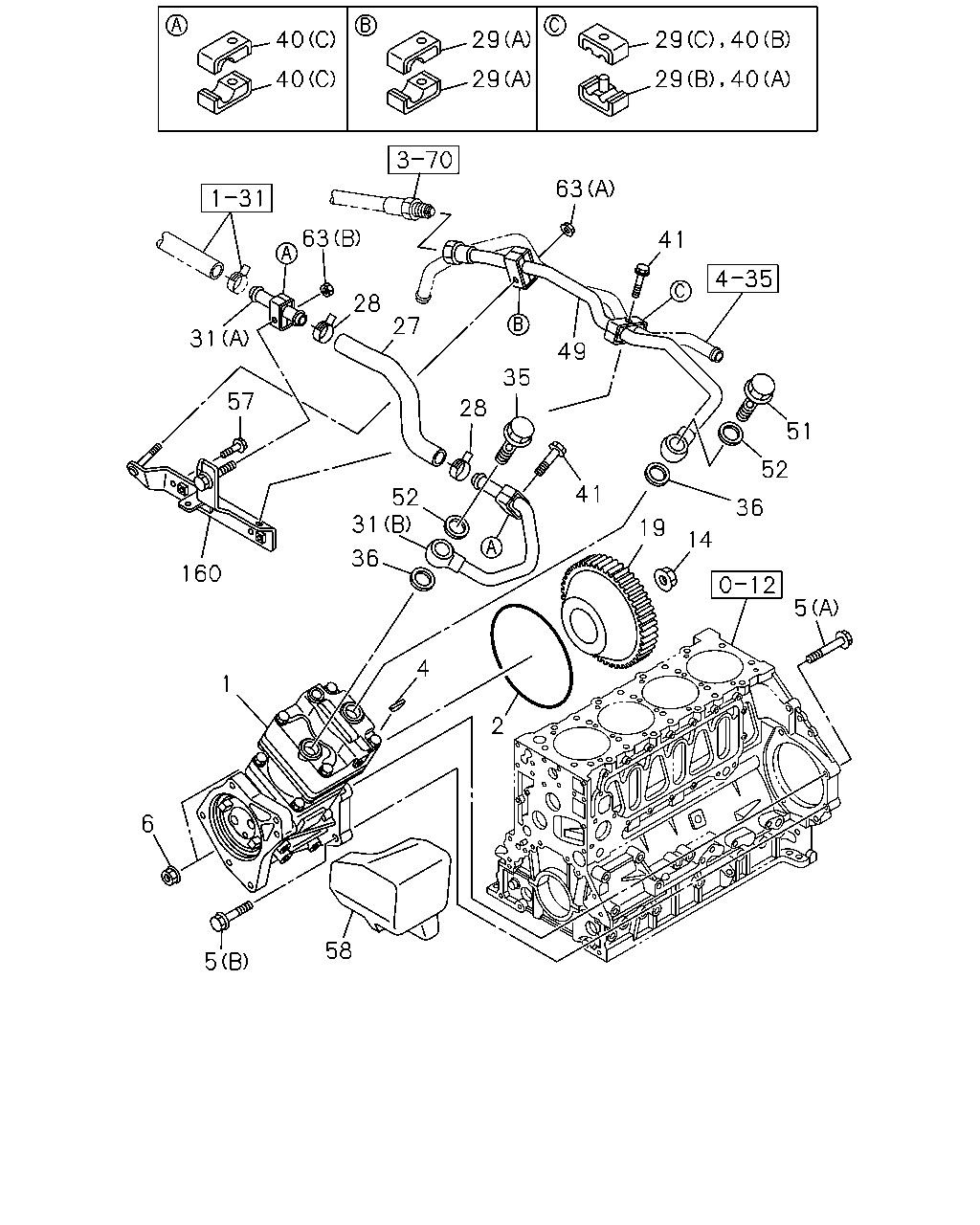

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#25710) — 60 parça
çizim 142737
40 29 40 29 63 63 41 28 27 31 49 35 57 28 51 52 41 52 31 36 19 14 36 160 5 4 1 2 6 58 5 29 40 29 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97601-449-4 01 1 0808-1102 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97601-449-5 01 1 1103-1109 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98187-308-0 01 1 1110-1405 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98270-233-0 01 1 1406- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0808-1102 ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 1103- ● ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0808-1102 ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 1103- ● ●
5 BOLT; AIR CMPR FIX
(B) M12X70 FLANGE 		0-28151-270-0 01 1 0808-1102 ●
5 BOLT; AIR CMPR FIX
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1103- ● ●
5 BOLT; AIR CMPR FIX
(A) M12X95 FLANGE 		8-94396-485-1 01 1 0808-1102 ●
5 BOLT; AIR CMPR FIX
(A) M12X95 FLANGE 		8-94396-485-1 01 1 1103- ● ●
6 NUT; AIR CMPR
M10 FLANGE THA 		0-91180-110-0 02 1 0808-1102 ●
6 NUT; AIR CMPR
M10 FLANGE THA 		0-91180-110-0 02 1 1103- ● ●
14 NUT; GEAR
M18 		8-97141-154-0 01 1 0808-1102 ●
14 NUT; GEAR
M18 		8-97141-154-0 01 1 1103- ● ●
19 GEAR; INJ PUMP
Z=35 		8-97600-987-2 01 1 0808-1102 ●
19 GEAR; INJ PUMP
Z=35 		8-97600-987-2 01 1 1103- ● ●
27 HOSE; AIR CMPR,SUCTION 8-98057-031-0 01 1 0808-1102 ●
27 HOSE; AIR CMPR,SUCTION 8-98057-031-1 01 1 1103- ● ●
28 CLIP; HOSE,AIR CMPR
ID=24 		8-98025-921-0 02 1 0808-1102 ●
28 CLIP; HOSE,AIR CMPR
ID=24 		8-98025-921-0 02 1 1103- ● ●
29 CLIP; AIR PIPE
(A) 		1-09701-282-0 02 1 0808-1102 ●
29 CLIP; AIR PIPE
(A) 		1-09701-282-0 02 1 1103- ● ●
29 CLIP; AIR PIPE
(B) 		8-97619-417-0 01 1 0808-0904 ●
29 CLIP; AIR PIPE
(C) 		8-97619-418-0 01 1 0808-0904 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-98023-170-0 01 1 0808-1102 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-98023-170-0 01 1 1103- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		8-98076-324-0 01 1 0808-1102 ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		8-98076-324-0 01 1 1103- ● ●
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-1 01 1 0808-1102 ●
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-1 01 1 1103-1404 ● ●
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-175-2 01 1 1405- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0808-1102 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 1103- ● ●
40 CLIP; AIR PIPE
(C) ID=17 L=17 		1-09701-284-0 04 1 0808-1102 ●
40 CLIP; AIR PIPE
(C) ID=17 L=17 		1-09701-284-0 04 1 1103- ● ●
40 CLIP; AIR PIPE
(A) 		8-97619-417-0 01 1 0808-1102 ●
40 CLIP; AIR PIPE
(A) 		8-97619-417-0 01 1 1103- ● ●
40 CLIP; AIR PIPE
(B) 		8-97619-418-0 01 1 0808-1102 ●
40 CLIP; AIR PIPE
(B) 		8-97619-418-0 01 1 1103- ● ●
41 BOLT; CLIP
M8X45 FLANGE THA 		0-28050-845-0 02 1 0808-1102 ●
41 BOLT; CLIP
M8X45 FLANGE THA 		0-28050-845-0 02 1 1103- ● ●
49 PIPE; AIR,CHARGE 8-98069-425-0 01 1 0808-1102 ●
49 PIPE; AIR,CHARGE 8-98069-425-0 01 1 1103- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 0808-1102 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 1103-1404 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1405- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0808-1102 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 1103- ● ●
57 BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-1102 ●
57 BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1103- ● ●
58 SPACER; AIR CMPR 8-98059-817-0 01 1 0808-1101 ●
63 NUT; CLIP
(A) M6 FLANGE THA 		0-91180-106-0 03 1 0808-1102 ●
63 NUT; CLIP
(A) M6 FLANGE THA 		0-91180-106-0 03 1 1103-1301 ● ●
63 NUT; CLIP
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1302- ● ●
63 NUT; CLIP
(B) M8 FLANGE THA 		0-91180-108-0 01 1 0808-1102 ●
63 NUT; CLIP
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1103- ● ●
160 BRACKET; AIR PIPE 8-98076-098-0 01 1 0808-1102 ●
160 BRACKET; AIR PIPE 8-98076-098-0 01 1 1103- ● ●
