0-36 — TURBOCHARGER SYSTEM (#25708) — 96 parça

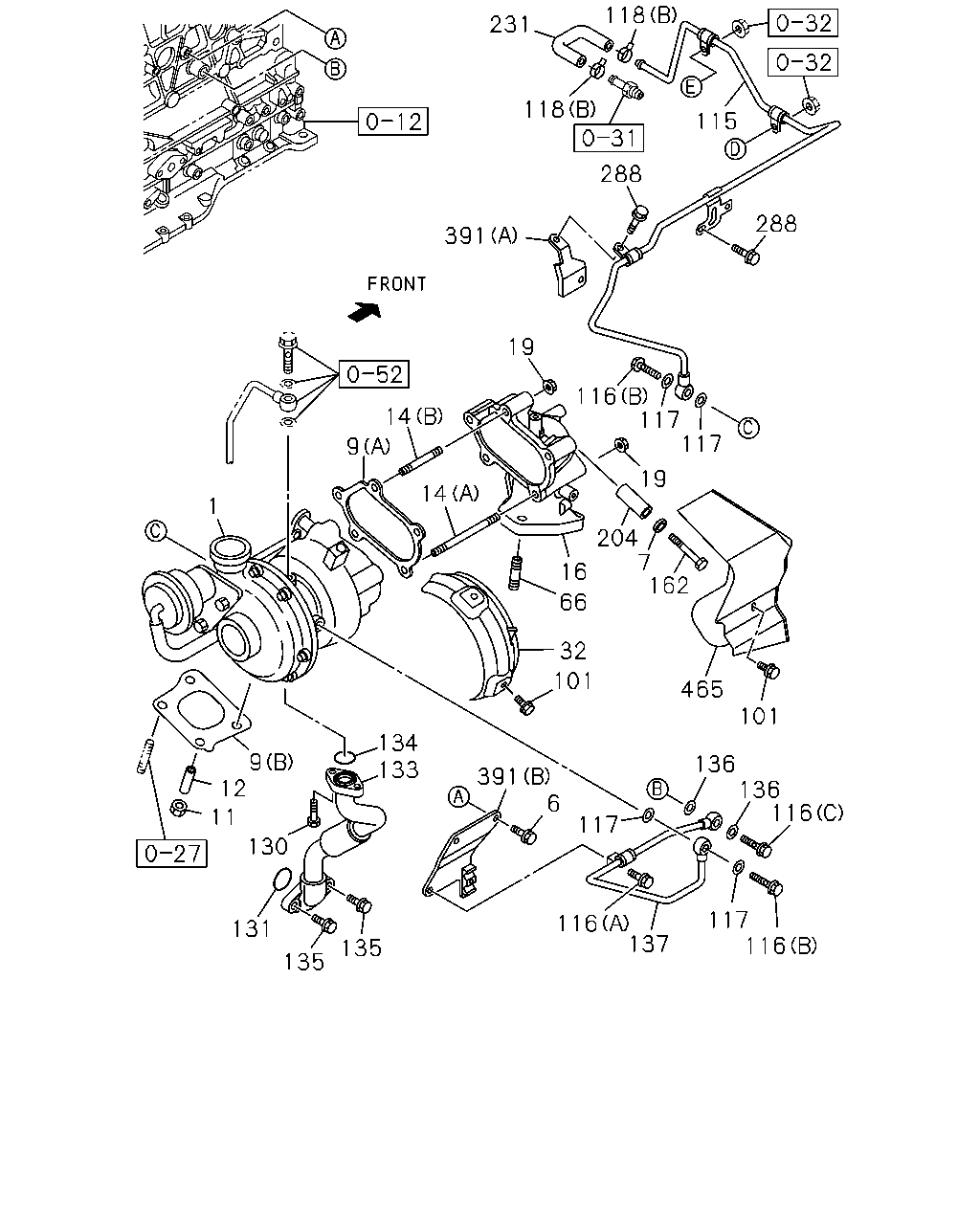

çizim 142735
118 231 118 115 288 288 391 19 116 117 117 14 9 19 14 1 204 7 162 16 66 32 101 465 101 134 133 9 12 136 136 116 391 6 11 117 130 117 116 116 137 131 135 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 0808-1102 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1103- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-1102 ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 1103- ● ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0808-1102 ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1103- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 0808-1102 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 1103- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 0808-1102 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 1103- ● ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 0808-1102 ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1103- ● ●
12 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 0808-1102 ●
12 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 1103- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 0808-1102 ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1103- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0808-1102 ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1103- ● ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 0808-1102 ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1103- ● ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 0808-1102 ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1103- ● ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 0808-1102 ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1103- ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 0808-1102 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 1103- ● ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0808-1102 ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1103- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 8-98063-841-0 01 1 0808-1102 ●
115 PIPE; WATER,TURBOCHARGER OUT 8-98063-841-0 01 1 1103- ● ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 0808-1102 ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 1103- ● ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0808-1102 ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1103- ● ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0808-1102 ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1103- ● ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 0808-1102 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1103- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0808-1102 ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 1103- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0808-1102 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1103- ● ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0808-1102 ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1103- ● ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09566-228-0 01 1 0808-1006 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1007-1102 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1103- ● ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98062-762-1 01 1 0808-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1007-1102 ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1103- ● ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0808-1102 ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1103- ● ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 0808-1102 ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 1103- ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0808-1102 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1103-1312 ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 0808-1102 ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1103- ● ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0808-1102 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1103- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0808-1102 ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1103- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0808-1102 ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1103- ● ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-1102 ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE THA 		0-28050-816-0 02 1 1103- ● ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 0808-1102 ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 1103-1303 ● ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 0808-1102 ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1103- ● ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 0808-1102 ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 1103-1204 ● ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1205- ● ●

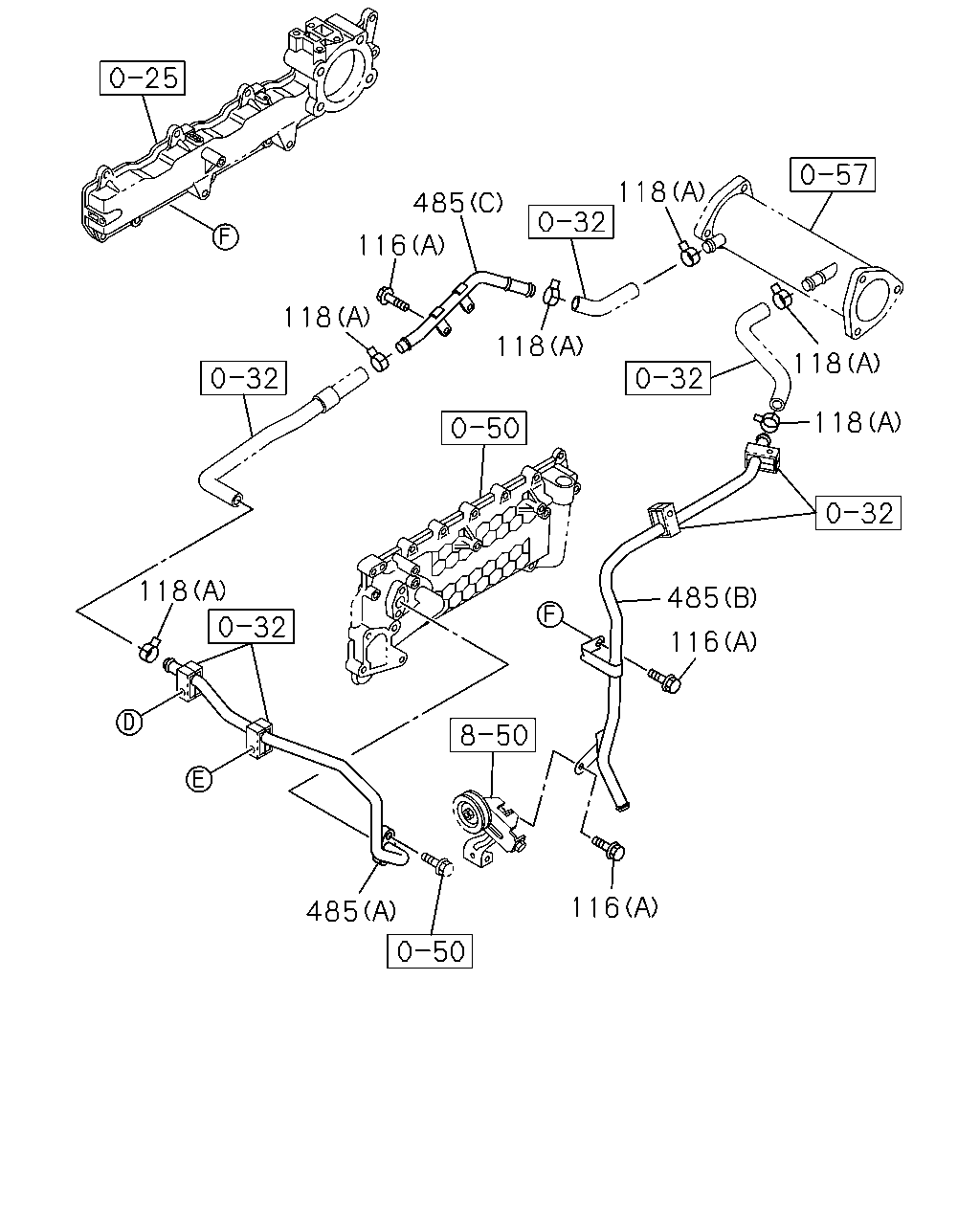

çizim 142742
118 485 116 118 118 118 118 118 485 116 116 485
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 0808-1102 ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 1103- ● ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0808-1102 ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1103- ● ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0808-1102 ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1103- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0808-1102 ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 1103- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0808-1102 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1103- ● ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0808-1102 ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 1103- ● ●
485 PIPE; WATER EGR
(B) 		8-97376-775-2 01 1 0808-1102 ●
485 PIPE; WATER EGR
(B) 		8-97376-775-2 01 1 1103- ● ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 0808-1102 ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 1103- ● ●

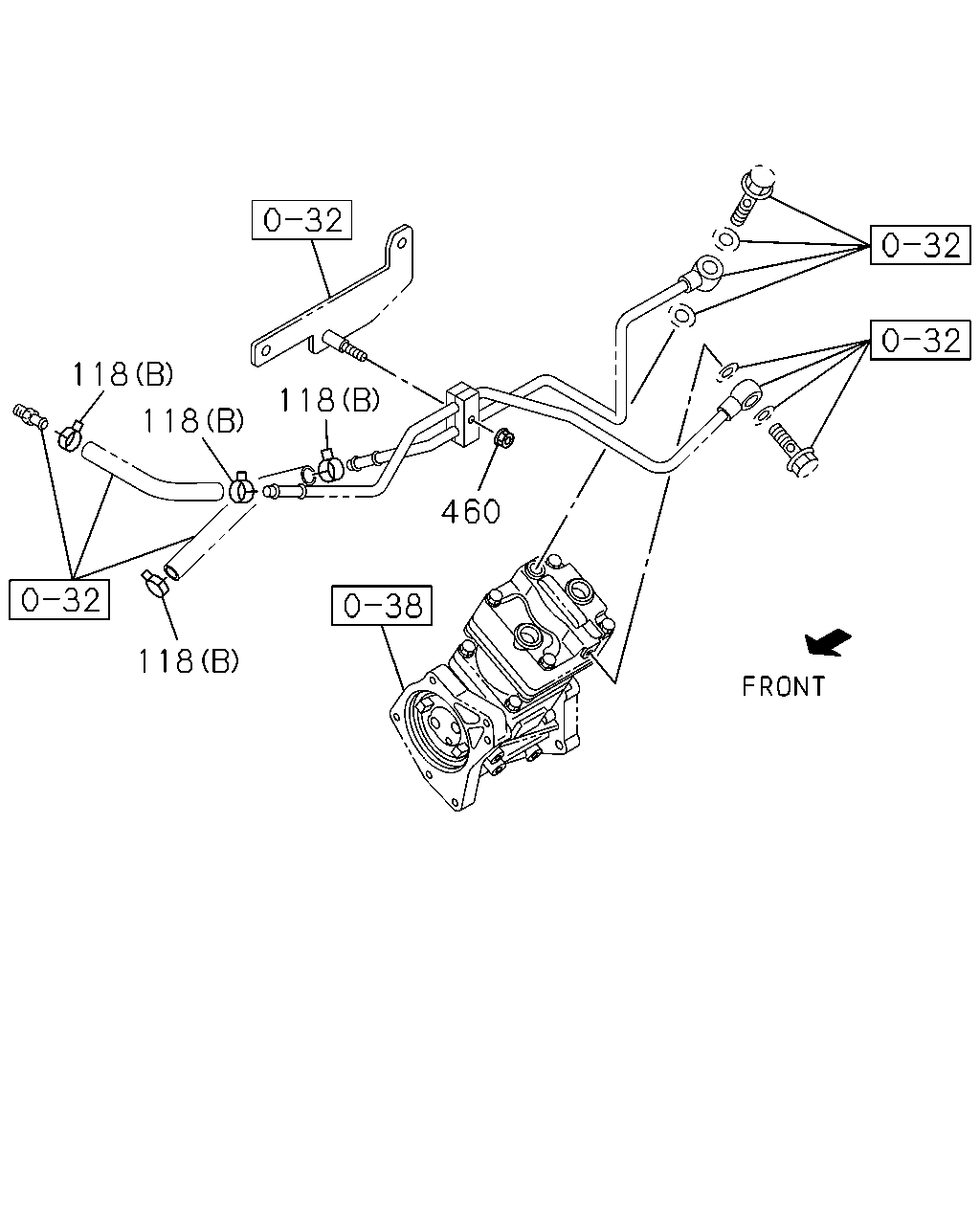

çizim 142743
118 118 118 460 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0808-1102 ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 1103- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0808-1102 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1103- ● ●
460 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0808-1102 ●
460 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 1103- ● ●
