◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#25706) — 31 parça

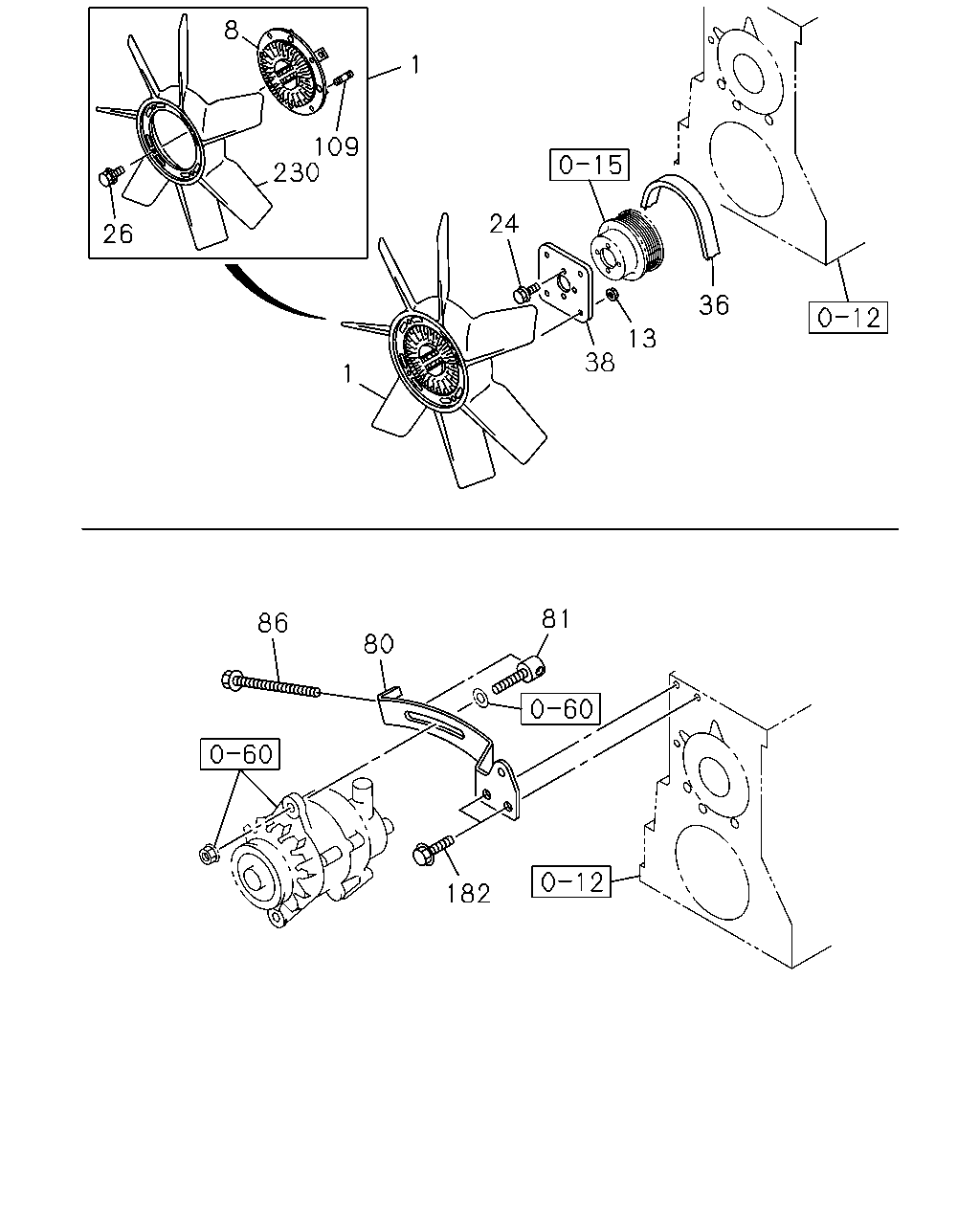

çizim 142740
8 1 109 230 24 26 36 13 38 1 81 86 80 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
OD=510 		8-98003-191-0 01 1 0808-1102 ●
1 FAN; COOLING
OD=510 		8-98003-191-0 01 1 1103-1108 ● ●
1 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ● ●
8 CLUTCH; COOLING FAN 8-98019-743-0 01 1 0808-1102 ●
8 CLUTCH; COOLING FAN 8-98019-743-0 01 1 1103- ● ●
13 NUT; COOLING FAN
M8 FLANGE THA 		0-91180-108-0 04 1 1001-1102 ●
13 NUT; COOLING FAN
M8 FLANGE THA 		0-91180-108-0 04 1 1103- ● ●
13 NUT; COOLING FAN
M8 FLANGE THA 		0-91180-108-0 04 1 0808-0912 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 0808-1102 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 1103- ● ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 0808-1102 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 1103- ● ●
36 BELT; COOLING FAN
L=1086 THA 		8-98020-247-0 01 1 0808-1102 ●
36 BELT; COOLING FAN
L=1086 THA 		8-98020-247-0 01 1 1103- ● ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-107-0 01 1 0808-1102 ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-107-0 01 1 1103- ● ●
38 SPACER; FAN 8-97108-643-0 01 1 0808-1102 ●
38 SPACER; FAN 8-97108-643-0 01 1 1103- ● ●
80 PLATE; ADJ 8-98054-181-0 01 1 0808-1102 ●
80 PLATE; ADJ 8-98054-181-0 01 1 1103- ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0808-1102 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1103- ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0808-1102 ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1103- ● ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0808-1102 ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1103- ● ●
182 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 02 1 0808-1102 ●
182 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 02 1 1103- ● ●
230 FAN; COOLING 8-97367-381-0 01 1 0808-1102 ●
230 FAN; COOLING 8-97367-381-0 01 1 1103-1108 ● ●
230 FAN; COOLING 8-98190-058-0 01 1 1109- ● ●
