Isuzu WW
▶
TRUCKS
▶
FRR
▶
11122 - FRR THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

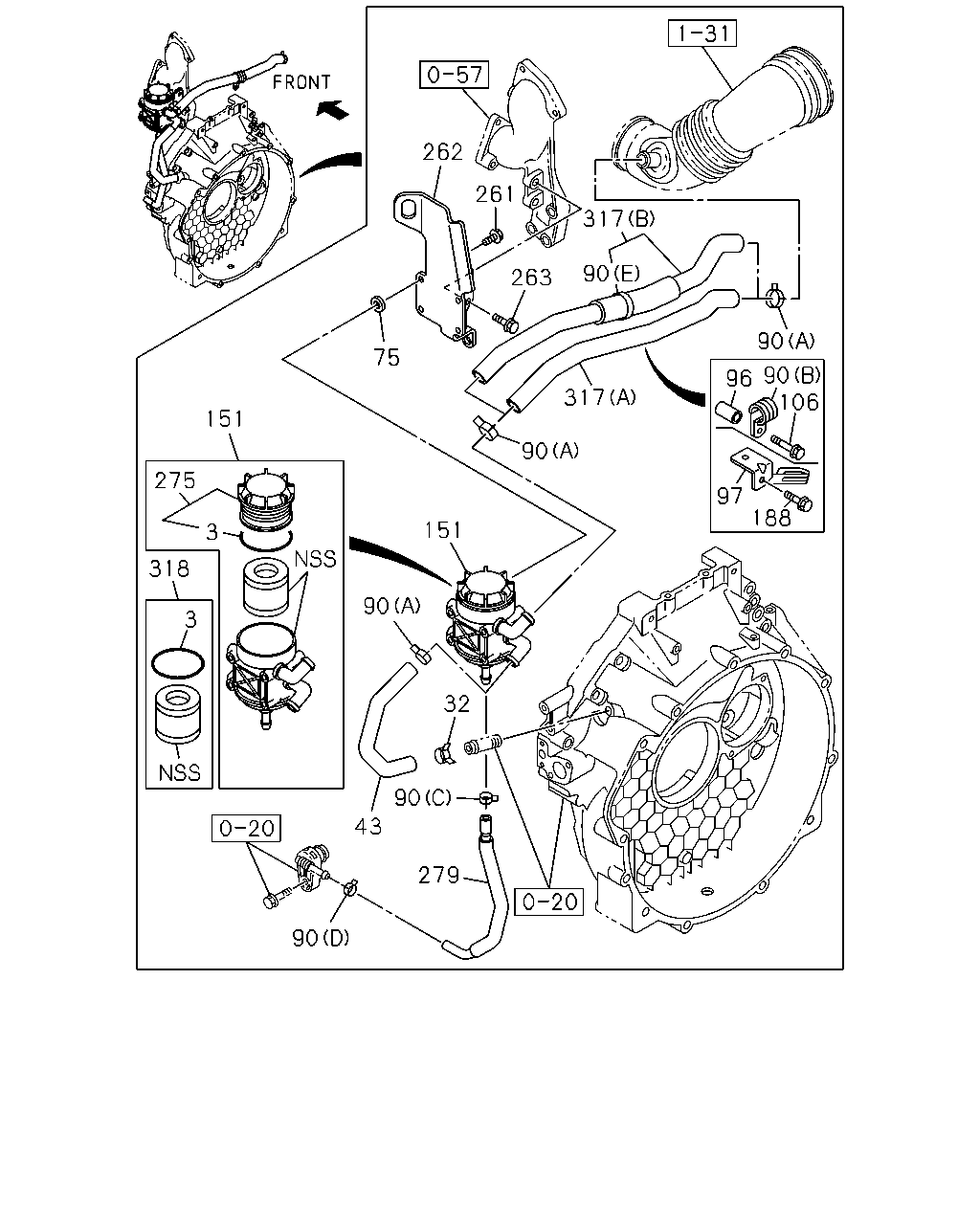

0-28 — VENTILATION SYSTEM
(#25702) — 43 parça
Tümü
A - 4HK1-TCS ENG
B - 4HK1-TCC ENG
262
261
317
90
263
90
75
90
106
96
317
151
90
275
97
188
151
3
318
90
3
32
90
43
279
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0808-1102
●
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1103-
●
●
32
CLIP; VENT HOSE
ID=21 THA
8-94242-034-0
01
1
0808-1102
●
32
CLIP; VENT HOSE
ID=21 THA
8-94242-034-0
01
1
1103-
●
●
43
HOSE; PCV
8-98057-033-0
01
1
0808-1102
●
43
HOSE; PCV
8-98057-033-0
01
1
1103-
●
●
75
WASHER
ID=9 OD=18 T=5
9-14149-173-0
04
1
0808-1102
●
75
WASHER
ID=9 OD=18 T=5
9-14149-173-0
04
1
1103-
●
●
90
CLIP; RUBBER HOSE
VIN MODEL YEAR 2010<VZA> (E) L=212
8-94107-652-0
01
1
1006-1102
●
90
CLIP; RUBBER HOSE
(E) L=212
8-94107-652-0
01
1
1103-
●
●
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
0808-1102
●
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
1103-
●
●
90
CLIP; RUBBER HOSE
(C) ID=13 THA
8-94238-571-0
01
1
0808-1102
●
90
CLIP; RUBBER HOSE
(C) ID=13 THA
8-94238-571-0
01
1
1103-
●
●
90
CLIP; RUBBER HOSE
(D) ID=11
8-94238-925-0
01
1
0808-1007
●
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1008-1102
●
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1103-
●
●
90
CLIP; RUBBER HOSE
(B) ID=31 L=35
1-09700-329-1
01
1
0808-1102
●
96
COLLAR; DIST,CLIP
8-98056-147-0
01
1
0808-1102
●
97
BRACKET; HOSE
VIN MODEL YEAR 2010<VZA>
8-98093-946-3
01
1
1004-1102
●
97
BRACKET; HOSE
8-98093-946-3
01
1
1103-
●
●
106
BOLT; DRAIN PIPE
M8X50 FLANGE THA
0-28050-850-0
01
1
0808-1102
●
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
0808-1102
●
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
1103-
●
●
188
BOLT; BRKT
VIN MODEL YEAR 2010<VZA> M8X12 FLANGE THA
0-28050-812-0
01
1
1004-1102
●
188
BOLT; BRKT
M8X12 FLANGE THA
0-28050-812-0
01
1
1103-
●
●
261
BOLT; SEPARETOR
M8X30 FLANGE THA
0-28650-830-0
04
1
0808-1102
●
261
BOLT; SEPARETOR
M8X30 FLANGE THA
0-28650-830-0
04
1
1103-
●
●
262
BRACKET; OIL SEPARETOR
8-98036-498-0
01
1
0808-1102
●
262
BRACKET; OIL SEPARETOR
8-98036-498-0
01
1
1103-1501
●
●
262
BRACKET; OIL SEPARETOR
8-98296-130-0
01
1
1502-
●
●
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE
0-28151-230-0
03
1
0808-1102
●
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE
0-28151-230-0
03
1
1103-
●
●
275
CAP; PCV
8-97389-360-0
01
1
0808-1102
●
275
CAP; PCV
8-97389-360-0
01
1
1103-
●
●
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
0808-1102
●
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
1103-
●
●
317
HOSE; RUBBER,OIL SEPARATOR
VIN MODEL YEAR 2010<VZA> (B)
8-98168-942-0
01
1
1004-1102
●
317
HOSE; RUBBER,OIL SEPARATOR
(B)
8-98168-942-0
01
1
1103-
●
●
317
HOSE; RUBBER,OIL SEPARATOR
(A)
8-98075-712-1
01
1
0808-1003
●
317
HOSE; RUBBER,OIL SEPARATOR
EXC. VIN MODEL YEAR 2010<VZA> (A)
8-98075-712-1
01
1
1004-1102
●
318
ELEMENT KIT; PCV
8-98002-346-0
01
1
0808-1102
●
318
ELEMENT KIT; PCV
8-98002-346-0
01
1
1103-
●
●
