Isuzu WW
▶
TRUCKS
▶
FRR
▶
11122 - FRR THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

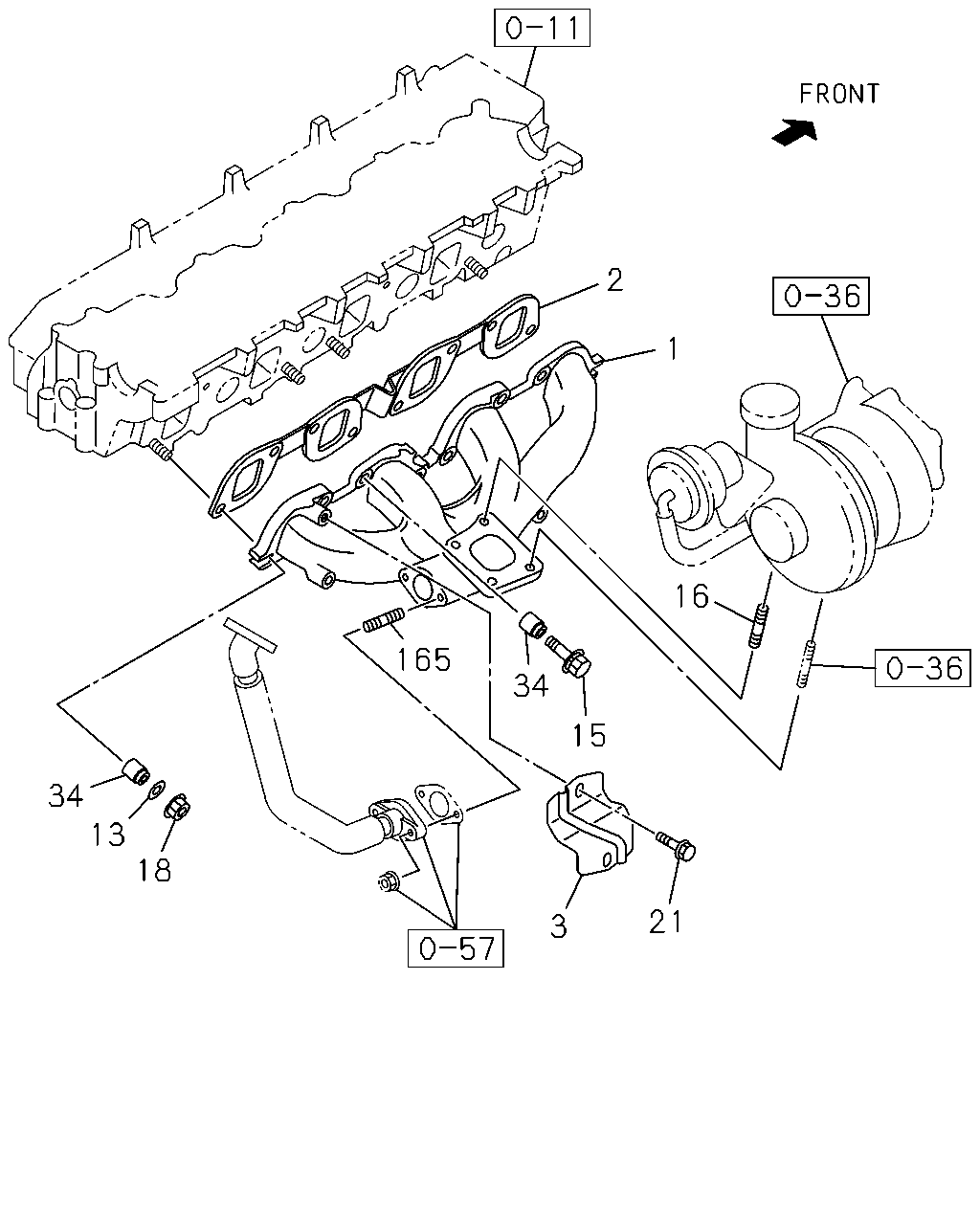

0-27 — EXHAUST MANIFOLD
(#25701) — 20 parça
Tümü
A - 4HK1-TCS ENG
B - 4HK1-TCC ENG
2
1
16
165
34
15
34
13
18
21
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
8-98027-968-1
01
1
0808-1102
●
1
MANIFOLD; EXHAUST
8-98027-968-1
01
1
1103-
●
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-1
01
1
0808-1102
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1103-
●
●
3
PROTECTOR; HEAT,EXH MANIF
8-97039-753-1
01
1
0808-1102
●
3
PROTECTOR; HEAT,EXH MANIF
8-97039-753-1
01
1
1103-
●
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
0808-1102
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
1103-
●
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0808-1102
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
1103-
●
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
0808-1102
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
1103-
●
●
18
NUT; EXH MANIF
M10 THA
0-91110-510-0
02
1
0808-1102
●
18
NUT; EXH MANIF
M10 THA
0-91110-510-0
02
1
1103-
●
●
21
BOLT; HEAT PROTECTOR
M6X12 FLANGE THA
8-97108-669-0
02
1
0808-1102
●
21
BOLT; HEAT PROTECTOR
M6X12 FLANGE THA
8-97108-669-0
02
1
1103-
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0808-1102
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
1103-
●
●
165
STUD; EGR PIPE
M8X45 L=57
8-94105-162-1
02
1
0808-1102
●
165
STUD; EGR PIPE
M8X45 L=57
8-94105-162-1
02
1
1103-
●
●
