0-25 — INLET MANIFOLD (#25700) — 32 parça

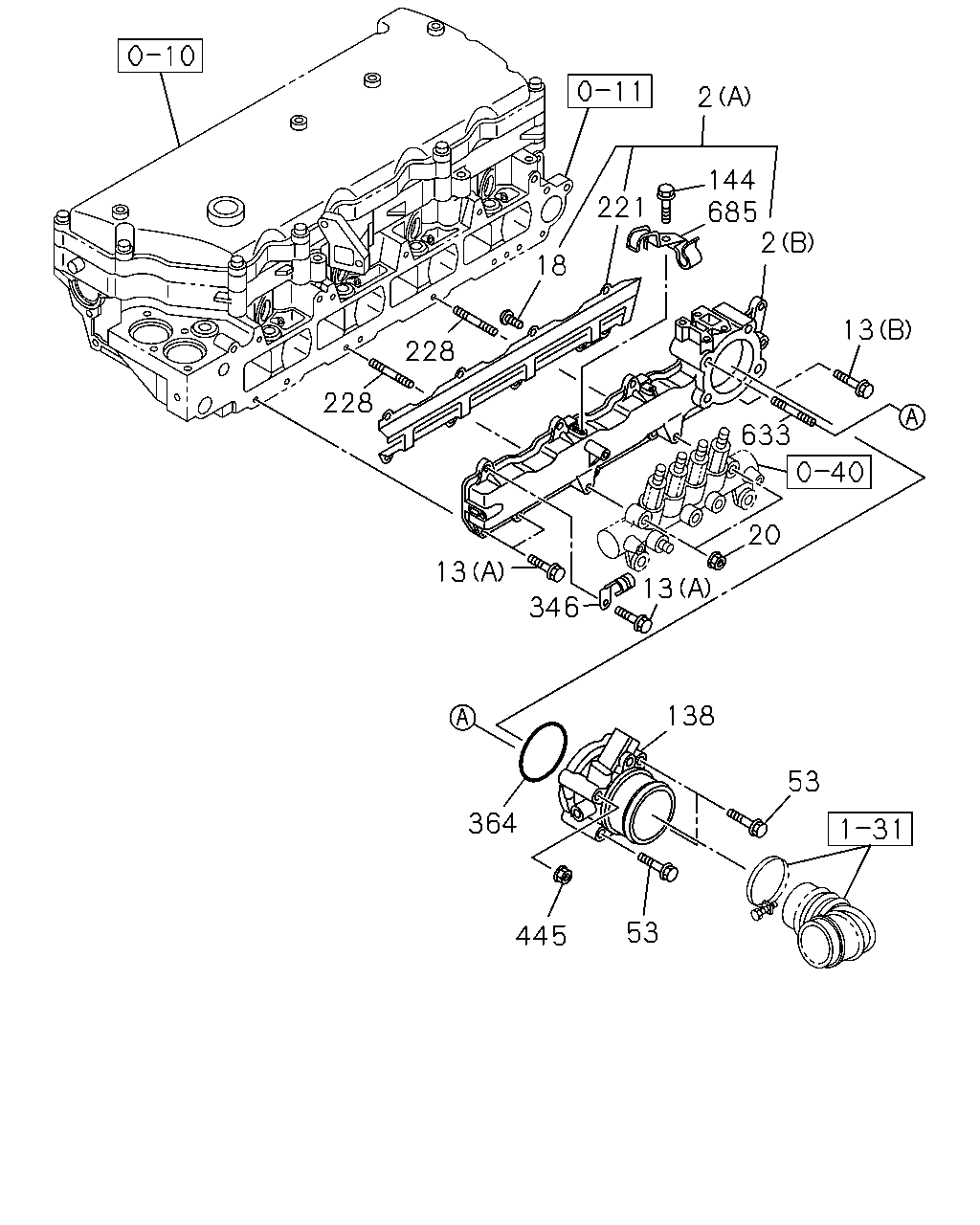

çizim 142715
228 228 18 221 144 2 685 13 2 20 633 13 346 13 364 445 53 138 53
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL
(B) 		8-97387-039-0 01 1 1103- ● ●
2 COVER; INL
(A) 		8-97387-038-0 01 1 0808-1102 ●
2 COVER; INL
(A) 		8-97387-038-0 01 1 1103- ● ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 09 1 0808-1102 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 09 1 1103- ● ●
13 BOLT; INL MANIF
(B) M8X80 FLANGE THA 		0-28050-880-0 01 1 0808-1102 ●
13 BOLT; INL MANIF
(B) M8X80 FLANGE THA 		0-28050-880-0 01 1 1103- ● ●
18 SCREW; PLATE,INL CVR
M6X10 		9-03490-610-0 09 1 0808-1102 ●
18 SCREW; PLATE,INL CVR
M6X10 		9-03490-610-0 09 1 1103- ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0808-1102 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 1103- ● ●
53 BOLT; INL PIPE
M8X30 FLANGE THA 		0-28650-830-0 03 1 0808-1102 ●
53 BOLT; INL PIPE
M8X30 FLANGE THA 		0-28650-830-0 03 1 1103- ● ●
138 PIPE; INL 8-98101-477-0 01 1 0808-1102 ●
138 PIPE; INL 8-98101-477-0 01 1 1103-1212 ● ●
138 PIPE; INL 8-98217-016-0 01 1 1301- ● ●
144 BOLT; BRKT FIX
M8X12 FLANGE THA 		0-28050-812-0 01 1 0808-1102 ●
144 BOLT; BRKT FIX
M8X12 FLANGE THA 		0-28050-812-0 01 1 1103- ● ●
221 PLATE; INL COVER 8-97379-202-0 01 1 0808-1102 ●
221 PLATE; INL COVER 8-97379-202-0 01 1 1103- ● ●
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 0808-1102 ●
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 1103- ● ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0808-1102 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1103- ● ●
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97363-723-0 01 1 0808-1102 ●
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97363-723-0 01 1 1103-1212 ● ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE THA 		0-91180-108-0 01 1 0808-1102 ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE THA 		0-91180-108-0 01 1 1103- ● ●
633 STUD; THROTTLE BODY
M8X71 L=83 		9-09830-212-0 01 1 0808-1102 ●
633 STUD; THROTTLE BODY
M8X71 L=83 		9-09830-212-0 01 1 1103- ● ●
685 BRACKET; HARNESS 8-97331-921-1 01 1 0808-1102 ●
685 BRACKET; HARNESS 8-97331-921-1 01 1 1103- ● ●
