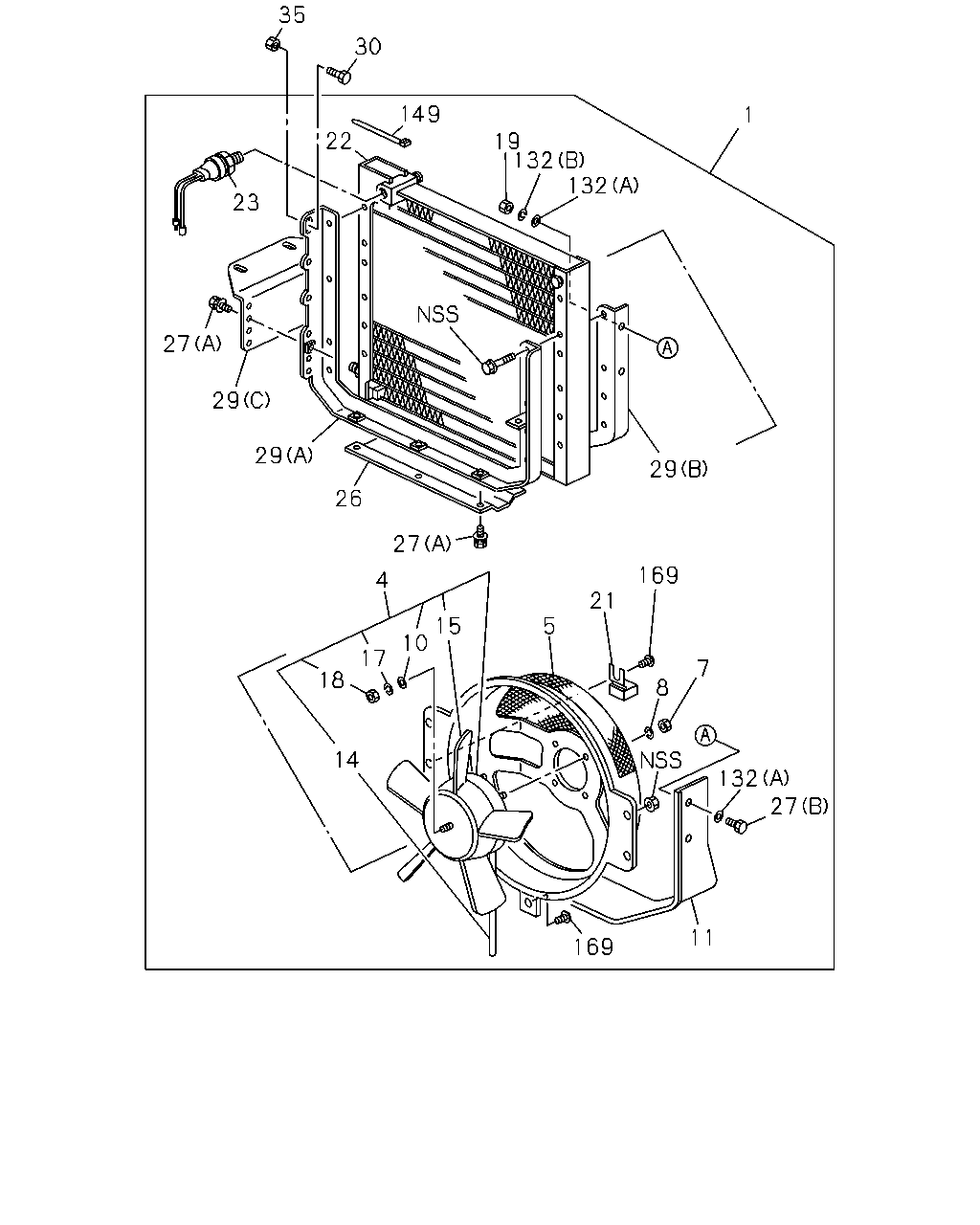

1 |
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-055-2 |
01 |
1 |
9002-9306 |
| |
1 |
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-166-0 |
01 |
1 |
9307- |
| |
4 |
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-033-0 |
01 |
1 |
9002-9306 |
| |
4 |
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-175-0 |
01 |
1 |
9307- |
| |
5 |
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-034-0 |
01 |
1 |
9002-9106 |
| |
5 |
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-185-0 |
01 |
1 |
9107- |
| |
7 |
NUT; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
M4
|
1-83539-065-0 |
04 |
1 |
9002- |
| |
8 |
WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
ID=4.1
|
9-09150-504-0 |
04 |
1 |
9002- |
| |
10 |
WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
|
9-09160-605-0 |
01 |
1 |
9002-9106 |
| |
10 |
WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-045-0 |
01 |
1 |
9107- |
| |
11 |
COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-035-0 |
01 |
1 |
9002- |
| |
14 |
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-258-0 |
01 |
1 |
9002- |
| |
15 |
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-064-0 |
01 |
1 |
9002- |
| |
17 |
WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9002-9106 |
| |
17 |
WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
ID=5
|
1-83539-044-0 |
01 |
1 |
9107- |
| |
18 |
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60)
M5
|
9-99110-505-0 |
01 |
1 |
9002- |
| |
19 |
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
M8 FLANGE
|
1-83539-068-0 |
02 |
1 |
9002- |
| |
21 |
CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-046-0 |
01 |
1 |
9002-9106 |
| |
21 |
CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-84132-007-0 |
01 |
1 |
9107-9306 |
| |
21 |
CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94150-133-0 |
01 |
1 |
9307- |
| |
22 |
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-076-0 |
01 |
1 |
9002-9106 |
| |
22 |
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-140-0 |
01 |
1 |
9107-9306 |
| |
22 |
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-170-0 |
01 |
1 |
9307- |
| |
23 |
SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-82410-085-0 |
01 |
1 |
9002-9306 |
| |
23 |
SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-82380-127-0 |
01 |
1 |
9307- |
| |
26 |
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83571-505-0 |
01 |
1 |
9002-9106 |
| |
26 |
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-071-0 |
01 |
1 |
9107- |
| |
27 |
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
M8X18
|
1-83539-067-0 |
02 |
1 |
9002-9106 |
| |
27 |
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
M8X18
|
9-02040-818-0 |
02 |
1 |
9107- |
| |
27 |
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
M8X22
|
1-83579-198-0 |
09 |
1 |
9002- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-83571-503-0 |
01 |
1 |
9002- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83571-504-0 |
01 |
1 |
9002-9106 |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83539-070-0 |
01 |
1 |
9107- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
|
1-83571-506-0 |
01 |
1 |
9002-9106 |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
|
1-83539-072-0 |
01 |
1 |
9107- |
| |
30 |
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
M10X35 W/LK&PL WASHER
|
9-01971-035-0 |
05 |
1 |
9002-9002 |
| |
30 |
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
M10X35 W/LK&PL WASHER
|
0-50141-035-0 |
05 |
1 |
9003- |
| |
35 |
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
M10
|
9-09110-510-0 |
05 |
1 |
9002- |
| |
132 |
WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
ID=8
|
1-14319-034-0 |
04 |
1 |
9002- |
| |
132 |
WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
ID=8.2
|
9-09150-608-0 |
02 |
1 |
9002-9106 |
| |
132 |
WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83579-492-0 |
02 |
1 |
9107- |
| |
149 |
CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60)
L=140
|
5-09707-008-0 |
01 |
1 |
9307- |
| |
169 |
SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-066-0 |
02 |
1 |
9002- |
