◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#25699) — 54 parça

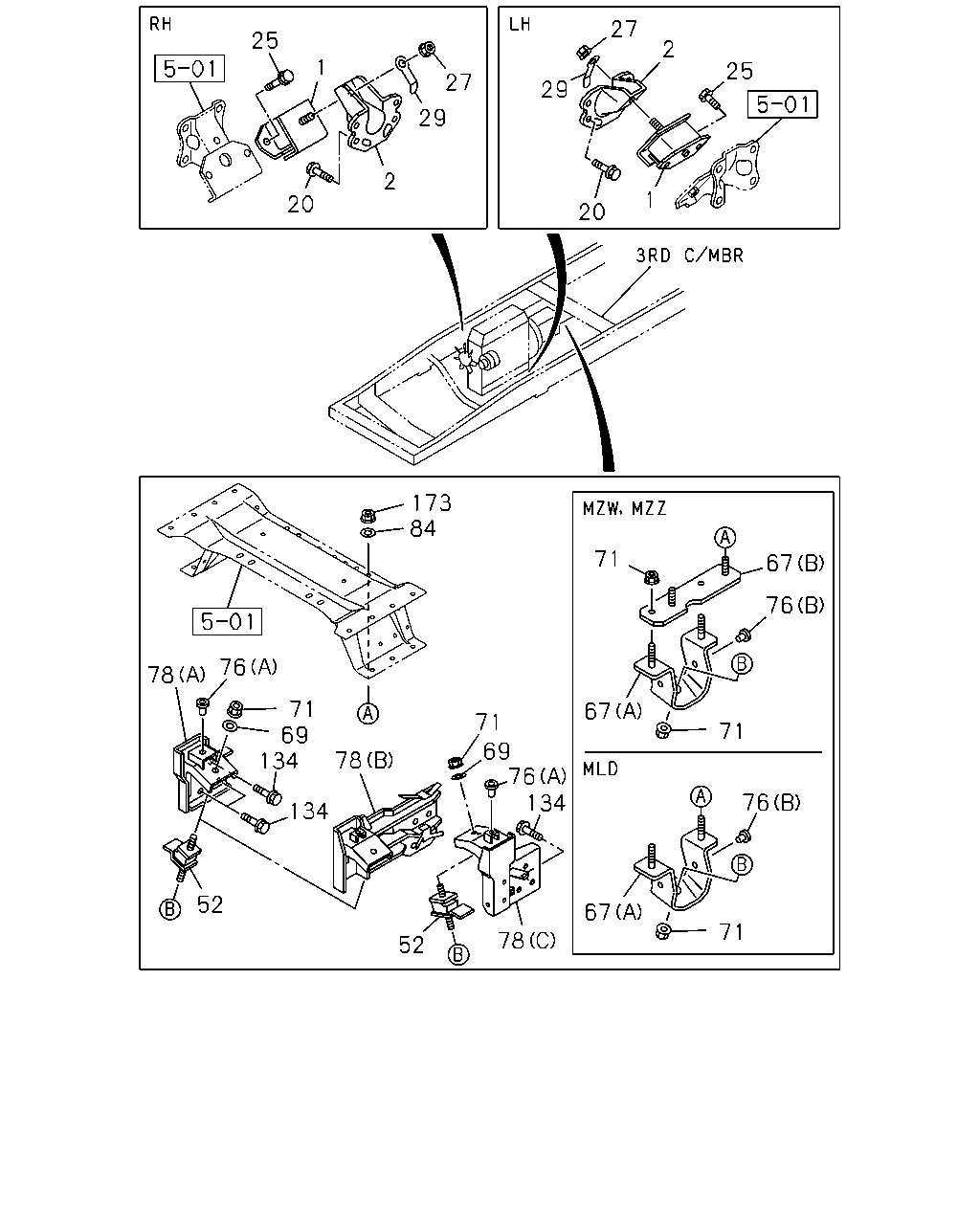

çizim 142731
27 25 2 1 25 27 29 29 2 1 20 20 173 84 71 67 76 76 78 71 69 134 67 71 71 69 76 134 78 76 134 52 67 71 78 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 0808-1102 ●
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1103- ● ●
2 FOOT; ENG 8-97376-076-1 02 1 0808-1102 ●
2 FOOT; ENG 8-97376-076-1 02 1 1103- ● ●
20 BOLT; ENG FOOT
M10X30 FLANGE 		0-28161-030-0 08 1 0808-1102 ●
20 BOLT; ENG FOOT
M10X30 FLANGE 		0-28161-030-0 08 1 1103- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE THA 		0-28651-235-0 04 1 0808- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE THA 		0-91180-212-0 02 1 0808-1102 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE THA 		0-91180-212-0 02 1 1103- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0808-1102 ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1103- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 0808-1102 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1103- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZW6P M/T<RSZ> (A) 		8-98013-942-0 02 1 1001-1102 ●
67 BRACKET; SUPPORT,ENG MTG,RR
(A) 		8-98013-942-0 02 1 1103- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZW6P M/T<RSZ> (B) 		8-98051-917-0 01 1 1001-1102 ●
67 BRACKET; SUPPORT,ENG MTG,RR
(B) 		8-98051-917-0 01 1 1103- ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZW6P M/T<RSZ> (B) 		8-98051-918-0 01 1 1001-1102 ●
67 BRACKET; SUPPORT,ENG MTG,RR
(B) 		8-98051-918-0 01 1 1103- ●
67 BRACKET; SUPPORT,ENG MTG,RR
(A) 		8-98118-881-0 02 1 0808-0912 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MLD6S M/T<X7W> (A) 		8-98118-881-0 02 1 1001-1102 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1103- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 0808-1102 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 03 1 1103- ●
71 NUT; SUPPORT RUBBER TO BRKT
MZW6P M/T<RSZ> M10 FLANGE THA 		0-91180-110-0 08 1 1001-1102 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE THA 		0-91180-110-0 08 1 1103- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE THA 		0-91180-110-0 04 1 0808-0912 ●
71 NUT; SUPPORT RUBBER TO BRKT
MLD6S M/T<X7W> M10 FLANGE THA 		0-91180-110-0 04 1 1001-1102 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE THA 		0-91180-110-0 04 1 1103- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 0808-1102 ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1103- ● ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 0808-1102 ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1103- ● ●
78 BRACKET; ENG MTG,RR
MZW6P M/T<RSZ> (A) 		8-98127-067-0 01 1 1001-1102 ●
78 BRACKET; ENG MTG,RR
(A) 		8-98127-067-0 01 1 1103-1302 ●
78 BRACKET; ENG MTG,RR
(A) 		8-98229-167-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T<RSZ> (A) 		8-98127-068-1 01 1 1001-1102 ●
78 BRACKET; ENG MTG,RR
(A) 		8-98127-068-1 01 1 1103-1302 ●
78 BRACKET; ENG MTG,RR
(A) 		8-98229-175-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
(B) 		8-98113-956-1 01 1 0808-0912 ●
78 BRACKET; ENG MTG,RR
MLD6S M/T<X7W> (B) 		8-98113-956-1 01 1 1001-1102 ●
78 BRACKET; ENG MTG,RR
(C) 		8-98013-944-0 01 1 1103- ●
78 BRACKET; ENG MTG,RR
(B) 		8-98113-957-2 01 1 0808-0912 ●
78 BRACKET; ENG MTG,RR
MLD6S M/T<X7W> (B) 		8-98113-957-2 01 1 1001-1102 ●
78 BRACKET; ENG MTG,RR
(C) 		8-98013-945-2 01 1 1103- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0808-1102 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1103- ● ●
134 BOLT; SUPPORT BRKT
MZW6P M/T<RSZ> M14X35 FLANGE 		0-28751-435-0 08 1 1001-1102 ●
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 1103- ●
134 BOLT; SUPPORT BRKT
M14X40 FLANGE 		0-28761-440-0 08 1 0808-0912 ●
134 BOLT; SUPPORT BRKT
MLD6S M/T<X7W> M14X40 FLANGE 		0-28761-440-0 08 1 1001-1102 ●
134 BOLT; SUPPORT BRKT
M12X25 FLANGE 		0-28751-225-0 06 1 1103- ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE THA 		0-91180-210-0 04 1 0808-1102 ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ● ●
