0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#25698) — 73 parça

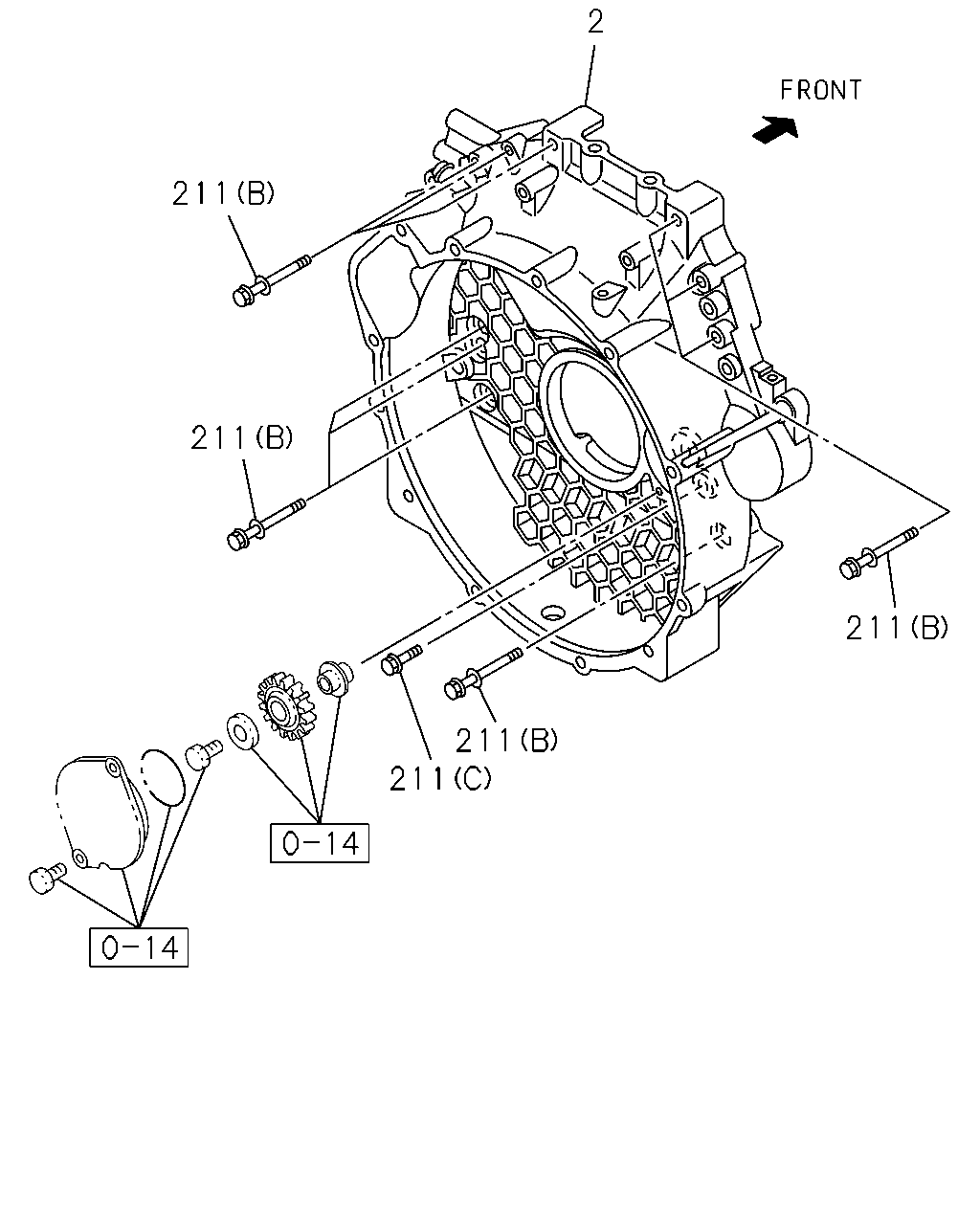

çizim 142723
2 211 211 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-1 01 1 0808-1102 ●
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1103- ● ●
211 BOLT; HSG
(D) M10X50 FLANGE THA 		0-28151-050-0 01 1 0808-1102 ●
211 BOLT; HSG
(D) M10X50 FLANGE THA 		0-28151-050-0 01 1 1103- ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 0808-1102 ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 1103- ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0808-1102 ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1103-1103 ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0808-1102 ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1103- ● ●

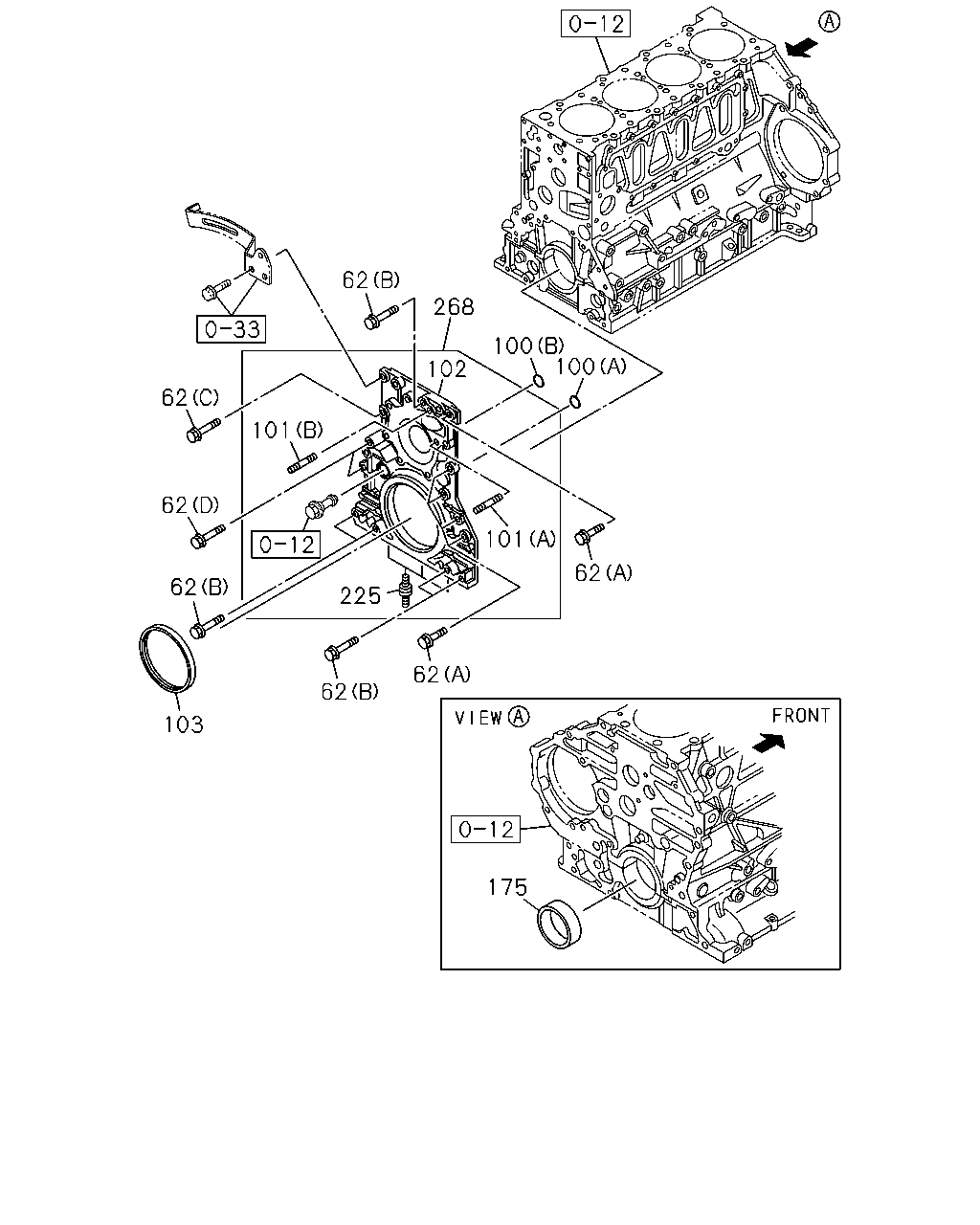

çizim 142728
62 268 100 100 102 62 101 62 101 62 62 225 62 62 103 175
BalonParca AdiParca NoAdetTipApplied Date A B
62 BOLT; COVER
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 0808-1102 ●
62 BOLT; COVER
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1103- ● ●
62 BOLT; COVER
(C) M8X30 FLANGE THA 		0-28650-830-0 01 1 0808-1102 ●
62 BOLT; COVER
(C) M8X30 FLANGE THA 		0-28650-830-0 01 1 1103- ● ●
62 BOLT; COVER
(B) M8X35 FLANGE THA 		0-28650-835-0 06 1 0808-1102 ●
62 BOLT; COVER
(B) M8X35 FLANGE THA 		0-28650-835-0 06 1 1103- ● ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 0808-1102 ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1103- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0808-1102 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1103- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0808-1102 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1103- ● ●
101 STUD; WATER PUMP
(B) M8X18 L=30 THA 		0-41010-818-0 01 1 1103- ● ●
101 STUD; WATER PUMP
(A) M8X18 L=29 		8-97028-541-0 01 1 1103- ● ●
101 STUD; WATER PUMP
(B) M8X18 L=30 THA 		0-41010-818-0 02 1 1001-1102 ●
101 STUD; WATER PUMP
(A) M8X18 L=29 		8-97028-541-0 02 1 1001-1102 ●
101 STUD; WATER PUMP
(B) M8X18 L=30 THA 		0-41010-818-0 01 1 0808-0912 ●
101 STUD; WATER PUMP
(A) M8X18 L=29 		8-97028-541-0 01 1 0808-0912 ●
102 RETAINER; FRT 8-98039-932-1 01 1 0808-1102 ●
102 RETAINER; FRT 8-98039-932-2 01 1 1103- ● ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0808-1102 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1103- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0808-1102 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1103- ● ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0808-1102 ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1103-1107 ● ●
268 COVER; FRT 8-98039-931-1 01 1 0808-1102 ●
268 COVER; FRT 8-98039-931-1 01 1 1103-1107 ● ●
268 COVER; FRT 8-97148-937-3 01 1 1108- ● ●

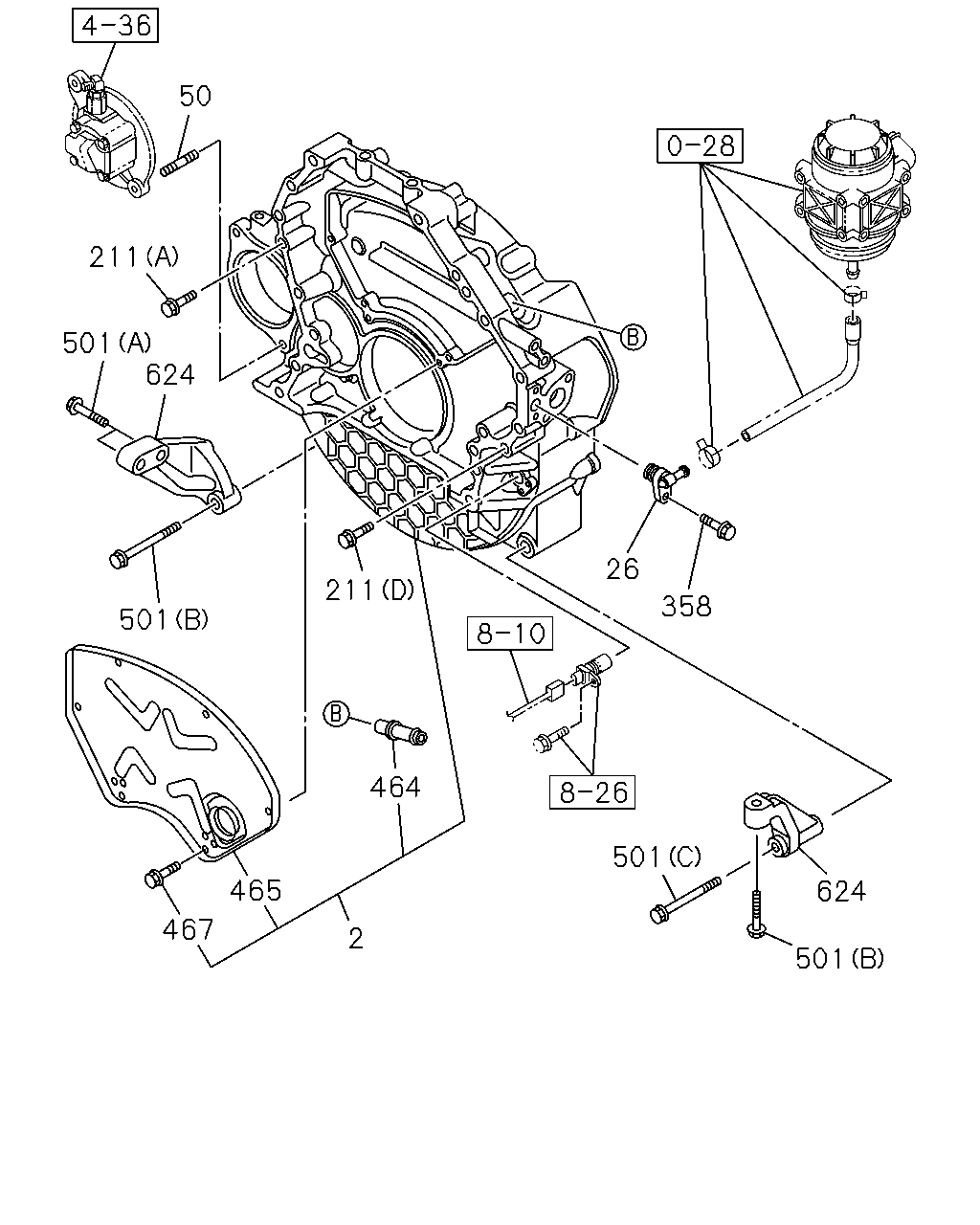

çizim 142729
50 211 501 624 26 211 358 501 464 501 465 624 467 2 501
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-1 01 1 0808-1102 ●
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1103- ● ●
26 ADAPTER 8-97354-819-0 01 1 0808-1102 ●
26 ADAPTER 8-97354-819-0 01 1 1103- ● ●
50 STUD
M10X25 L=48.5 		0-49241-025-0 01 1 0808-1102 ●
50 STUD
M10X25 L=48.5 		0-49241-025-0 01 1 1103- ● ●
211 BOLT; HSG
(D) M10X50 FLANGE THA 		0-28151-050-0 01 1 0808-1102 ●
211 BOLT; HSG
(D) M10X50 FLANGE THA 		0-28151-050-0 01 1 1103- ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 0808-1102 ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 1103- ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0808-1102 ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1103-1103 ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0808-1102 ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1103- ● ●
358 BOLT; ADAPTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 0808-1102 ●
358 BOLT; ADAPTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 1103- ● ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0808-1102 ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1103- ● ●
465 PLATE; FLYWHEEL HSG 8-97388-568-1 01 1 0808-1102 ●
465 PLATE; FLYWHEEL HSG 8-97388-568-1 01 1 1103- ● ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 0808-1102 ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 1103- ● ●
501 BOLT; STIFFENER
(A) M10X40 FLANGE 		0-28151-040-0 02 1 0808-1102 ●
501 BOLT; STIFFENER
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1103- ● ●
501 BOLT; STIFFENER
(B) M12X50 FLANGE THA 		0-28151-250-0 02 1 0808-1102 ●
501 BOLT; STIFFENER
(B) M12X50 FLANGE THA 		0-28151-250-0 02 1 1103- ● ●
501 BOLT; STIFFENER
(C) M12X90 FLANGE 		0-28151-290-0 01 1 0808-1102 ●
501 BOLT; STIFFENER
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1103- ● ●
624 STIFFENER 8-97380-613-1 01 1 0808-1102 ●
624 STIFFENER 8-97380-613-1 01 1 1103- ● ●
624 STIFFENER 8-97380-614-1 01 1 0808-1102 ●
624 STIFFENER 8-97380-614-1 01 1 1103- ● ●
