Isuzu WW
▶
TRUCKS
▶
FRR
▶
11122 - FRR THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶

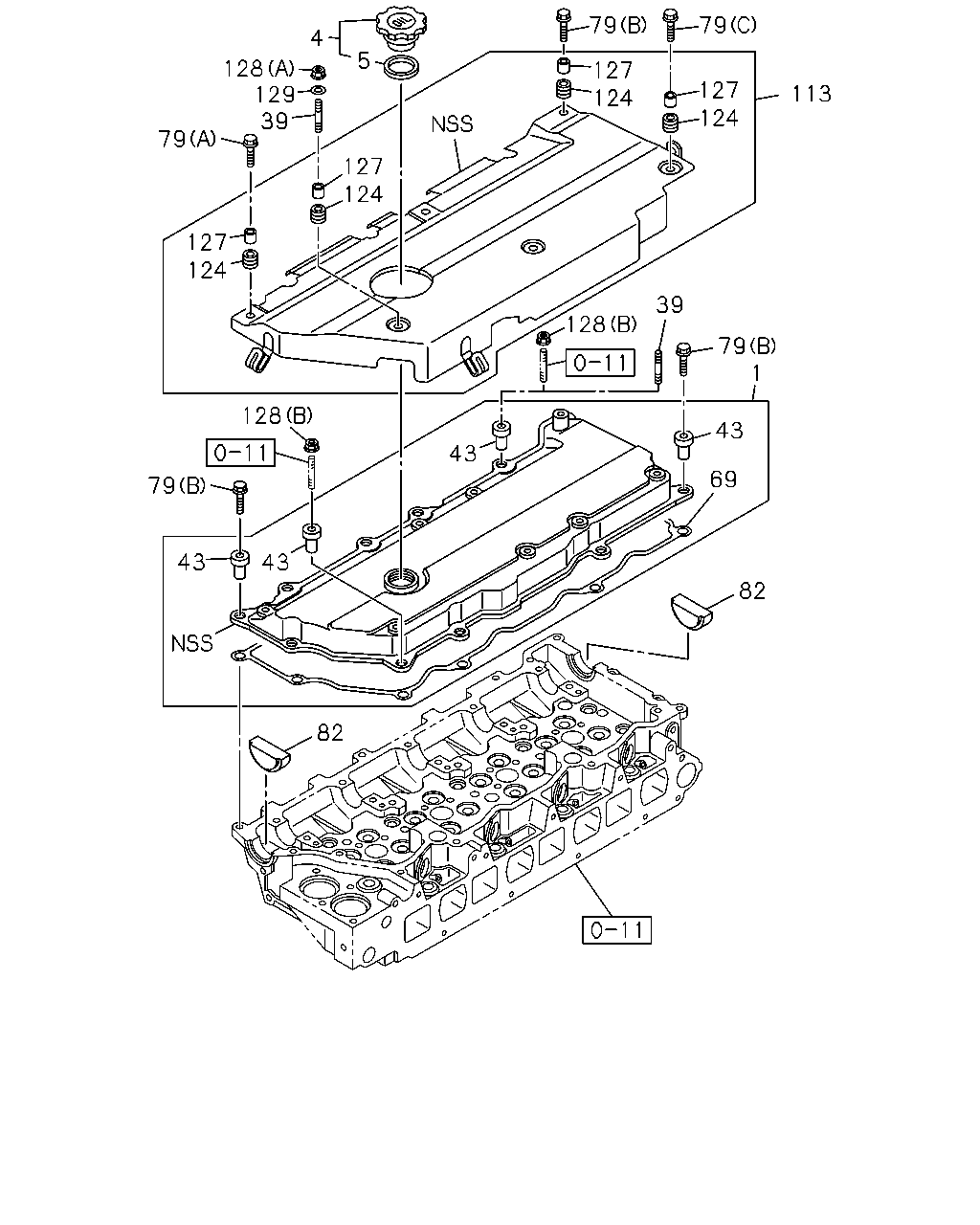

0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#25692) — 34 parça
Tümü
A - 4HK1-TCS ENG
B - 4HK1-TCC ENG
82
69
43
43
43
43
82
124
127
127
39
129
39
124
124
127
124
127
113
4
5
128
79
79
79
79
128
128
79
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-97331-361-2
01
1
0808-1102
●
1
COVER; CYL HD
8-97331-361-2
01
1
1103-
●
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
0808-1102
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1103-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
0808-1102
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
1103-
●
●
39
STUD; COVER,HD
M6X20 L=28
0-41010-620-0
02
1
1212-1312
●
●
39
STUD; COVER,HD
M6X25 L=34 THA
0-41010-625-0
02
1
0808-1003
●
39
STUD; COVER,HD
EXC. VIN MODEL YEAR 2010<VZA> M6X25 L=34 THA
0-41010-625-0
02
1
1004-1102
●
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
0808-1102
●
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1103-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
0808-1102
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1103-
●
●
79
BOLT; COVER
(A) M8X35 FLANGE THA
0-28650-835-0
02
1
0808-1102
●
79
BOLT; COVER
(A) M8X35 FLANGE THA
0-28650-835-0
02
1
1103-
●
●
79
BOLT; COVER
(B) M8X65 FLANGE
1-09044-072-1
07
1
0808-1102
●
79
BOLT; COVER
(B) M8X65 FLANGE
1-09044-072-1
07
1
1103-
●
●
79
BOLT; COVER
(C) M6X20
8-97127-607-0
04
1
0808-1003
●
79
BOLT; COVER
EXC. VIN MODEL YEAR 2010<VZA> (C) M6X20
8-97127-607-0
04
1
1004-1102
●
82
PLUG; CYL HD COVER
8-94399-605-0
02
1
0808-1005
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1006-1102
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1103-
●
●
113
COVER; CYL HEAD COVER
8-97354-803-3
01
1
0808-1003
●
113
COVER; CYL HEAD COVER
EXC. VIN MODEL YEAR 2010<VZA>
8-97354-803-3
01
1
1004-1102
●
124
RUBBER; MTG,COVER
8-97226-908-0
06
1
0808-1003
●
124
RUBBER; MTG,COVER
EXC. VIN MODEL YEAR 2010<VZA>
8-97226-908-0
06
1
1004-1102
●
127
RETAINER; COVER
8-97092-314-0
06
1
0808-1003
●
127
RETAINER; COVER
EXC. VIN MODEL YEAR 2010<VZA>
8-97092-314-0
06
1
1004-1102
●
128
NUT; COVER,CYL HEAD COVER
(A) M6 FLANGE THA
0-91180-106-0
02
1
0808-1003
●
128
NUT; COVER,CYL HEAD COVER
EXC. VIN MODEL YEAR 2010<VZA> (A) M6 FLANGE THA
0-91180-106-0
02
1
1004-1102
●
128
NUT; COVER,CYL HEAD COVER
(B) M8 FLANGE THA
0-91180-108-0
02
1
0808-1102
●
128
NUT; COVER,CYL HEAD COVER
(B) M8 FLANGE THA
0-91180-108-0
02
1
1103-
●
●
129
WASHER; COVER,CYL HEAD COVER
ID=6.4 OD=18 THA
0-91610-706-0
01
1
0808-1003
●
129
WASHER; COVER,CYL HEAD COVER
EXC. VIN MODEL YEAR 2010<VZA> ID=6.4 OD=18 THA
0-91610-706-0
01
1
1004-1102
●
