Isuzu WW
▶
TRUCKS
▶
FTR
▶
11125 - FTR(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

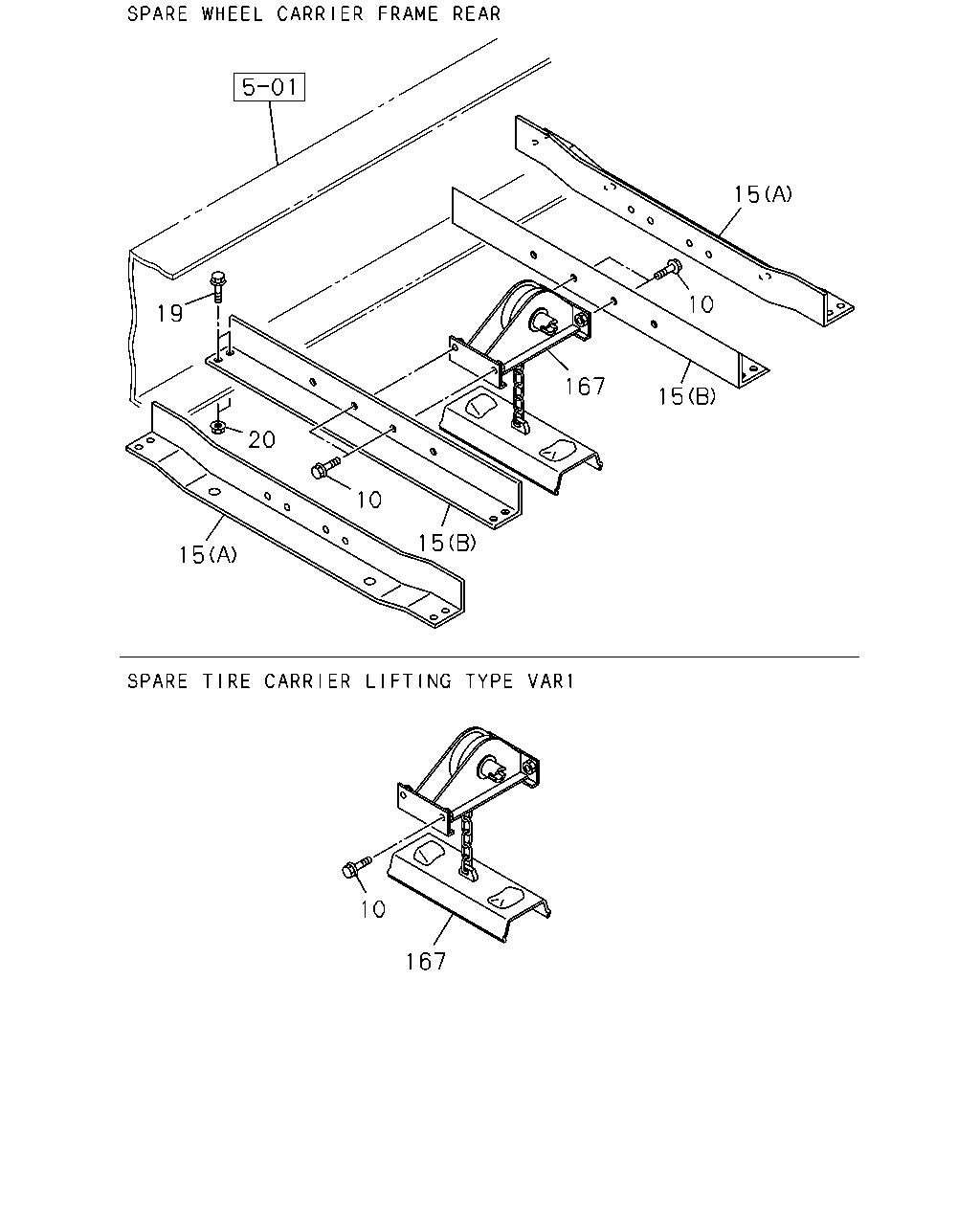

5-30 — SPARE TIRE CARRIER AND COVER
(#25690) — 8 parça
15
10
19
167
15
20
10
15
15
10
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE THA
0-28651-230-0
04
1
0808-0808
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE THA
0-28651-230-0
04
1
0809-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> (B)
1-53631-394-0
02
1
0905-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> (A) THA
8-97913-545-1
02
1
0808-0904
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE THA
0-28051-025-0
08
1
0908-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE THA
0-28051-035-0
08
1
0808-0907
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE THA
0-91180-210-0
08
1
0808-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-208-3
01
1
0808-
