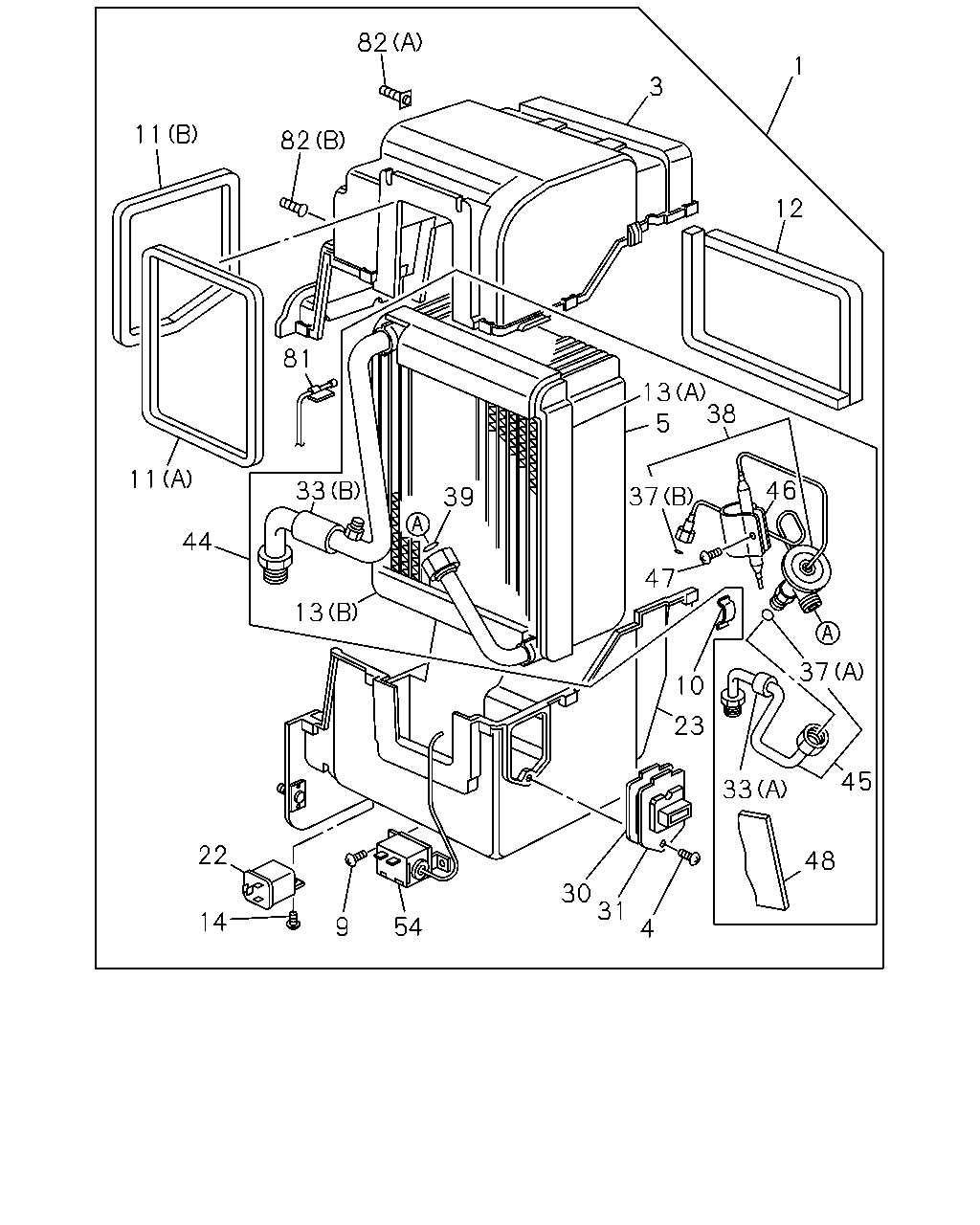

8-74 — EVAPORATOR (#2569) — 37 parça

82 1 3 11 82 12 81 13 5 38 11 46 33 37 39 44 47 13 37 10 23 45 33 22 48 30 31 14 9 54 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-074-4	01	1	9002-9306
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-114-0	01	1	9307-
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-290-0	01	1	9002-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	0-71181-414-0	01	1	9002-
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-040-3	01	1	9002-9306
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-073-0	01	1	9307-
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-769-0	01	1	9002-
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	11	1	9002-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-172-0	01	1	9002-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-238-0	01	1	9002-
12	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-173-0	02	1	9002-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-166-0	02	1	9002-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-167-0	02	1	9002-
14	SCREW; RELAY TO BRKT AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	02	1	9002-
22	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-094-0	02	1	9002-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-289-0	01	1	9002-
30	LINING; EVAP RESISTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-368-0	01	1	9002-
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-1	01	1	9002-
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-168-0	01	1	9002-
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-169-0	01	1	9002-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=6	8-94481-700-0	01	1	9307-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.65	8-94113-332-0	01	1	9002-9306
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=4.5	8-94248-212-0	01	1	9307-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-94243-996-0	01	1	9002-9306
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-157-0	01	1	9307-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9002-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-082-2	01	1	9002-9306
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-072-0	01	1	9307-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-222-1	01	1	9002-9306
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-495-0	01	1	9307-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-124-0	01	1	9002-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94244-002-0	01	1	9002-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	5-83579-024-0	01	1	9002-
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-466-0	01	1	9002-
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-94122-018-0	01	1	9002-
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-092-0	01	1	9002-
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-176-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
