8-60 — HEATER UNIT; FRONT (#25684) — 102 parça

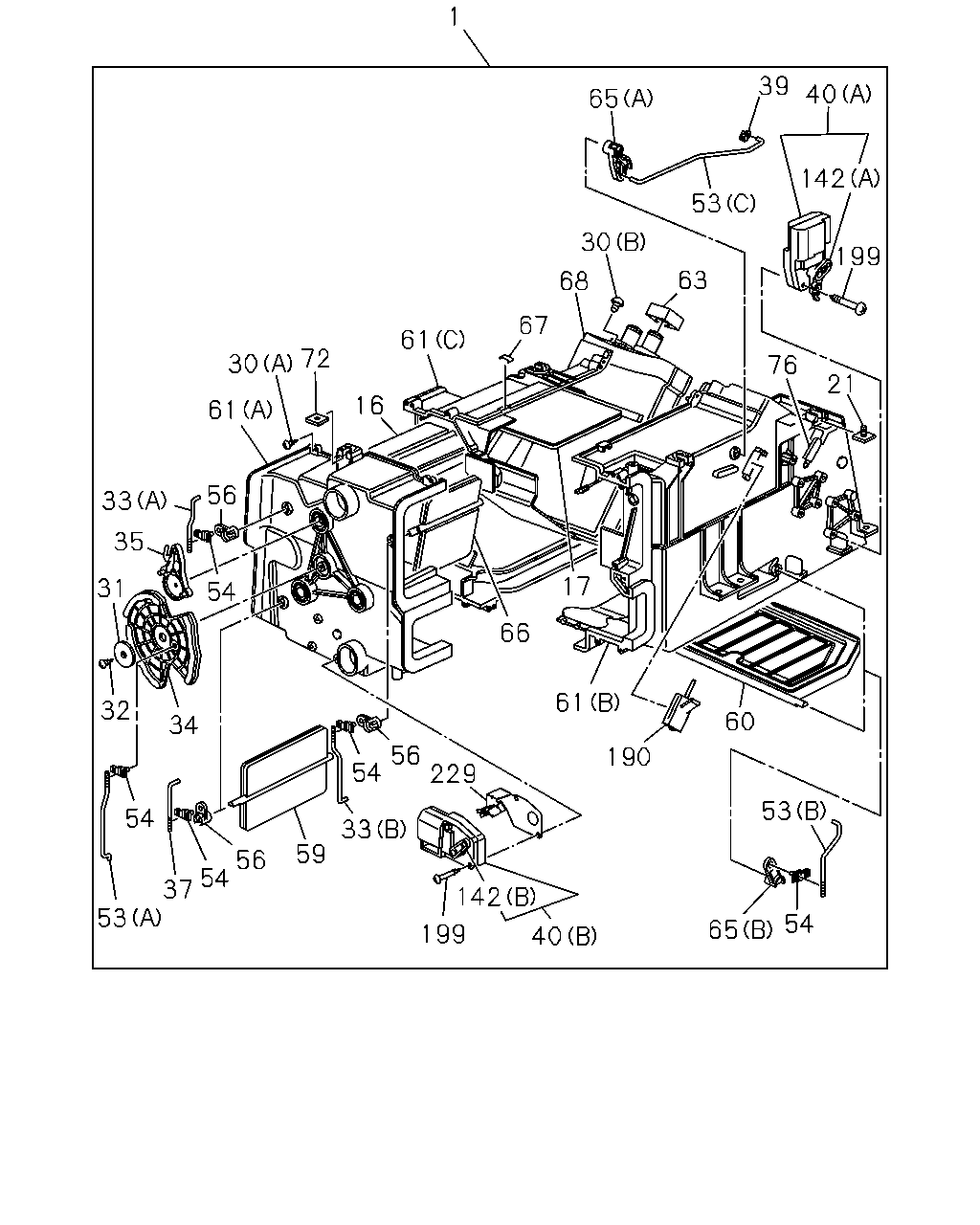

çizim 142371
1 39 40 65 142 53 30 199 63 68 67 61 72 30 76 21 16 61 56 33 35 17 31 54 66 61 32 60 34 56 54 229 190 53 54 33 59 56 54 37 142 53 54 65 199 40
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0806-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410-
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0806-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0806-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0806-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0806-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0806-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0806-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0806-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0806-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0806-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0806-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0806-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0806-
37 ROD; LEVER 1-83579-620-1 01 1 0806-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0806-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0806-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0806-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0806-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0806-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0806-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0806-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0806-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0806-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0806-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0806-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0806-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0806-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0806-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0806-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0806-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0806-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0806-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0806-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0806-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0806-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0806-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0806-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0806-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0806-
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 0806-1409

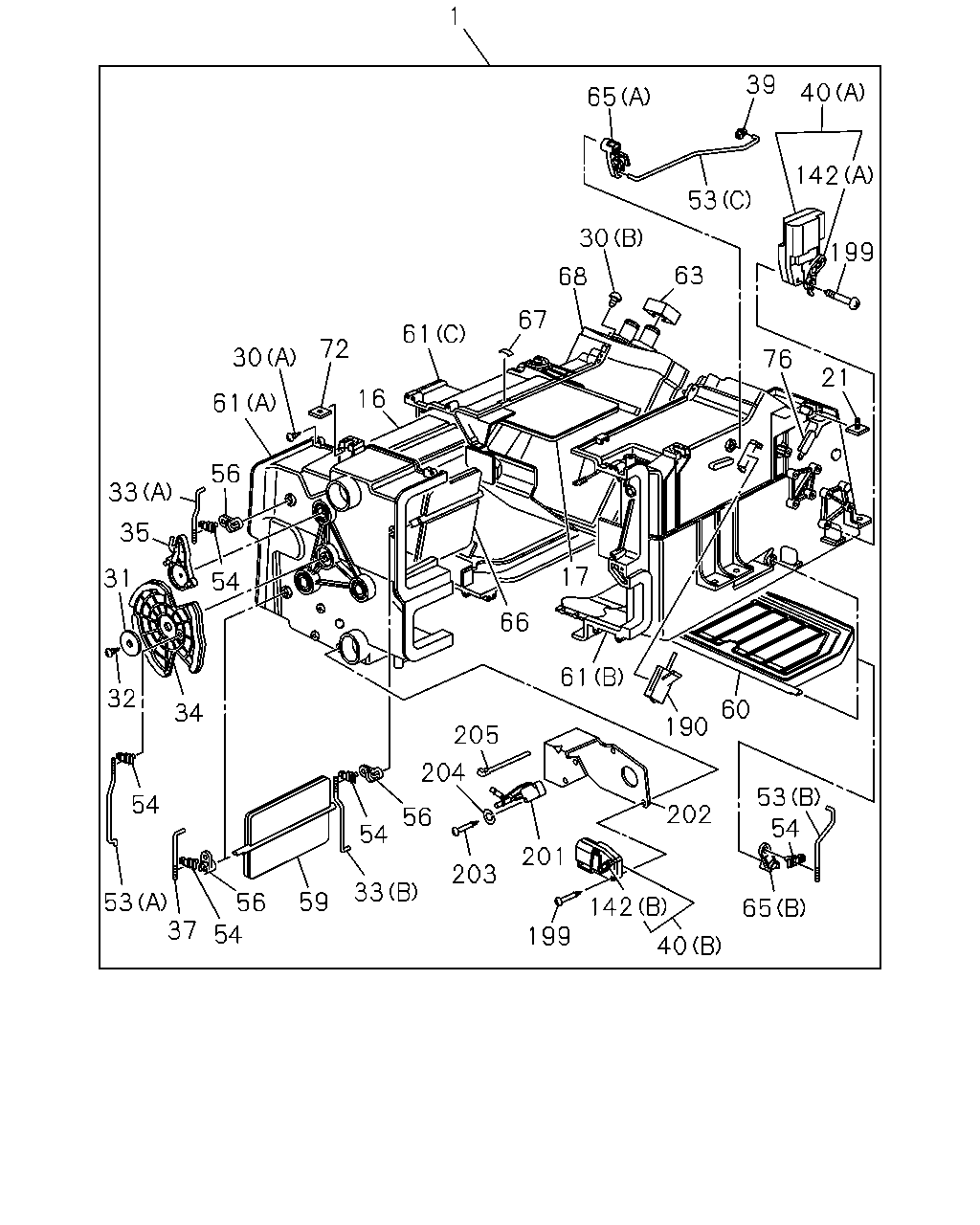

çizim 467516
1 65 39 40 142 199 21 76 53 63 30 68 67 61 72 16 30 61 56 33 35 54 32 34 54 53 37 54 56 59 33 54 203 56 204 201 142 40 199 65 54 202 53 190 60 61 205 66 17 31
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0806-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410-
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0806-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0806-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0806-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0806-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0806-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0806-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0806-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0806-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0806-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0806-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0806-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0806-
37 ROD; LEVER 1-83579-620-1 01 1 0806-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0806-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0806-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0806-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0806-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0806-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0806-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0806-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0806-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0806-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0806-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0806-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0806-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0806-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0806-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0806-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0806-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0806-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0806-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0806-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0806-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0806-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0806-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0806-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0806-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0806-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0806-
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410-
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410-
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410-
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410-
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410-
