Isuzu WW
▶
TRUCKS
▶
EXY
▶
11117 - EXY AUST/NZ HYDRAULIC RETARDER
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

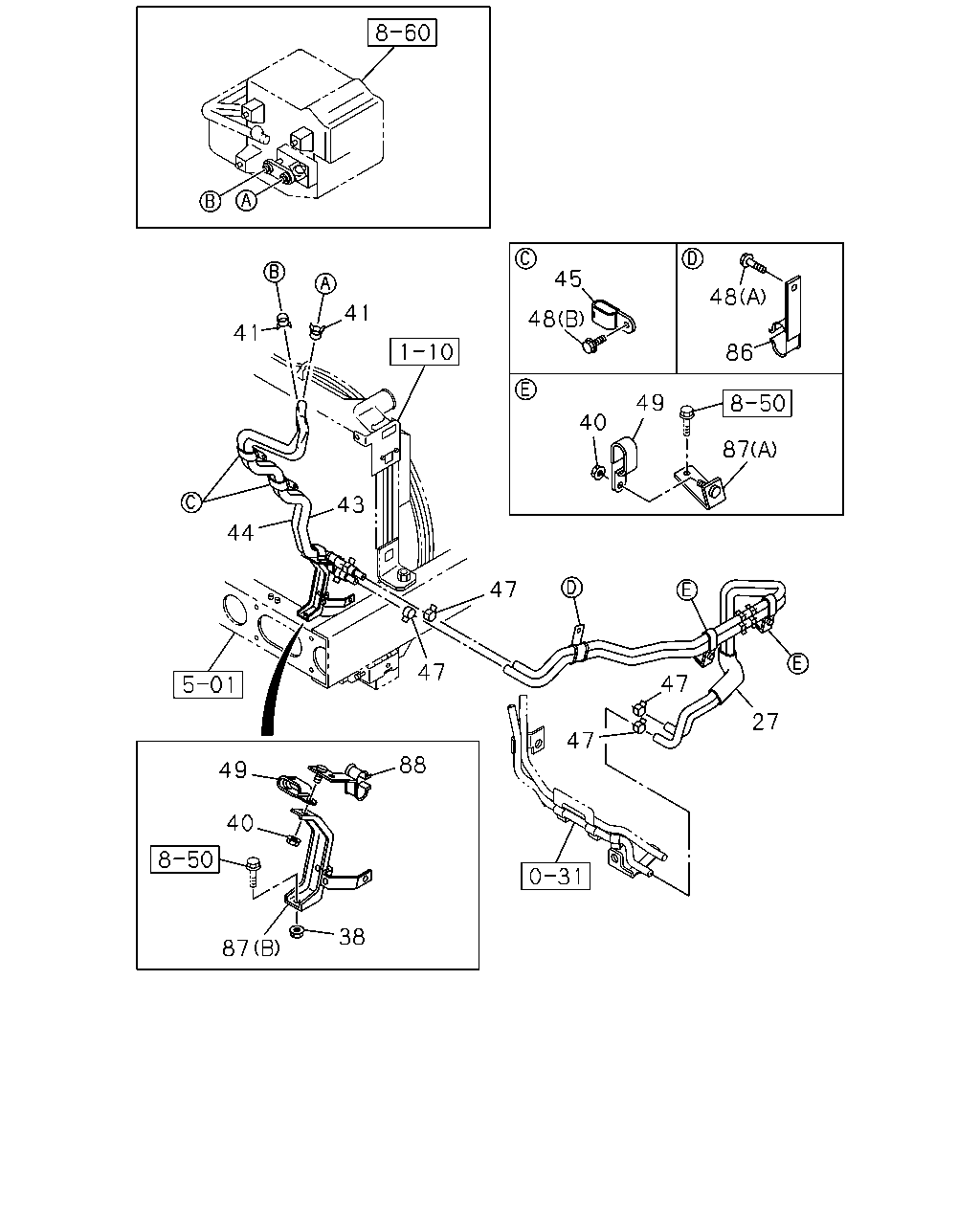

8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#25681) — 18 parça
45
48
41
48
41
86
49
40
43
44
47
47
47
27
47
88
49
40
38
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-839-1
01
1
0806-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0806-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0806-
41
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
02
1
0806-0907
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
0908-
43
HOSE; WATER,OUTLET,HTR
1-83565-828-1
01
1
0806-
44
HOSE; WATER,HTR,INL
1-83565-826-1
01
1
0806-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
0806-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0806-0907
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0908-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
0806-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
0806-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0806-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0806-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
0806-
87
BRACKET; HTR HOSE CLIP
(B)
8-98066-735-0
01
1
0806-
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
02
1
0806-
88
STAY; WATER HOSE
1-83573-291-1
01
1
0806-
