8-40 — HEATER SYSTEM (#25680) — 102 parça

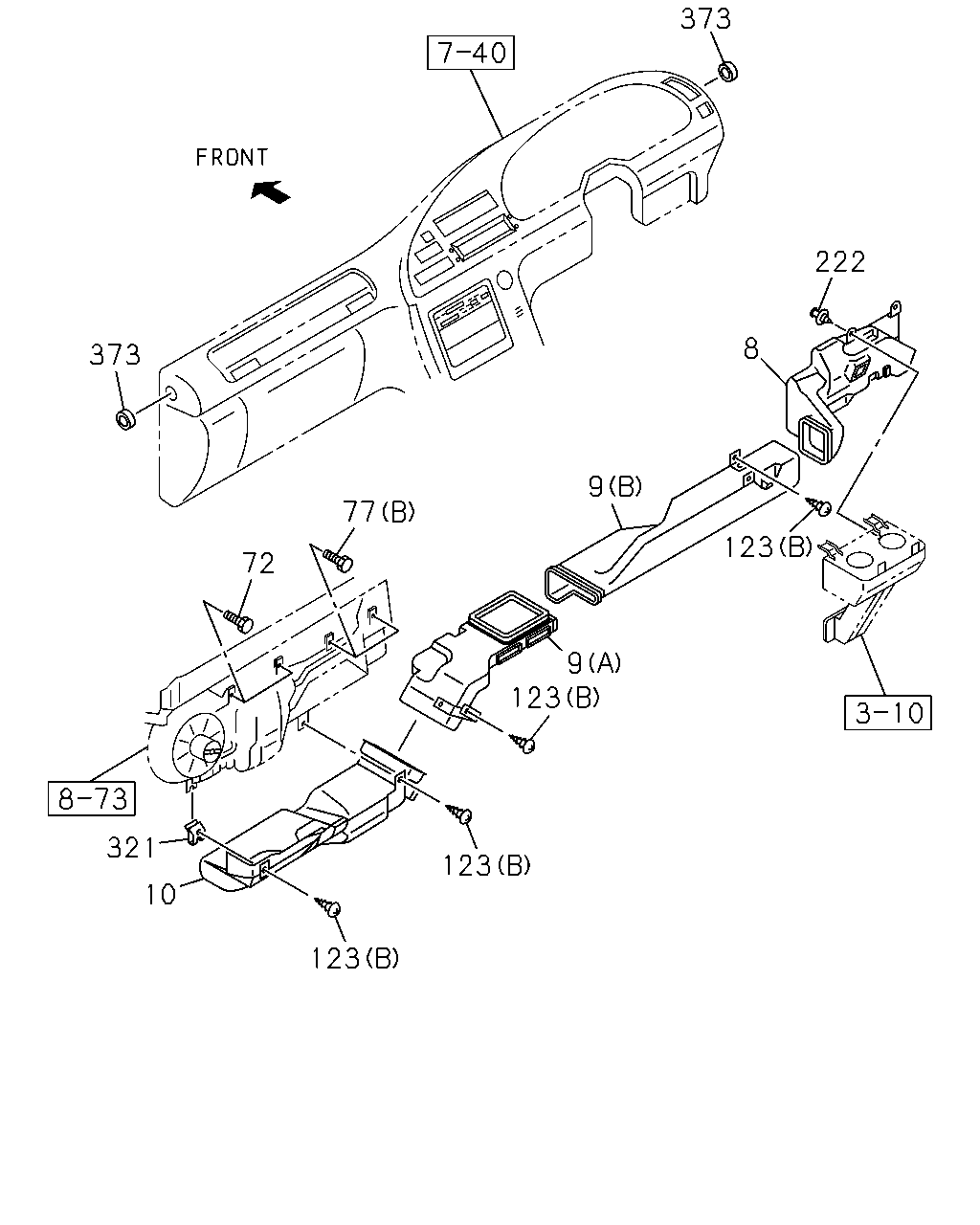

çizim 142348
373 222 8 373 9 77 123 72 9 123 321 123 10 123
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0806-
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-226-2 01 1 0806-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0806-
9 DUCT; HTR AIR,FOOT CENTER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-227-2 01 1 0806-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0806-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0806-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0806-
123 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0806-1008
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1009-
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0806-
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0806-
373 RUBBER; JOINT 1-76378-291-0 02 1 0806-

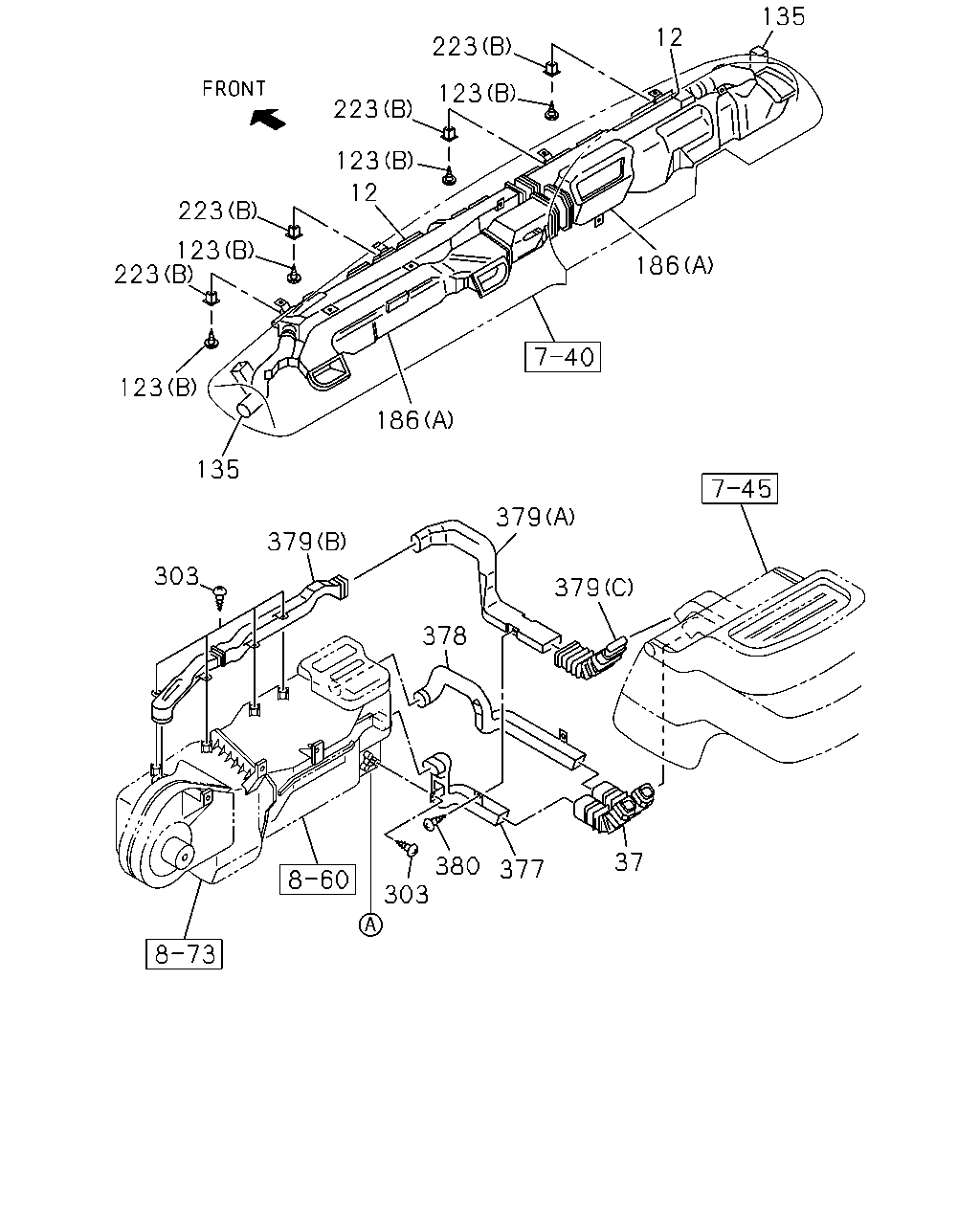

çizim 142352
135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0806-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0806-
37 HOSE; AIR,HTR 1-76377-193-3 01 1 0806-1008
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 1009-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0806-
123 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0806-1008
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1009-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0806-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0806-
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0806-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0806-
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0806-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0806-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0806-
303 SCREW; HOSE
M5X14 		8-94279-325-0 05 1 0806-1008
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 1009-
377 HOSE; BOX,INLET,COOL 1-76377-159-5 01 1 0806-1008
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 1009-
378 HOSE; BOX,INLET,HOT 1-76377-161-6 01 1 0806-1008
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 1009-
379 HOSE; BOX,OUTLET
(A) 		1-76377-163-5 01 1 0806-1008
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 1009-
379 HOSE; BOX,OUTLET
(B) 		1-76377-164-3 01 1 0806-1008
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 1009-
379 HOSE; BOX,OUTLET
(C) 		1-76377-192-4 01 1 0806-1008
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 1009-
380 FASTENER; HOSE
D4.6X14.7 BLACK 		1-09983-104-0 03 1 0806-1008
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 1009-

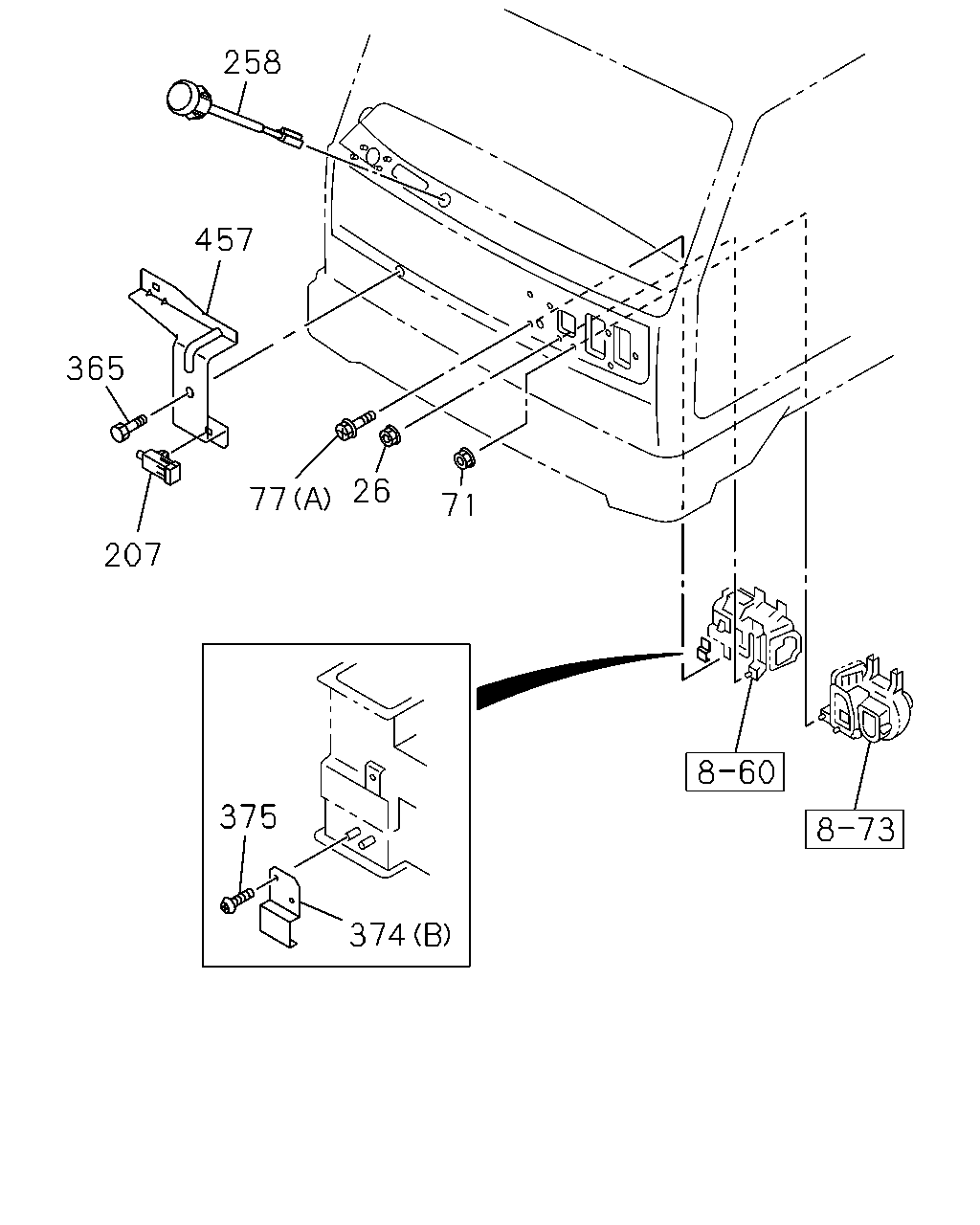

çizim 142358
258 457 365 26 77 71 207 375 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0806-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0806-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0806-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0806-1204
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205-
258 SENSOR; SUN 8-94472-043-2 01 1 0806-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0806-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0806-
374 HOLDER; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 0806-1008
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 1009-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0806-
457 BRACKET; SENSOR 1-71907-603-1 01 1 0806-

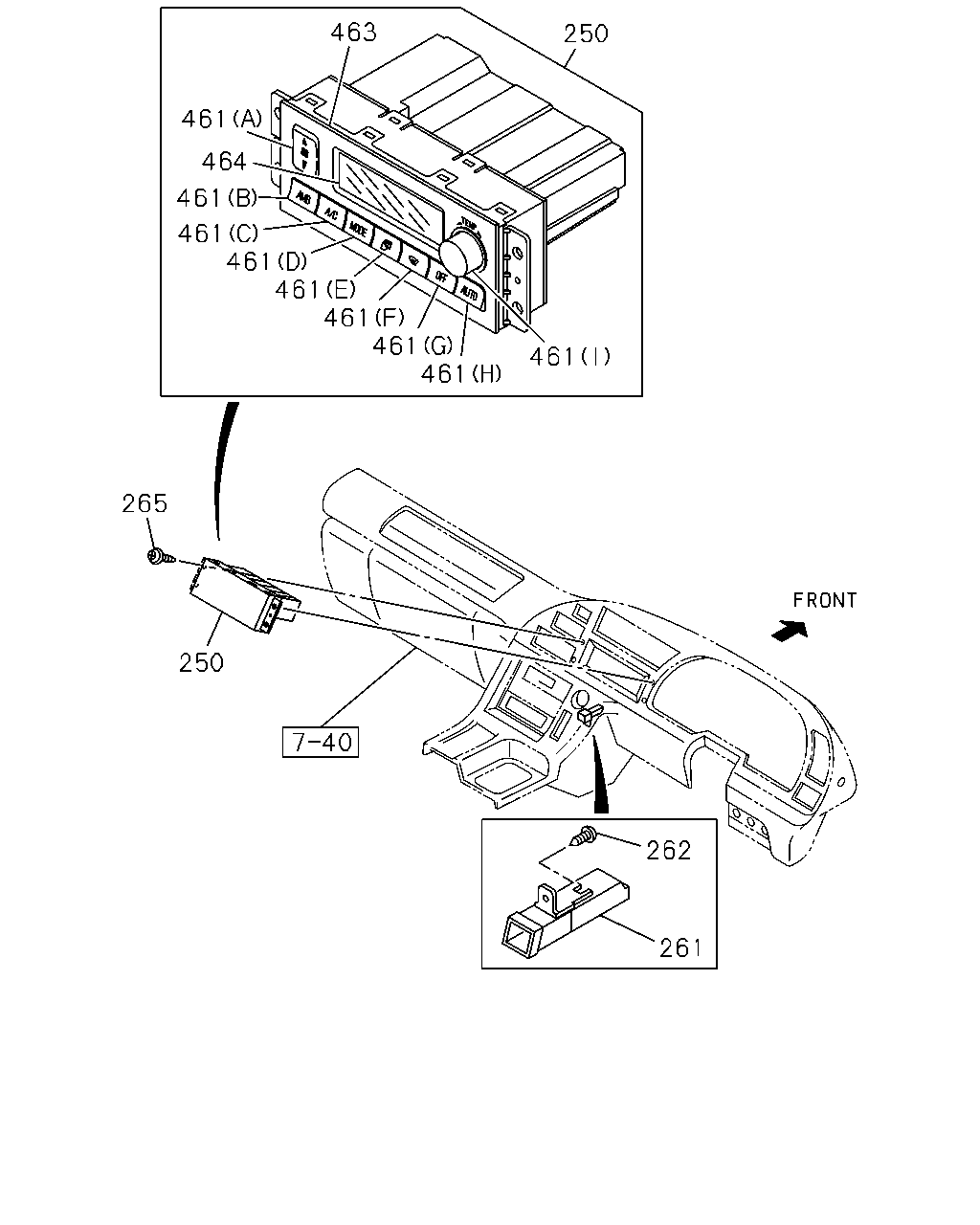

çizim 142359
463 250 461 464 461 461 461 461 461 461 461 461 265 250 262 261
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0806-
261 SENSOR; IN CAR 1-83544-023-1 01 1 0806-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0806-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 0806-
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 0806-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0806-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0806-

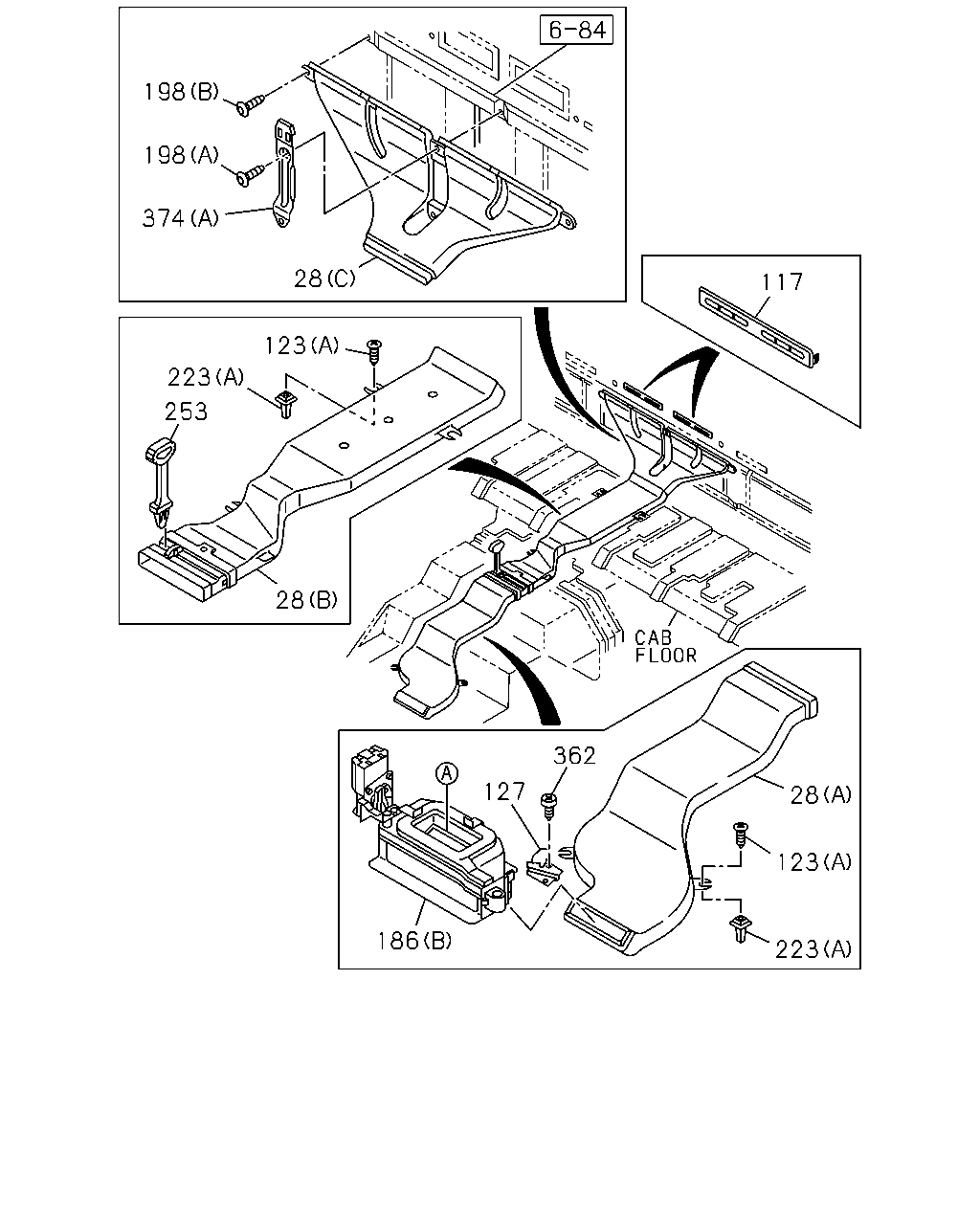

çizim 142375
198 198 374 8 117 123 223 253 28 362 127 28 123 186 223
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0806-
28 DUCT; AIR,VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-180-2 01 1 0806-1008
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-180-2 01 1 1009-
28 DUCT; AIR,VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-76377-186-1 01 1 0806-1008
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-76377-186-1 01 1 1009-
28 DUCT; AIR,VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-203-0 01 1 0806-1008
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-203-0 01 1 1009-
117 GRILLE; VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-187-5 01 1 0806-1008
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-187-5 01 1 1009-
117 GRILLE; VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-188-5 01 1 0806-1008
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-188-5 01 1 1009-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0806-
123 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0806-1008
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1009-
127 BRACKET; VENT DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76397-019-0 01 1 0806-
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0806-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0806-
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0806-
198 CLIP; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 BLACK 		1-09987-114-0 02 1 0806-1008
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 BLACK 		1-09987-114-0 02 1 1009-1204
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205-
198 CLIP; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 0806-1008
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 1009-1204
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1205-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0806-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0806-
253 KNOB; CONT LEVER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-185-1 01 1 0806-1008
253 KNOB; CONT LEVER
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-185-1 01 1 1009-
362 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 02 1 0806-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0806-
374 HOLDER; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 0806-1008
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 1009-
