◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#25679) — 407 parça

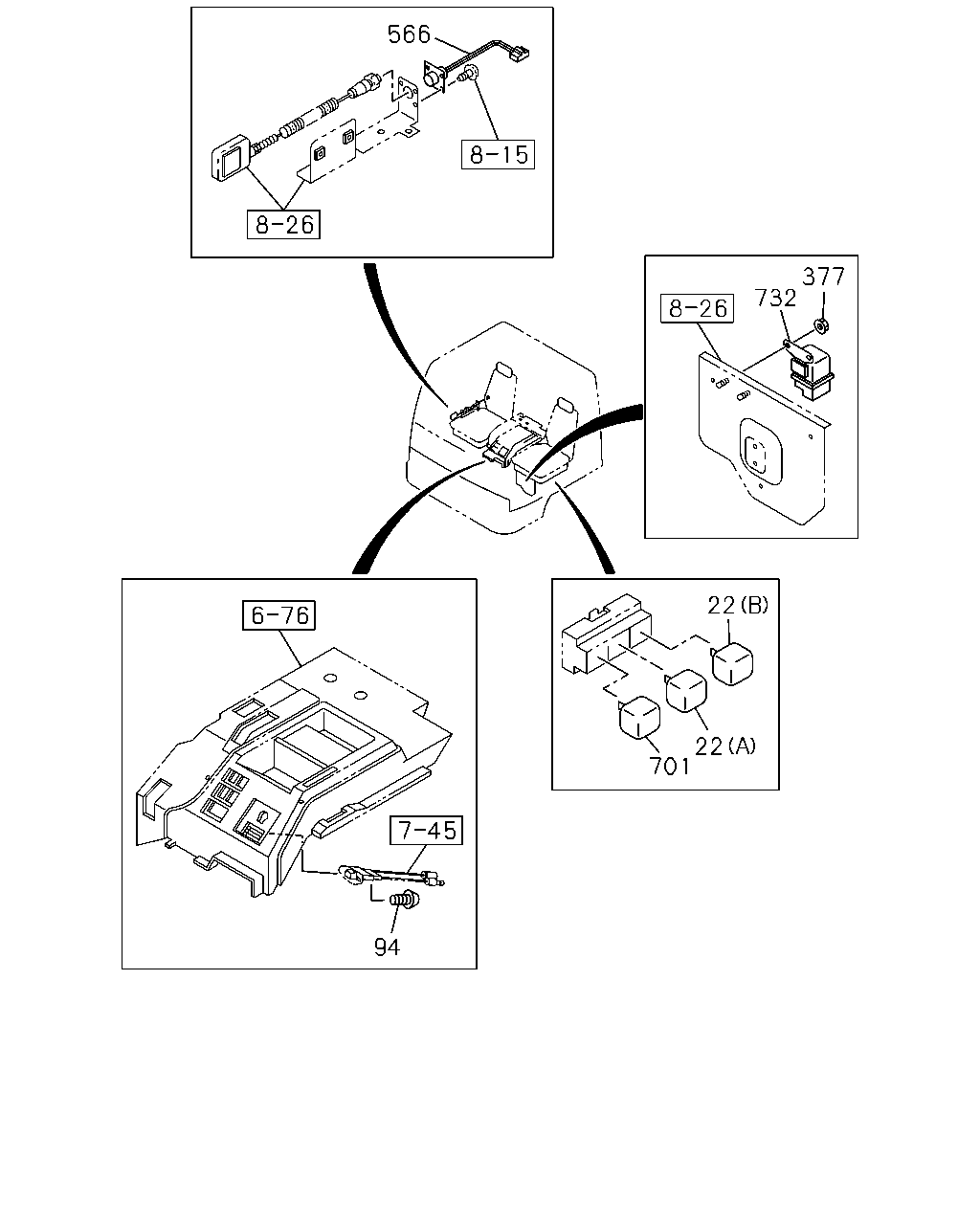

çizim 142333
566 377 732 22 22 701 94
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
22 RELAY; STOP LAMP
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0806-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0806-1008
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 1009-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0806-1008
377 NUT; RELAY
AIR BAG(TFQ) M6 FLANGE 		0-91180-106-0 01 1 1009-
566 HARNESS; REMOTE CONT 1-82626-888-1 01 1 0806-
701 RELAY; BRK,EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
732 RELAY; EDS 1-82550-337-1 01 1 0806-

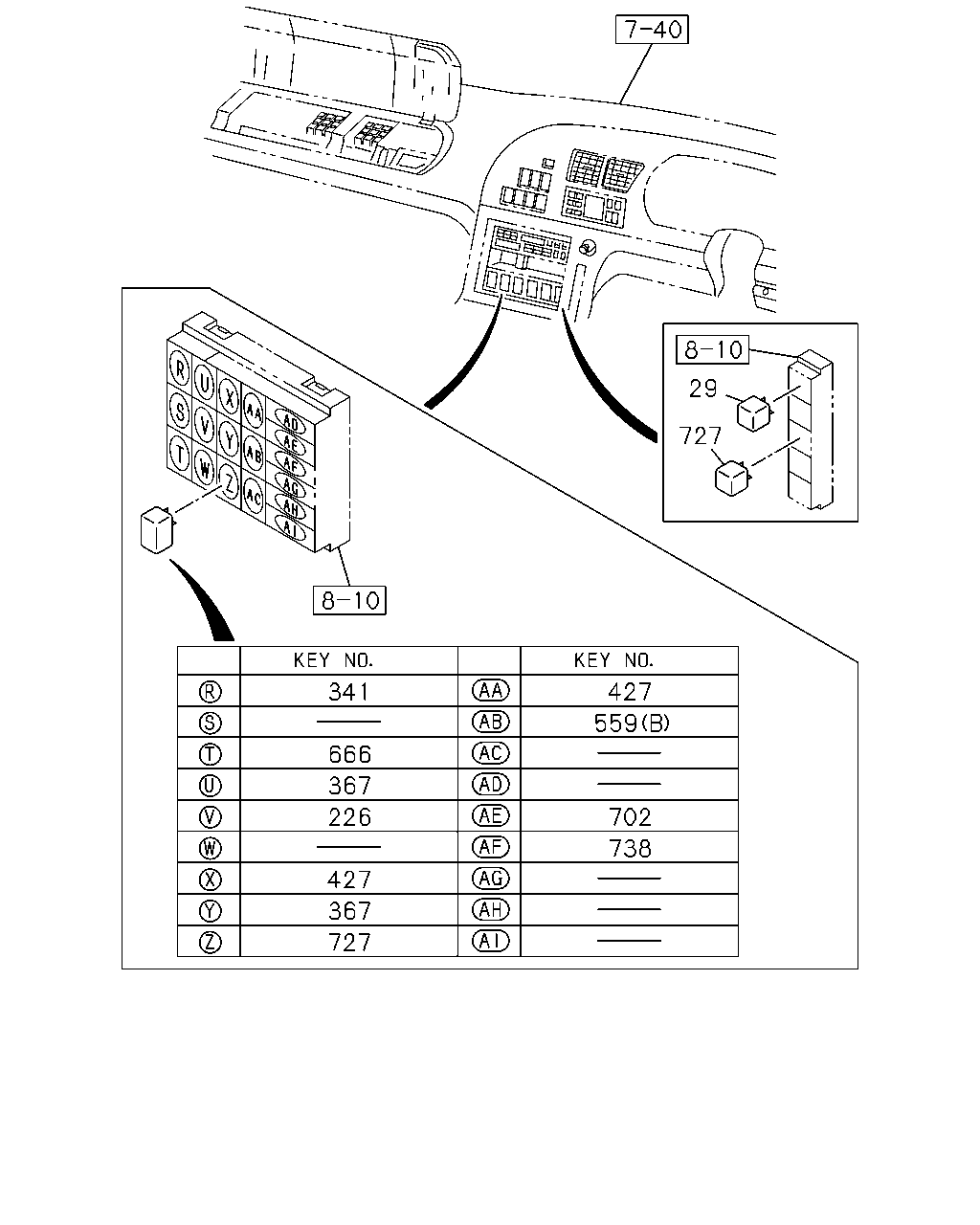

çizim 142334
29 727 341 427 559 666 367 226 702 738 427 367 727
BalonParca AdiParca NoAdetTipApplied Date
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-1008
29 RELAY; HORN
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-
226 RELAY; EXH BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
427 RELAY; RETARDER
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-1312
427 RELAY; RETARDER
24V 10A PANASONIC 		8-97173-035-1 02 1 0806-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
727 RELAY; START CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-1306
727 RELAY; START CUT
24V 10A PANASONIC 		8-98167-173-0 01 1 1307-
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-

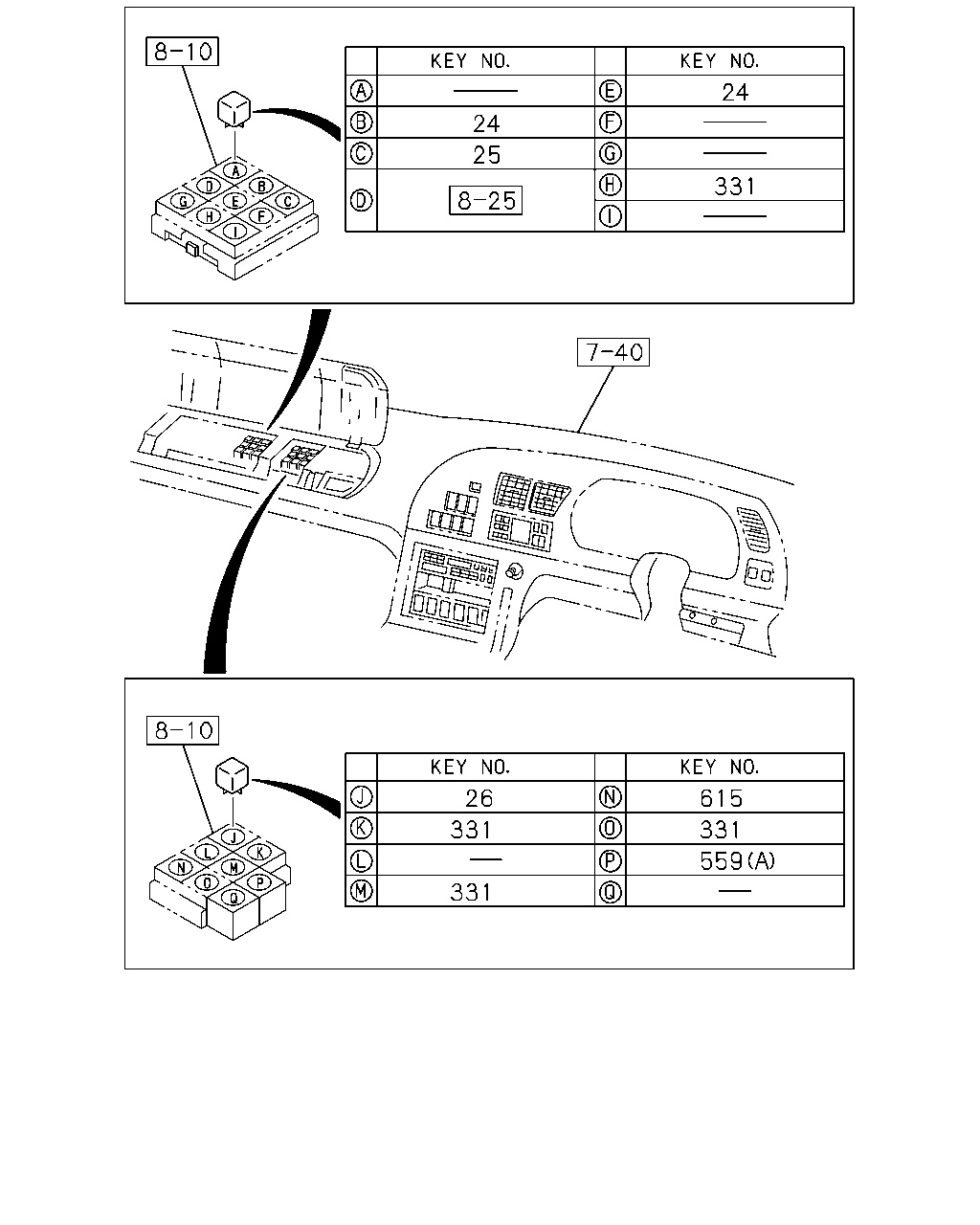

çizim 142339
24 24 25 331 26 615 331 331 559 331
BalonParca AdiParca NoAdetTipApplied Date
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0806-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0806-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0806-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-

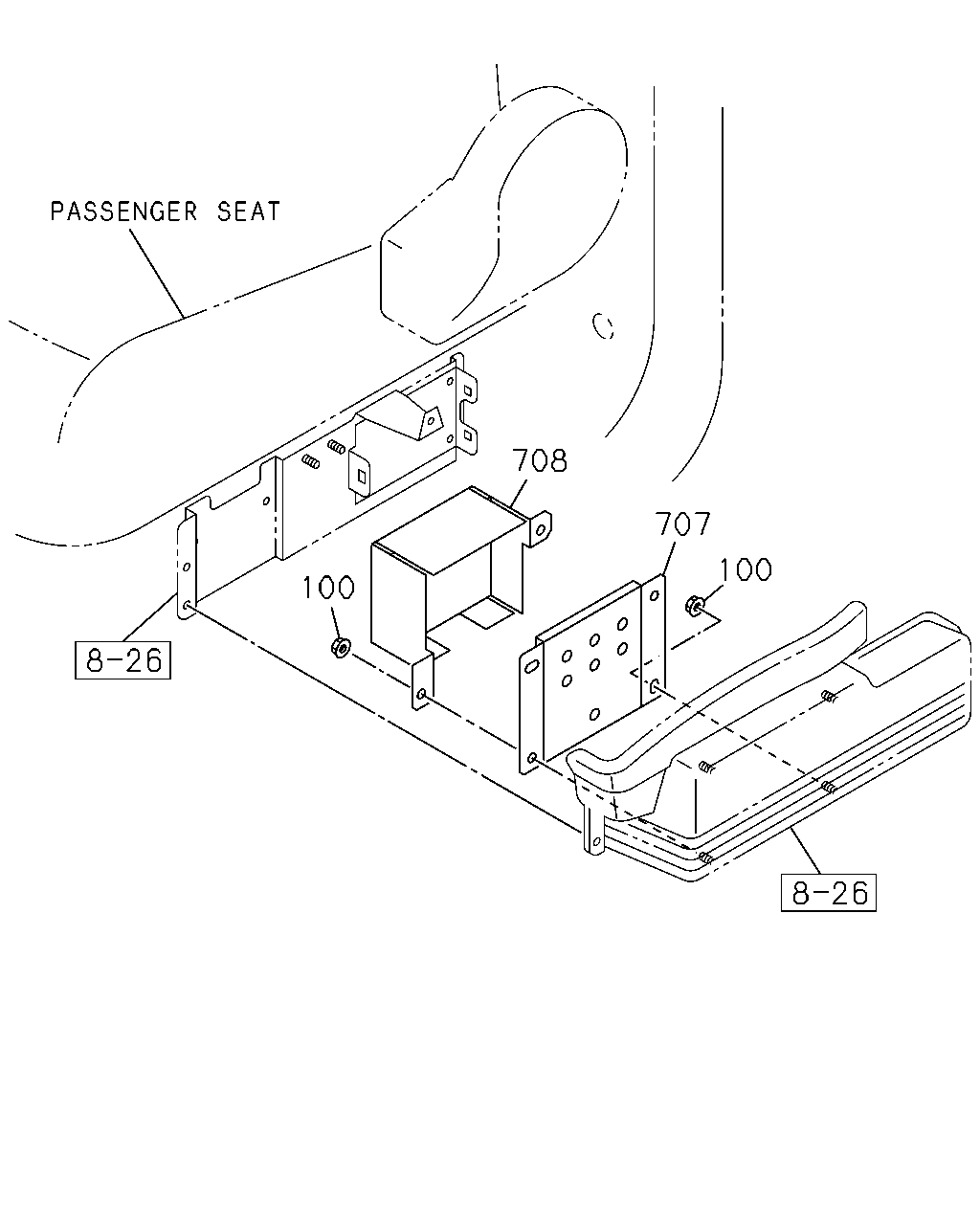

çizim 142340
708 707 100 100
BalonParca AdiParca NoAdetTipApplied Date
100 NUT; RELAY BOX COVER
M6 FLANGE 		0-91180-106-0 04 1 0806-
707 BOX; BASE BRKT 1-82510-603-1 01 1 0806-
708 COVER; BRKT 1-82510-604-1 01 1 0806-0902

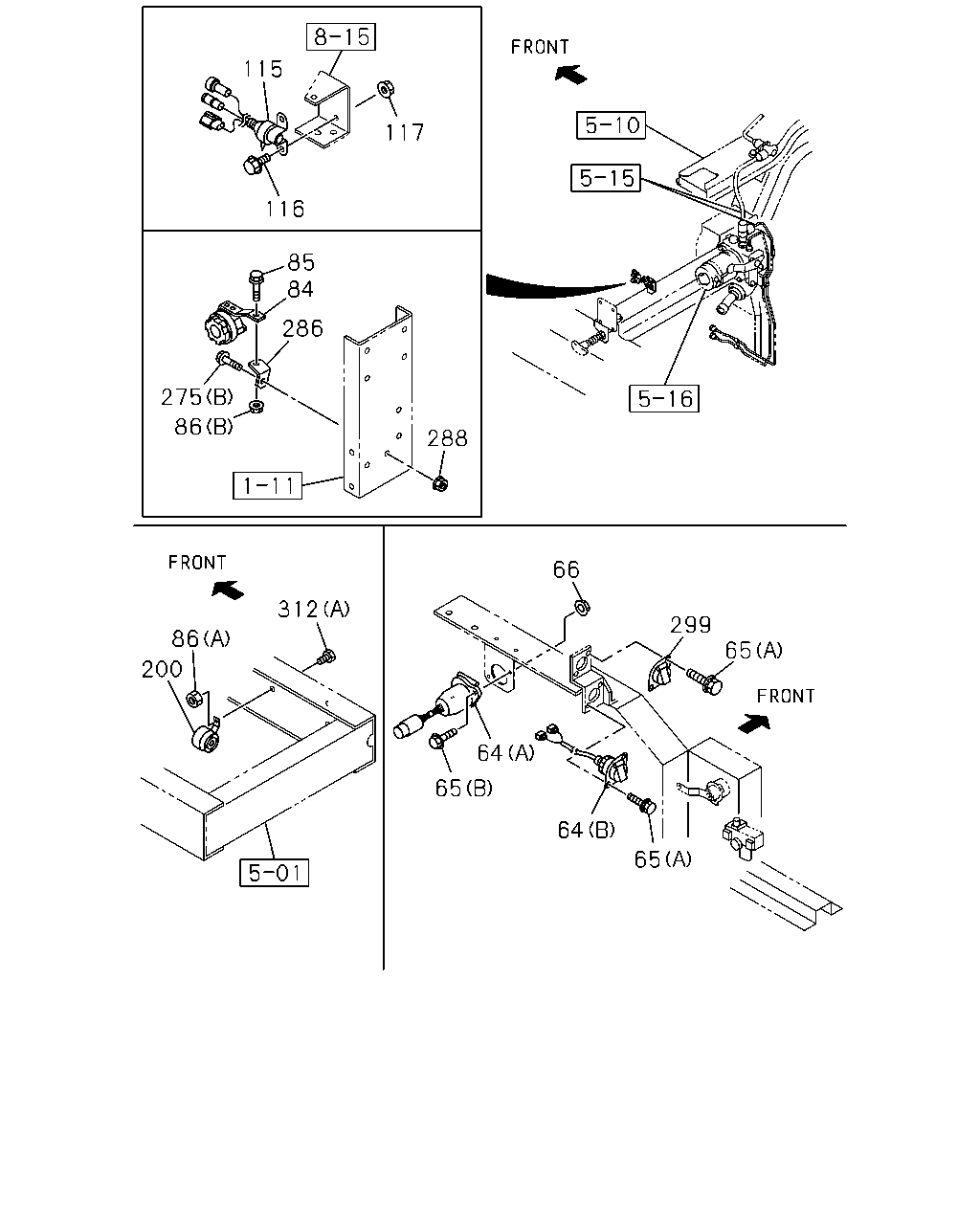

çizim 142341
115 116 117 85 286 84 275 288 86 200 312 66 86 65 64 64 65 299 65
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
(B) 		1-82698-363-0 01 1 1005-
64 SOCKET; TRAILER
(A) 7P 		1-82523-014-0 01 1 1005-
65 BOLT; SOCKET FIX
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1009-
65 BOLT; SOCKET FIX
(A) M8X25 FLANGE 		0-28650-825-0 06 1 1005-
65 BOLT; SOCKET FIX
(B) M6X16 FLANGE 		0-28050-616-0 02 1 0806-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 1005-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0806-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0806-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0806-
86 NUT; BUZZER
(A) M10 FLANGE 		0-91180-210-0 01 1 0806-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0806-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0806-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0806-
200 BUZZER; WARNING,AIR SUSP 1-83460-104-0 01 1 0806-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0806-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-
286 BRACKET 1-82699-199-0 01 1 0806-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0806-
299 SOCKET; PARKING 1-82699-396-2 01 1 1005-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0806-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0806-

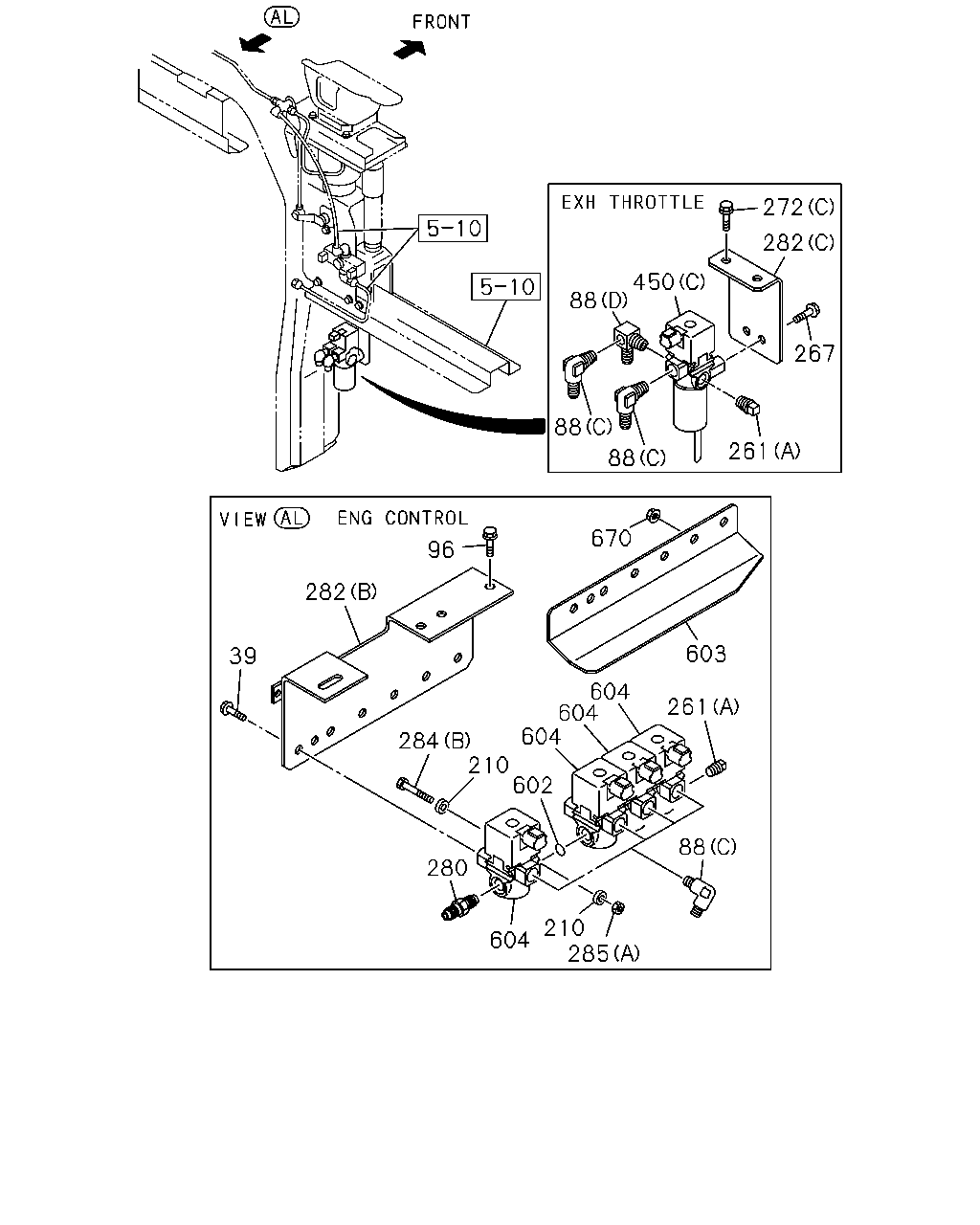

çizim 142342
272 282 450 88 267 88 261 88 670 96 282 603 39 604 604 604 261 284 210 602 88 280 210 285 604
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0806-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0806-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0806-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0806-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0806-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0806-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0806-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0806-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0806-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0806-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
96 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0806-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0806-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 02 1 0806-
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
272 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0806-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0806-
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0806-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0806-
282 BRACKET; MAG VLV
(B) 		8-98076-313-0 01 1 0806-
282 BRACKET; MAG VLV
(C) 		8-98088-448-0 01 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0806-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0806-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0806-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0806-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0806-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0806-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0806-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0806-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0806-
450 VALVE; MAG
(C) 		8-97376-939-3 01 1 0806-0910
450 VALVE; MAG
(C) 		8-97633-075-0 01 1 0911-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0806-
603 PROTECTOR; MAG VLV 8-98076-312-1 01 1 0806-
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0806-
670 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 01 1 0806-

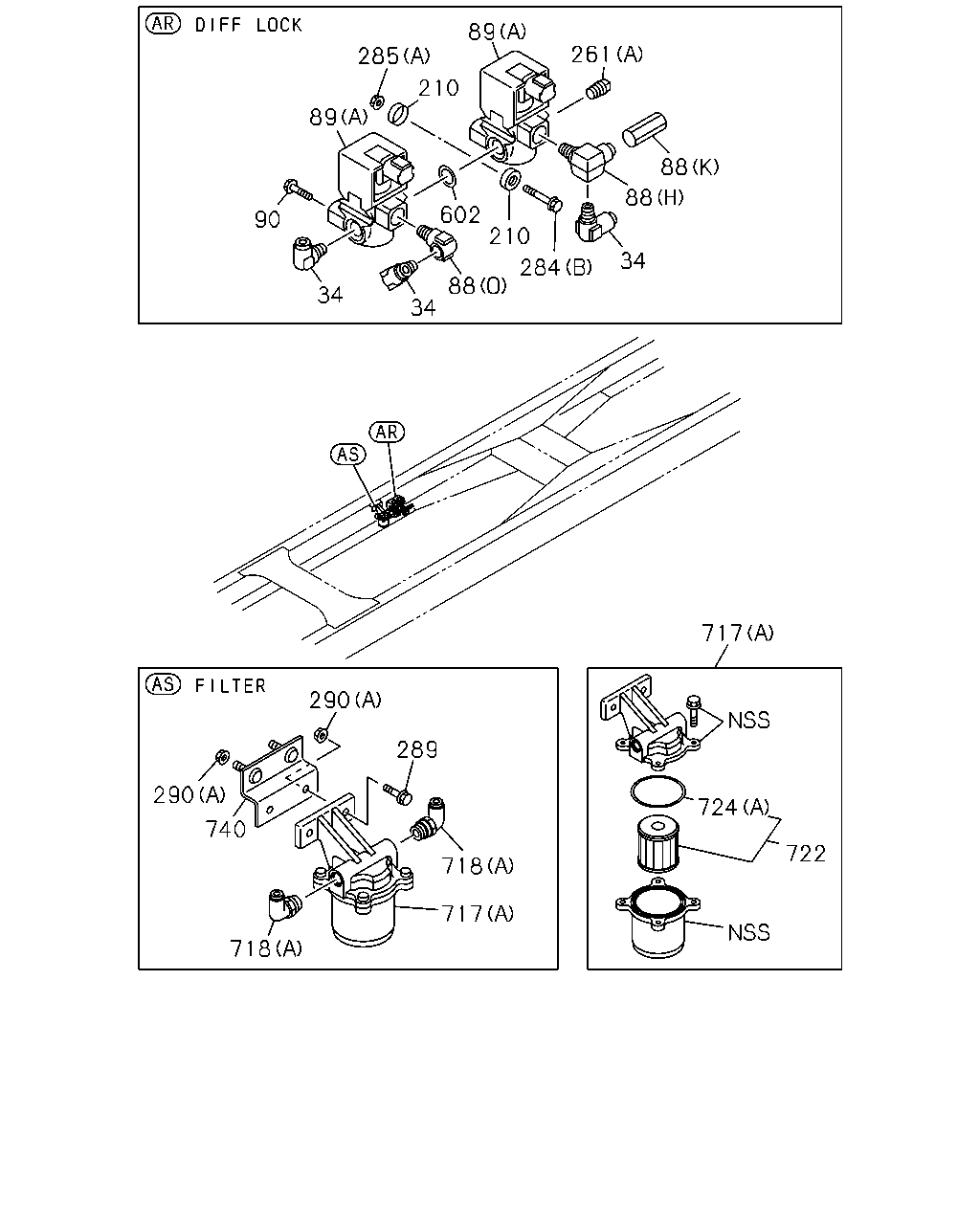

çizim 142346
89 285 89 261 210 602 88 34 34 90 210 34 88 88 717 724 722 718 289 290 290 740 718 717 284
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0806-
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0806-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0806-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0806-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0806-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0806-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0806-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0806-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0806-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0806-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0806-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 02 1 0806-1205
89 VALVE; MAG,DIFF LOCK
(A) 		8-97641-594-0 02 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0806-
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-095-1 02 1 0806-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0806-
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0806-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0806-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 02 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0806-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0806-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0806-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0806-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0806-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0806-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0806-
289 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-
290 NUT
(B) M22 		0-91111-522-0 01 1 0806-
290 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0806-
290 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0806-
717 FILTER; MAG VLV
(B) 		8-98069-273-0 01 1 0806-
717 FILTER; MAG VLV
(A) 		8-98092-703-0 01 1 0806-
718 CONNECTOR; FILTER
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0806-
718 CONNECTOR; FILTER
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0806-
718 CONNECTOR; FILTER
(A) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0806-
722 ELEMENT; AIR FILTER 1-33779-040-0 01 1 0806-
724 GASKET; AIR FILTER
(A) 		5-09623-075-0 01 1 0806-
724 GASKET; AIR FILTER
(B) ID=22.5 		9-09571-422-0 02 1 0806-
740 BRACKET; FILTER 8-98071-367-0 01 1 0806-

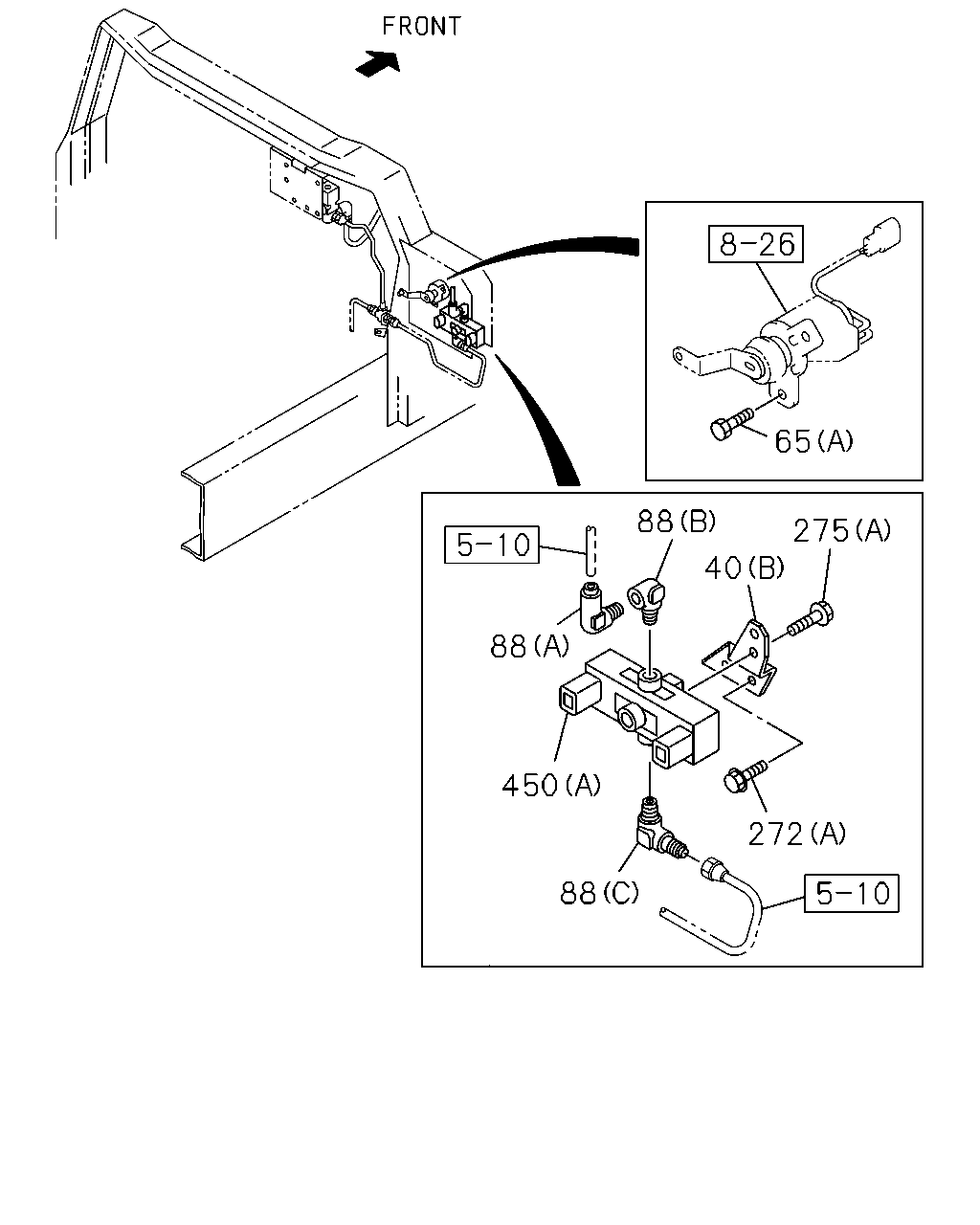

çizim 142347
65 88 275 40 88 450 272 88
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0806-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0806-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0806-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0806-
65 BOLT; SOCKET FIX
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1009-
65 BOLT; SOCKET FIX
(A) M8X25 FLANGE 		0-28650-825-0 06 1 1005-
65 BOLT; SOCKET FIX
(B) M6X16 FLANGE 		0-28050-616-0 02 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0806-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0806-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0806-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0806-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0806-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0806-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0806-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0806-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0806-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0806-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
272 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0806-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0806-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0806-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0806-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0806-
450 VALVE; MAG
(C) 		8-97376-939-3 01 1 0806-0910
450 VALVE; MAG
(C) 		8-97633-075-0 01 1 0911-

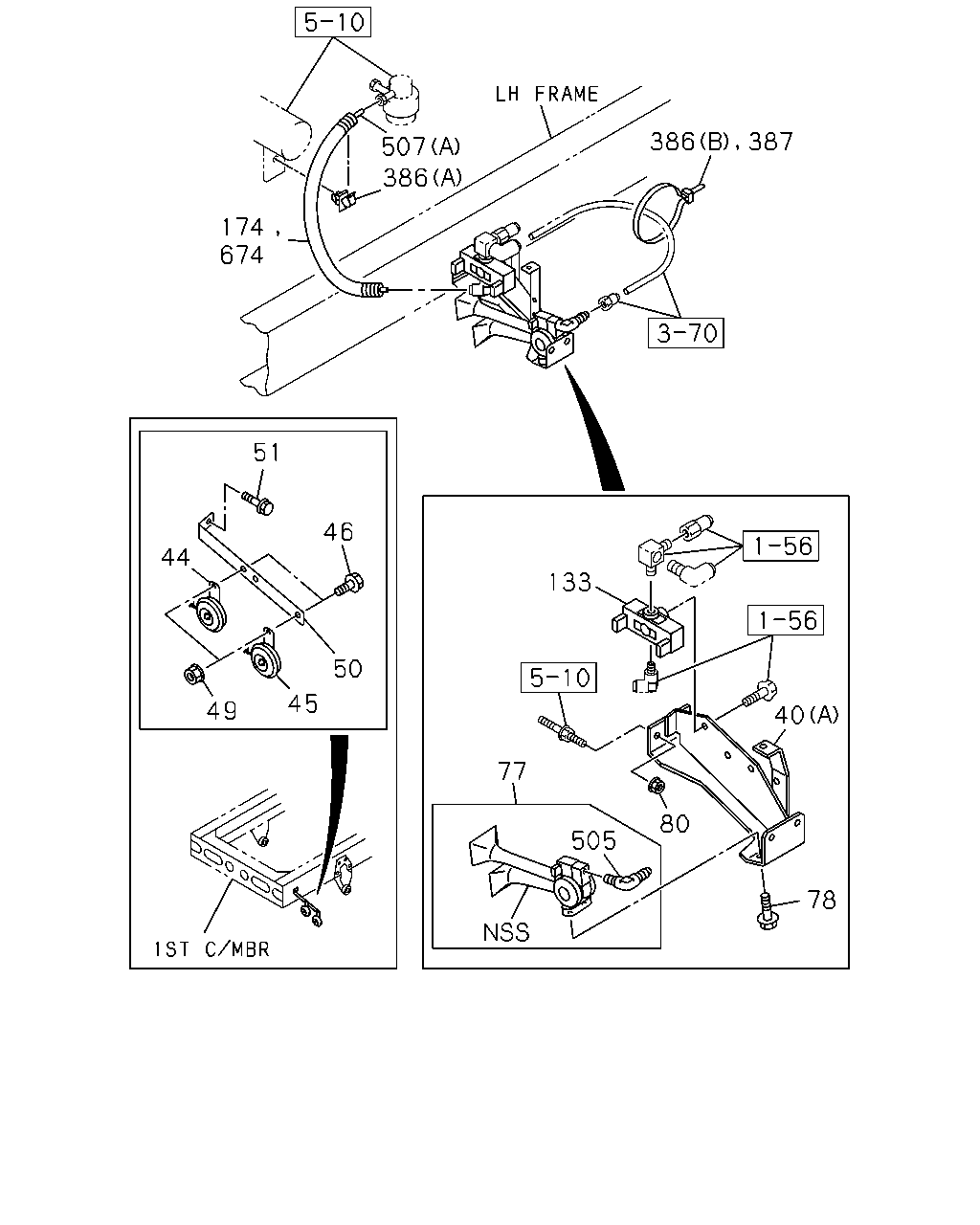

çizim 142351
507 386 174 674 51 46 44 133 50 45 49 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0806-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0806-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0806-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0806-
44 HORN; HIGH NOTE 1-83410-061-1 01 1 0806-1008
44 HORN; HIGH NOTE
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-83410-061-1 01 1 1009-
45 HORN; LOW NOTE 1-83410-062-1 01 1 0806-1008
45 HORN; LOW NOTE
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-83410-062-1 01 1 1009-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0806-1008
46 BOLT; HORN TO BODY
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE 		0-28650-825-0 02 1 1009-
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0806-1008
49 NUT; HORN TO BODY
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE 		0-91180-108-0 02 1 1009-
50 BRACKET; HORN 1-53457-196-0 01 1 0806-1008
50 BRACKET; HORN
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-53457-196-0 01 1 1009-
51 BOLT; HORN TO BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0806-1008
51 BOLT; HORN TO BRKT
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE 		0-28650-830-0 01 1 1009-
77 HORN ASM 1-83430-041-2 01 1 0806-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0806-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0806-
174 COVER
L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0806-
386 CLIP; HARNESS
(B) L=350 		1-09707-183-0 02 1 0806-
386 CLIP; HARNESS
(A) ID=9.5 		5-09709-020-0 01 1 0806-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0806-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0806-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0806-
674 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0806-

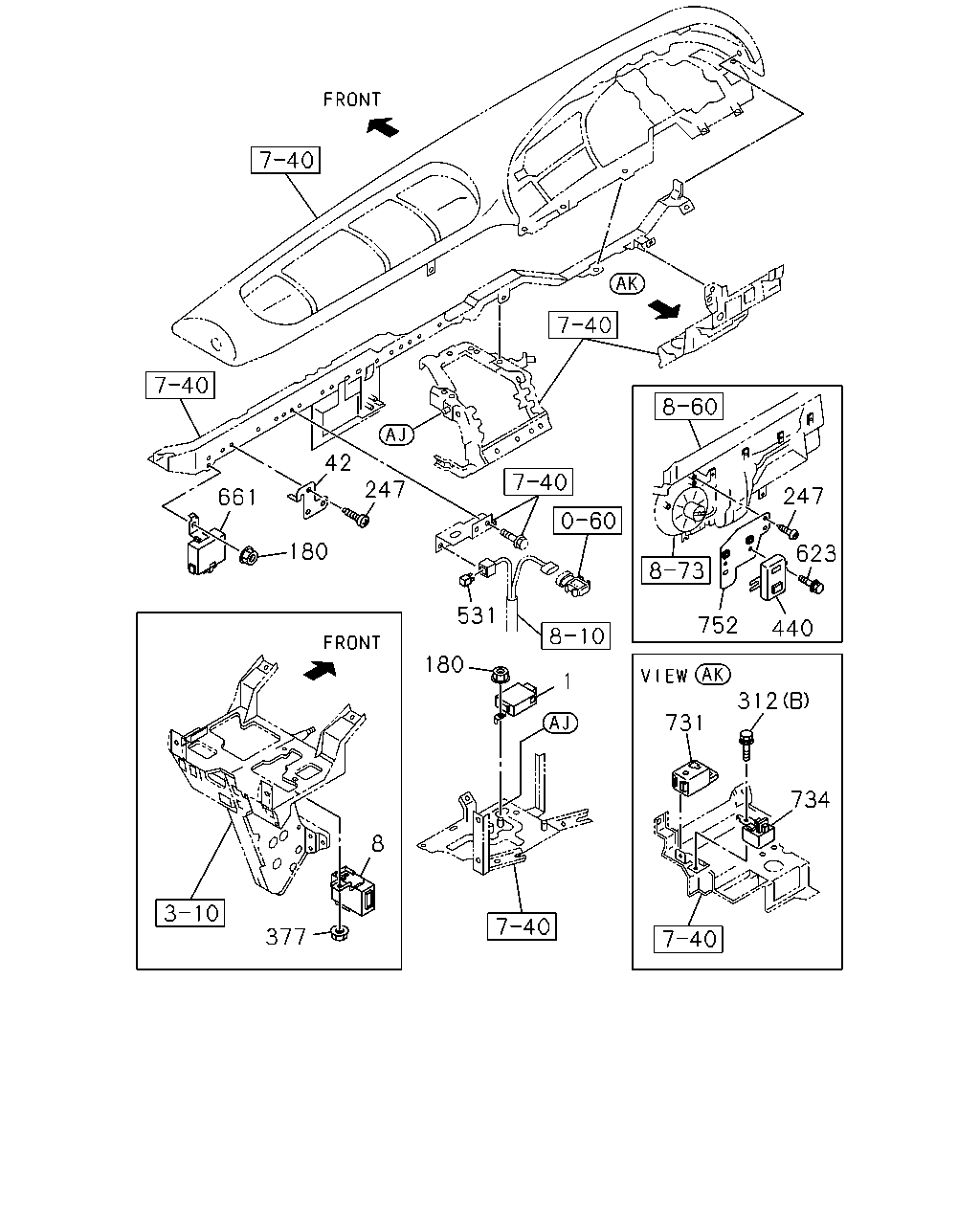

çizim 142355
247 42 247 661 180 623 531 752 440 180 1 312 731 734 8 377
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
NEW ZEALAND EQUIPMENT(PK5) 		8-97613-970-1 01 1 1009-
1 UNIT; FLASHER 1-83470-062-1 01 1 0806-1008
1 UNIT; FLASHER
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-83470-062-1 01 1 1009-
8 RELAY; WIPER 1-83316-002-4 01 1 0806-1008
8 RELAY; WIPER
AIR BAG(TFQ) 		1-83316-002-4 01 1 1009-
42 BRACKET; RELAY 1-82698-128-2 01 1 0806-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0806-1008
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0806-1008
180 NUT; FLASHER UNIT
ENGINE CONTROL-B2(Q4T) M6 FLANGE 		0-91180-106-0 01 1 1009-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 1009-
247 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 0806-
247 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0806-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0806-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0806-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0806-1008
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 1009-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0806-1008
377 NUT; RELAY
AIR BAG(TFQ) M6 FLANGE 		0-91180-106-0 01 1 1009-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0806-
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0806-1005
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1006-
623 BOLT; MODULE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0806-
731 ALARM; INFORMATION 1-83460-051-1 01 1 0806-
734 ALARM; MULTI 1-83460-106-0 01 1 0806-
752 BRACKET; MODULE 8-97611-710-0 01 1 0806-

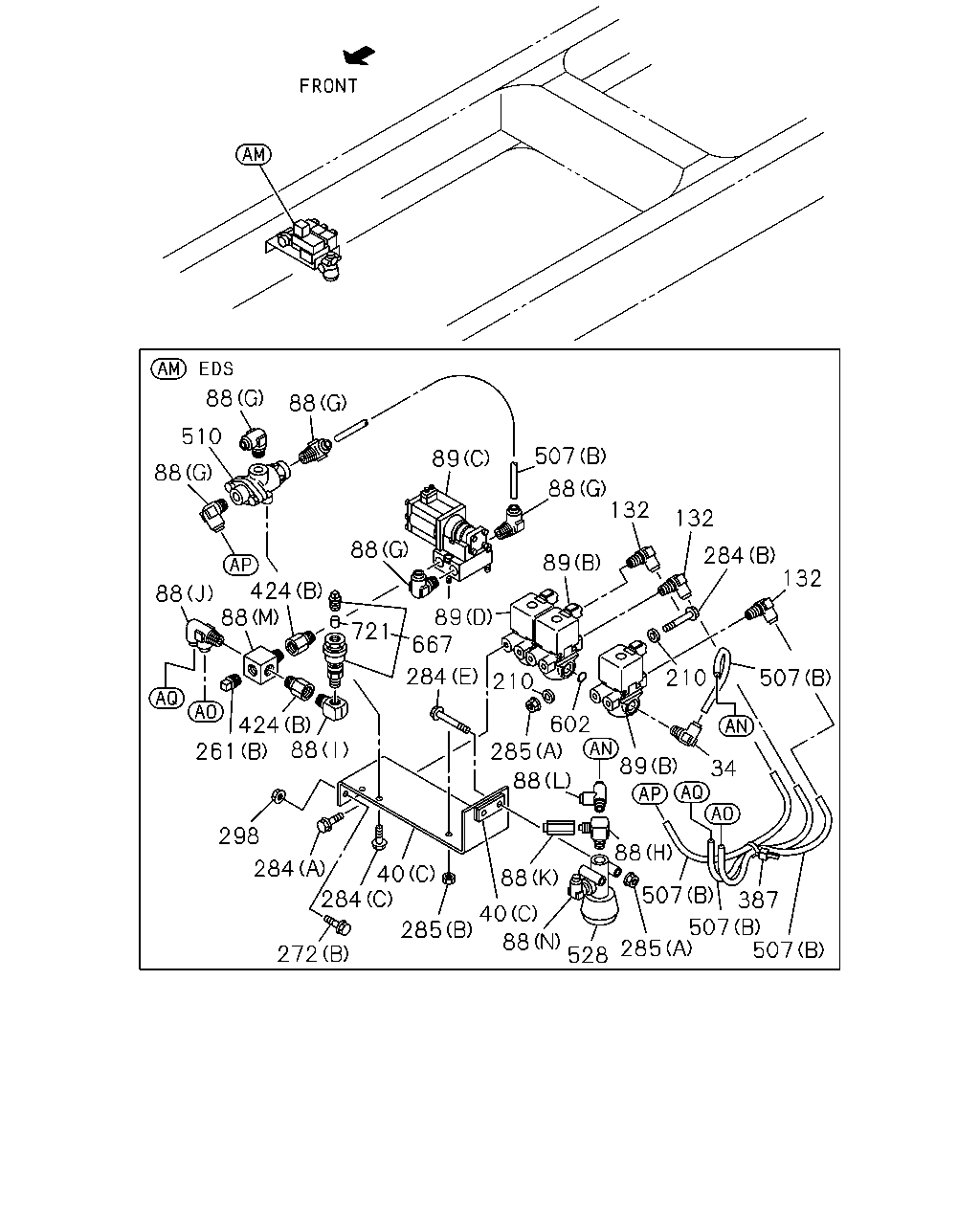

çizim 142360
88 88 510 507 89 88 88 132 132 88 284 132 89 89 667 88 424 88 721 210 284 210 507 602 285 89 34 424 88 298 88 284 40 284 88 507 387 507 507 40 285 88 528 285 272 261 88
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0806-
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0806-
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0806-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0806-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0806-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0806-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0806-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0806-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0806-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0806-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0806-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0806-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0806-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0806-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0806-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 02 1 0806-1205
89 VALVE; MAG,DIFF LOCK
(A) 		8-97641-594-0 02 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0806-
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-095-1 02 1 0806-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0806-
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0806-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0806-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0806-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 02 1 0806-
272 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0806-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0806-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0806-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0806-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0806-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0806-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0806-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0806-
298 NUT; MAG VLV
M10 FLANGE 		0-91180-110-0 02 1 0806-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0806-1008
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0806-1008
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 1009-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 1009-
424 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0806-
424 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0806-
424 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 0806-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0806-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0806-
510 VALVE; CHECK 1-48410-531-1 01 1 0806-
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0806-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0806-
667 LUBRICATION 8-98063-001-0 01 1 0806-
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0806-

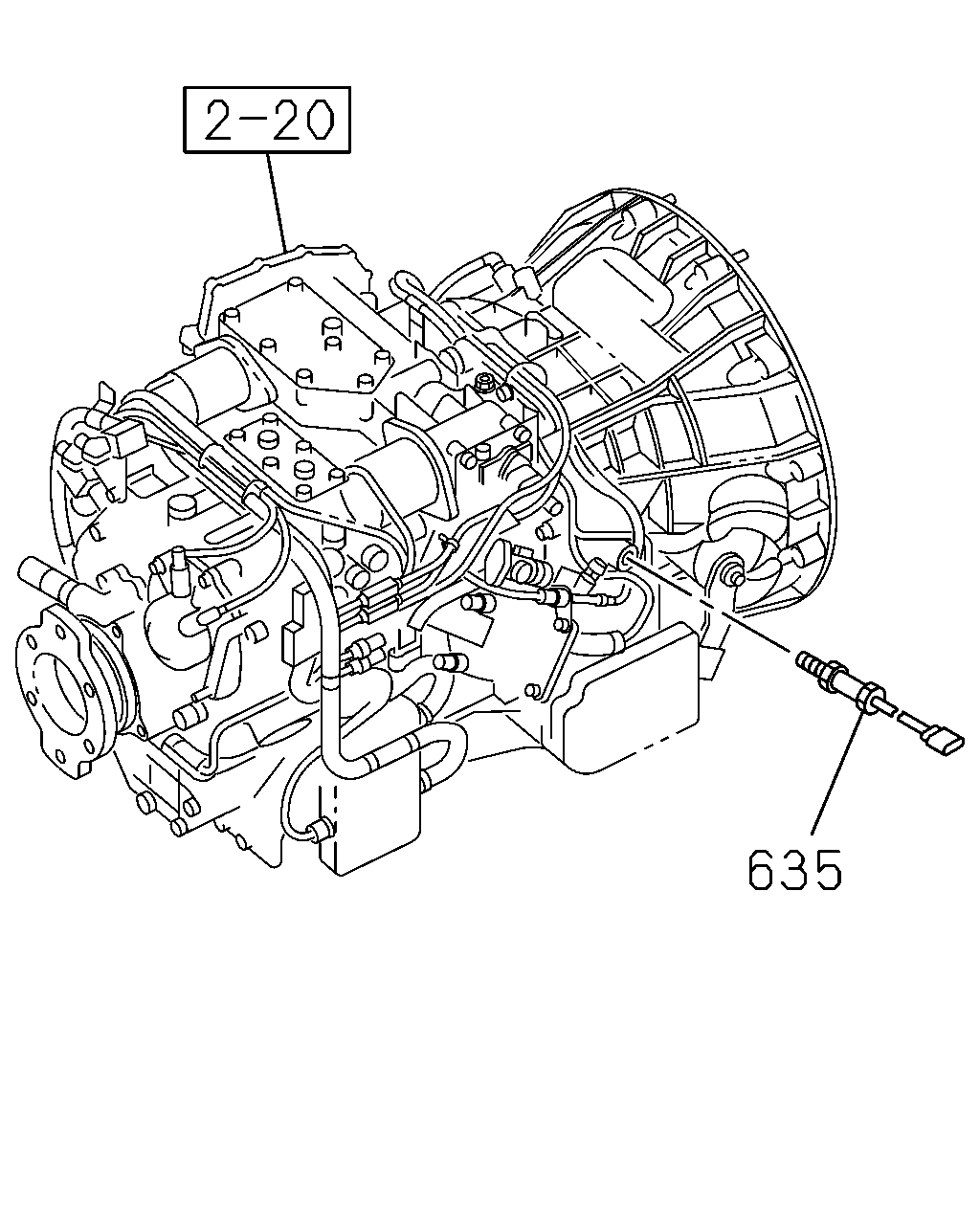

çizim 142363
635
BalonParca AdiParca NoAdetTipApplied Date
635 SENSOR; PICK UP,INPUT SHAFT 1-81510-736-1 01 1 0806-

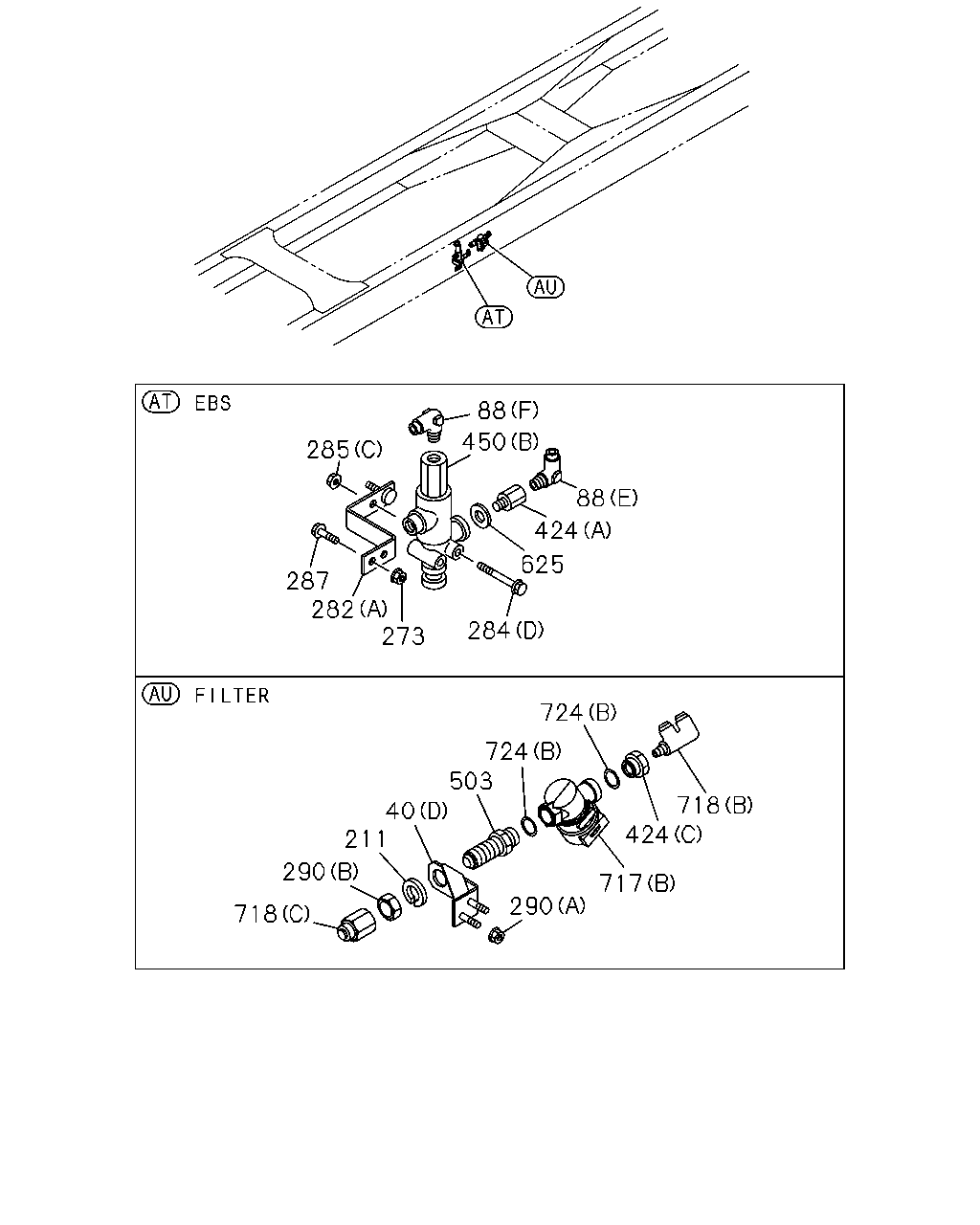

çizim 142380
285 88 450 88 424 625 284 273 282 287 290 718 40 211 724 503 724 717 424 718 290
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0806-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0806-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0806-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0806-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0806-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0806-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0806-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0806-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0806-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0806-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0806-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0806-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0806-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0806-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-1008
88 CONNECTOR; MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
211 WASHER; LK,BRKT
ID=22.5 		0-91510-522-0 01 1 0806-
273 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0806-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0806-
282 BRACKET; MAG VLV
(B) 		8-98076-313-0 01 1 0806-
282 BRACKET; MAG VLV
(C) 		8-98088-448-0 01 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0806-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0806-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0806-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0806-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0806-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0806-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0806-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0806-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0806-
287 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0806-
290 NUT
(B) M22 		0-91111-522-0 01 1 0806-
290 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0806-
290 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-
424 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0806-
424 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0806-
424 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 0806-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0806-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0806-
450 VALVE; MAG
(C) 		8-97376-939-3 01 1 0806-0910
450 VALVE; MAG
(C) 		8-97633-075-0 01 1 0911-
503 UNION
M22 		0-92123-315-0 01 1 0806-
625 GASKET; CONNECTOR
ID=16.2 OD=24 		9-09571-416-0 01 1 0806-
717 FILTER; MAG VLV
(B) 		8-98069-273-0 01 1 0806-
717 FILTER; MAG VLV
(A) 		8-98092-703-0 01 1 0806-
718 CONNECTOR; FILTER
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0806-
718 CONNECTOR; FILTER
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0806-
718 CONNECTOR; FILTER
(A) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0806-
724 GASKET; AIR FILTER
(A) 		5-09623-075-0 01 1 0806-
724 GASKET; AIR FILTER
(B) ID=22.5 		9-09571-422-0 02 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
