8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#25677) — 128 parça

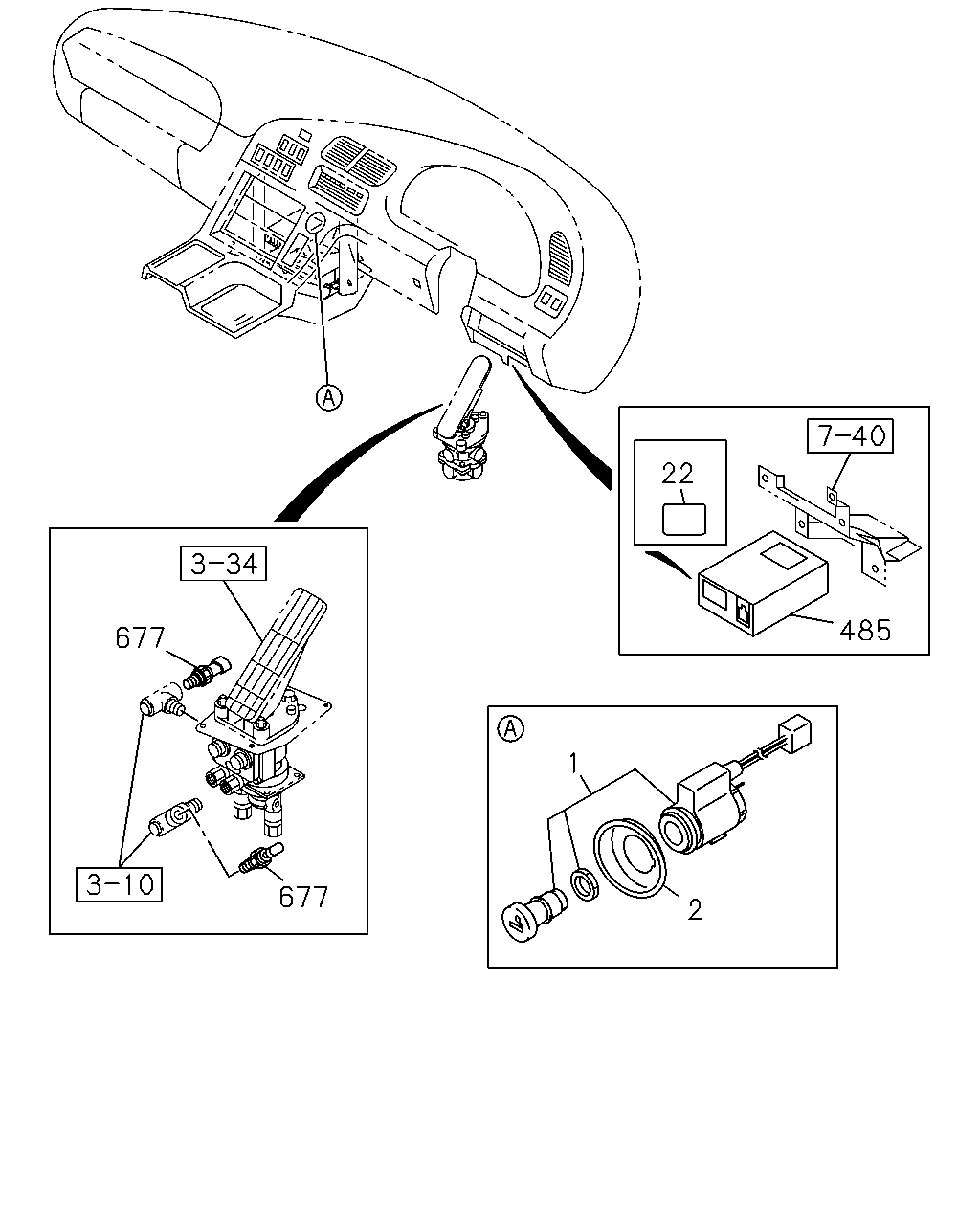

çizim 142323
22 485 677 1 677 2
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-322-0 01 1 0806-
2 BEZEL; CIGAR LIGHTER 1-73907-775-0 01 1 0806-
22 SEAL; TAPE 8-98083-174-0 01 1 0806-1008
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		8-98083-174-0 01 1 1009-
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0806-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0806-

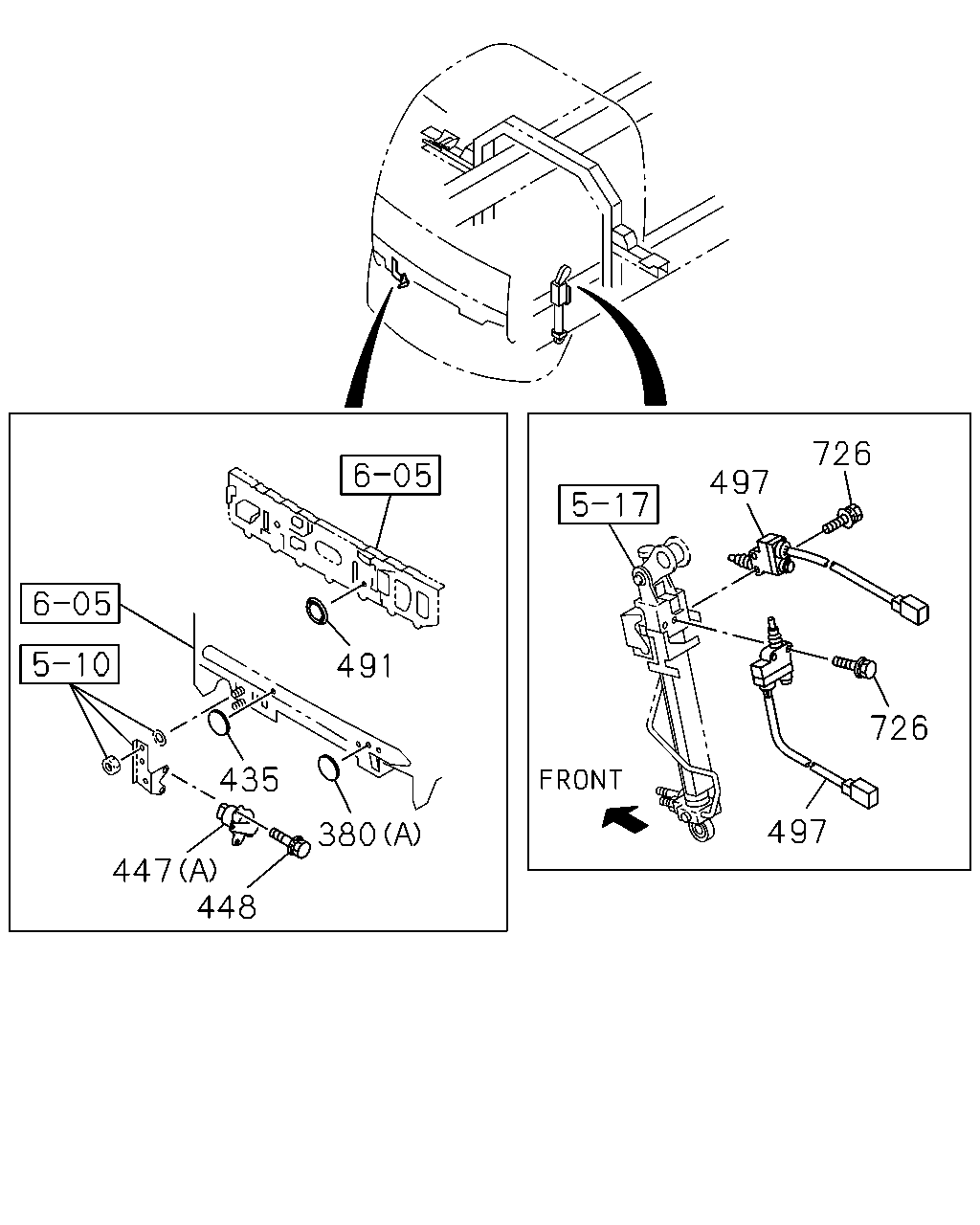

çizim 142325
726 497 491 726 435 497 380 447 448
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0806-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0806-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0806-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0806-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0806-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0806-
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0806-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0806-

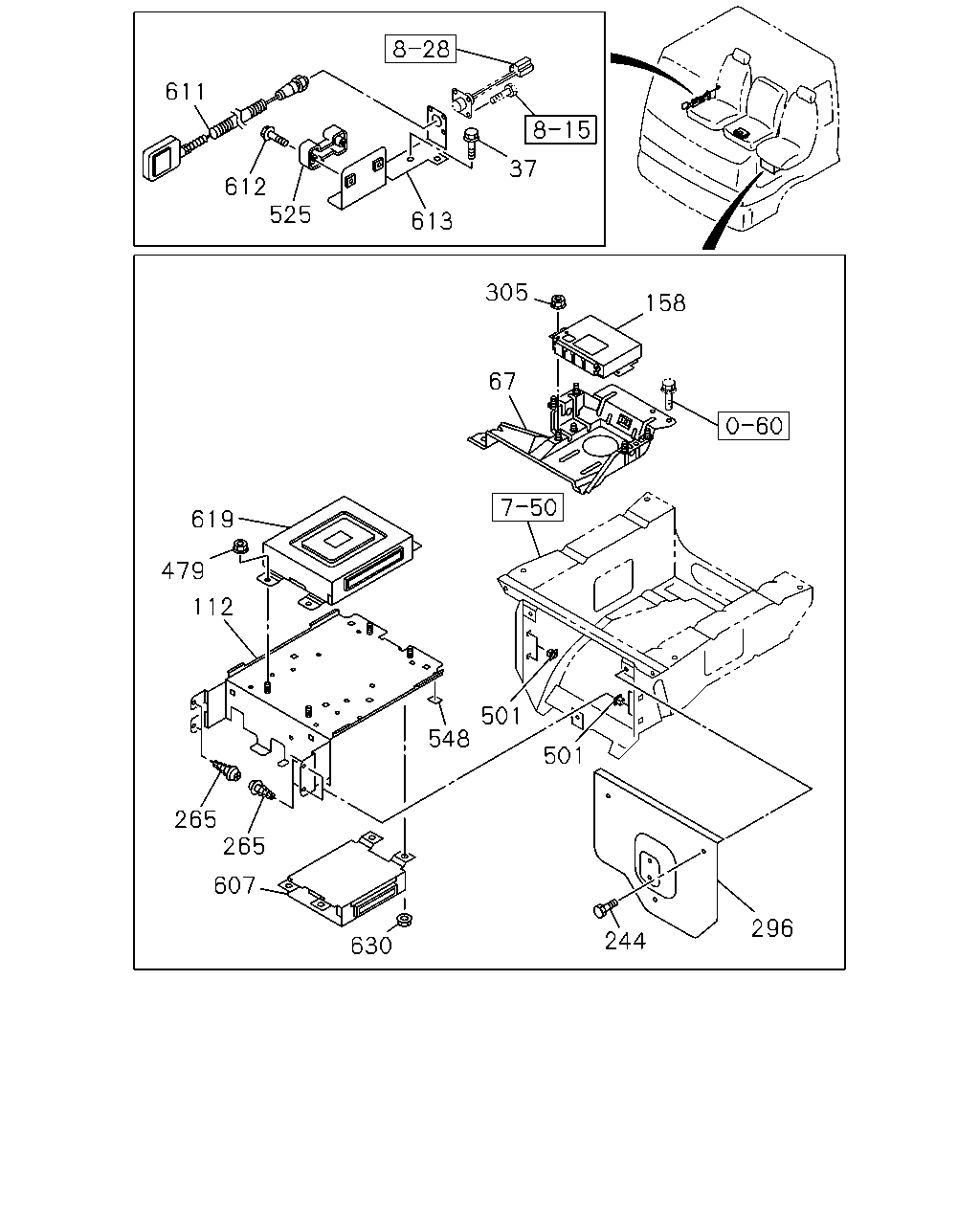

çizim 142326
611 37 612 525 613 305 158 67 619 479 112 501 548 501 265 265 607 296 244 630
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; BRKT FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0806-
67 BRACKET; CONT UNIT 1-72537-234-1 01 1 0806-
112 BRACKET; CONT UNIT 8-97589-714-2 01 1 0806-
158 CONTROLLER; ABS
FINAL GEAR 41/11 18" ROCKWELL(W8M) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-98178-611-0 01 1 1010-
158 CONTROLLER; ABS
FINAL GEAR 41/12 18" ROCKWELL(W8P) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-98178-604-0 01 1 1010-
158 CONTROLLER; ABS
FINAL GEAR 43/11 18" ROCKWELL(W5Y) 		1-80119-283-0 01 1 0806-0811
158 CONTROLLER; ABS
FINAL GEAR 43/11 18" ROCKWELL(W5Y) 		1-80119-918-0 01 1 0812-1008
158 CONTROLLER; ABS
FINAL GEAR 43/11 18" ROCKWELL(W5Y) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-80119-918-0 01 1 1009-
158 CONTROLLER; ABS
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-80119-273-0 01 1 0806-0811
158 CONTROLLER; ABS
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-80119-917-0 01 1 0812-1008
158 CONTROLLER; ABS
FINAL GEAR 43/10 18" ROCKWELL(W6R) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-80119-917-0 01 1 1009-
158 CONTROLLER; ABS
FINAL GEAR 41/10 18" ROCKWELL(W8B) 		1-80119-284-0 01 1 0806-0811
158 CONTROLLER; ABS
FINAL GEAR 41/10 18" ROCKWELL(W8B) 		1-80119-919-0 01 1 0812-1008
158 CONTROLLER; ABS
FINAL GEAR 41/10 18" ROCKWELL(W8B) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-80119-919-0 01 1 1009-
158 CONTROLLER; ABS
FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-80119-285-0 01 1 0806-0811
158 CONTROLLER; ABS
FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-80119-920-0 01 1 0812-1008
158 CONTROLLER; ABS
FINAL GEAR 41/9 18" ROCKWELL(W8C) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-80119-920-0 01 1 1009-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0806-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0806-
296 COVER; CONT UNIT 8-97388-687-0 01 1 0806-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-1008
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1009-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0806-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 06 1 0806-
479 NUT; CONTROLLER
M6 FLANGE 		0-91180-106-0 04 1 0806-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0806-
525 HOLDER; SW 1-82389-018-0 01 1 0806-
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0806-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
607 CONTROL UNIT; AIR SUSPENSION 8-98068-003-0 01 1 0806-
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0806-
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0806-
613 BRACKET; HOLDER,SW 1-79907-125-1 01 1 0806-
619 CONTROL UNIT; T/M
6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) 		8-98178-721-0 01 1 1009-1501
619 CONTROL UNIT; T/M
6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) 		8-98290-354-0 01 1 1502-
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) 		8-98178-722-0 01 1 1009-1501
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) 		8-98290-355-0 01 1 1502-
619 CONTROL UNIT; T/M 8-98109-800-0 01 1 0806-1006
619 CONTROL UNIT; T/M 8-98155-985-0 01 1 1007-1008
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) AUSTRALIA EQUIPMENT(RR3) 		8-98155-985-0 01 1 1009-1501
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) AUSTRALIA EQUIPMENT(RR3) 		8-98290-348-0 01 1 1502-
630 NUT; CONT UNIT,AIR SUSP
M6 FLANGE 		0-91180-106-0 02 1 0806-

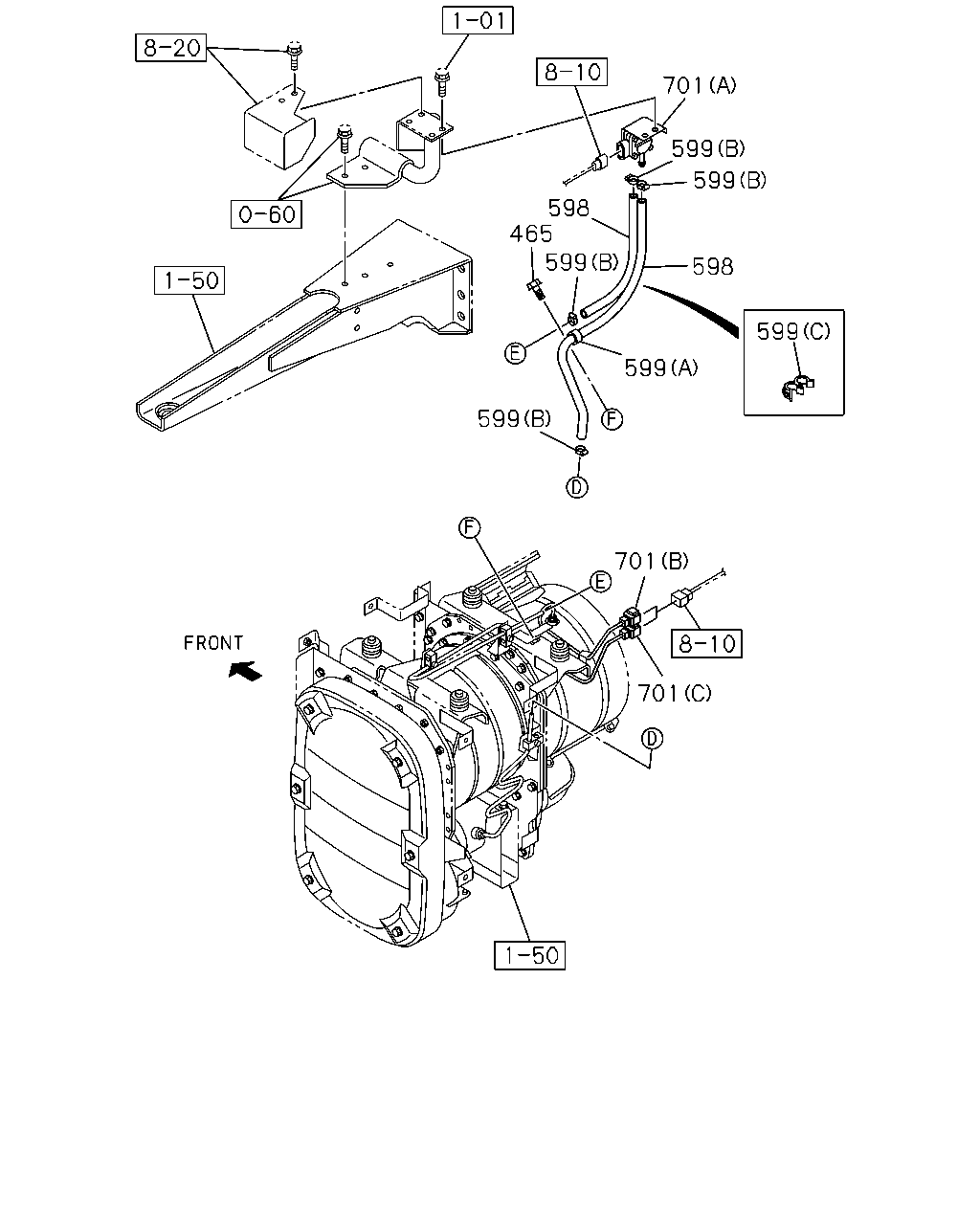

çizim 142329
701 599 599 598 465 599 598 599 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date
465 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0806-1008
465 BOLT; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X20 FLANGE 		0-28050-820-0 01 1 1009-
598 HOSE; RUBBER,SENSOR
L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 0806-1008
598 HOSE; RUBBER,SENSOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 1009-
598 HOSE; RUBBER,SENSOR
L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 0806-1008
598 HOSE; RUBBER,SENSOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 1009-
599 CLIP; HOSE
(C) ID=19 L=24 		1-09701-259-0 01 1 0806-1008
599 CLIP; HOSE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) ID=19 L=24 		1-09701-259-0 01 1 1009-
599 CLIP; HOSE
(A) 		8-97173-119-0 01 1 0806-1008
599 CLIP; HOSE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97173-119-0 01 1 1009-
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 0806-1008
599 CLIP; HOSE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) ID=13 		8-97329-627-0 04 1 1009-
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 0806-
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0806-
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0806-

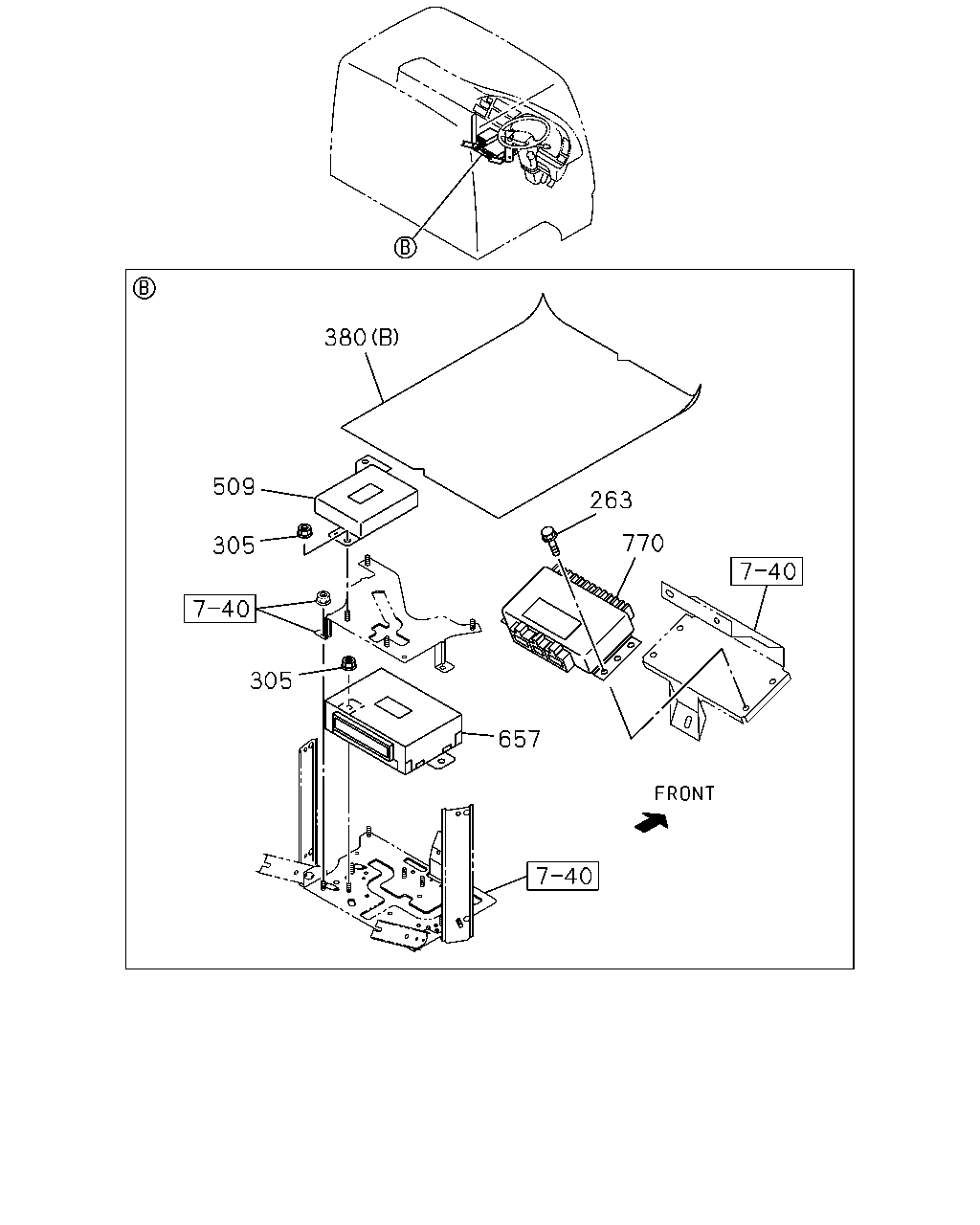

çizim 142330
380 509 263 770 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
263 BOLT; CONT UNIT
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0806-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-1008
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1009-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0806-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 06 1 0806-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0806-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0806-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0806-
657 CONTROL UNIT; MIMAMORI 8-98081-576-1 01 1 0806-
770 CONTROL UNIT; RETARDER 8-98118-159-1 01 1 0806-

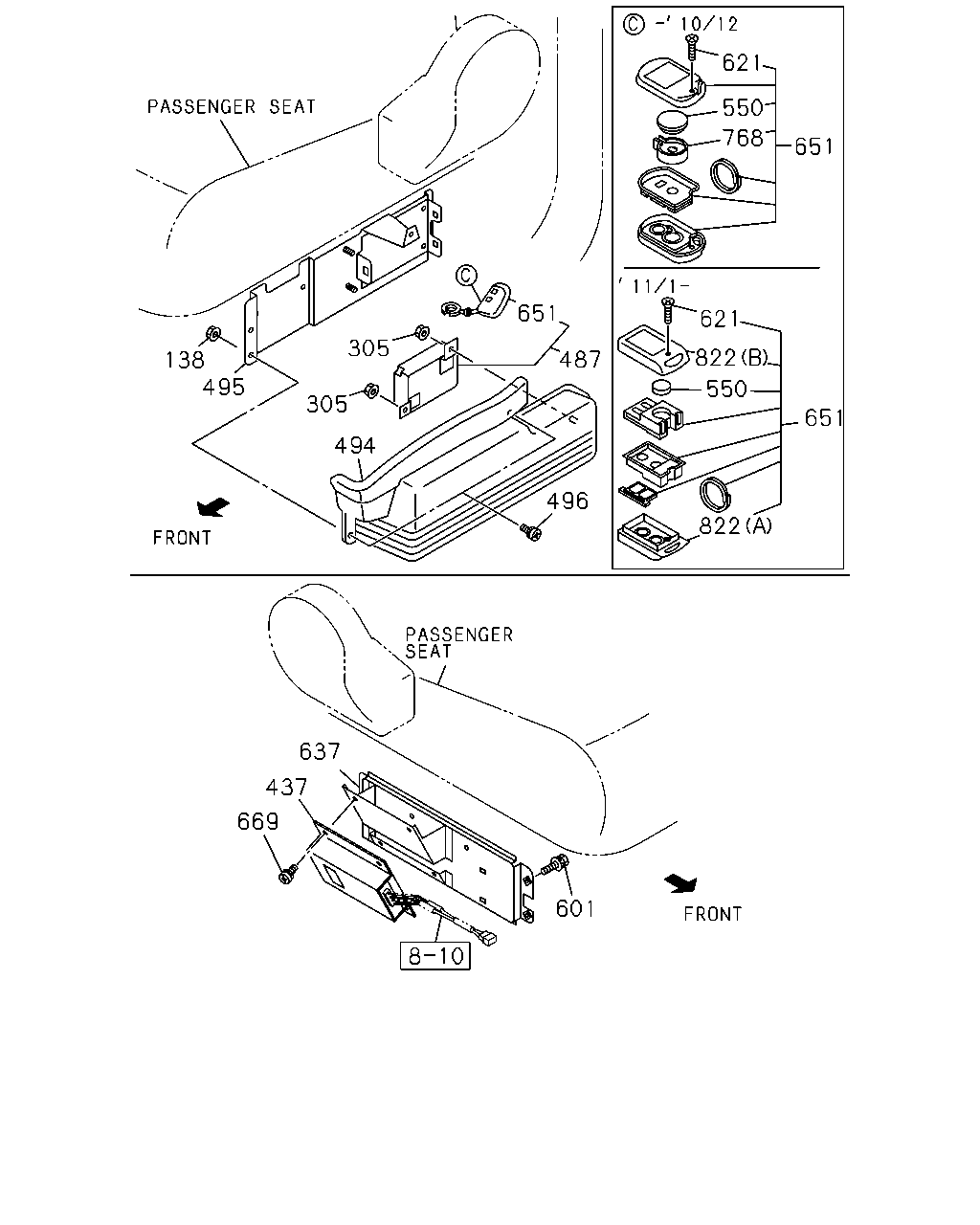

çizim 142336
138 305 495 305 651 487 496 494 621 550 768 651 621 822 550 651 822 637 437 669 601
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0806-1008
138 NUT; BRKT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1009-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-1008
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1009-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0806-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 06 1 0806-
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 0806-1008
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> METRO DENSO 		8-98046-423-0 01 1 1009-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 0806-1008
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98050-457-1 01 1 1009-1012
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98181-808-0 01 1 1101-1205
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98218-230-0 01 1 1206-
494 COVER; ELEC BOX 8-97589-725-0 01 1 0806-1008
494 COVER; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		8-97589-725-0 01 1 1009-
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0806-1008
495 BRACKET; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		1-75558-488-5 01 1 1009-
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0806-1008
496 SCREW; COVER
REMOTE CONT DOOR LOCK<SLG> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 1009-
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 0806-1008
550 BATTERY; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> 		8-98078-061-0 01 1 1009-
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0806-1008
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 1009-
621 SCREW
M2X5 		8-98078-067-0 01 1 0806-1008
621 SCREW
REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98078-067-0 01 1 1009-1205
621 SCREW
REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98218-239-0 01 1 1206-
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0806-1008
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 1009-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 0806-1008
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98048-459-1 01 1 1009-1012
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98180-751-0 01 1 1101-1205
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98218-236-0 01 1 1206-
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0806-1008
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 1009-
768 HOLDER; BATTERY 8-98078-063-0 01 1 0806-1008
768 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<SLG> 		8-98078-063-0 01 1 1009-1012
822 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> (A) 		8-98218-240-0 01 1 1206-
822 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> (B) 		8-98218-243-0 01 1 1206-

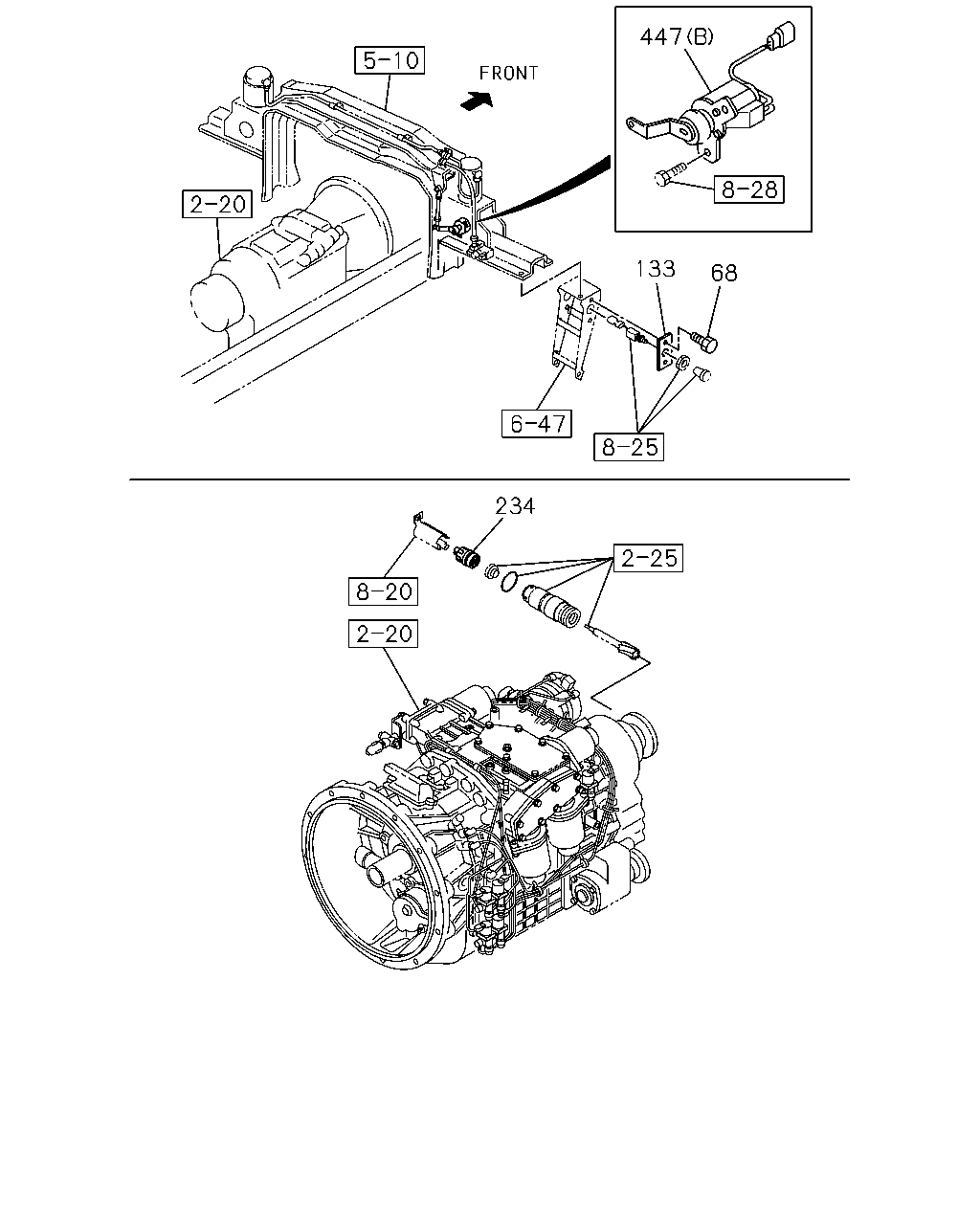

çizim 142337
447 133 68 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-
133 BRACKET; SWITCH 1-82699-815-0 01 1 0806-
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0806-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0806-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0806-
