Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#25673) — 519 parça

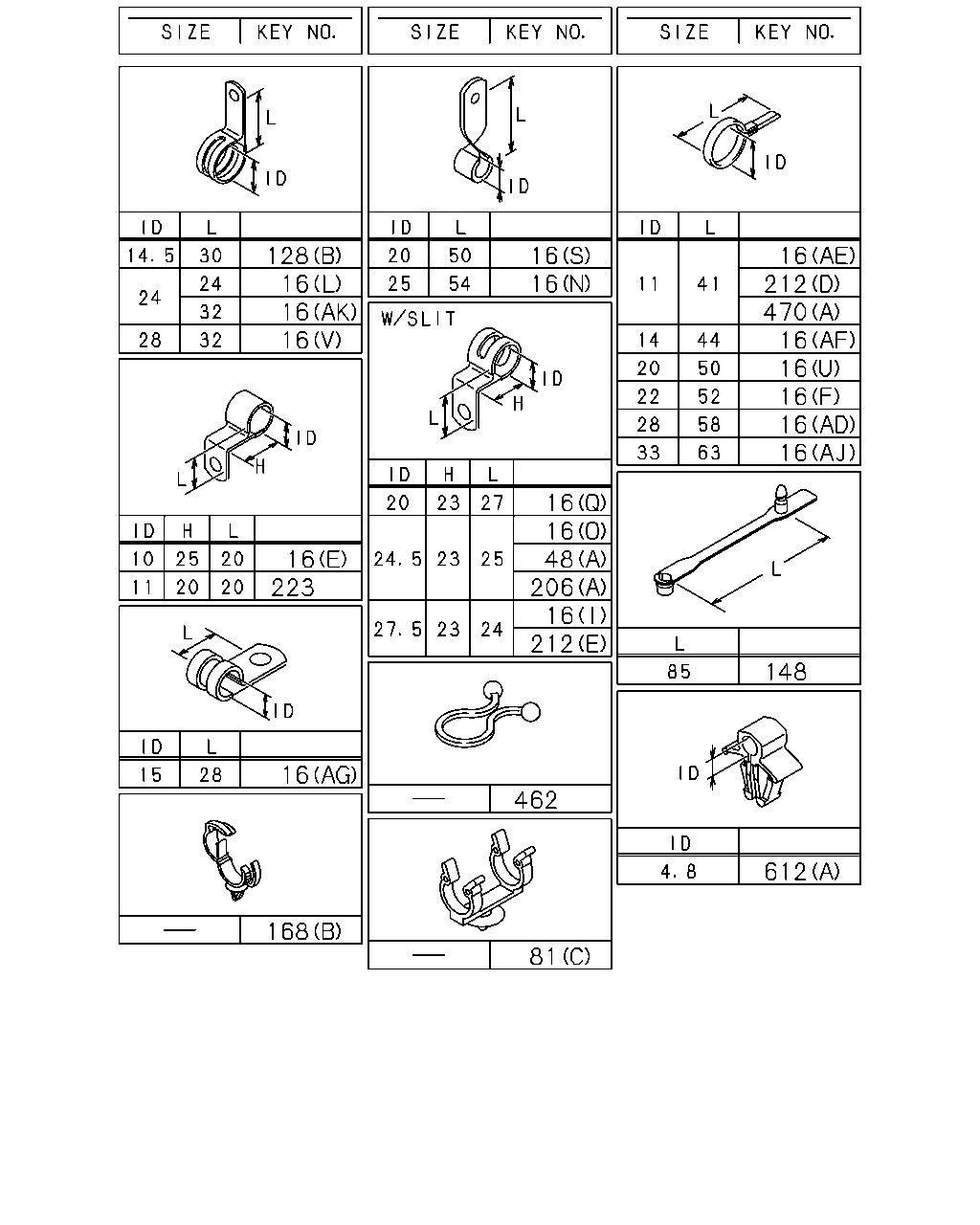

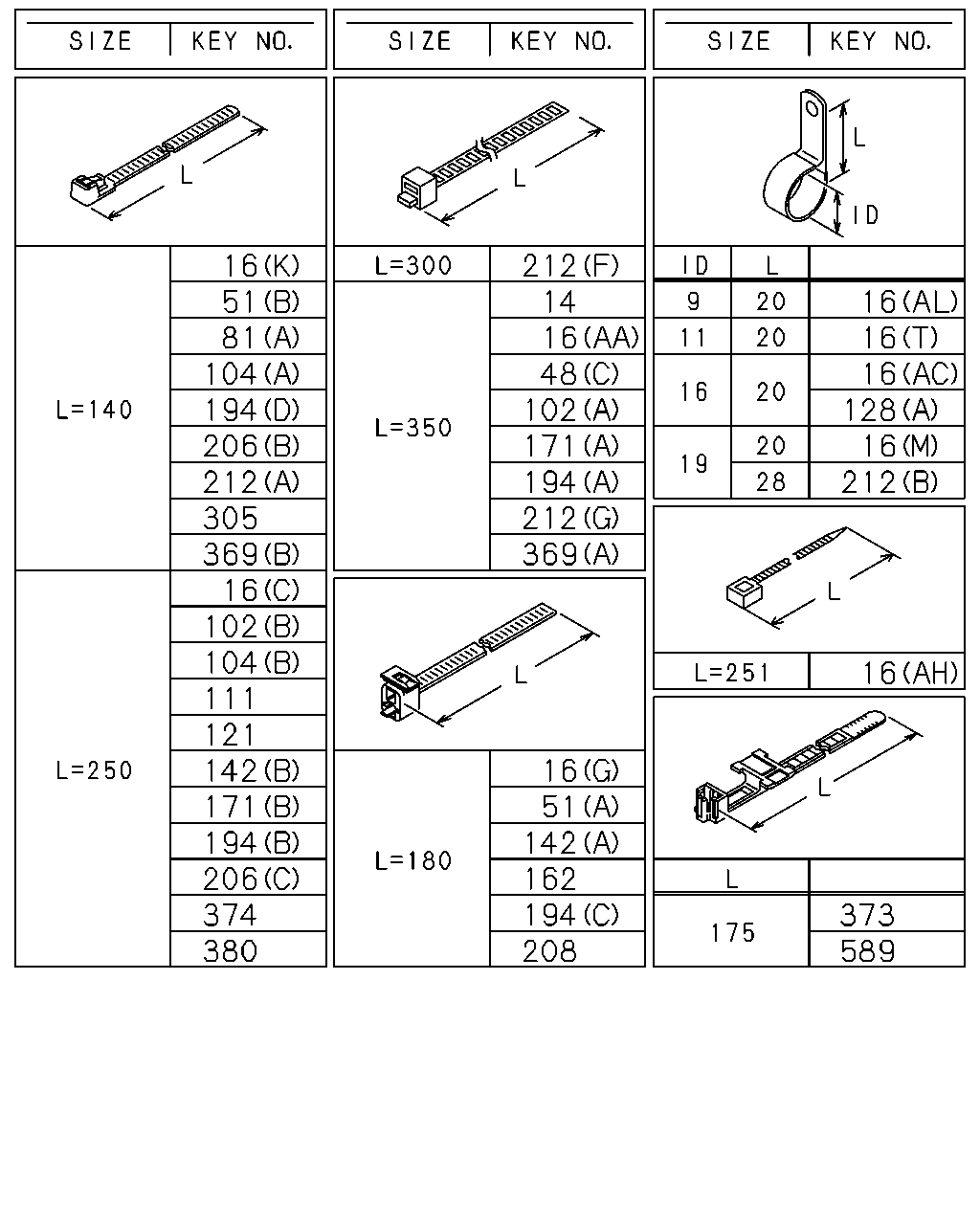

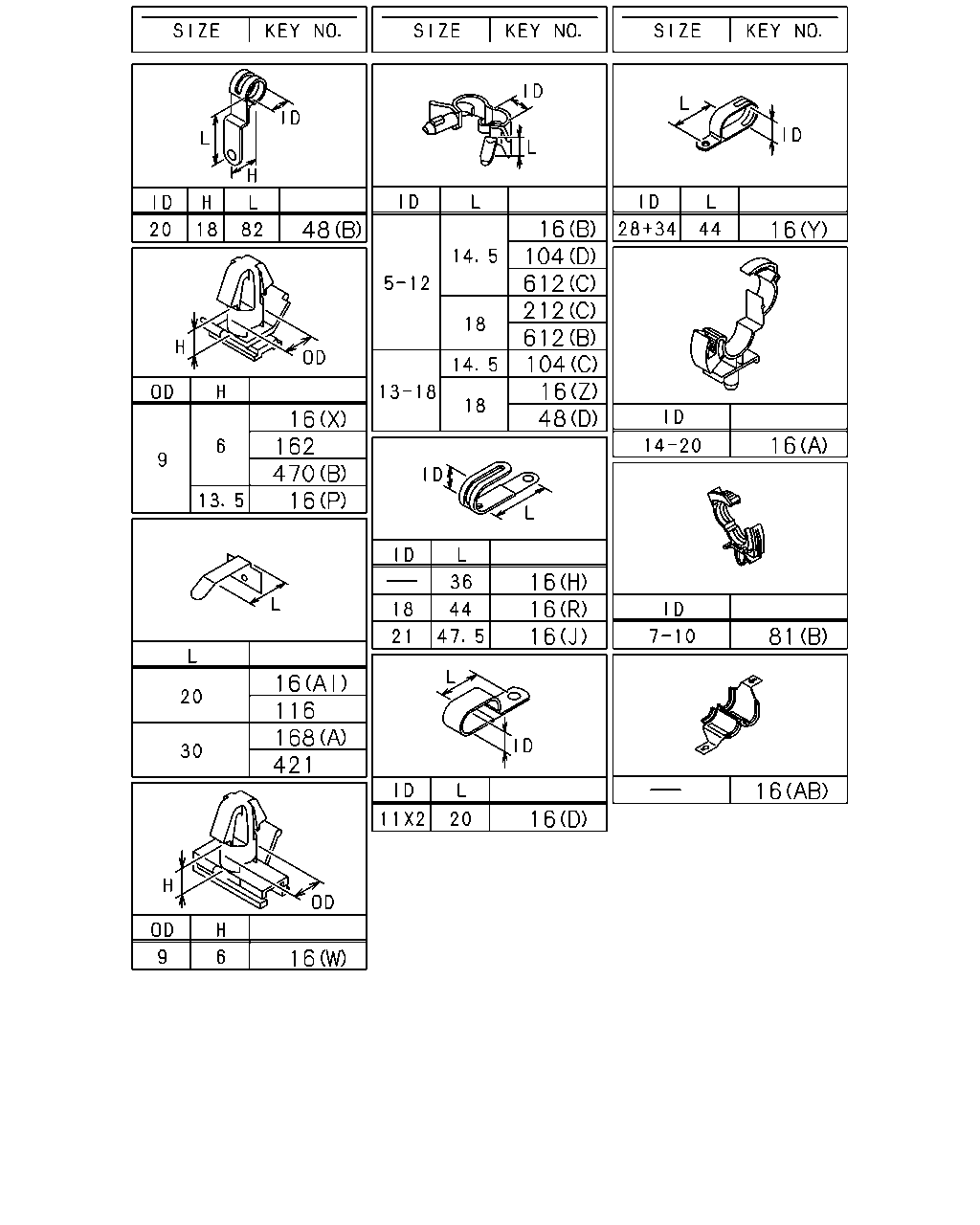

48 16 470 162 16 16 116 168 421 16 16 612 104 212 104 612 48 16 16 16 16 16 16 16 81 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AL) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	06	1	1005-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	06	1	0806-0808
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	07	1	0809-1008
16	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (AA) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	05	1	0909-1008
16	CLIP; HARNESS (G) L=180	1-09707-162-1	02	1	1009-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	02	1	0909-1409
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	1410-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54	1-09700-392-1	01	1	0806-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (V) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (V) ID=28 L=32	1-09701-107-1	01	1	1003-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-1004
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-1004
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	0806-1008
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	1009-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	05	1	0806-1105
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AC) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0806-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0806-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	09	1	0806-1205
16	CLIP; HARNESS (C) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=21 L=47.5	8-94178-108-0	05	1	0806-
16	CLIP; HARNESS (H) L=36	8-94224-891-1	01	1	0806-
16	CLIP; HARNESS (R) ID=18 L=44	8-97367-985-1	05	1	0806-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	03	1	0806-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0806-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0806-
16	CLIP; HARNESS (AC) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0806-
16	CLIP; HARNESS (D) ID=11X2 L=20	0-95325-035-0	02	1	0806-
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	03	1	0806-1409
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	04	1	0806-1008
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AD) ID=28 L=58	1-09700-400-0	04	1	1009-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	0806-1008
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	1009-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	10	1	0806-1409
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	09	1	1410-
16	CLIP; HARNESS (E) ID=10 H=25 L=20	1-09700-519-0	01	1	0806-
16	CLIP; HARNESS (AK) ID=24 L=32	1-09700-766-1	01	1	0806-
16	CLIP; HARNESS (AJ) ID=33 L=63	1-09700-807-0	01	1	0806-1409
16	CLIP; HARNESS (AJ) ID=33 L=63	1-09700-807-0	03	1	1410-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	03	1	0806-1004
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	02	1	1005-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	02	1	0806-1012
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AG) ID=15 L=28	1-09701-216-0	01	1	1101-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1101-
16	CLIP; HARNESS (Y) ID=28+34 L=44	1-09701-311-0	01	1	0806-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	07	1	0806-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	02	1	0909-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	05	1	1009-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	0806-1008
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	07	1	1009-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	0806-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	05	1	0806-1409
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	03	1	1410-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	07	1	0806-
16	CLIP; HARNESS (P) OD=9 H=13.5	1-09709-180-0	01	1	0806-
16	CLIP; HARNESS (Z) ID=13-18 L=18	1-09709-291-0	02	1	0806-
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	06	1	0806-1409
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	05	1	1410-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0806-
16	CLIP; HARNESS (A) ID=14-20	8-97061-603-0	03	1	0806-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	04	1	0806-0806
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	0807-0908
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	01	1	0909-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (W) OD=9 H=6	8-97368-793-0	01	1	1009-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	03	1	0806-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	04	1	0806-0806
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	0807-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0806-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	02	1	0806-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	02	1	0806-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0806-1008
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0806-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0806-1008
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0806-1008
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (F) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (F) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50	1-09700-679-1	01	1	0806-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0806-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24	1-09701-001-1	01	1	0806-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0806-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0806-
48	CLIP; FRAME HARNESS (D) ID=13-18 L=18	1-09709-291-0	01	1	0806-
81	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	02	1	1009-
81	CLIP; HARNESS (C)	1-09709-313-0	02	1	0806-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0806-1008
81	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	04	1	1009-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0806-0806
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	06	1	1009-
104	CLIP; HEADLAMP HARNESS (C) ID=13-18 L=14.5	1-09709-290-0	06	1	0806-1008
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-
104	CLIP; HEADLAMP HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	0806-1008
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-
104	CLIP; HEADLAMP HARNESS (B) L=250	5-09707-030-1	02	1	0806-1008
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=250	5-09707-030-1	02	1	1009-
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	06	1	0806-1008
104	CLIP; HEADLAMP HARNESS NEW ZEALAND EQUIPMENT(PK5) BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	1009-
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	0806-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	08	1	1410-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0806-1008
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	1009-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	06	1	1009-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
162	CLIP; SW HARNESS L=180	1-09707-162-1	01	1	0806-1409
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1410-
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	06	1	0806-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE	1-09987-265-0	01	1	0806-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0806-
212	CLIP; HORN HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0806-
212	CLIP; HORN HARNESS (E) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0806-
212	CLIP; HORN HARNESS (F) L=300	1-09707-001-1	01	1	0806-0806
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	01	1	0806-0806
212	CLIP; HORN HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	0806-1008
212	CLIP; HORN HARNESS ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (C) ID=5-12 L=18	1-09709-287-0	01	1	1009-
212	CLIP; HORN HARNESS (A) L=140	5-09707-031-1	03	1	0806-
421	CLIP; FLOOR HARNESS L=30 SET=10 PIECE	1-09987-265-0	05	1	0806-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0806-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0806-
612	CLIP; HARNESS DPD (A) ID=4.8	1-09701-218-0	03	1	0806-1008
612	CLIP; HARNESS DPD JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=4.8	1-09701-218-0	03	1	1009-
612	CLIP; HARNESS DPD (B) ID=5-12 L=18	1-09709-287-0	01	1	0806-
612	CLIP; HARNESS DPD (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-

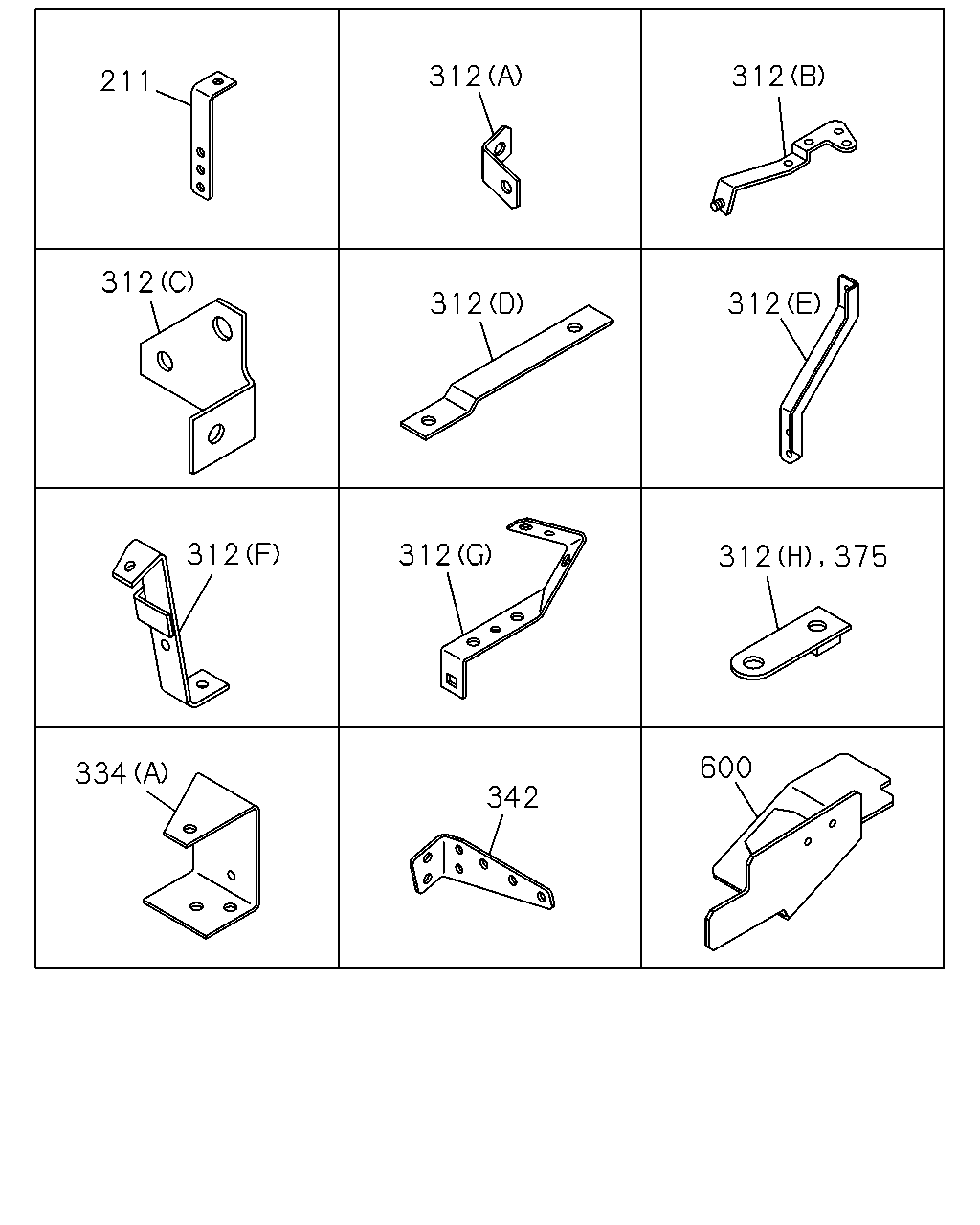

312 312 211 312 312 312 312 312 600 334 342 312 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	0806-
312	BRACKET; CLIP HARNESS (F) L=195.5	1-82698-502-0	01	1	0806-
312	BRACKET; CLIP HARNESS (G)	1-82698-556-0	01	1	0806-
312	BRACKET; CLIP HARNESS (C)	1-82698-570-0	01	1	0806-
312	BRACKET; CLIP HARNESS (H)	1-82699-182-0	01	1	0806-
312	BRACKET; CLIP HARNESS (A)	1-82699-199-0	01	1	0806-
312	BRACKET; CLIP HARNESS (D)	8-98035-927-1	01	1	0806-
312	BRACKET; CLIP HARNESS (E)	8-98052-591-0	01	1	0806-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-82698-443-0	01	1	0806-
334	BRACKET (A)	1-53457-153-2	01	1	0806-
334	BRACKET (B)	1-82698-495-2	01	1	0806-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0806-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0806-
600	PROTECTOR; HEAT	8-98084-026-0	01	1	0806-1008
600	PROTECTOR; HEAT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98084-026-0	01	1	1009-

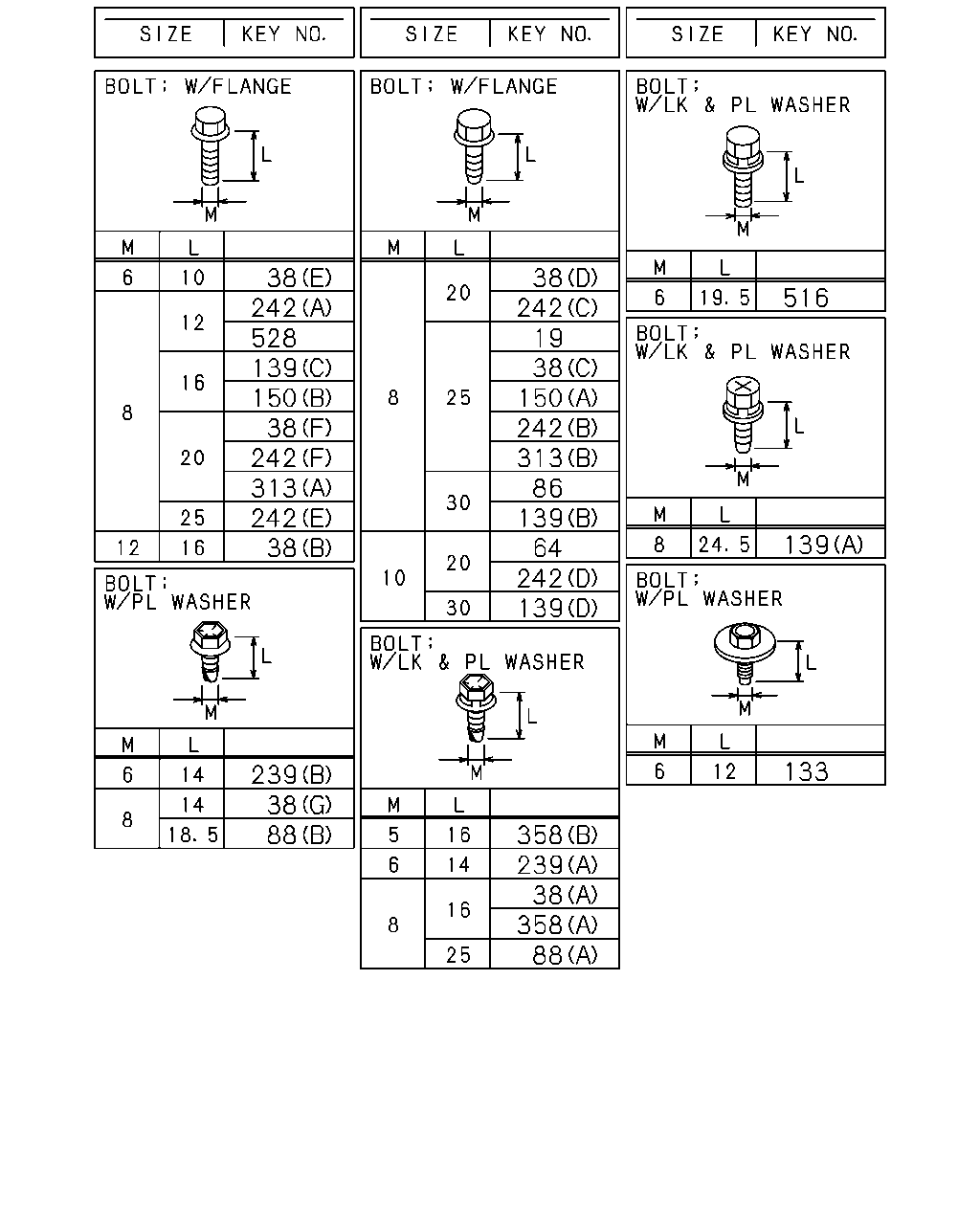

38 242 528 139 150 38 242 313 242 38 38 242 19 38 150 242 313 86 139 64 242 139 516 139 133 239 38 88 358 239 38 358 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0806-1008
19	BOLT; PROTECTOR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X25 FLANGE	0-28650-825-0	02	1	1009-
38	BOLT; CLIP,HARNESS (F) M8X20 FLANGE	0-28050-820-0	05	1	0806-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	08	1	0806-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	0806-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	04	1	0806-0808
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	05	1	0809-
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	1-09044-079-0	01	1	0806-1105
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0806-1201
38	BOLT; CLIP,HARNESS (G) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0806-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0806-
38	BOLT; CLIP,HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (E) M6X10 FLANGE	0-28050-610-0	01	1	0806-
64	SCREW; CLIP M10X20 FLANGE	0-28751-020-0	01	1	0806-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0806-
88	BOLT; DOOR HARNESS EARTH EXC. REMOTE CONT DOOR LOCK<SLG> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1009-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0806-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-1008
88	BOLT; DOOR HARNESS EARTH REMOTE CONT DOOR LOCK<SLG> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1009-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0806-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0806-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0806-
139	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0806-0904
139	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	13	1	0806-
150	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0806-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0806-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0806-
242	BOLT; BRKT,HARNESS (F) M8X20 FLANGE	0-28050-820-0	04	1	0806-
242	BOLT; BRKT,HARNESS (E) M8X25 FLANGE	0-28050-825-0	02	1	0806-1008
242	BOLT; BRKT,HARNESS JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) M8X25 FLANGE	0-28050-825-0	02	1	1009-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	04	1	0806-
242	BOLT; BRKT,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-
242	BOLT; BRKT,HARNESS (D) M10X20 FLANGE	0-28651-020-0	02	1	0806-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0806-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	07	1	0806-
358	BOLT; EARTH (B) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0806-
358	BOLT; EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0806-0806
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0806-
528	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	0806-

16 51 81 104 194 206 212 305 369 16 102 104 111 121 142 171 194 206 374 380 212 14 16 48 102 171 194 212 369 16 51 142 162 194 208 16 16 16 128 16 212 16 373 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS L=350	1-09707-183-0	04	1	0806-
16	CLIP; HARNESS (AL) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	06	1	1005-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	06	1	0806-0808
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	07	1	0809-1008
16	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (AA) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	05	1	0909-1008
16	CLIP; HARNESS (G) L=180	1-09707-162-1	02	1	1009-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	02	1	0909-1409
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	1410-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54	1-09700-392-1	01	1	0806-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (V) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (V) ID=28 L=32	1-09701-107-1	01	1	1003-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-1004
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-1004
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	0806-1008
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	1009-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	05	1	0806-1105
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AC) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0806-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0806-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	09	1	0806-1205
16	CLIP; HARNESS (C) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=21 L=47.5	8-94178-108-0	05	1	0806-
16	CLIP; HARNESS (H) L=36	8-94224-891-1	01	1	0806-
16	CLIP; HARNESS (R) ID=18 L=44	8-97367-985-1	05	1	0806-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	03	1	0806-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0806-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0806-
16	CLIP; HARNESS (AC) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0806-
16	CLIP; HARNESS (D) ID=11X2 L=20	0-95325-035-0	02	1	0806-
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	03	1	0806-1409
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	04	1	0806-1008
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AD) ID=28 L=58	1-09700-400-0	04	1	1009-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	0806-1008
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	1009-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	10	1	0806-1409
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	09	1	1410-
16	CLIP; HARNESS (E) ID=10 H=25 L=20	1-09700-519-0	01	1	0806-
16	CLIP; HARNESS (AK) ID=24 L=32	1-09700-766-1	01	1	0806-
16	CLIP; HARNESS (AJ) ID=33 L=63	1-09700-807-0	01	1	0806-1409
16	CLIP; HARNESS (AJ) ID=33 L=63	1-09700-807-0	03	1	1410-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	03	1	0806-1004
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	02	1	1005-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	02	1	0806-1012
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AG) ID=15 L=28	1-09701-216-0	01	1	1101-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1101-
16	CLIP; HARNESS (Y) ID=28+34 L=44	1-09701-311-0	01	1	0806-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	07	1	0806-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	02	1	0909-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	05	1	1009-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	0806-1008
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	07	1	1009-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	0806-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	05	1	0806-1409
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	03	1	1410-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	07	1	0806-
16	CLIP; HARNESS (P) OD=9 H=13.5	1-09709-180-0	01	1	0806-
16	CLIP; HARNESS (Z) ID=13-18 L=18	1-09709-291-0	02	1	0806-
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	06	1	0806-1409
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	05	1	1410-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0806-
16	CLIP; HARNESS (A) ID=14-20	8-97061-603-0	03	1	0806-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	04	1	0806-0806
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	0807-0908
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	01	1	0909-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (W) OD=9 H=6	8-97368-793-0	01	1	1009-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	03	1	0806-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	04	1	0806-0806
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	0807-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0806-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	02	1	0806-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	02	1	0806-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0806-1008
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0806-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0806-1008
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0806-1008
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (F) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (F) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50	1-09700-679-1	01	1	0806-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0806-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24	1-09701-001-1	01	1	0806-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0806-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0806-
48	CLIP; FRAME HARNESS (D) ID=13-18 L=18	1-09709-291-0	01	1	0806-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	0806-
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	0806-
81	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	02	1	1009-
81	CLIP; HARNESS (C)	1-09709-313-0	02	1	0806-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0806-1008
81	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	04	1	1009-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0806-0806
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0809-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	0806-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	06	1	1009-
104	CLIP; HEADLAMP HARNESS (C) ID=13-18 L=14.5	1-09709-290-0	06	1	0806-1008
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-
104	CLIP; HEADLAMP HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	0806-1008
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-
104	CLIP; HEADLAMP HARNESS (B) L=250	5-09707-030-1	02	1	0806-1008
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=250	5-09707-030-1	02	1	1009-
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	06	1	0806-1008
104	CLIP; HEADLAMP HARNESS NEW ZEALAND EQUIPMENT(PK5) BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	1009-
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	0806-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	0806-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0806-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0806-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0806-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0806-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
162	CLIP; SW HARNESS L=180	1-09707-162-1	01	1	0806-1409
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1410-
171	CLIP; STARTER HARNESS (A) L=350	1-09707-183-0	02	1	0806-
171	CLIP; STARTER HARNESS (B) L=250	5-09707-030-1	04	1	0806-
194	CLIP; BAND EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=350	1-09707-183-0	02	1	1009-
194	CLIP; BAND (A) L=350	1-09707-183-0	09	1	0806-0908
194	CLIP; BAND (A) L=350	1-09707-183-0	07	1	0909-1409
194	CLIP; BAND (A) L=350	1-09707-183-0	02	1	0909-1008
194	CLIP; BAND NEW ZEALAND EQUIPMENT(PK5) (A) L=350	1-09707-183-0	03	1	1009-1409
194	CLIP; BAND NEW ZEALAND EQUIPMENT(PK5) (A) L=350	1-09707-183-0	03	1	1410-
194	CLIP; BAND (A) L=350	1-09707-183-0	03	1	1410-
194	CLIP; BAND (C) L=180	1-09707-162-1	03	1	0806-1008
194	CLIP; BAND EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=180	1-09707-162-1	03	1	1009-
194	CLIP; BAND (B) L=250	5-09707-030-1	06	1	0806-
194	CLIP; BAND (D) L=140	5-09707-031-1	01	1	0806-
206	CLIP; FUEL TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-
206	CLIP; FUEL TANK HARNESS (B) L=140	5-09707-031-1	03	1	0806-0808
206	CLIP; FUEL TANK HARNESS (C) L=250	5-09707-030-1	03	1	0809-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0806-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0806-
212	CLIP; HORN HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0806-
212	CLIP; HORN HARNESS (E) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0806-
212	CLIP; HORN HARNESS (F) L=300	1-09707-001-1	01	1	0806-0806
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	01	1	0806-0806
212	CLIP; HORN HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	0806-1008
212	CLIP; HORN HARNESS ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (C) ID=5-12 L=18	1-09709-287-0	01	1	1009-
212	CLIP; HORN HARNESS (A) L=140	5-09707-031-1	03	1	0806-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0806-
369	CLIP; BAND EDS HARNESS (A) L=350	1-09707-183-0	02	1	0806-
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	0806-
373	CLIP; BAND,GEN HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175	1-09707-176-1	01	1	1407-
374	CLIP; BAND AXLE HARNESS L=250	1-09707-126-0	02	1	0806-
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	01	1	0809-
589	CLIP; GLOW PLUG GENERATOR NIKKO 24V-90A 2.5KW(SD2) EXC. NEW ZEALAND EQUIPMENT(PK5) L=175	1-09707-176-1	01	1	1407-

119 524 219 294 469 515 525 515 340 127 423 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	0806-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0806-1008
119	SCREW; DOOR HARNESS EARTH REMOTE CONT DOOR LOCK<SLG> M5X14 W/PL WASHER	8-94447-551-0	02	1	1009-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	0806-
219	NUT M8 FLANGE	0-91180-108-0	03	1	0806-
219	NUT M8 FLANGE	0-91180-108-0	08	1	0806-0806
219	NUT M8 FLANGE	0-91180-108-0	07	1	0807-
294	NUT M8 FLANGE	0-91180-108-0	07	1	0806-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0806-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	05	1	0806-0806
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0807-
469	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0806-1008
469	NUT; PROTECTOR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	02	1	1009-
515	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0806-
515	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0806-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0806-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0806-

128 16 16 16 16 16 16 212 470 16 16 16 16 16 16 16 48 206 16 212 16 223 148 16 462 612 168 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AL) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	06	1	1005-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	06	1	0806-0808
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	07	1	0809-1008
16	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (AA) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	05	1	0909-1008
16	CLIP; HARNESS (G) L=180	1-09707-162-1	02	1	1009-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	02	1	0909-1409
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	1410-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54	1-09700-392-1	01	1	0806-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (V) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (V) ID=28 L=32	1-09701-107-1	01	1	1003-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-1004
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-1004
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1005-1008
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	0806-1008
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	1009-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	05	1	0806-1105
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AC) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0806-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0806-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	09	1	0806-1205
16	CLIP; HARNESS (C) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=21 L=47.5	8-94178-108-0	05	1	0806-
16	CLIP; HARNESS (H) L=36	8-94224-891-1	01	1	0806-
16	CLIP; HARNESS (R) ID=18 L=44	8-97367-985-1	05	1	0806-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	03	1	0806-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0806-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0806-
16	CLIP; HARNESS (AC) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0806-
16	CLIP; HARNESS (D) ID=11X2 L=20	0-95325-035-0	02	1	0806-
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	03	1	0806-1409
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	04	1	0806-1008
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AD) ID=28 L=58	1-09700-400-0	04	1	1009-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	0806-1008
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	1009-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	10	1	0806-1409
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	09	1	1410-
16	CLIP; HARNESS (E) ID=10 H=25 L=20	1-09700-519-0	01	1	0806-
16	CLIP; HARNESS (AK) ID=24 L=32	1-09700-766-1	01	1	0806-
16	CLIP; HARNESS (AJ) ID=33 L=63	1-09700-807-0	01	1	0806-1409
16	CLIP; HARNESS (AJ) ID=33 L=63	1-09700-807-0	03	1	1410-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	03	1	0806-1004
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	02	1	1005-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	02	1	0806-1012
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AG) ID=15 L=28	1-09701-216-0	01	1	1101-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1101-
16	CLIP; HARNESS (Y) ID=28+34 L=44	1-09701-311-0	01	1	0806-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	07	1	0806-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	02	1	0909-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	05	1	1009-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	0806-1008
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	07	1	1009-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	0806-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	05	1	0806-1409
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	03	1	1410-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	07	1	0806-
16	CLIP; HARNESS (P) OD=9 H=13.5	1-09709-180-0	01	1	0806-
16	CLIP; HARNESS (Z) ID=13-18 L=18	1-09709-291-0	02	1	0806-
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	06	1	0806-1409
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	05	1	1410-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0806-
16	CLIP; HARNESS (A) ID=14-20	8-97061-603-0	03	1	0806-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	04	1	0806-0806
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	0807-0908
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	01	1	0909-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (W) OD=9 H=6	8-97368-793-0	01	1	1009-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	03	1	0806-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	04	1	0806-0806
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	0807-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0806-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	02	1	0806-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	02	1	0806-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0806-1008
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0806-1008
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (G) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0806-1008
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0806-1008
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (F) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (F) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50	1-09700-679-1	01	1	0806-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0806-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24	1-09701-001-1	01	1	0806-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0806-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0806-
48	CLIP; FRAME HARNESS (D) ID=13-18 L=18	1-09709-291-0	01	1	0806-
81	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	02	1	1009-
81	CLIP; HARNESS (C)	1-09709-313-0	02	1	0806-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0806-1008
81	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (A) L=140	5-09707-031-1	04	1	1009-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0806-0806
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0806-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0806-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	0806-
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	06	1	0806-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE	1-09987-265-0	01	1	0806-
206	CLIP; FUEL TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-
206	CLIP; FUEL TANK HARNESS (B) L=140	5-09707-031-1	03	1	0806-0808
206	CLIP; FUEL TANK HARNESS (C) L=250	5-09707-030-1	03	1	0809-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0806-
212	CLIP; HORN HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0806-
212	CLIP; HORN HARNESS (E) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0806-
212	CLIP; HORN HARNESS (F) L=300	1-09707-001-1	01	1	0806-0806
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	01	1	0806-0806
212	CLIP; HORN HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	0806-1008
212	CLIP; HORN HARNESS ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (C) ID=5-12 L=18	1-09709-287-0	01	1	1009-
212	CLIP; HORN HARNESS (A) L=140	5-09707-031-1	03	1	0806-
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	8-98033-780-0	01	1	0806-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20	1-09709-068-0	02	1	0806-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0806-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0806-
612	CLIP; HARNESS DPD (A) ID=4.8	1-09701-218-0	03	1	0806-1008
612	CLIP; HARNESS DPD JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=4.8	1-09701-218-0	03	1	1009-
612	CLIP; HARNESS DPD (B) ID=5-12 L=18	1-09709-287-0	01	1	0806-
612	CLIP; HARNESS DPD (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-

53 53 53 53 53 334 53 53 53 53 53 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (J)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (A)	8-97610-339-1	01	1	0806-
53	BRACKET; HARNESS (B)	8-97610-340-1	01	1	0806-
53	BRACKET; HARNESS (C) L=105	1-47477-409-0	01	1	0806-
53	BRACKET; HARNESS (C) L=130	1-47478-959-0	02	1	0806-
53	BRACKET; HARNESS (D)	1-47479-537-0	09	1	0806-
53	BRACKET; HARNESS (E)	1-82698-495-2	01	1	0806-
53	BRACKET; HARNESS (I)	8-97616-268-1	01	1	0806-1008
53	BRACKET; HARNESS JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (I)	8-97616-268-1	01	1	1009-
53	BRACKET; HARNESS (F)	8-98032-696-0	01	1	0806-
53	BRACKET; HARNESS (G)	8-98050-989-0	01	1	0806-
53	BRACKET; HARNESS (H)	8-98052-592-0	01	1	0806-
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	0806-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	0806-
334	BRACKET (A)	1-53457-153-2	01	1	0806-
334	BRACKET (B)	1-82698-495-2	01	1	0806-

224 599 1 1 1 1 530 178 178 178 178 596 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (C) ID=38.1 L=50	5-09360-835-0	01	1	0806-
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0806-
1	SLEEVE; RUBBER (A) ID=18 OD=22 L=25	8-94412-773-0	01	1	0806-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0806-0806
178	GROMMET; HARNESS (A) ID=39 OD=45 T=19	1-09332-077-0	01	1	0806-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0806-
178	GROMMET; HARNESS (B) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	03	1	0806-
178	GROMMET; HARNESS (D) ID=24 OD=30 T=17	9-09956-092-1	02	1	0806-
178	GROMMET; HARNESS (E) ID=19 OD=23 T=18	9-09956-130-1	01	1	0806-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	0806-
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	0806-0806
530	SEAL; HARNESS LOW ROOF<6XQ> 100X40	1-72498-022-1	01	1	0806-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	0806-
530	SEAL; HARNESS 100X40	1-72498-022-1	02	1	0806-
596	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	0806-
599	TUBE; DISTANCE ID=8.5 L=10	5-13642-077-0	04	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
