◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#25667) — 20 parça

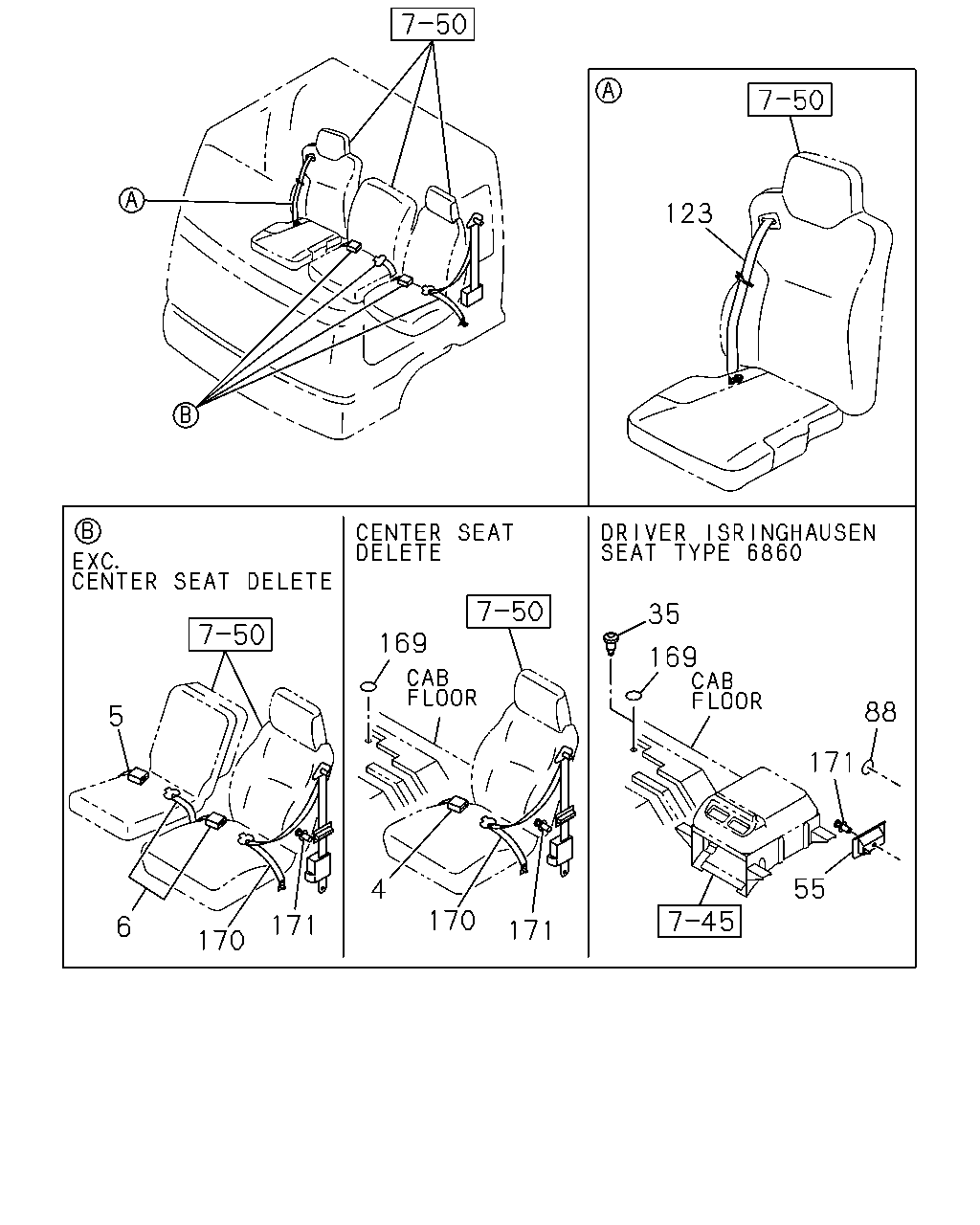

çizim 142663
123 35 169 169 88 5 171 55 4 170 171 6 171 170
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 0806-1008
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1009-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 1009-1310
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-98184-487-2 01 1 1311-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 1009-1310
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-98184-488-1 01 1 1311-
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1006-1008
35 GROMMET; SEAT BELT ANCHOR
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) OD=22 		9-61168-535-0 01 1 1009-
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 0806-
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 0806-
123 BELT ASM; SEAT
EXC. AIR BAG(TFQ) 		8-98097-969-0 01 1 1009-
123 BELT ASM; SEAT 8-98097-971-0 01 1 0806-1008
123 BELT ASM; SEAT
AIR BAG(TFQ) 		8-98097-971-0 01 1 1009-
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0908-1005
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0806-1008
169 SEAL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) OD=25 BLACK 		1-76798-019-0 01 1 1009-
169 SEAL
CENTER SEAT DELETE(SP9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) OD=25 BLACK 		1-76798-019-0 01 1 1009-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-605-1 01 1 0806-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1311-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0806-
