◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#25666) — 197 parça

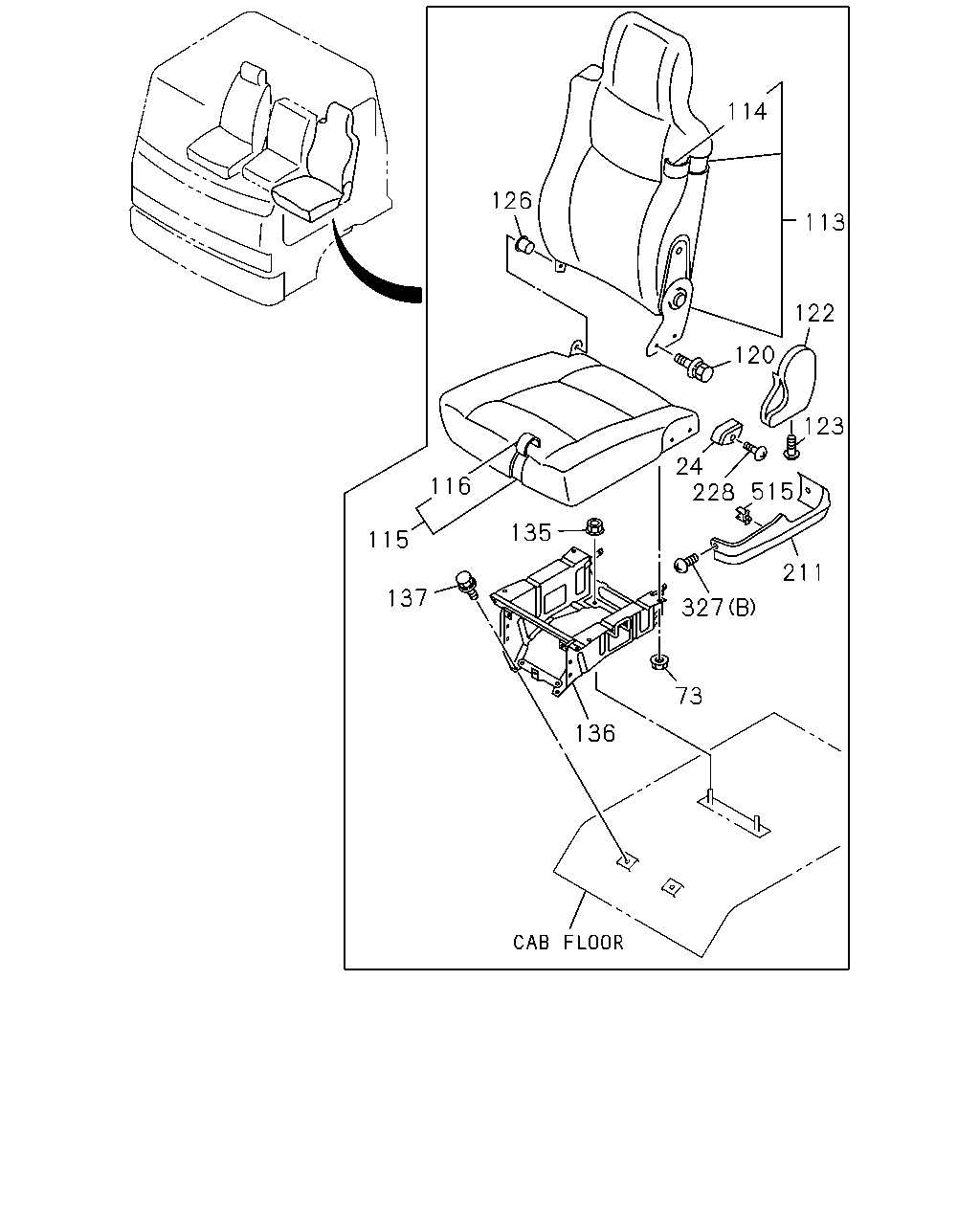

çizim 142377
114 113 122 120 123 126 24 228 515 211 327 73 136 116 135 137 115
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 0806-1008
24 KNOB; RECLINING,FRT,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		1-75418-067-0 01 1 1009-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0806-1008
73 NUT; ADJ,HEIGHT CONT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) M8 FLANGE 		1-75538-207-0 04 1 1009-
113 BACK ASM; SEAT 8-98054-773-0 01 1 0806-1008
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98054-773-0 01 1 1009-
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 0806-1008
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98054-777-0 01 1 1009-
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-771-0 01 1 1009-
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 0806-1008
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) REMOTE CONT DOOR LOCK<SLG> 		8-98054-770-0 01 1 1009-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-776-0 01 1 1009-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 0806-1008
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) REMOTE CONT DOOR LOCK<SLG> 		8-98054-775-0 01 1 1009-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0806-1008
120 BOLT; RECLINING ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) M8X20 		8-97255-906-0 02 1 1009-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0806-1008
122 COVER; ADJ,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) DARK GRAY 		8-97859-018-0 01 1 1009-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0806-1008
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 1009-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0806-1008
126 BUSHING; HINGE,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-97854-087-0 01 1 1009-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0806-
136 STAND; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> 		1-75558-550-7 01 1 1009-1305
136 STAND; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98242-292-0 01 1 1306-
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0806-1008
136 STAND; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) REMOTE CONT DOOR LOCK<SLG> 		1-75558-601-3 01 1 1009-1305
136 STAND; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) REMOTE CONT DOOR LOCK<SLG> 		8-98242-298-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0806-
211 COVER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> 		1-72538-274-0 01 1 1009-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0806-1008
228 SCREW; KNOB
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) M4 		8-98062-662-0 01 1 1009-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 1009-
327 CLIP; COVER
(A) 		8-98098-004-0 01 1 0806-1008
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		8-98098-004-0 01 1 1009-
515 CLIP; PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> BLACK 		8-94227-248-1 01 1 1009-

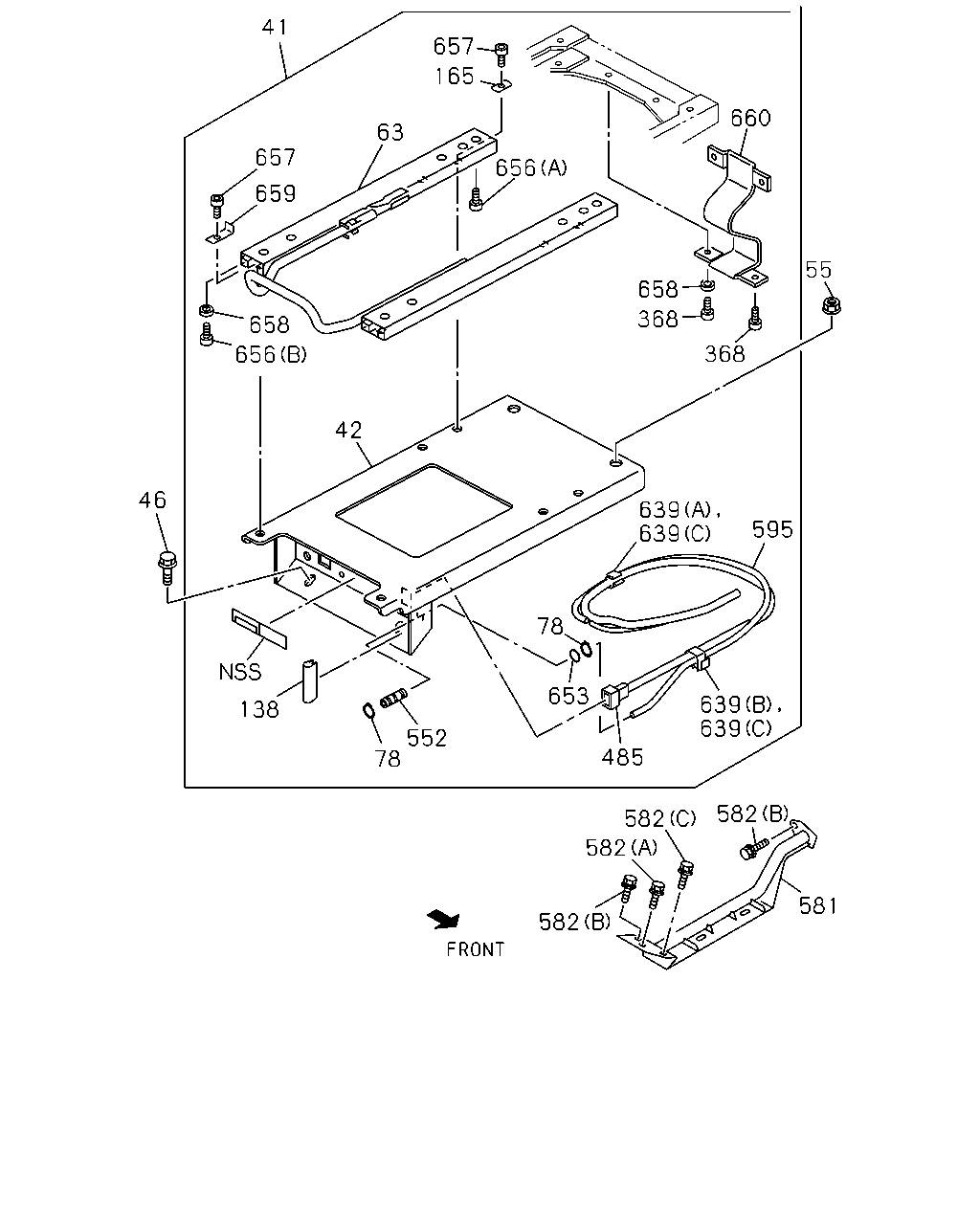

çizim 142675
41 657 63 165 657 656 659 658 656 42 46 138 552 78 78 639 595 639 653 485 582 582 639 582 639 581 582 368 55 658 660 368
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0806-1008
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 1009-1212
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-1 01 1 1301-
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 1009-1212
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-1 01 1 1301-
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 0806-1008
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-347-0 01 1 1009-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0806-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0806-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0806-1008
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-005-0 01 1 1009-
78 RING; SNAP 8-98101-900-0 02 1 0806-1008
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98101-900-0 02 1 1009-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0806-1008
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-351-0 01 1 1009-
165 WASHER; PL 1-75590-086-0 04 1 0806-1008
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		1-75590-086-0 04 1 1009-
368 BOLT; SEAT 8-98106-353-0 04 1 0806-1008
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-353-0 04 1 1009-
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0806-1008
485 HARNESS; FRT SEAT
AIR BAG(TFQ) 		8-98106-360-0 01 1 1009-
485 HARNESS; FRT SEAT
EXC. AIR BAG(TFQ) 		8-98106-361-0 01 1 1009-
552 CONNECTOR 8-98101-902-0 01 1 0806-1008
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98101-902-0 01 1 1009-1508
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98308-101-0 01 1 1509-
581 PIPE; SEAT 1-73907-605-2 01 1 0806-1008
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		1-73907-605-2 01 1 1009-
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 0806-1008
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (B) 		1-09980-619-1 02 1 1009-
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0806-0904
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-1008
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009-
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0806-1008
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1009-
595 TUBE; NYLON 8-98106-348-0 01 1 0806-1008
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-348-0 01 1 1009-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0806-1008
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		8-98106-349-0 01 1 1009-1508
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0806-1008
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (B) 		8-98106-350-0 01 1 1009-1508
653 GASKET 8-98101-901-0 01 1 0806-1008
653 GASKET
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98101-901-0 01 1 1009-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0806-1008
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		1-75590-085-0 04 1 1009-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0806-1008
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (B) 		8-98106-354-0 02 1 1009-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0806-1008
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		1-75590-085-0 06 1 1009-
658 SPACER; BOLT 8-98106-355-0 02 1 0806-1008
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-355-0 02 1 1009-
659 STOPPER 8-98106-356-0 02 1 0806-1008
659 STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-356-0 02 1 1009-
660 BELT; TETHER 8-98106-357-0 01 1 0806-1008
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98106-357-0 01 1 1009-

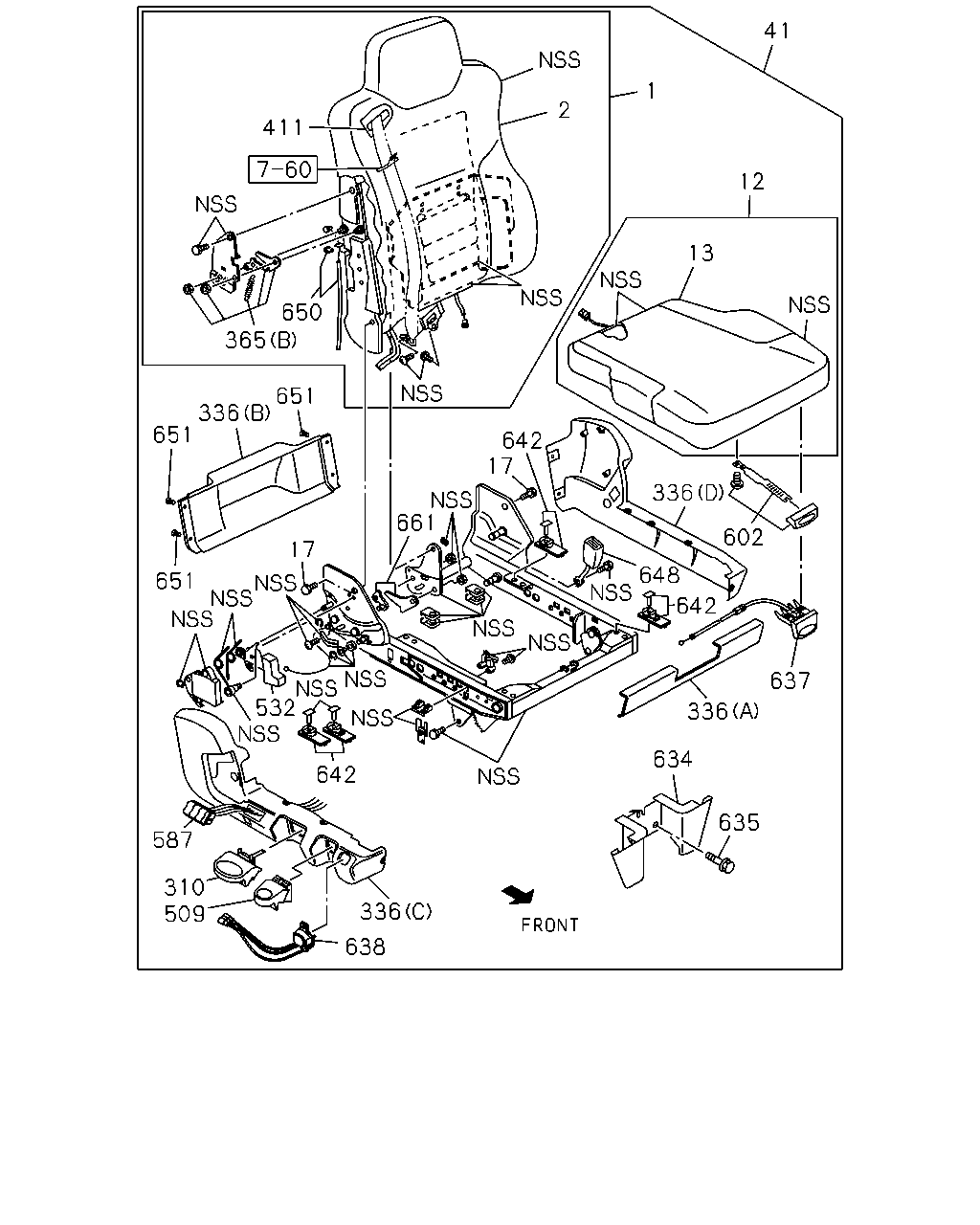

çizim 142676
2 1 41 12 13 336 602 648 642 637 336 635 336 638 509 587 310 642 532 651 17 661 17 642 651 336 651 411 650 365 634
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
EXC. AIR BAG(TFQ) 		8-98097-963-0 01 1 1009-
1 BACK ASM; SEAT 8-98097-964-0 01 1 0806-1008
1 BACK ASM; SEAT
AIR BAG(TFQ) 		8-98097-964-0 01 1 1009-
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0806-1008
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-966-0 01 1 1009-1212
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98232-353-0 01 1 1301-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0806-1008
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-006-0 01 1 1009-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0806-1008
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-007-0 01 1 1009-
17 BOLT; RECLINING 8-98097-974-0 02 1 0806-1008
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-974-0 02 1 1009-
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0806-1008
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 1009-1212
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-1 01 1 1301-
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 1009-1212
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-1 01 1 1301-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0806-1008
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-992-0 01 1 1009-
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0806-1008
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (D) 		8-98097-978-0 01 1 1009-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0806-1008
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (C) 		8-98097-984-0 01 1 1009-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0806-1008
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		8-98097-995-0 01 1 1009-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0806-1008
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (B) 		8-98097-996-0 01 1 1009-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0806-1008
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		8-98097-972-0 01 1 1009-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 1009-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0806-1008
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-967-0 01 1 1009-
509 LEVER; DAMPER 8-98097-988-0 01 1 0806-1008
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-988-0 01 1 1009-
532 LEVER ASM; TILT 8-98097-982-0 01 1 0806-1008
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-982-0 01 1 1009-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0806-1008
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-986-0 01 1 1009-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0806-1008
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-008-0 01 1 1009-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0806-1008
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98088-279-0 01 1 1009-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0806-1008
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) M6X16 		0-52000-616-0 02 1 1009-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0806-1008
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-989-0 01 1 1009-
638 VALVE; LOWERING 8-98097-994-0 01 1 0806-1008
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-994-0 01 1 1009-
642 SLIDER; CUSHION 8-98192-932-0 04 1 0806-1008
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98192-932-0 04 1 1009-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0806-1008
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-976-0 01 1 1009-
650 CABLE 8-98097-973-0 01 1 0806-1008
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-973-0 01 1 1009-1212
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98232-354-0 01 1 1301-
651 RIVET 8-98194-075-0 04 1 0806-1008
651 RIVET
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98194-075-0 04 1 1009-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0806-1008
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-980-0 01 1 1009-

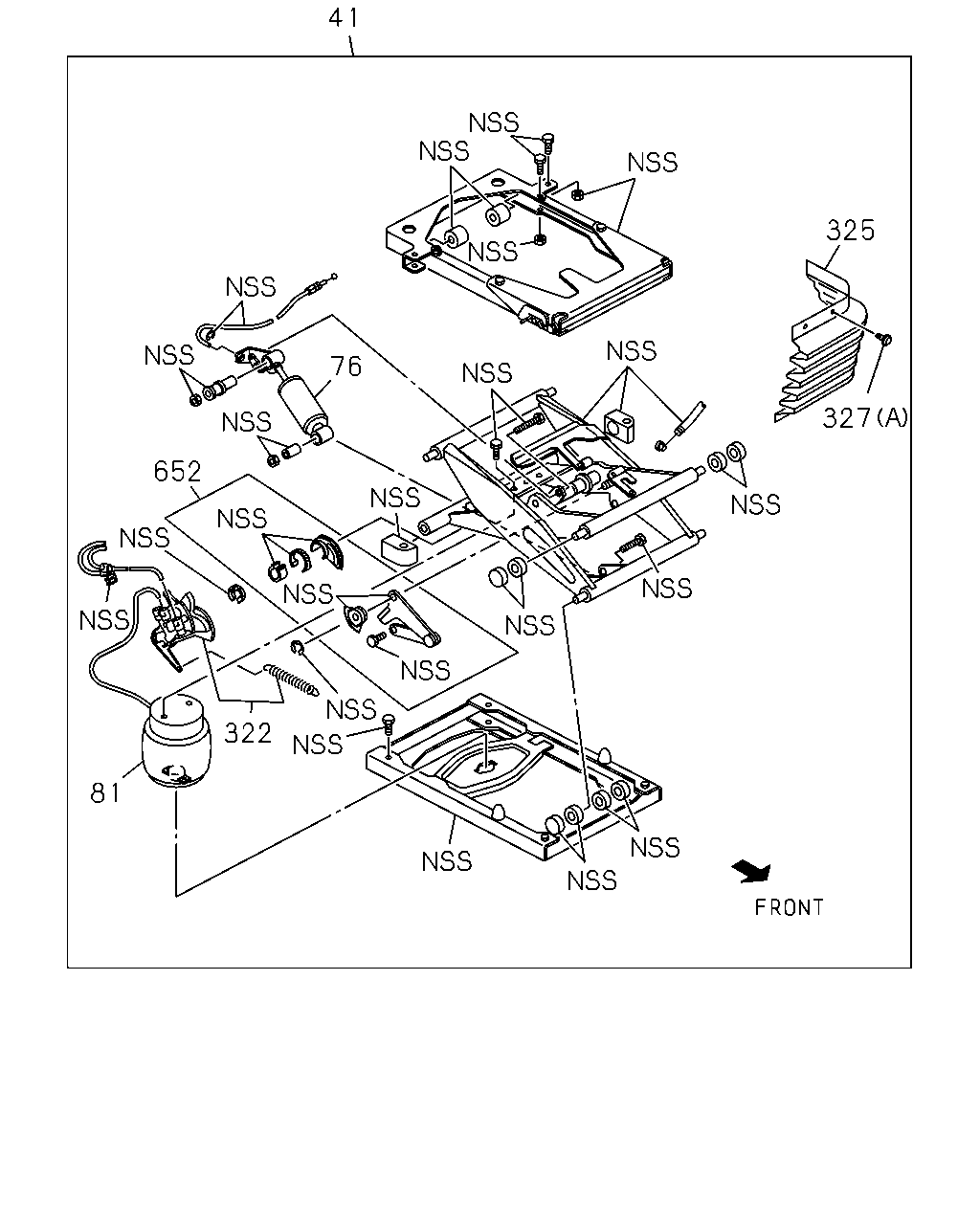

çizim 142693
41 327 325 76 652 81 322
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0806-1008
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 1009-1212
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-1 01 1 1301-
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 1009-1212
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-1 01 1 1301-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0806-1008
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98097-999-0 01 1 1009-
81 SPRING; AIR 8-98098-000-0 01 1 0806-1008
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-000-0 01 1 1009-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0806-1008
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-001-0 01 1 1009-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98331-314-0 01 1 1509-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0806-1008
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-003-0 01 1 1009-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 1009-
327 CLIP; COVER
(A) 		8-98098-004-0 01 1 0806-1008
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		8-98098-004-0 01 1 1009-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0806-1008
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		8-98098-002-0 01 1 1009-
çizim 142701
506 360 175 176 188 16 188 403 189 359 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 1009-
175 BACK ASM; PASSENGER CENTER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98054-774-1 01 1 1009-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98054-779-0 01 1 1009-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98054-778-0 01 1 1009-
182 CUSHION ASM; CENTER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98054-772-2 01 1 1009-
188 BOLT; BACK TO CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 1009-
189 BUSHING; HINGE,CENTER SEAT BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 1009-
359 BOX; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1009-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 1009-1104
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1009-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1009-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 1009-
506 CAP; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1009-

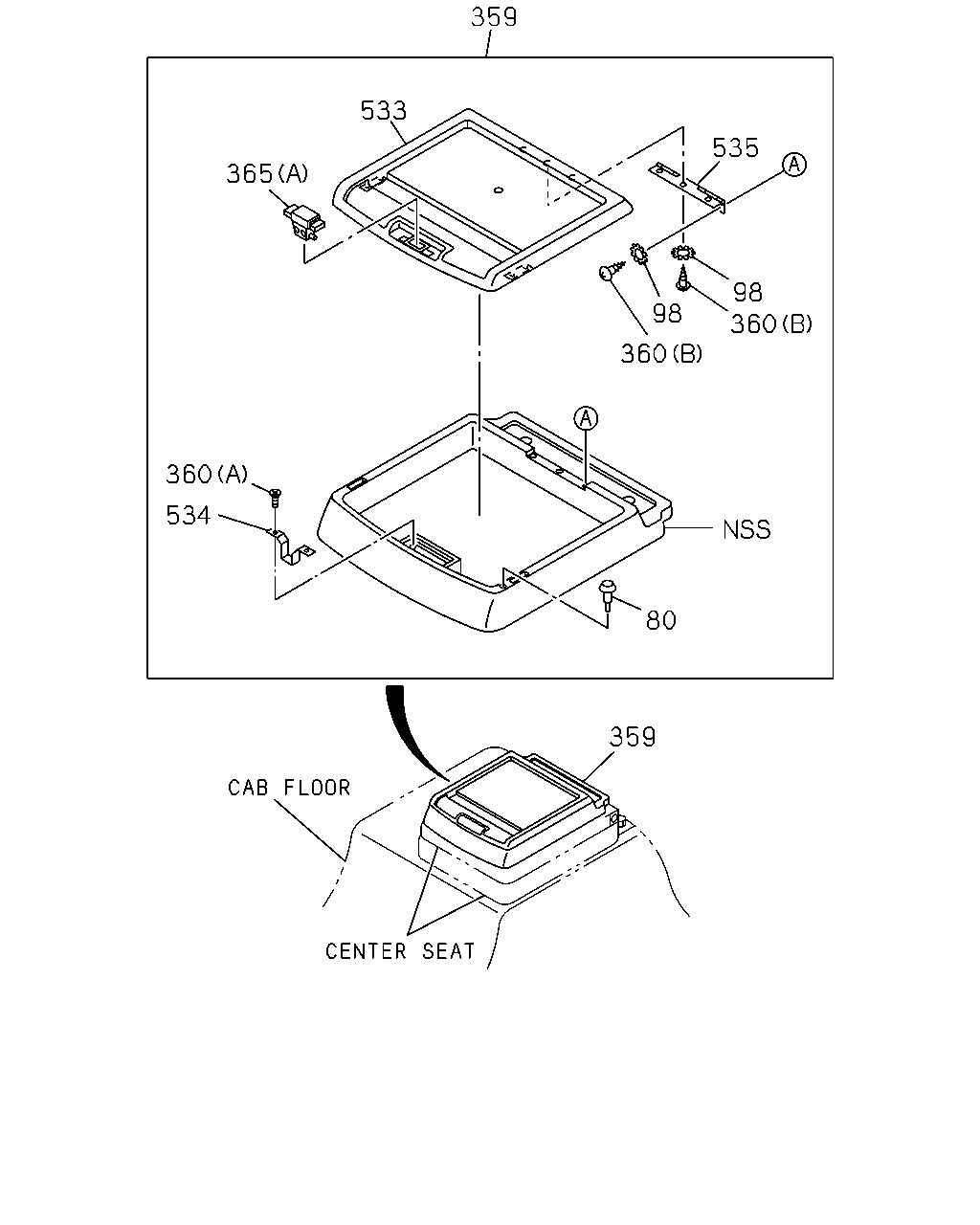

çizim 336649
359 535 98 98 360 360 80 359 533 365 360 534
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1009-
98 WASHER; HINGE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1009-
359 BOX; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1009-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 1009-1104
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1009-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1009-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0806-1008
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) (A) 		8-98097-972-0 01 1 1009-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 1009-
533 LID; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1009-
534 STRIKER; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-190-0 01 1 1009-
535 HINGE; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
