7-45 — CONSOLE BOX (#25665) — 111 parça

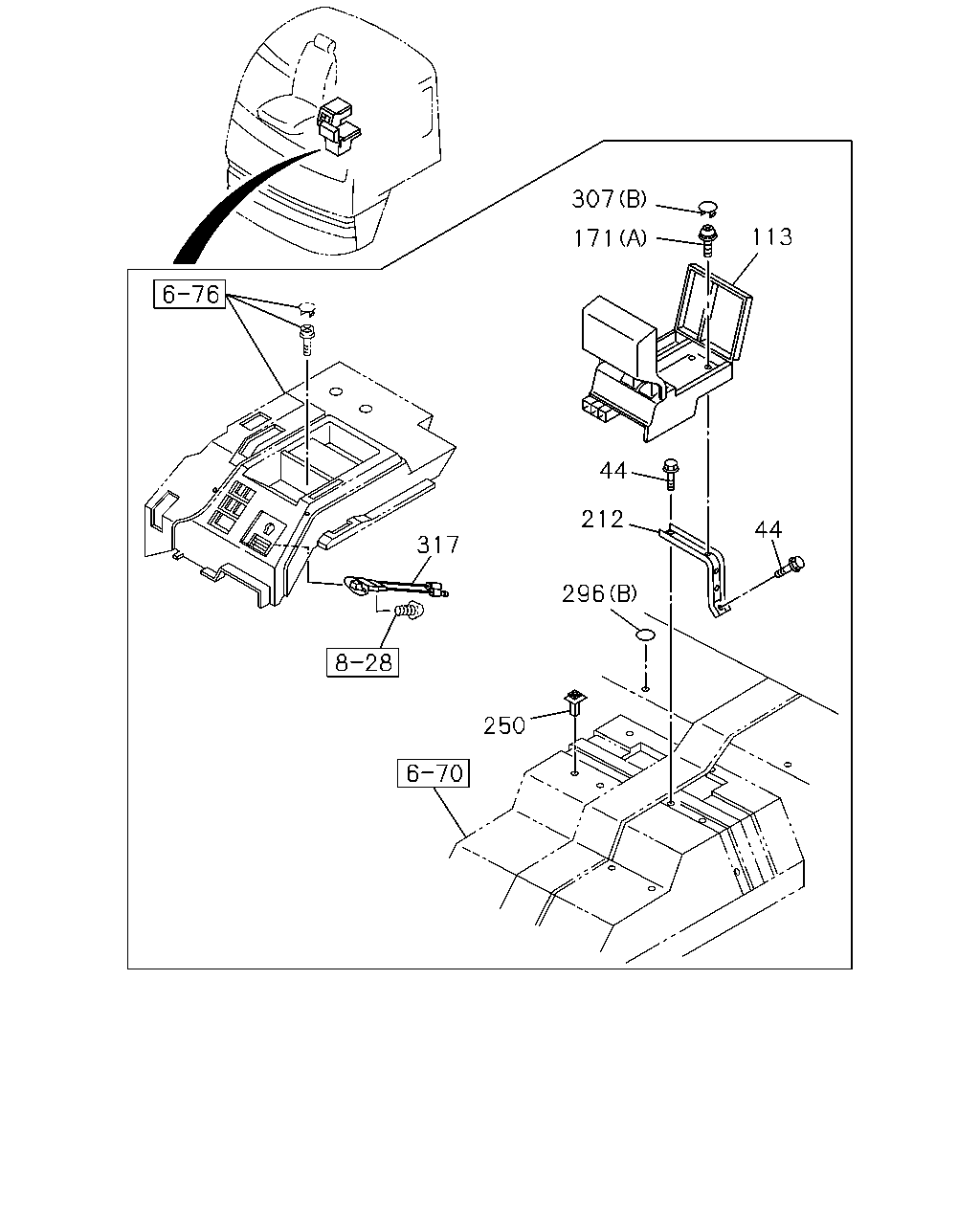

çizim 142664
307 113 171 44 212 44 317 296 250
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0806-0904
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-321-1 01 1 1009-
113 BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-325-1 01 1 1009-
113 BOX; CONSOLE 1-72537-326-1 01 1 0806-1008
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1009-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0806-1008
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-
171 SCREW; CONSOLE BOX
EXC. COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0806-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0806-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0806-
296 SEAL
(A) 		1-72537-094-1 01 1 0806-1008
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1009-
296 SEAL
EXC. COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1009-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0806-
307 COVER; HOLE,CTR CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1009-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0806-1008
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1009-
307 COVER; HOLE,CTR CONSOLE
EXC. COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1009-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0806-
317 CONSENT 1-82523-020-2 01 1 0806-

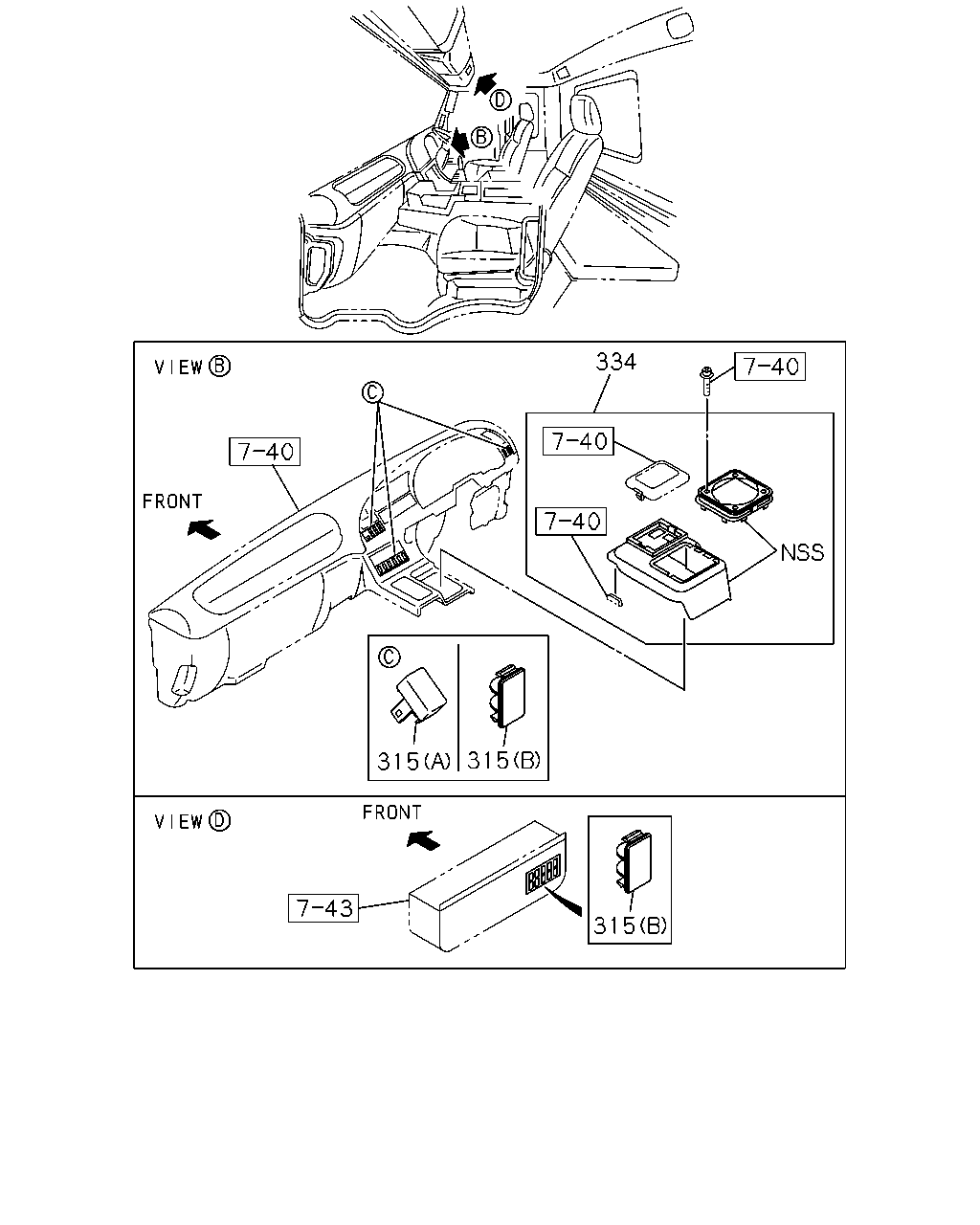

çizim 142677
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0806-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 1002-
334 COVER; CHANGE LEVER 1-72447-969-1 01 1 0806-

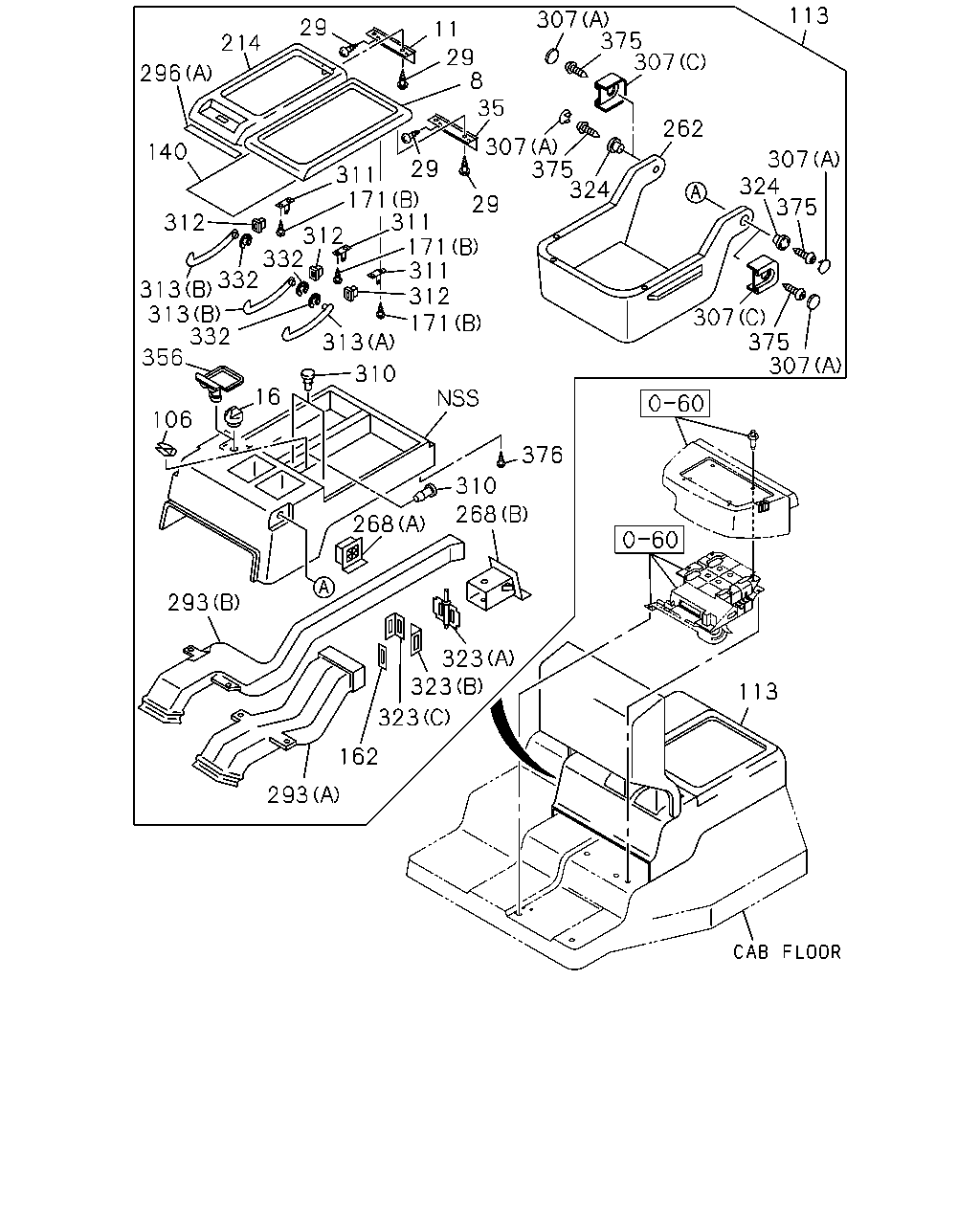

çizim 142686
113 307 375 307 29 11 214 29 8 35 296 262 307 375 324 140 307 324 375 29 311 171 311 171 311 312 171 29 312 312 332 332 313 313 332 356 307 375 307 313 310 16 106 376 310 268 268 293 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE 1-72537-332-0 01 1 0806-1008
8 LID; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1009-
8 LID; CENTER CONSOLE
EXC. COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1009-
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0806-1008
11 HINGE; CONSOLE LID
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1009-
11 HINGE; CONSOLE LID
EXC. COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1009-
16 KNOB ASM 1-72537-189-0 01 1 0806-1008
16 KNOB ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 1009-
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0806-1008
29 SCREW; HINGE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1009-
29 SCREW; HINGE
EXC. COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1009-
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0806-1008
35 HINGE; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1009-
35 HINGE; CENTER CONSOLE
EXC. COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1009-
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0806-1008
106 LOCK; CONSOLE LID
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1009-
106 LOCK; CONSOLE LID
EXC. COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1009-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-321-1 01 1 1009-
113 BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-325-1 01 1 1009-
113 BOX; CONSOLE 1-72537-326-1 01 1 0806-1008
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1009-
140 SHEET
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-093-1 01 1 1009-
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0806-1008
162 CUSHION; PARCEL BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 1009-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0806-1008
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-
171 SCREW; CONSOLE BOX
EXC. COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0806-
214 LID; CONSOLE 1-72537-339-0 01 1 0806-1008
214 LID; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1009-
214 LID; CONSOLE
EXC. COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1009-
262 TABLE ASM 1-72537-187-1 01 1 0806-1008
262 TABLE ASM
TABLE CONSOLE BOX<TDL> 		1-72537-187-1 01 1 1009-
268 COVER; DUCT
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72537-268-0 01 1 1009-
268 COVER; DUCT
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-269-0 01 1 1009-
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0806-1008
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> (B) 		1-72537-183-0 01 1 1009-
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0806-1008
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> (A) 		1-72537-184-0 01 1 1009-
293 DUCT
(A) 		1-72537-081-3 01 1 0806-1008
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 1009-
293 DUCT
(B) 		1-72537-083-2 01 1 0806-1008
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 1009-
296 SEAL
(A) 		1-72537-094-1 01 1 0806-1008
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1009-
296 SEAL
EXC. COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1009-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0806-
307 COVER; HOLE,CTR CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1009-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0806-1008
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1009-
307 COVER; HOLE,CTR CONSOLE
EXC. COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1009-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0806-
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0806-1008
310 CUSHION; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1009-
310 CUSHION; CTR CONSOLE
EXC. COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1009-
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0806-1008
311 HOLDER; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1009-
311 HOLDER; CONSOLE
EXC. COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1009-
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0806-1008
312 STOPPER; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1009-
312 STOPPER; CONSOLE
EXC. COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1009-
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0806-1008
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1009-
313 ARM; CTR CONSOLE
EXC. COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1009-
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0806-1008
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1009-
313 ARM; CTR CONSOLE
EXC. COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1009-
323 SHUTTER
(A) 		1-72537-084-1 01 1 0806-1008
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 1009-
323 SHUTTER
(B) 		1-72537-126-0 01 1 0806-1008
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 1009-
323 SHUTTER
(C) 		1-72537-127-0 01 1 0806-1008
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 1009-
324 BUSHING 1-72537-116-0 02 1 0806-1008
324 BUSHING
TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 1009-
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0806-1008
332 RING; SNAP,CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1009-
332 RING; SNAP,CONSOLE BOX
EXC. COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1009-
356 COVER; KNOB
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 1009-
356 COVER; KNOB
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-271-1 01 1 1009-
375 SCREW; TAP BUSHING
M6X20 		1-72537-319-0 02 1 0806-1008
375 SCREW; TAP BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1009-
375 SCREW; TAP BUSHING
EXC. COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1009-
376 SCREW; TAP DUCT
M4X14 		1-72537-320-0 03 1 0806-1008
376 SCREW; TAP DUCT
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1009-
376 SCREW; TAP DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1009-
