◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

7-43 — SUN VISOR AND ASSIST GRIP (#25664) — 152 parça

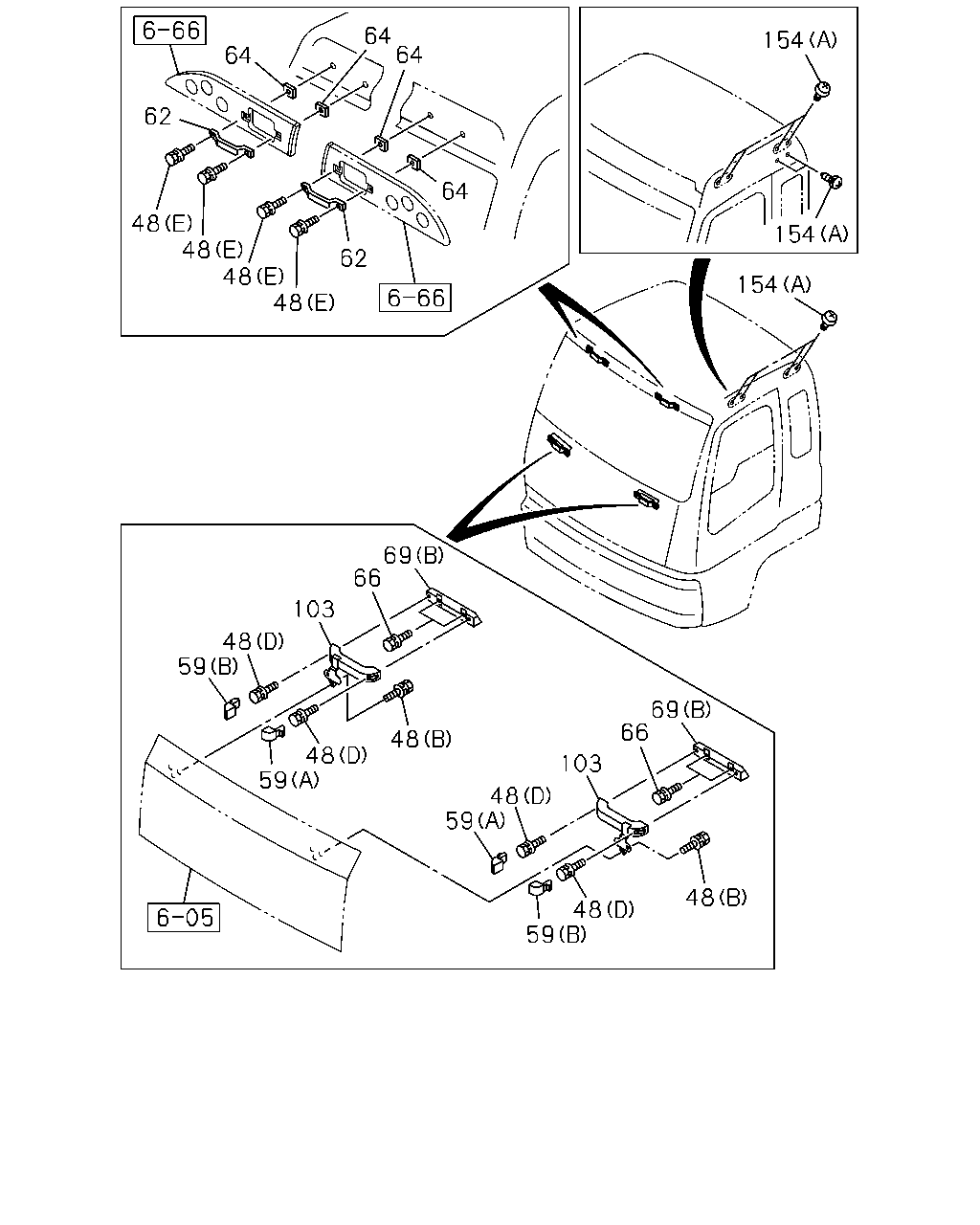

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0908-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0806-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0806-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0806-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0806-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0806-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0806-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0806-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0806-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0806-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0806-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0806-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0806-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0806-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0806-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0806-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0806-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0806-0907
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0806-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0806-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0908-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0806-0907
154	BOLT; SUPPORT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0908-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0806-

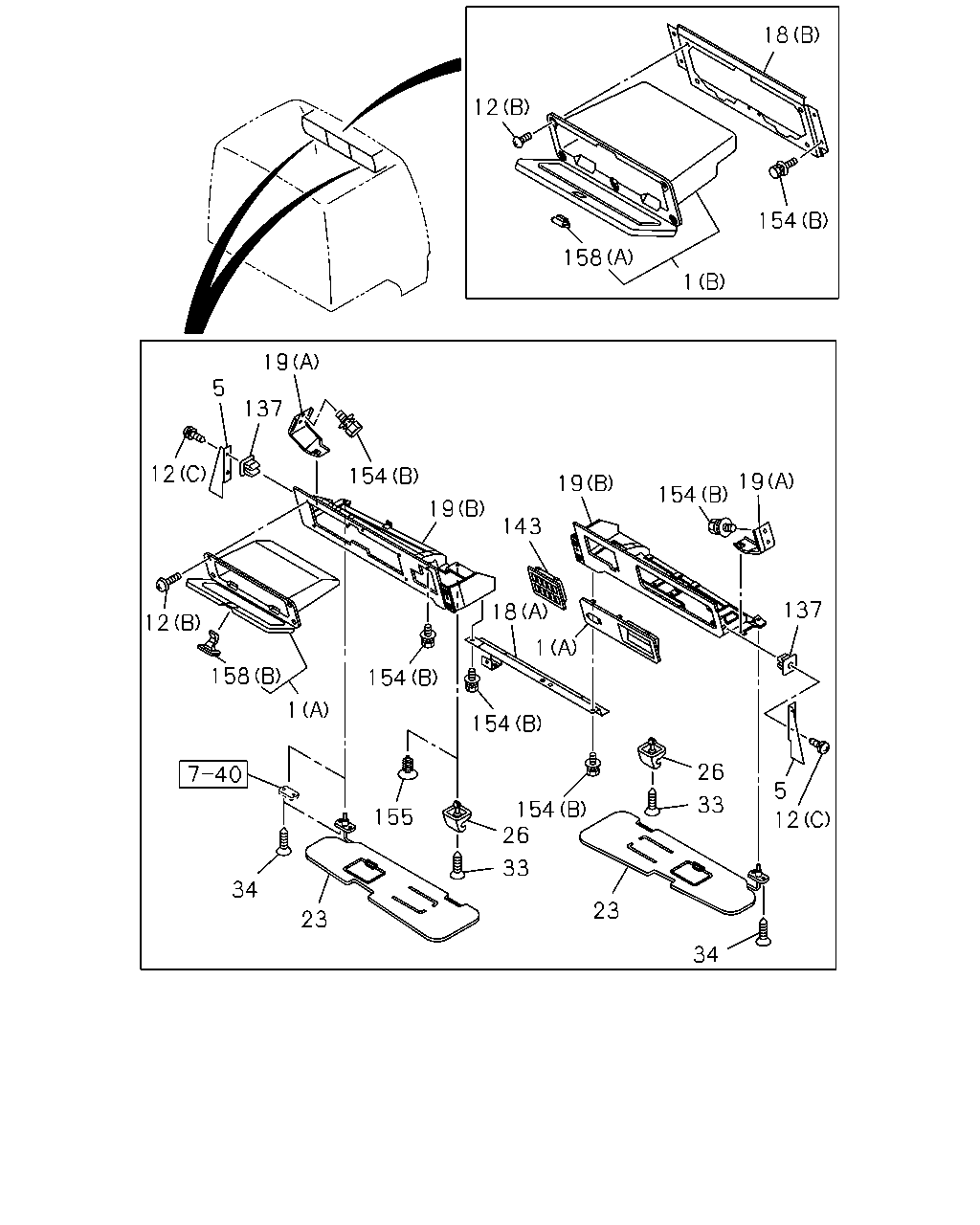

18 12 154 158 1 19 5 137 12 154 19 19 154 19 143 18 137 12 1 158 154 1 154 26 5 33 154 26 155 12 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF EXC. AUSTRALIA EQUIPMENT(RR3),TACHOGRAPH 120KM/H<SM8> (A)	1-72447-876-4	01	1	1009-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0806-
1	BOARD; HEADER SHELF (A)	1-72447-760-4	01	1	0806-1008
1	BOARD; HEADER SHELF AUSTRALIA EQUIPMENT(RR3) (A)	1-72447-760-4	01	1	1009-
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-72447-760-4	01	1	1009-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0806-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0806-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0806-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0806-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0806-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0806-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0806-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0806-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0806-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0806-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0806-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0806-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0806-
23	SUN VISOR	1-73138-157-1	01	1	0806-1008
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1009-
23	SUN VISOR	1-73138-162-0	01	1	0806-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0806-1008
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0806-1008
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1009-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1009-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0806-1008
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0806-1008
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0806-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0806-
143	BEZEL	1-72447-768-2	01	1	0806-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0806-0907
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0806-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0806-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0908-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0806-0907
154	BOLT; SUPPORT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0908-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0806-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1009-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0806-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0806-

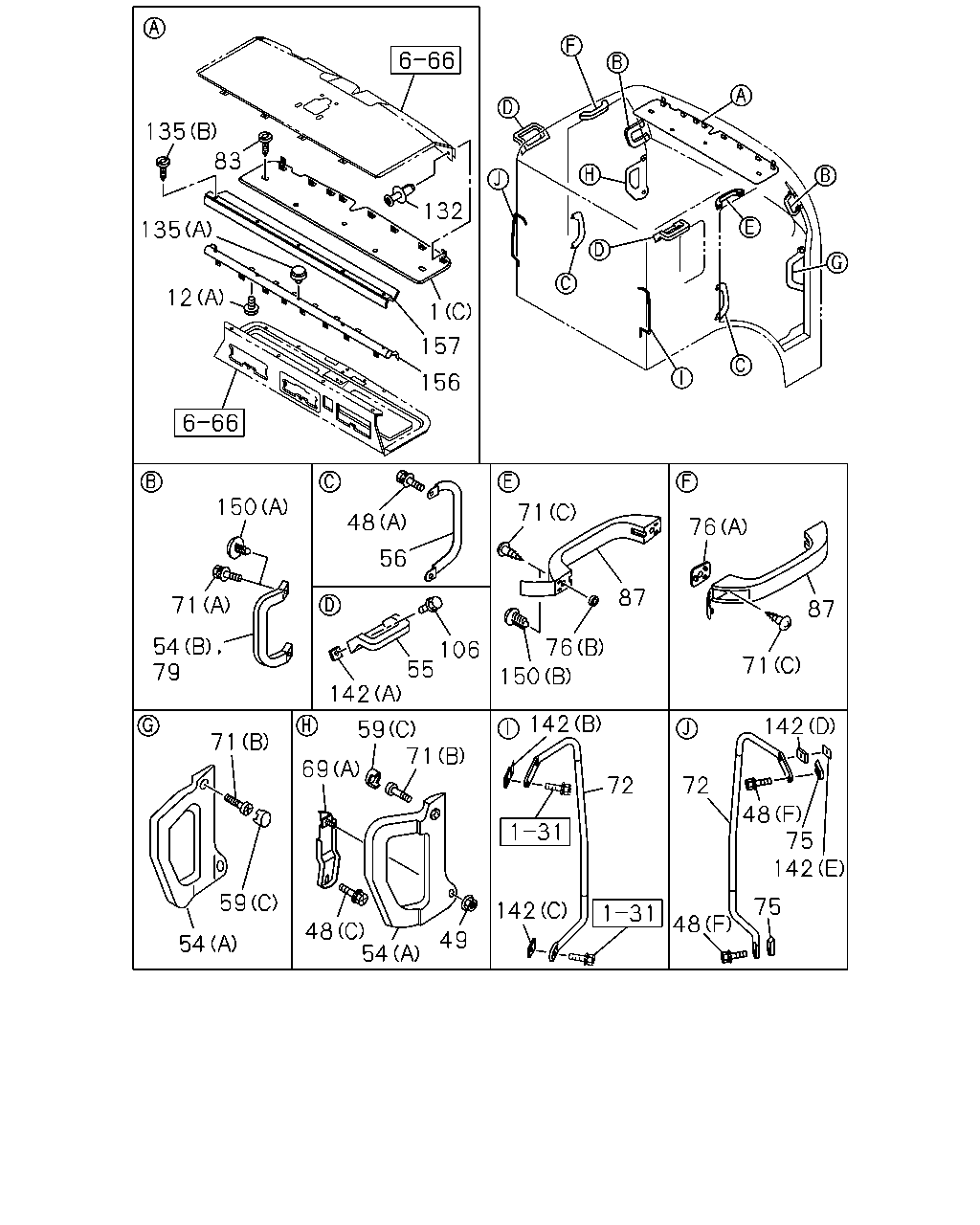

135 83 132 135 12 1 157 156 150 71 48 76 56 87 71 87 54 79 76 106 55 71 150 142 142 142 59 71 71 69 72 72 48 75 142 59 75 142 48 48 54 49 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF EXC. AUSTRALIA EQUIPMENT(RR3),TACHOGRAPH 120KM/H<SM8> (A)	1-72447-876-4	01	1	1009-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0806-
1	BOARD; HEADER SHELF (A)	1-72447-760-4	01	1	0806-1008
1	BOARD; HEADER SHELF AUSTRALIA EQUIPMENT(RR3) (A)	1-72447-760-4	01	1	1009-
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-72447-760-4	01	1	1009-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0806-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0806-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0806-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0806-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0806-
48	BOLT; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0908-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0806-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0806-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0806-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0806-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0806-
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0806-
54	GRIP; ASSIST,QUARTER SIDE EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-73618-185-1	02	1	1009-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0806-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0806-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0806-0904
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	01	1	0905-1008
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	01	1	1009-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0806-0907
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	0908-
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0806-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0806-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0806-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0806-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0806-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0806-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0806-
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1009-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (B) M6X30 W/LK WASHER	5-09981-064-0	02	1	1009-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0806-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0806-1008
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1009-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0806-0904
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0905-1008
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0905-1008
71	SCREW AUSTRALIA EQUIPMENT(RR3) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	1009-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	1009-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71907-540-0	01	1	1009-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71907-543-0	01	1	0908-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-608-1	01	1	0806-0907
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71907-608-1	01	1	0908-1008
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17>	1-71907-608-1	01	1	1009-
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71997-548-0	01	1	1009-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71997-548-0	02	1	0908-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	0806-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	0806-1008
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	1009-
79	GRIP; ASSIST	1-73618-185-1	01	1	0905-1008
79	GRIP; ASSIST AUSTRALIA EQUIPMENT(RR3)	1-73618-185-1	01	1	1009-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0806-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	1009-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0806-1008
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	1009-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0806-0907
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0908-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0806-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0806-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0806-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (D)	1-71997-691-1	01	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (E) 25X25	8-94272-533-0	02	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71907-604-0	01	1	0806-0907
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	1-71907-604-0	01	1	0908-1008
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	1009-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0806-0907
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	1-71997-691-1	02	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0806-0907
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	0908-
150	CLIP; ASSIST GRIP HOLE AUSTRALIA EQUIPMENT(RR3) EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	1009-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1009-
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0905-1008
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0806-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	0806-
