Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

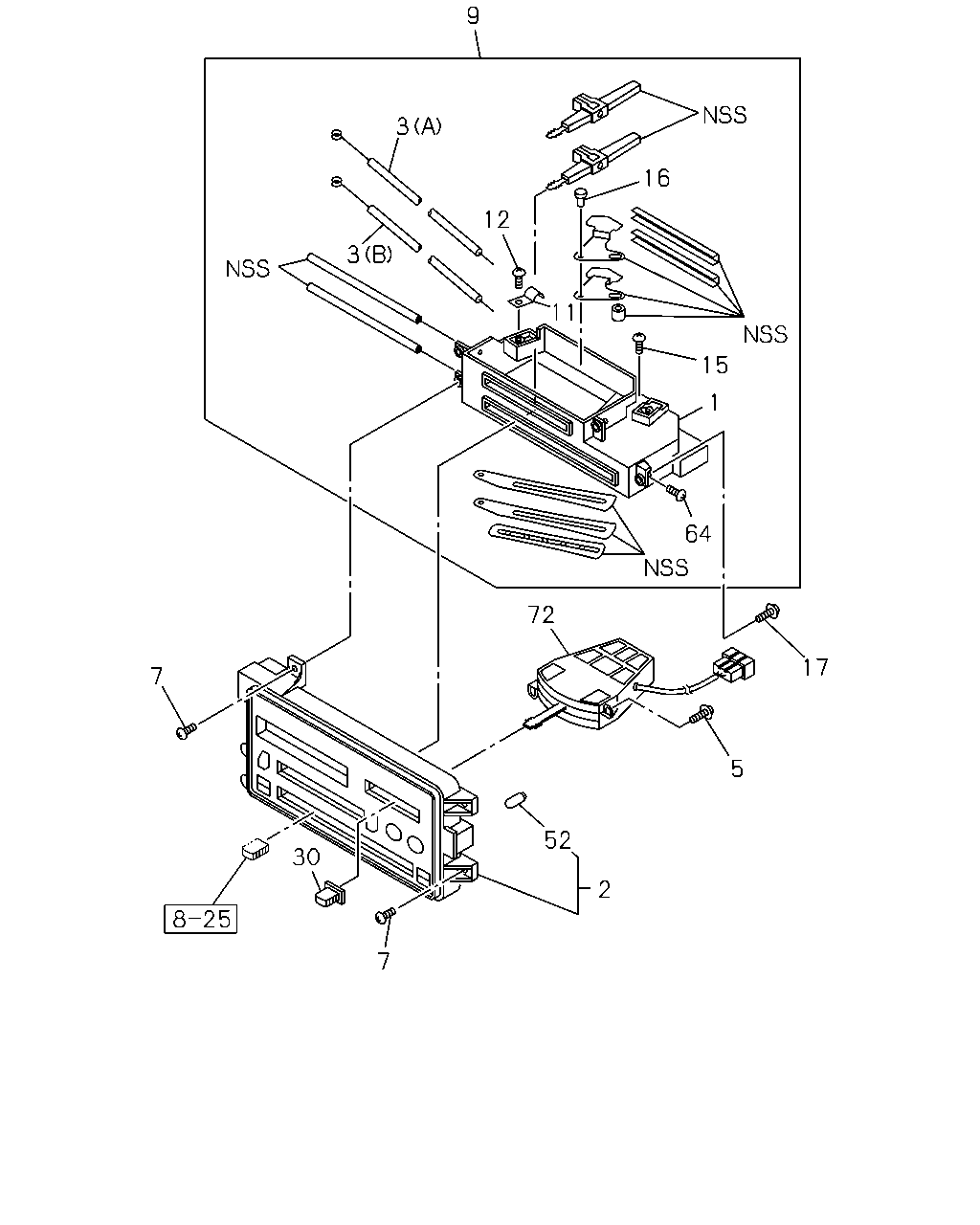

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#2566) — 18 parça
9
3
16
12
3
11
15
1
64
72
17
7
5
52
30
2
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER SUB ASM; HTR CONT
1-83519-040-0
01
1
9002-
2
PANEL ASM; CONT,ILLUMINATION
1-72410-135-3
01
1
9002-
3
CABLE; HTR CONT LVR
(A) FRESH RECIRCULATION CONT. L=1310
1-83519-037-0
01
1
9002-
3
CABLE; HTR CONT LVR
(B) HOT COOL CONT. L=470
1-83519-043-0
01
1
9002-
5
SCREW; FAN SW
M5X14 W/PL WASHER
5-09981-050-0
02
1
9002-
7
SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
9
LEVER ASM; HTR & A/C CONT
1-83513-079-3
01
1
9002-
11
CLIP; CABLE,HTR CONT LVR
1-83519-034-0
02
1
9002-
12
SCREW; CABLE CLIP,HTR CONT LVR
1-83519-038-0
02
1
9002-
15
SCREW; HTR CONT LVR CLIP
1-83519-036-0
06
1
9002-
16
PIN; HTR CONT LVR
1-83519-039-0
02
1
9002-
17
SCREW; CONT LEVER,HTR
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
30
KNOB; FAN SW
1-82346-067-0
03
1
9002-
52
BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER
1-82194-027-0
01
1
9002-
52
BULB; PANEL ILLUMINATION
24V1.2W W/GREEN FILTER
1-82194-045-0
02
1
9002-
52
BULB; PANEL ILLUMINATION
24V1.2W W/BLUE FILTER
1-82194-046-0
01
1
9002-
64
SCREW; PANEL,HTR CONT LVR
1-83519-041-0
04
1
9002-
72
SWITCH; FAN MOTOR
1-82360-236-0
01
1
9002-
