◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#25652) — 29 parça

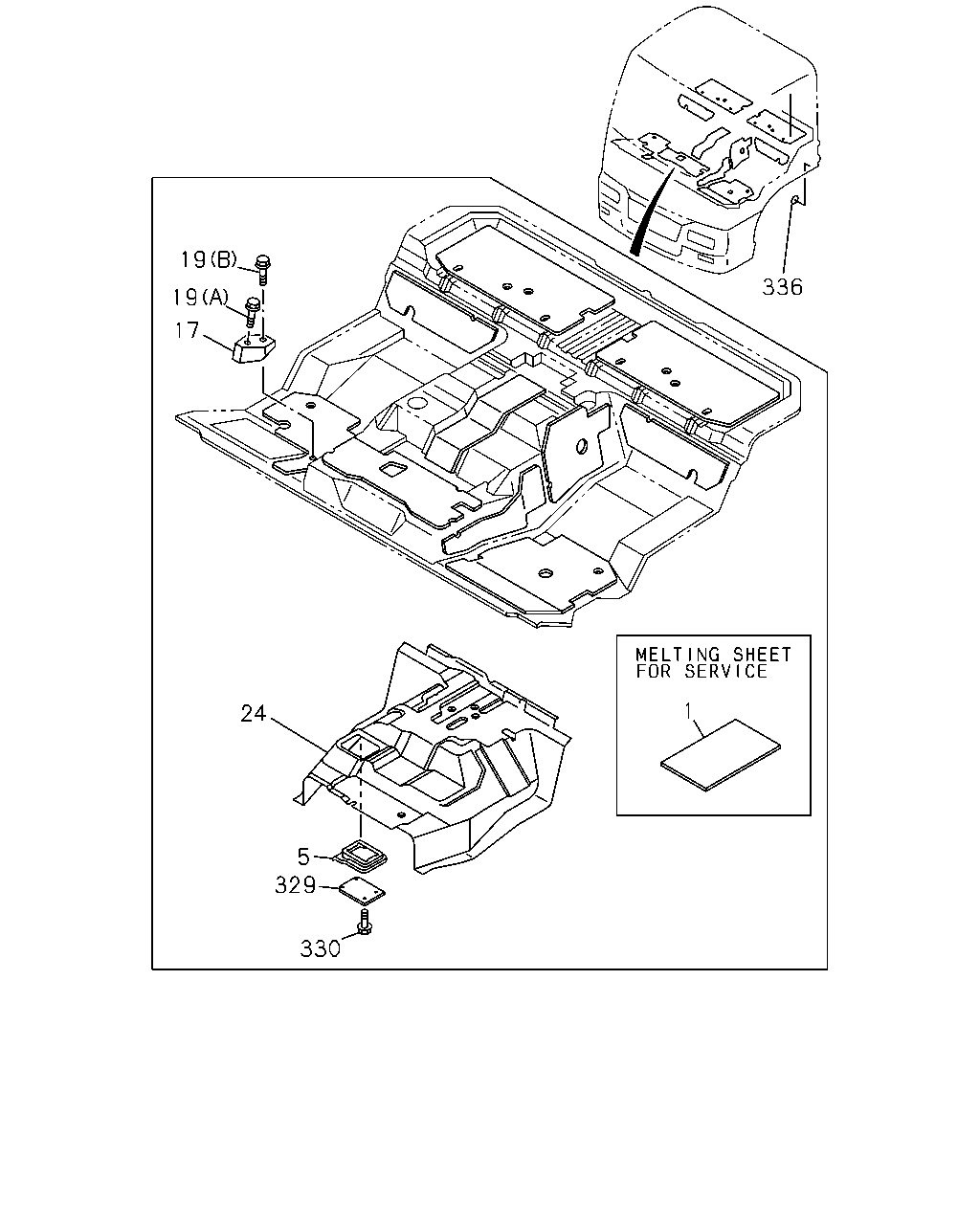

çizim 142647
19 336 19 17 1 24 5 329 330
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0806-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0806-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0806-
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0806-
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0806-
24 INSULATOR; HEAT,FRT 1-71907-676-3 01 1 0806-
329 BRACKET; PANEL 1-33619-465-0 01 1 0806-
330 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0806-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0806-

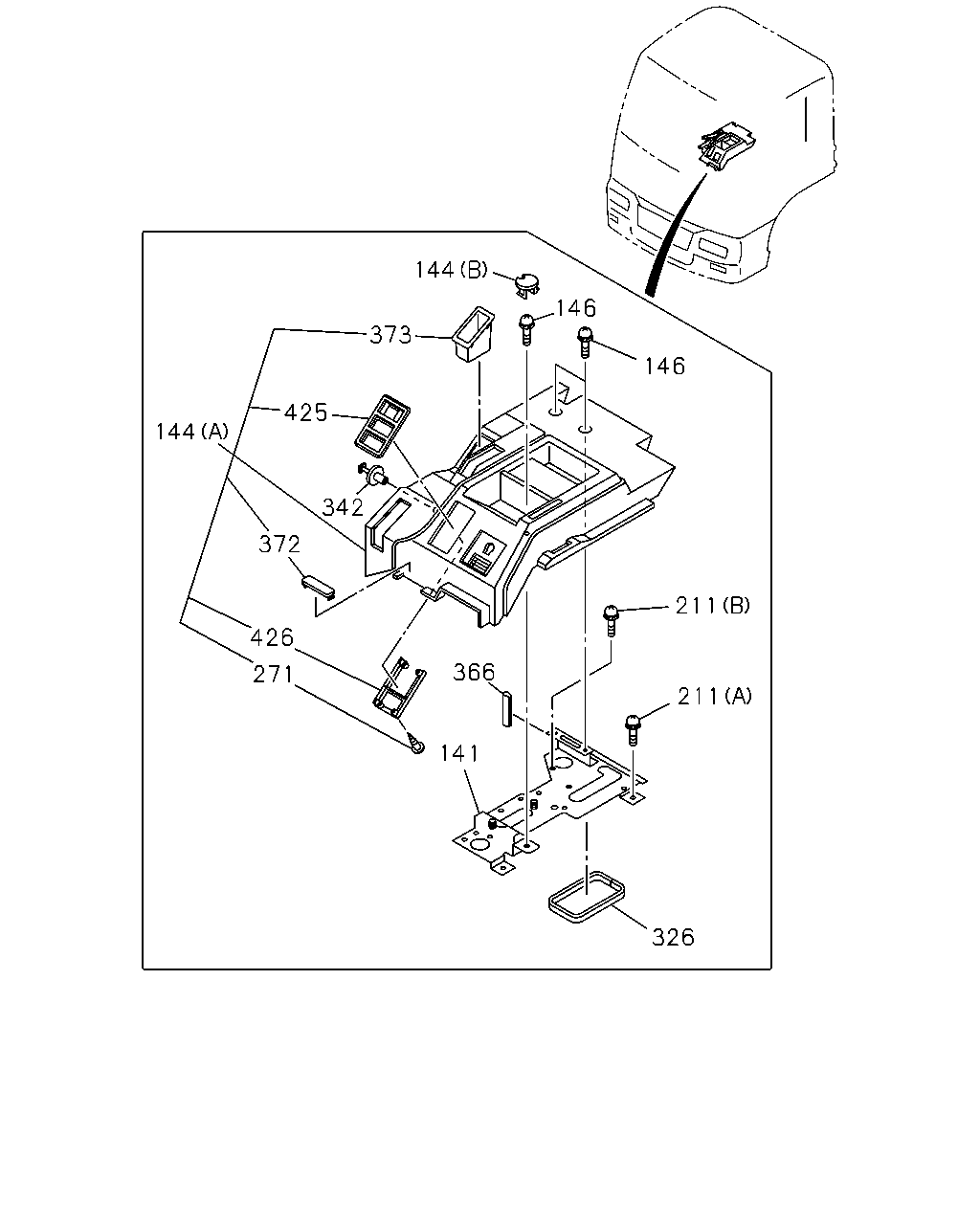

çizim 142649
144 146 373 146 425 144 342 372 211 426 366 271 211 141 326
BalonParca AdiParca NoAdetTipApplied Date
141 HOLDER 1-79907-076-2 01 1 0806-
144 COVER; HAND BRK VLV
(A) 		1-72417-422-1 01 1 0806-1008
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> (A) 		1-72417-422-1 01 1 1009-
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0806-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0806-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0806-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0806-
271 SCREW; COVER 1-72417-418-0 04 1 0806-1008
271 SCREW; COVER
ELEC OUTLET 12V<TAW> 		1-72417-418-0 04 1 1009-
326 SEAL; COVER 1-79997-978-1 01 1 0806-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0806-
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0806-
372 COVER; CONSOLE 1-72537-124-0 01 1 0806-1008
372 COVER; CONSOLE
ELEC OUTLET 12V<TAW> 		1-72537-124-0 01 1 1009-
373 COVER; HOLE 1-72537-194-0 01 1 0806-1008
373 COVER; HOLE
ELEC OUTLET 12V<TAW> 		1-72537-194-0 01 1 1009-
425 BEZEL; SW 1-72417-414-0 01 1 0806-1008
425 BEZEL; SW
ELEC OUTLET 12V<TAW> 		1-72417-414-0 01 1 1009-
426 COVER; SW 1-72417-415-1 01 1 0806-1008
426 COVER; SW
ELEC OUTLET 12V<TAW> 		1-72417-415-1 01 1 1009-
