◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#25651) — 18 parça

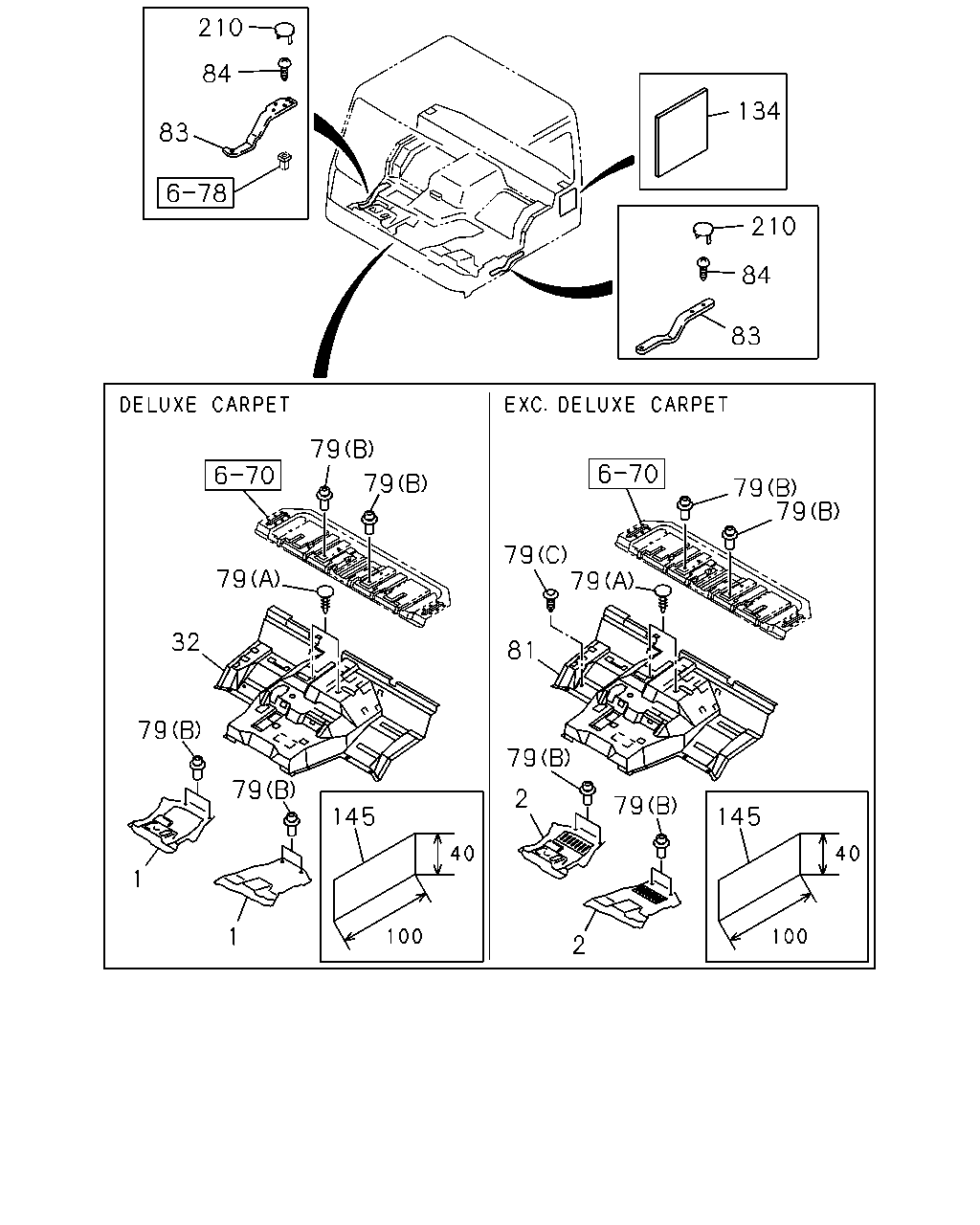

çizim 142652
210 84 134 83 210 84 83 79 79 79 79 79 79 79 32 81 79 79 79 2 79 145 145 1 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 0806-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 0806-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0806-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0806-
32 CARPET; FLOOR
DELUXE CARPET<BF2> 		1-73237-925-2 01 1 0806-1008
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) 		1-73237-925-2 01 1 1009-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0806-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0806-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0806-1008
79 HOOK; MALE
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1009-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-929-1 01 1 0806-1008
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT TYPE 6860(SJA) EXC. DELUXE CARPET<BF2> 		1-73237-929-1 01 1 1009-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0806-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0806-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0806-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 1009-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0806-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0806-
