◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#2565) — 29 parça

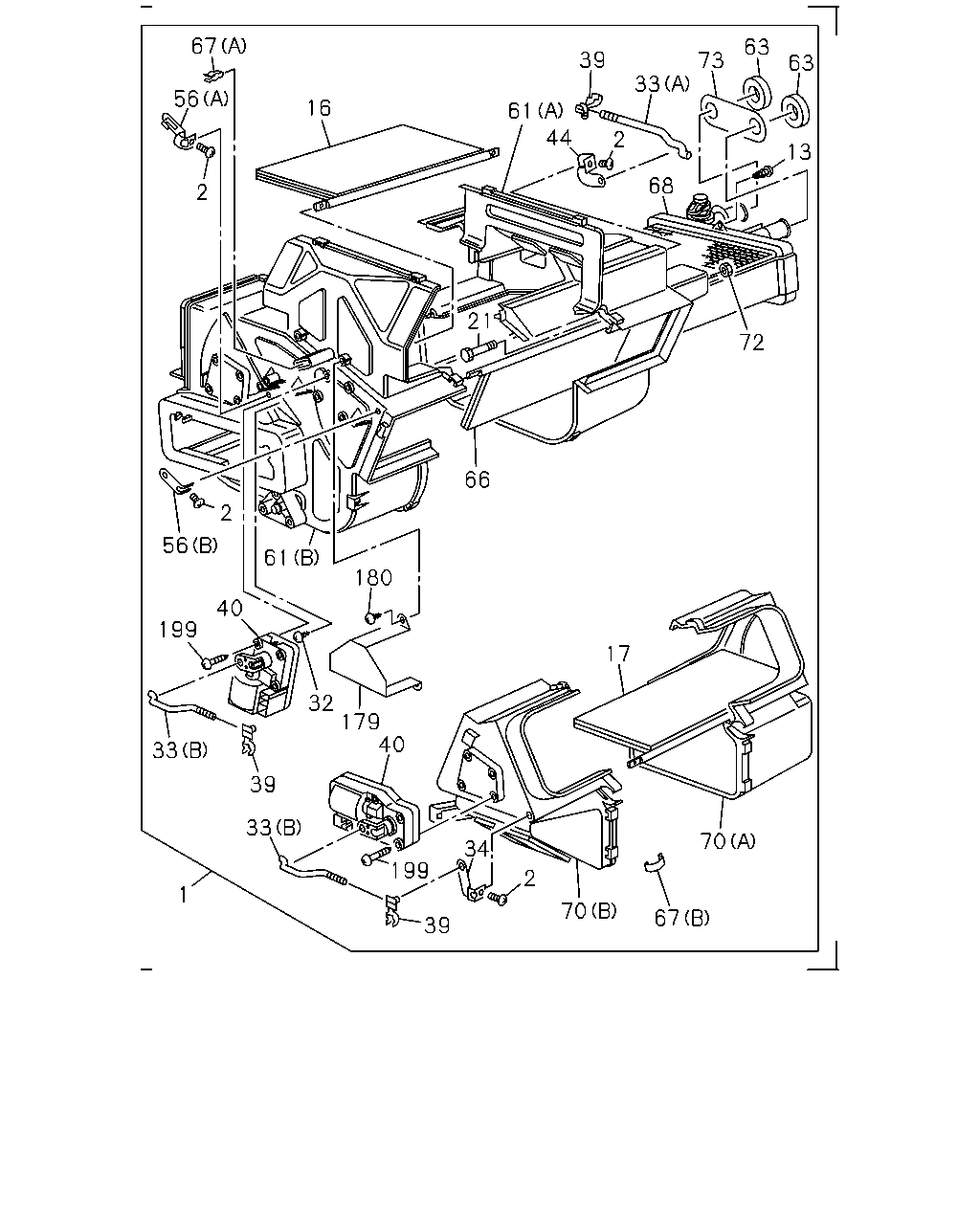

çizim 28939
67 63 39 73 63 33 56 16 61 44 2 13 68 2 21 72 66 2 56 61 180 40 199 17 32 179 40 33 39 33 70 34 199 2 1 70 67 39
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-109-4 01 1 9002-
2 SCREW; LEVER 5-83571-160-0 04 1 9002-
13 SCREW; THERMOSTAT TO BODY 8-94248-807-0 01 1 9002-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-096-1 01 1 9002-
17 SHUTTER; HTR UNIT,CENTER 1-83579-100-1 01 1 9002-
21 BOLT; CASE,HTR UNIT 1-15619-207-0 03 1 9002-
32 SCREW; HTR UNIT 1-83579-133-0 01 1 9002-
33 ROD; SHUTTER LEVER
(B) 		1-83579-099-0 02 1 9002-
33 ROD; SHUTTER LEVER
(A) 		1-83579-393-0 01 1 9002-
34 LEVER; SHUTTER,HTR UNIT 1-83564-113-0 01 1 9002-
39 CLIP; HTR UNIT 1-83574-143-0 03 1 9002-
40 ACTUATOR; HTR UNIT 1-83579-419-0 02 1 9002-
44 LEVER; SHUTTER,HTR UNIT 1-83564-111-0 01 1 9002-
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-110-0 01 1 9002-
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-112-0 01 1 9002-
61 CASE; HTR UNIT
(A) 		1-83564-106-0 01 1 9002-
61 CASE; HTR UNIT
(B) 		1-83564-205-0 01 1 9002-
63 LINING; HTR UNIT 1-83579-237-0 02 1 9002-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-097-1 01 1 9002-
67 CLIP; HTR UNIT
(B) 		1-83574-148-0 18 1 9002-
67 CLIP; HTR UNIT
(A) 		1-83574-149-0 01 1 9002-
68 CORE; HTR UNIT 1-83562-057-0 01 1 9002-
70 CASE; HTR UNIT,CENTER
(A) 		1-83564-108-0 01 1 9002-
70 CASE; HTR UNIT,CENTER
(B) 		1-83564-109-0 01 1 9002-
72 NUT; CASE,HTR UNIT 9-88410-525-0 03 1 9002-
73 PLATE; HTR UNIT 1-83579-103-0 01 1 9002-
179 COVER; ACTUATOR 1-83579-366-0 01 1 9002-
180 SCREW; COVER,ACTUATOR
M4X16 TAPPING 		1-83579-114-0 03 1 9002-
199 SCREW; ACTUATOR 1-83579-422-0 06 1 9002-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
