◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#25648) — 96 parça

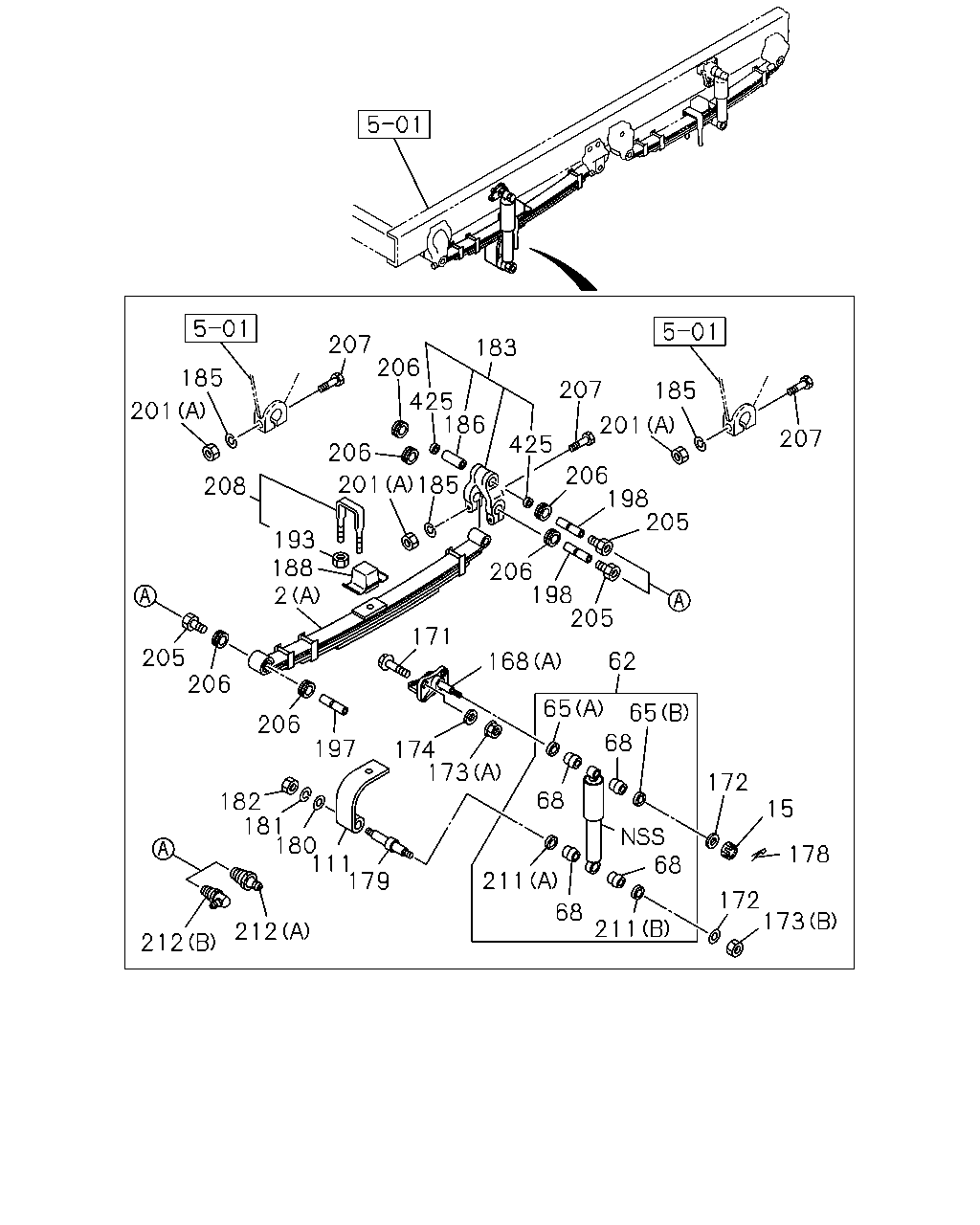

çizim 22875
207 206 183 185 207 185 425 186 201 201 207 425 206 185 206 198 205 201 208 193 188 2 206 198 205 171 205 206 62 168 65 65 206 68 197 174 173 172 68 182 181 180 111 179 15 68 178 211 172 173 68 211 212 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-890-0 02 1 0309-0309
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-936-0 02 1 0310-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		1-51130-929-0 02 1 0309-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0309-
62 ABSORBER ASM; SHOCK,FRT 1-51630-429-0 02 1 0309-0309
62 ABSORBER ASM; SHOCK,FRT 1-51630-809-1 02 1 0310-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0309-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0309-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0309-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 01 1 0309-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 01 1 0309-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0309-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0309-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0309-
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0309-
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0309-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0309-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 01 1 0309-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 01 1 0309-
174 WASHER; LK,S/ABS
ID=14.2 		9-09150-614-0 08 1 0309-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0309-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 01 1 0309-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 01 1 0309-
179 PIN 1-51682-094-1 04 1 0309-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 04 1 0309-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0309-
182 NUT; S/ABS LWR
M24 		9-99110-524-0 02 1 0309-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0309-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0309-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FORWARD 		1-51172-085-0 02 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
REARWARD 		1-51172-097-0 02 1 0309-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0309-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0309-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0309-
201 NUT; PIN LK
(A) M12 		9-99110-512-0 24 1 0309-
201 NUT; PIN LK
(B) M24 		9-99110-524-0 02 1 0309-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0309-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0309-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0309-
208 U-BOLT SET; FRT SPRING
FORWARD L=210 		1-87870-380-0 04 1 0309-0309
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-269-2 04 1 0310-
208 U-BOLT SET; FRT SPRING
REARWARD L=290 		1-87870-437-1 04 1 0309-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0309-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0309-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0309-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0309-
425 SEAL; DUST 1-51177-321-0 08 1 0309-

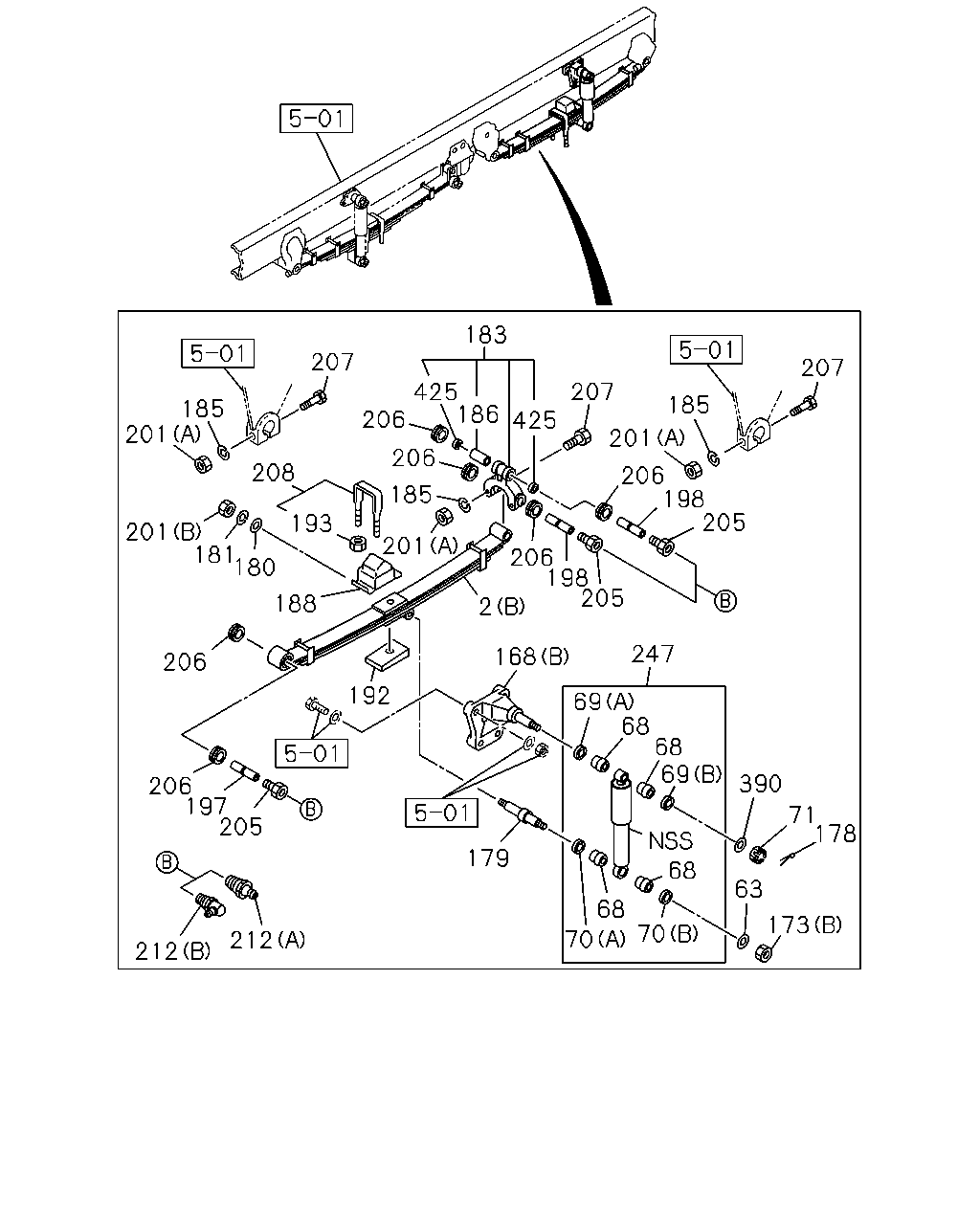

çizim 25478
183 207 207 207 425 186 206 185 185 201 425 201 206 208 206 198 205 185 193 201 181 180 201 206 198 205 188 2 247 168 206 192 69 68 68 69 390 206 197 205 71 178 68 179 63 68 70 173 70 212 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-890-0 02 1 0309-0309
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-936-0 02 1 0310-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		1-51130-929-0 02 1 0309-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 01 1 0309-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 01 1 0309-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0309-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0309-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0309-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0309-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0309-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 01 1 0309-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 01 1 0309-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0309-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0309-
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0309-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0309-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 01 1 0309-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 01 1 0309-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0309-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 01 1 0309-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 01 1 0309-
179 PIN 1-51682-094-1 04 1 0309-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 04 1 0309-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0309-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0309-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0309-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FORWARD 		1-51172-085-0 02 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
REARWARD 		1-51172-097-0 02 1 0309-
192 PIECE; DIST 1-51177-281-0 02 1 0309-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0309-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0309-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0309-
201 NUT; PIN LK
(A) M12 		9-99110-512-0 24 1 0309-
201 NUT; PIN LK
(B) M24 		9-99110-524-0 02 1 0309-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0309-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0309-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0309-
208 U-BOLT SET; FRT SPRING
FORWARD L=210 		1-87870-380-0 04 1 0309-0309
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-269-2 04 1 0310-
208 U-BOLT SET; FRT SPRING
REARWARD L=290 		1-87870-437-1 04 1 0309-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0309-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0309-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-444-0 02 1 0309-0309
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-810-0 02 1 0310-
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 01 1 0309-
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 01 1 0309-
425 SEAL; DUST 1-51177-321-0 08 1 0309-
