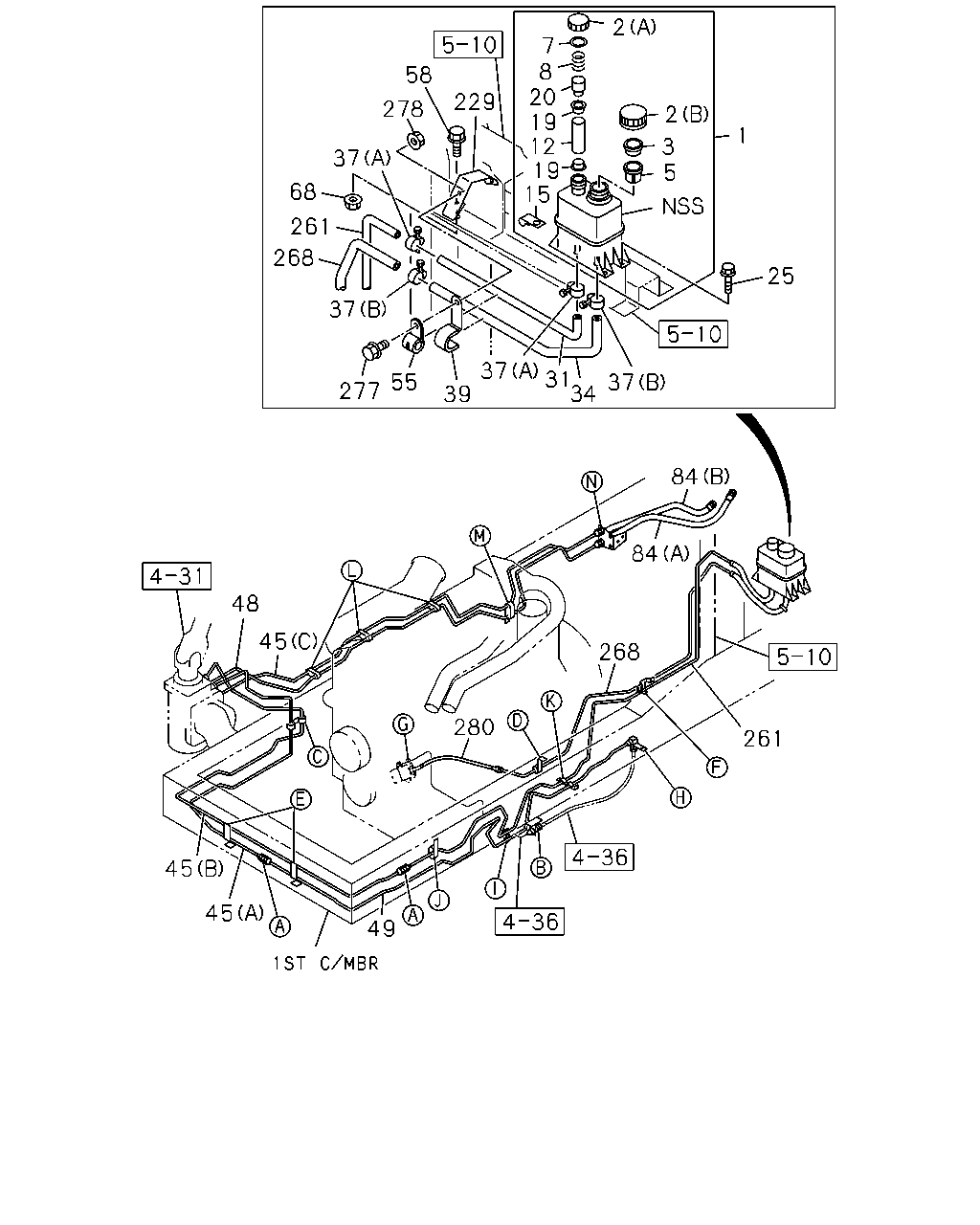

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#25643) — 120 parça

2 7 8 20 19 12 19 15 58 229 278 2 1 3 5 37 68 261 268 25 37 37 31 34 55 37 277 39 84 84 48 45 268 280 261 45 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0309-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0309-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0309-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0309-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0309-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0309-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0309-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0309-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0309-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0309-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0309-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0309-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0309-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0309-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0309-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0309-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0309-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0309-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0309-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2566	1-21117-323-0	01	1	0309-0401
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0402-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2555	1-21117-396-0	01	1	0309-0309
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2556	1-21117-433-0	01	1	0310-
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0309-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0309-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0309-
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0309-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0309-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0309-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0309-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0309-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0309-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0309-
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0309-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0309-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0309-0401
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0402-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0309-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0309-0401
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0402-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0309-

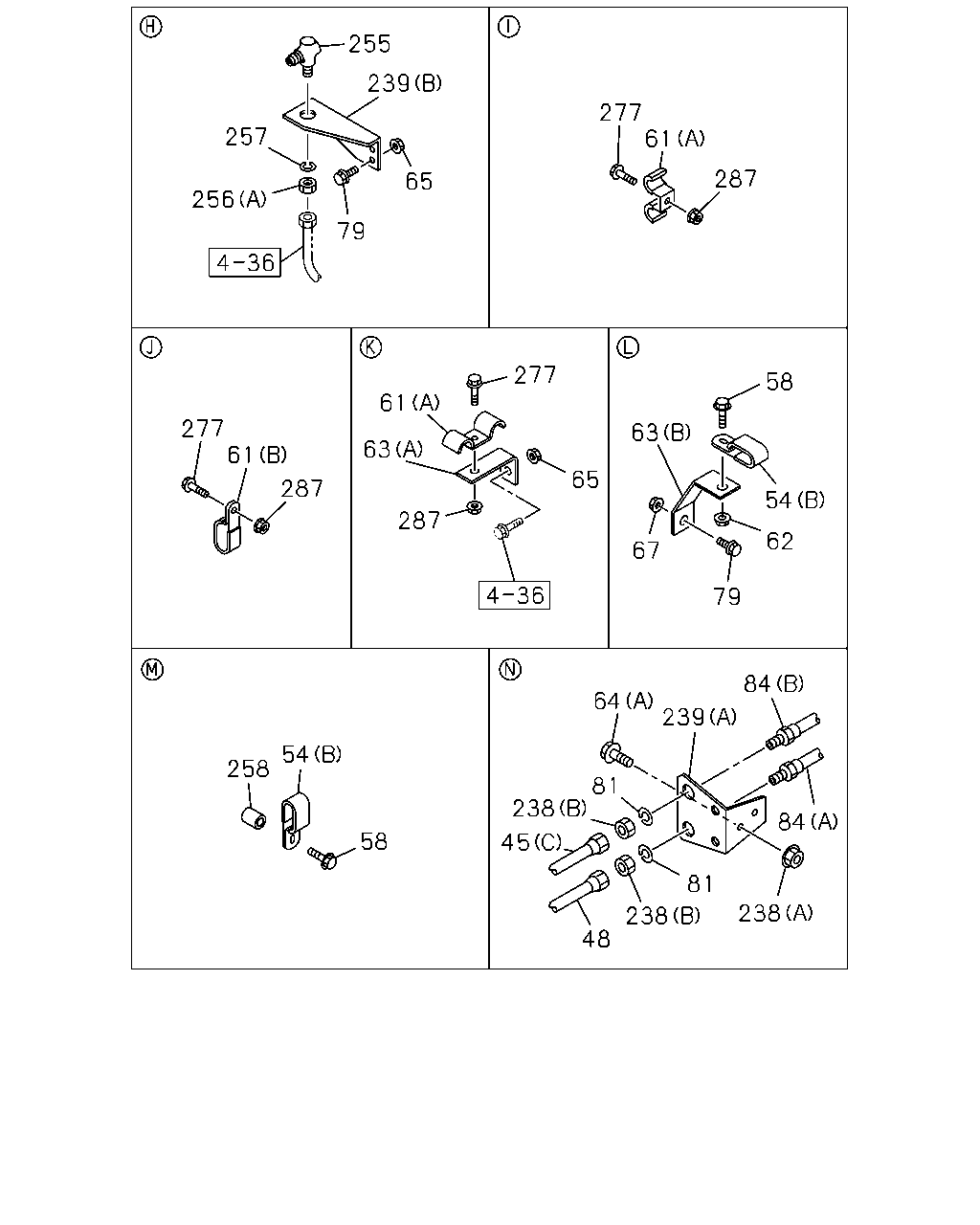

255 239 277 61 257 287 65 256 79 277 58 61 277 61 63 63 65 287 54 287 62 67 79 84 64 239 54 258 81 238 84 58 45 81 238 238 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0309-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0309-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2566	1-21117-323-0	01	1	0309-0401
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0402-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2555	1-21117-396-0	01	1	0309-0309
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2556	1-21117-433-0	01	1	0310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0309-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0309-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0309-
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0309-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0309-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0309-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0309-0401
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0402-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0309-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0309-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0309-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0309-
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0309-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0309-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0309-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0309-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0309-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0309-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0309-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0309-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91150-108-0	02	1	0309-
238	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0309-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0309-
239	BRACKET; FLEX HOSE (B)	1-47479-664-0	01	1	0309-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0309-0401
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0402-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0309-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0309-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0309-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0309-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0309-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0309-0401
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0402-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0309-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0309-

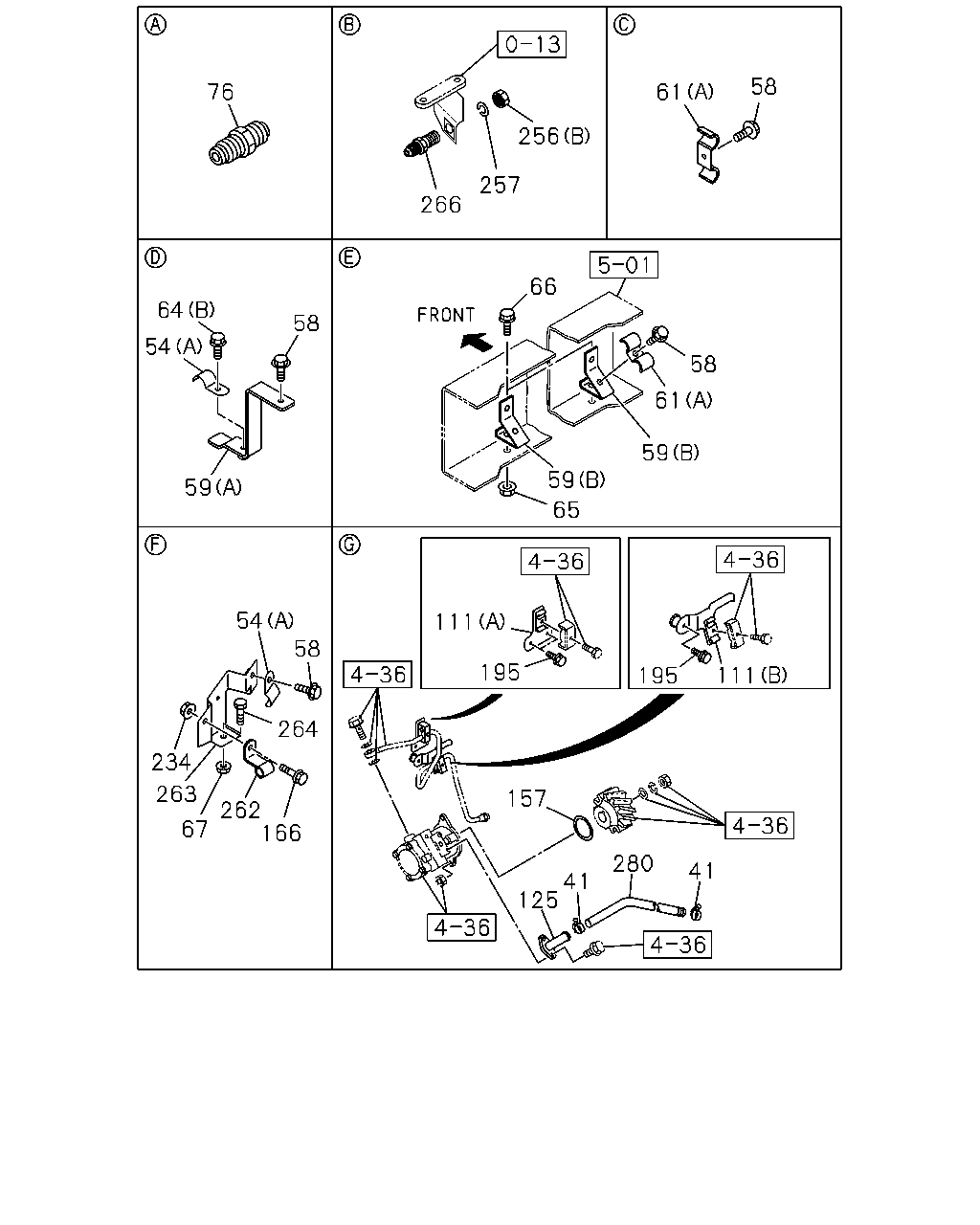

58 76 61 256 257 266 66 64 58 54 58 61 59 59 59 65 54 58 111 195 111 195 264 234 263 157 262 166 67 280 41 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0309-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0309-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0309-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0309-
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0309-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0309-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0309-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0309-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0309-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0309-0401
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0402-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0309-
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0309-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0309-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0309-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0309-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0309-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0309-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0309-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0309-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0309-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0309-
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0309-
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0309-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0309-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0309-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0309-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0309-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0309-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0309-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0309-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0309-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0309-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0309-
