◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#2564) — 150 parça

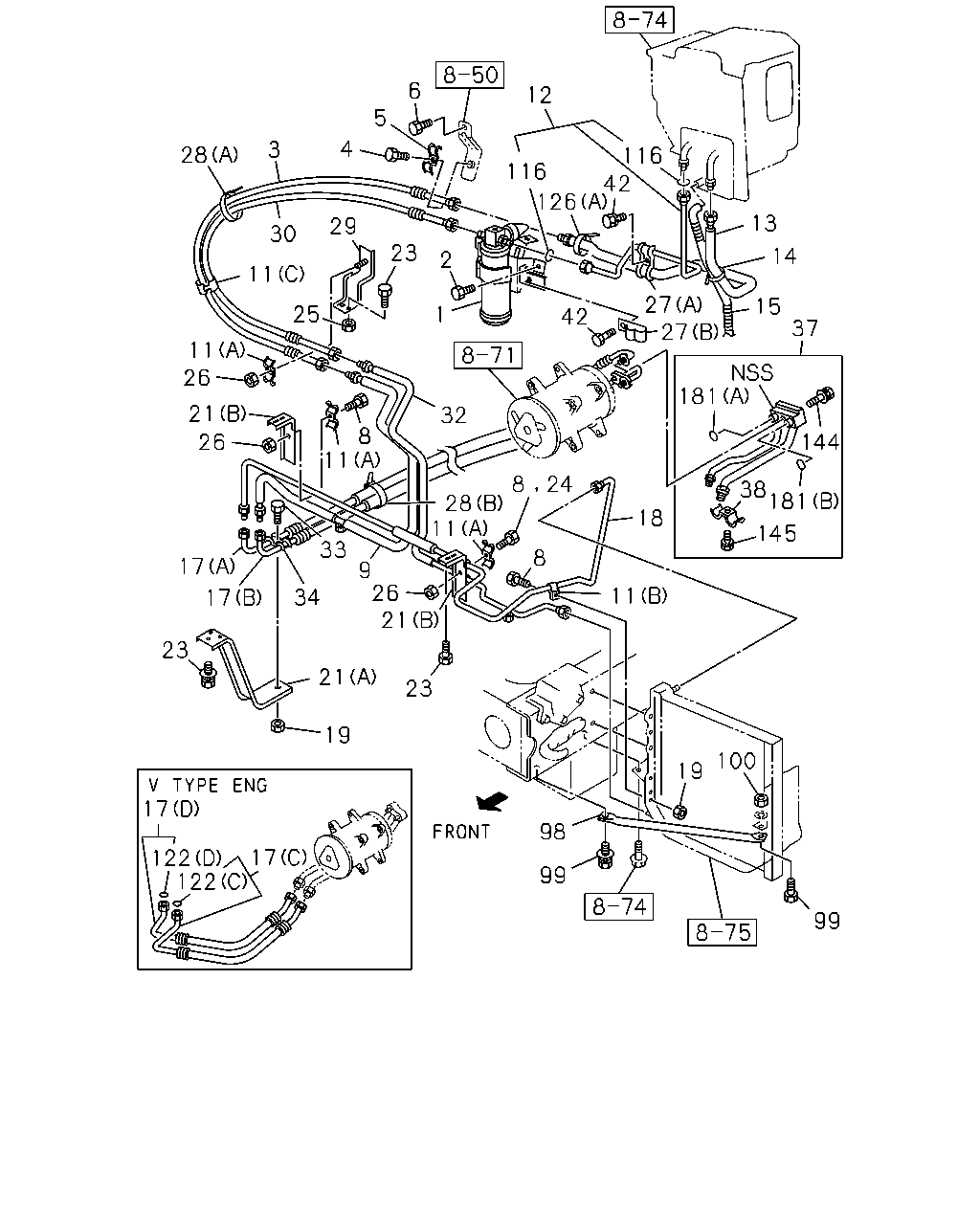

çizim 29782
6 12 5 4 3 28 116 116 42 126 13 29 30 23 14 2 11 27 27 15 42 25 1 37 11 26 181 21 32 8 11 26 144 8 28 11 24 38 181 18 145 33 8 17 9 26 21 11 34 17 23 21 23 19 100 19 17 98 122 17 122 99 99
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-037-2 01 1 9002-9306
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		1-83535-064-0 01 1 9307-9308
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		1-83535-065-0 01 1 9309-
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 		1-09980-279-0 03 1 9002-
3 HOSE; FLEX,EVAP TO COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83566-608-0 01 1 9002-9306
3 HOSE; FLEX,EVAP TO COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-037-0 01 1 9307-
4 SCREW; CLIP,FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-03910-616-0 01 1 9002-9203
4 SCREW; CLIP,FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		1-09980-574-0 01 1 9204-
5 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09700-636-1 01 1 9002-9306
5 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-188-0 01 1 9307-
6 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-03910-616-0 01 1 9002-9203
6 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		1-09980-574-0 01 1 9204-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28080-830-0 01 1 9307-
8 BOLT; CLIP
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204
8 BOLT; CLIP
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302
8 BOLT; CLIP
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306
8 BOLT; CLIP
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204
8 BOLT; CLIP
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302
8 BOLT; CLIP
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9303-
8 BOLT; CLIP
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9204
8 BOLT; CLIP
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302
8 BOLT; CLIP
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306
8 BOLT; CLIP
6RB1 STD ENG(07L),6RB1TC-N ENG(29L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9204
8 BOLT; CLIP
6RB1 STD ENG(07L),6RB1TC-N ENG(29L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9302
8 BOLT; CLIP
6RB1 STD ENG(07L),6RB1TC-N ENG(29L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE 		0-28080-620-0 02 1 9303-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-175-1 01 1 9002-9306
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-508-0 01 1 9307-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.5 & 16.6 		1-09700-636-1 01 1 9002-9306
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.7 & 20 		1-09700-640-0 01 1 9002-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.6 & 12.7 		1-83574-114-0 01 1 9002-9306
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09707-123-0 01 1 9307-
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09707-123-0 01 1 9002-9306
11 CLIP; COOLER PIPE
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 14.5X9.5 		1-83574-081-0 01 1 9002-
11 CLIP; COOLER PIPE
6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=24 ID=12 H=24 L=20 		1-09700-605-0 01 1 9002-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.2 & 16.2 		1-83574-188-0 01 1 9307-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8.2 & 12.2 		1-83574-206-0 01 1 9307-
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-100-0 01 1 9002-9306
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-506-0 01 1 9307-
13 PIPE; COOLER,EVAP TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-101-1 01 1 9002-9306
13 PIPE; COOLER,EVAP TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-507-0 01 1 9307-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 03 1 9002-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83566-254-1 01 1 9002-
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83566-588-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-589-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-034-0 01 1 9307-
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83566-562-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83566-563-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-035-0 01 1 9307-
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-032-0 01 1 9307-
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-033-0 01 1 9307-
18 PIPE; CONDENSER TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-176-1 01 1 9002-9306
18 PIPE; CONDENSER TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-502-0 01 1 9307-
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6 		9-09110-406-0 01 1 9002-9103
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		5-09440-004-0 01 1 9104-
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9002-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-311-1 02 1 9002-9306
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A) 		1-83571-312-1 01 1 9307-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A) 		1-83571-313-1 01 1 9307-
21 BRACKET; COOLER HOSE
6RA1TC ENG(19L),6RB1TC-N ENG(29L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-313-1 01 1 9002-9306
21 BRACKET; COOLER HOSE
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-312-1 01 1 9002-9306
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-710-0 02 1 9307-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER 		9-01900-820-0 09 1 9002-9204
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205-9302
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 09 1 9303-
24 SCREW; CLIP FIX
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005
24 SCREW; CLIP FIX
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302
24 SCREW; CLIP FIX
6RA1TC ENG(19L),6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE 		0-28080-616-0 01 1 9303-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9002-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		5-09440-004-0 01 1 9002-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6 		9-09110-406-0 02 1 9307-
26 NUT; PIPE CLIP
6RA1TC ENG(19L) AIR CONDITIONER MANUAL CONTROL(C60) M6 		9-09110-406-0 01 1 9002-9306
26 NUT; PIPE CLIP
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M6 		9-09110-406-0 02 1 9002-9306
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09700-639-0 01 1 9002-
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-178-0 01 1 9403-
28 CLIP; PIPE,HOSE A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=170 		1-83574-139-0 01 1 9002-
28 CLIP; PIPE,HOSE A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=250 		5-09707-030-1 01 1 9002-
29 BRACKET; COOLER PIPE
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-524-0 01 1 9002-
29 BRACKET; COOLER PIPE
6RB1TC-N ENG(29L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-422-0 01 1 9012-9306
30 HOSE; FLEX,TANK TO CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83566-339-2 01 1 9002-9306
30 HOSE; FLEX,TANK TO CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-036-0 01 1 9307-
32 PIPE; COOLER,HOSE TO CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-221-0 01 1 9002-9306
32 PIPE; COOLER,HOSE TO CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-503-0 01 1 9307-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE 		0-28080-620-0 01 1 9303-
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-157-0 01 1 9002-9306
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-190-0 01 1 9307-
37 CONNECTOR; CMPR TO FLEX HOSE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83575-071-0 01 1 9002-9306
37 CONNECTOR; CMPR TO FLEX HOSE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83575-077-0 01 1 9307-
38 CLIP; CONNECTOR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-093-0 01 1 9002-9205
38 CLIP; CONNECTOR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-039-0 01 1 9206-9306
38 CLIP; CONNECTOR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9307-
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-03910-616-0 01 1 9002-9203
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		1-09980-574-0 01 1 9204-9402
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9403-
98 STAY; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-295-1 01 1 9002-
99 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204
99 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302
99 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9303-
99 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8X35 		9-01970-835-0 01 1 9002-9005
99 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8X35 W/LK&PL WASHER 		0-50140-835-0 01 1 9006-
100 NUT; STAY FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-508-0 02 1 9002-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=7.65 		8-94113-332-0 02 1 9307-9307
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-488-0 01 1 9002-9306
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-489-0 01 1 9002-9306
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94113-330-0 01 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-94461-900-0 01 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-94461-901-0 01 1 9307-
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09623-488-0 02 1 9002-9306
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-09623-489-0 02 1 9002-9306
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94113-331-0 02 1 9307-
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94113-330-0 02 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94113-331-0 01 1 9307-
126 CLIP; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 9002-
126 CLIP; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97084-632-0 01 1 9002-
144 BOLT; CONN TO CMPR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9206-
145 BOLT; CLIP,CONNECTOR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9206-
181 GASKET; CONNECTOR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9307-
181 GASKET; CONNECTOR
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9307-
çizim 95421
173 172 1 120 126 40 122 17 122 122 122 17
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-037-2 01 1 9002-9306
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		1-83535-064-0 01 1 9307-9308
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		1-83535-065-0 01 1 9309-
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83566-588-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-589-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-034-0 01 1 9307-
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83566-562-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83566-563-0 01 1 9002-9306
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-035-0 01 1 9307-
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-032-0 01 1 9307-
17 HOSE; FLEX,CMPR TO PIPE
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-033-0 01 1 9307-
40 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-048-0 01 1 9002-
120 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-645-1 01 1 9002-9306
120 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-642-1 01 1 9307-9308
120 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-645-1 01 1 9309-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-488-0 01 1 9002-9306
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-489-0 01 1 9002-9306
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94113-330-0 01 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-94461-900-0 01 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-94461-901-0 01 1 9307-
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09623-488-0 02 1 9002-9306
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-09623-489-0 02 1 9002-9306
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94113-331-0 02 1 9307-
122 GASKET
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94113-330-0 02 1 9307-
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94113-331-0 01 1 9307-
126 CLIP; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 9002-
126 CLIP; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97084-632-0 01 1 9002-
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-283-0 01 1 9002-9306
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-224-0 01 1 9307-
173 COVER; PRESS SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-429-0 01 1 9002-9306
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
