◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#25636) — 100 parça

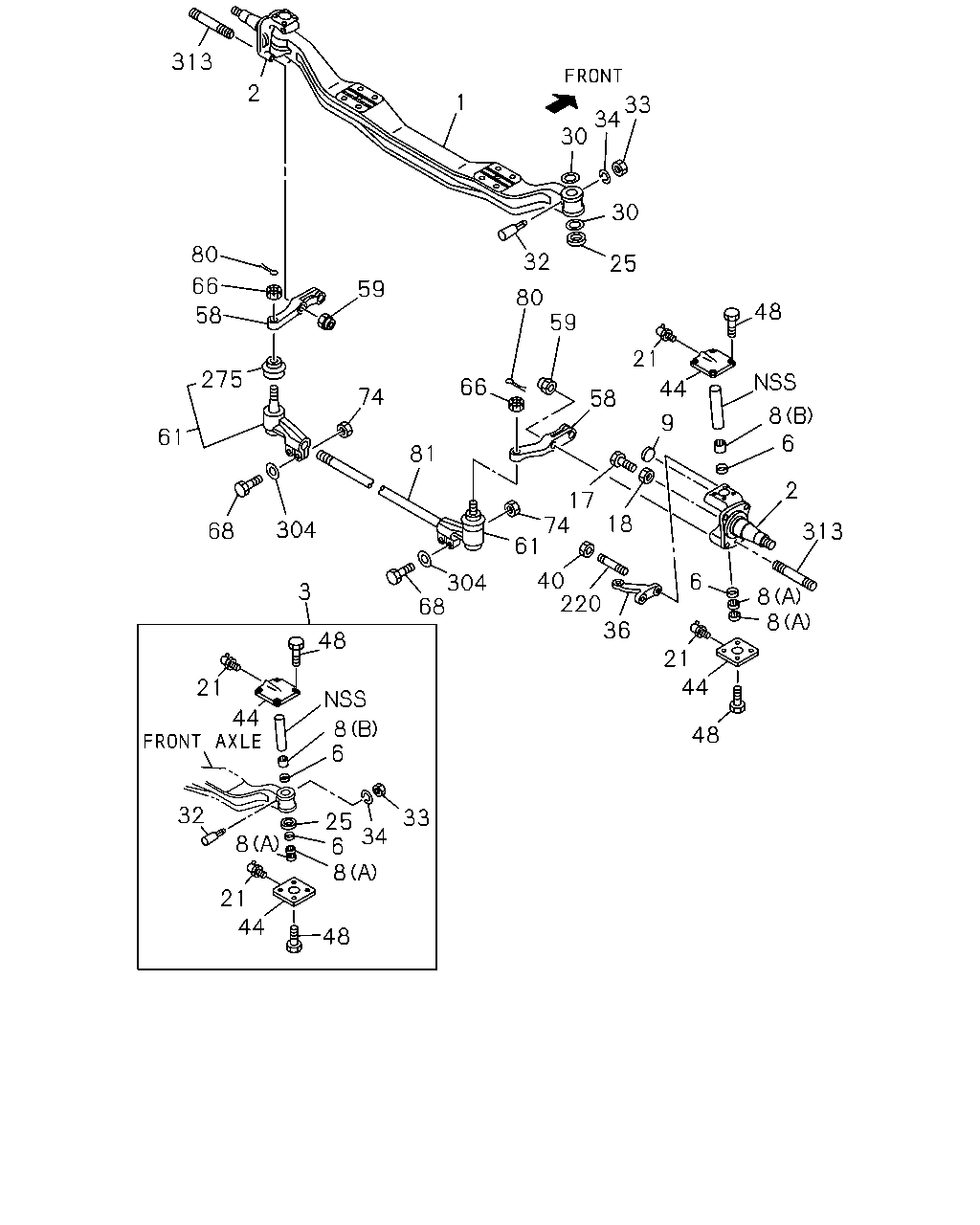

çizim 24895
313 2 1 33 34 30 30 80 32 25 66 59 80 59 48 58 21 275 66 44 74 58 8 6 9 61 81 2 17 74 61 18 304 68 313 40 220 36 6 304 68 3 8 8 48 21 44 21 44 8 6 48 32 33 25 34 6 8 8 21 44 48
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-107-5 01 1 0309-
1 AXLE; FRT 1-43111-107-5 01 1 0309-
2 KNUCKLE; FRT AXLE 1-43131-118-0 01 1 0309-
2 KNUCKLE; FRT AXLE 1-43131-118-0 01 1 0309-
2 KNUCKLE; FRT AXLE 1-43132-101-0 01 1 0309-
2 KNUCKLE; FRT AXLE 1-43132-101-0 01 1 0309-
3 KING PIN SET 1-87831-111-7 02 1 0309-
3 KING PIN SET 1-87831-111-7 02 1 0309-
6 SEAL; KING PIN 9-09926-024-0 04 1 0309-
6 SEAL; KING PIN 9-09926-024-0 04 1 0309-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0309-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0309-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0309-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0309-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 0309-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 0309-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 01 1 0309-0309
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 01 1 0309-0309
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 03 1 0309-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 03 1 0309-
17 BOLT; STOPPER KNUCKLE
M18X38 		1-09009-164-0 02 1 0309-
17 BOLT; STOPPER KNUCKLE
M18X38 		1-09009-164-0 02 1 0309-
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-0 03 1 0309-
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-0 03 1 0309-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0309-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0309-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0309-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0309-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0309-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0309-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0309-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0309-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0309-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0309-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0309-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0309-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0309-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0309-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0309-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0309-
44 COVER; KING PIN 1-43175-025-0 04 1 0309-
44 COVER; KING PIN 1-43175-025-0 04 1 0309-
48 BOLT; COVER
M10X25 FLANGE 		0-28781-025-0 16 1 0309-
48 BOLT; COVER
M10X25 FLANGE 		0-28781-025-0 16 1 0309-
58 ARM; TIE ROD
FORWARD 		1-43134-049-2 01 1 0309-
58 ARM; TIE ROD
REARWARD 		1-43134-060-0 01 1 0309-
58 ARM; TIE ROD
FORWARD 		1-43135-049-2 01 1 0309-
58 ARM; TIE ROD
REARWARD 		1-43135-060-0 01 1 0309-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0309-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0309-
61 ROD END; TIE ROD
REARWARD 		1-43150-852-0 01 1 0309-
61 ROD END; TIE ROD
REARWARD 		1-43150-853-0 01 1 0309-
61 ROD END; TIE ROD
FORWARD 		1-43150-856-0 01 1 0309-
61 ROD END; TIE ROD
FORWARD 		1-43150-857-0 01 1 0309-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0309-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0309-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0309-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0309-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0309-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0309-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0309-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0309-
81 ROD; TIE 1-43151-154-0 01 1 0309-
81 ROD; TIE 1-43151-154-0 01 1 0309-
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0309-
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0309-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0309-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0309-
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0309-
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0309-
313 STUD; TIE ROD ARM 1-09300-119-2 02 1 0309-
313 STUD; TIE ROD ARM 1-09300-119-2 02 1 0309-
