◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#25633) — 270 parça

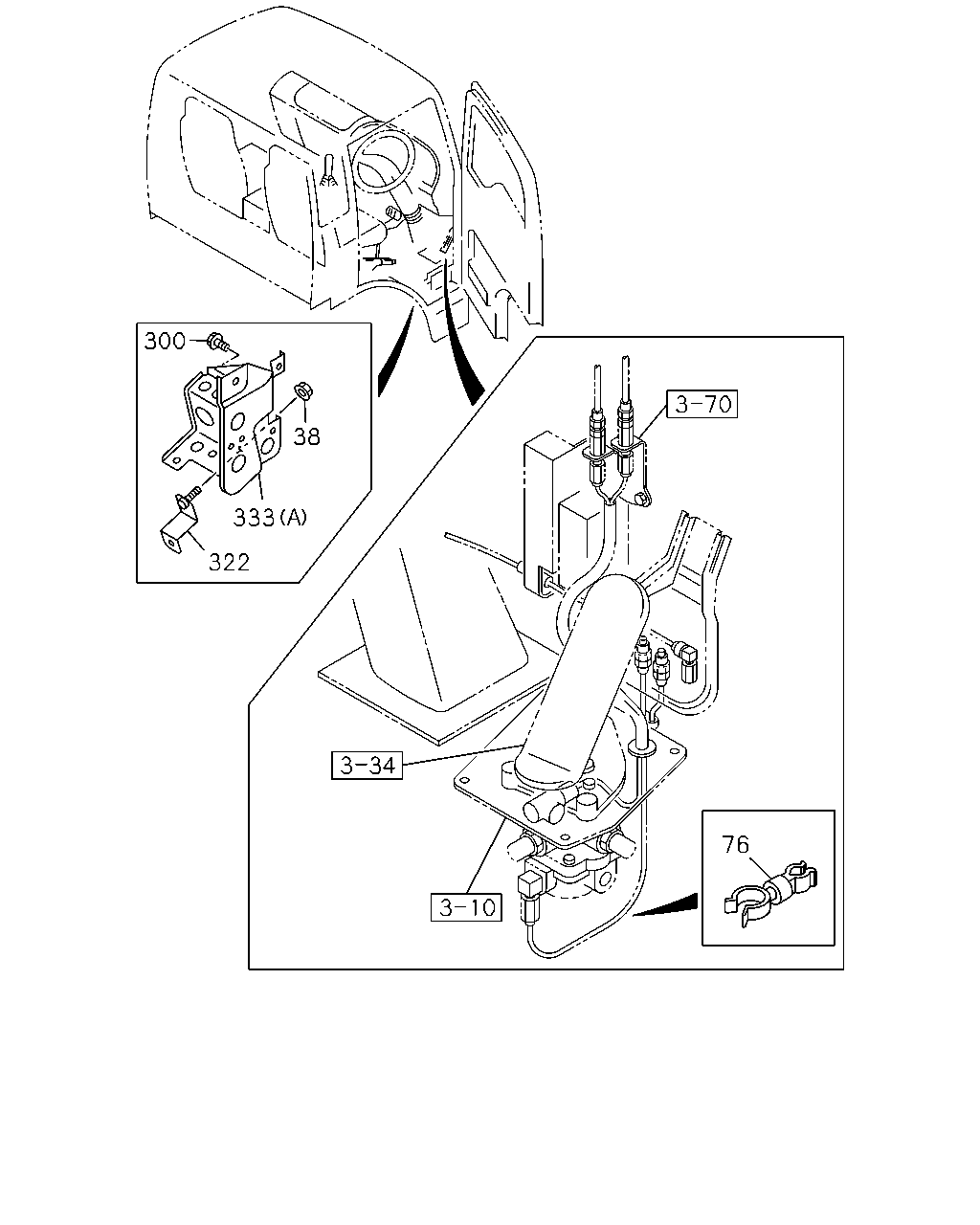

çizim 24429
300 38 333 322 76
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0309-
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 0309-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0309-
322 BRACKET; CLIP 1-79996-360-0 01 1 0309-
333 BRACKET; BRK AIR PIPE
MIXER TRUCK<RA2> (C) 		1-47479-480-0 01 1 0312-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0309-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0309-

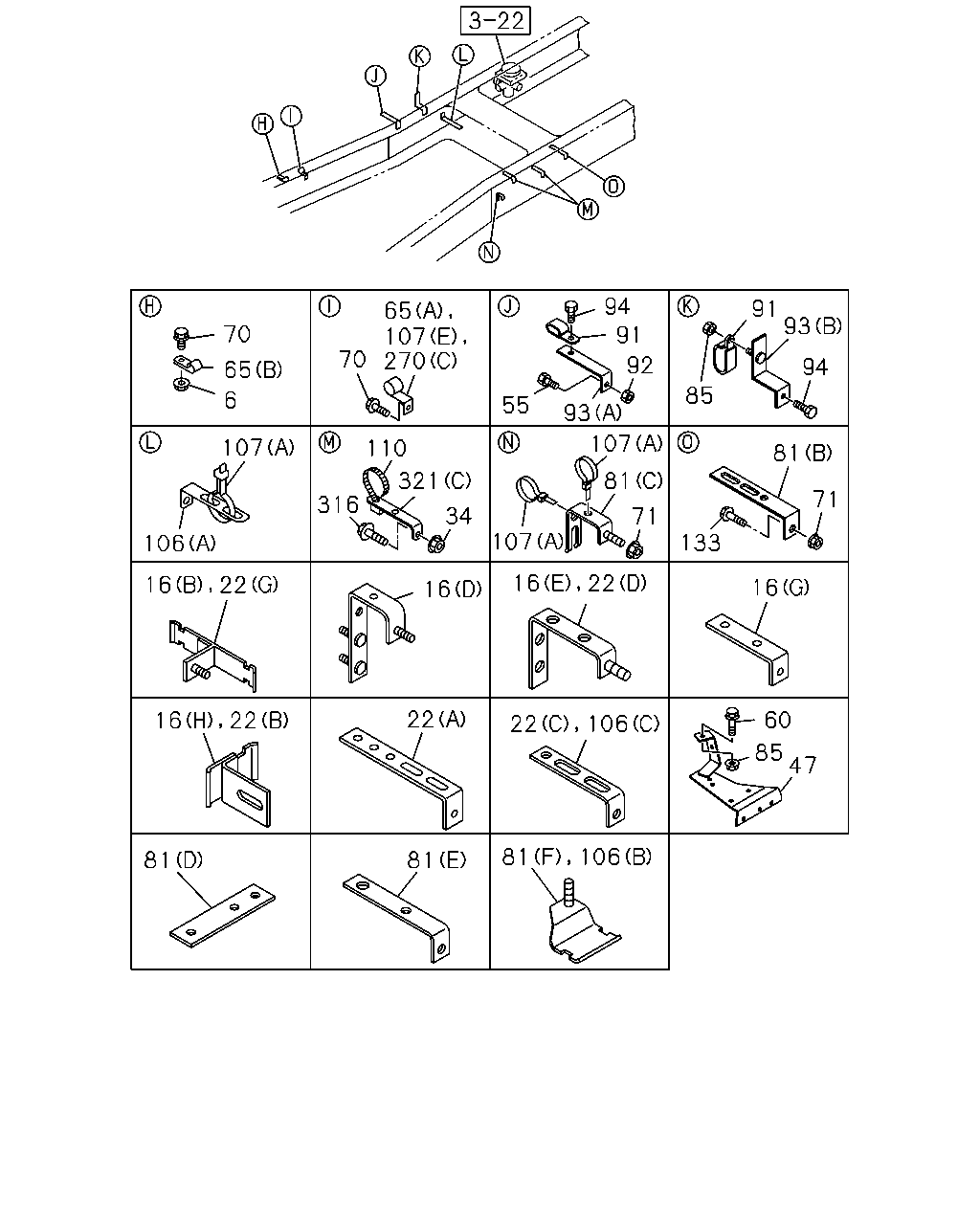

çizim 24432
94 91 91 65 107 270 93 70 70 92 94 65 85 6 55 93 107 107 110 81 321 81 71 316 34 71 107 133 106 16 16 22 60 22 106 85 47 81 106 81 81 16 22 22 16 16 22
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 0309-
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 08 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 01 1 0309-0309
16 BRACKET; PIPE CLIP
WHEEL BASE 6300MM(63W) (I) 		1-47479-381-2 07 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 02 1 0309-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 12 1 0309-0309
16 BRACKET; PIPE CLIP
(L) L=100 H=30 		1-47477-645-2 01 1 0310-
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 01 1 0309-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0309-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0309-
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 03 1 0309-0309
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0310-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0309-
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0309-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0309-
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0309-
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (H) 		1-47479-381-2 07 1 0310-
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (H) 		1-47479-381-2 08 1 0310-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0309-
22 BRACKET; CLIP
(H) 		1-47479-381-2 13 1 0309-0309
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0310-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0309-
22 BRACKET; CLIP
(B) 		1-47479-693-0 05 1 0309-0309
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0310-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0309-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0309-
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0309-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0309-0309
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0310-
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0309-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0309-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0309-
65 CLIP; AIR PIPE
(A) ID=12 H=24 L=20 		1-09700-605-0 01 1 0309-
65 CLIP; AIR PIPE
(B) ID=13 L=20 		9-09525-235-0 01 1 0309-
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0309-
70 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0309-
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0309-0309
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0310-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0309-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0309-0309
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0310-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0309-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0309-0309
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0310-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0309-0309
81 BRACKET; CLIP
(F) 		1-47479-562-0 02 1 0309-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0309-
91 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 0309-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0309-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0309-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 0309-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0309-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0309-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0309-0309
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 06 1 0310-
106 BRACKET; TUBE CLIP
(B) 		1-47479-562-0 02 1 0309-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 0309-0309
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0310-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0309-
107 CLIP; NYLON TUBE
(E) ID=12 H=24 L=20 		1-09700-605-0 01 1 0309-
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0309-0309
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0310-
107 CLIP; NYLON TUBE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0309-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0309-0309
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0309-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0309-0309
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 02 1 0310-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0309-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0309-0311
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28080-610-0 01 1 0312-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0309-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 18 1 0309-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0310-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0309-0309
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 15 1 0310-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0309-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0309-
316 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0309-0309
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0310-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0309-0311
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 0312-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0309-0311
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 0312-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0309-0309
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 02 1 0310-

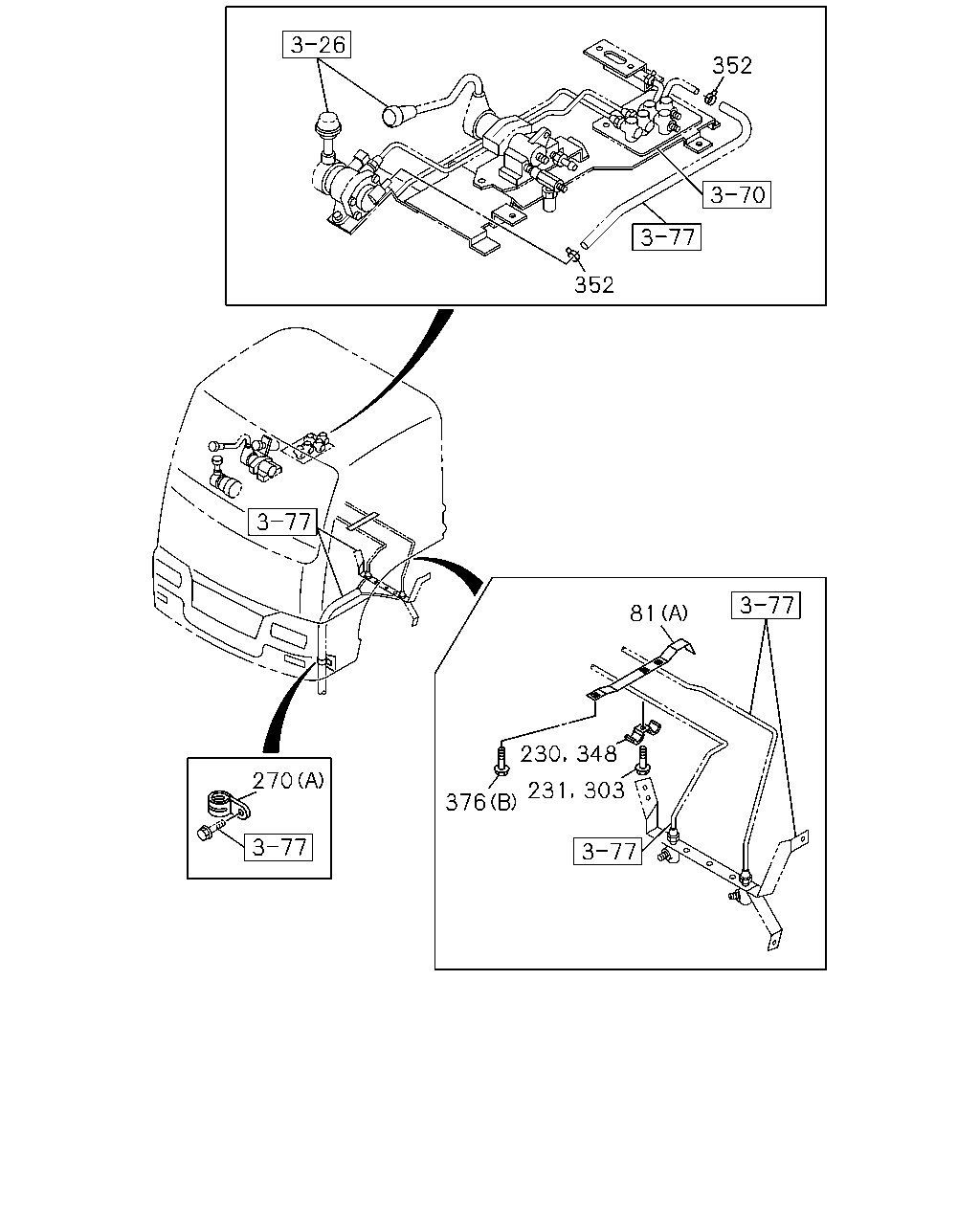

çizim 24433
352 352 81 270 376 230 348 303 231
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0309-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0309-0309
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0310-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0309-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0309-0309
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0310-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0309-0309
81 BRACKET; CLIP
(F) 		1-47479-562-0 02 1 0309-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0309-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0309-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0309-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0309-
348 CLIP; AIR PIPE
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0309-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0309-
376 BOLT; BRKT
MIXER TRUCK<RA2> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0312-
376 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0309-0311
376 BOLT; BRKT
EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0312-

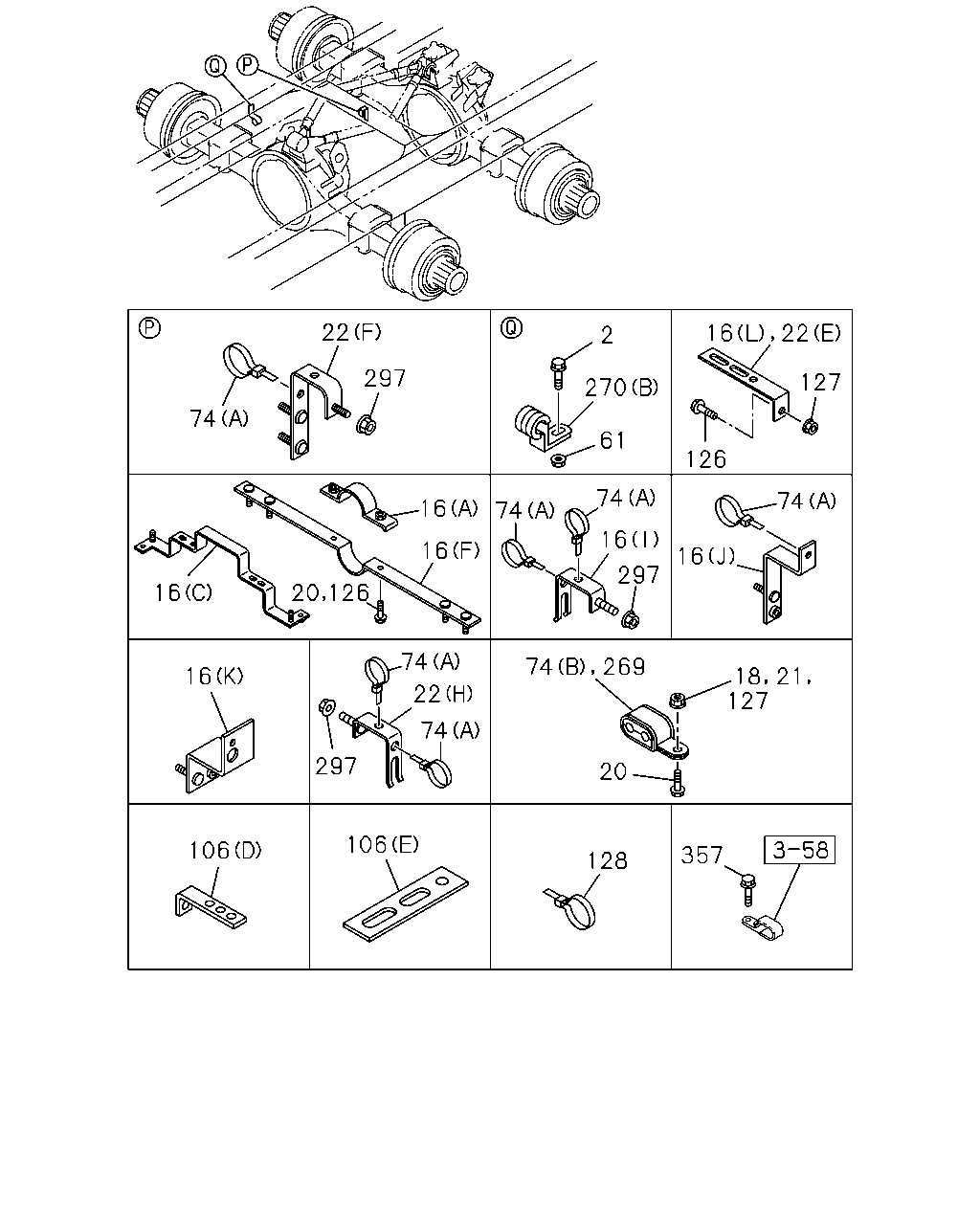

çizim 24894
22 2 297 127 270 74 61 126 74 74 16 74 16 16 16 297 16 74 16 127 22 74 297 20 106 106 357 128 16 22 269 74 18 21 20 126
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 03 1 0309-0309
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0310-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 0309-
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 08 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 01 1 0309-0309
16 BRACKET; PIPE CLIP
WHEEL BASE 6300MM(63W) (I) 		1-47479-381-2 07 1 0310-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 02 1 0309-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 12 1 0309-0309
16 BRACKET; PIPE CLIP
(L) L=100 H=30 		1-47477-645-2 01 1 0310-
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 01 1 0309-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0309-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0309-
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 03 1 0309-0309
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0310-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0309-
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0309-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0309-
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0309-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0309-
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0309-
20 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0309-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0309-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0309-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 09 1 0309-
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (H) 		1-47479-381-2 07 1 0310-
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (H) 		1-47479-381-2 08 1 0310-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0309-
22 BRACKET; CLIP
(H) 		1-47479-381-2 13 1 0309-0309
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0310-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0309-
22 BRACKET; CLIP
(B) 		1-47479-693-0 05 1 0309-0309
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0310-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0309-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0309-
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0309-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0309-
74 CLIP; NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 01 1 0309-0309
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0310-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 03 1 0309-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0309-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0309-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0309-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0309-0309
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 06 1 0310-
106 BRACKET; TUBE CLIP
(B) 		1-47479-562-0 02 1 0309-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 0309-0309
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0310-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0309-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 0309-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0310-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 0309-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 05 1 0309-0309
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0310-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0309-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0309-0309
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0309-0309
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0310-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0309-0309
127 NUT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 15 1 0310-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 18 1 0309-0309
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 16 1 0310-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 26 1 0309-
269 CLIP; BAND,NYLON TUBE
ID=11X2 L=42 		1-09701-306-0 03 1 0309-
269 CLIP; BAND,NYLON TUBE
ID=11X2 L=42 		1-09701-306-0 06 1 0309-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0309-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0309-
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 19 1 0310-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0309-0309
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0310-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 25 1 0309-0309
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 18 1 0310-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28080-810-0 02 1 0309-

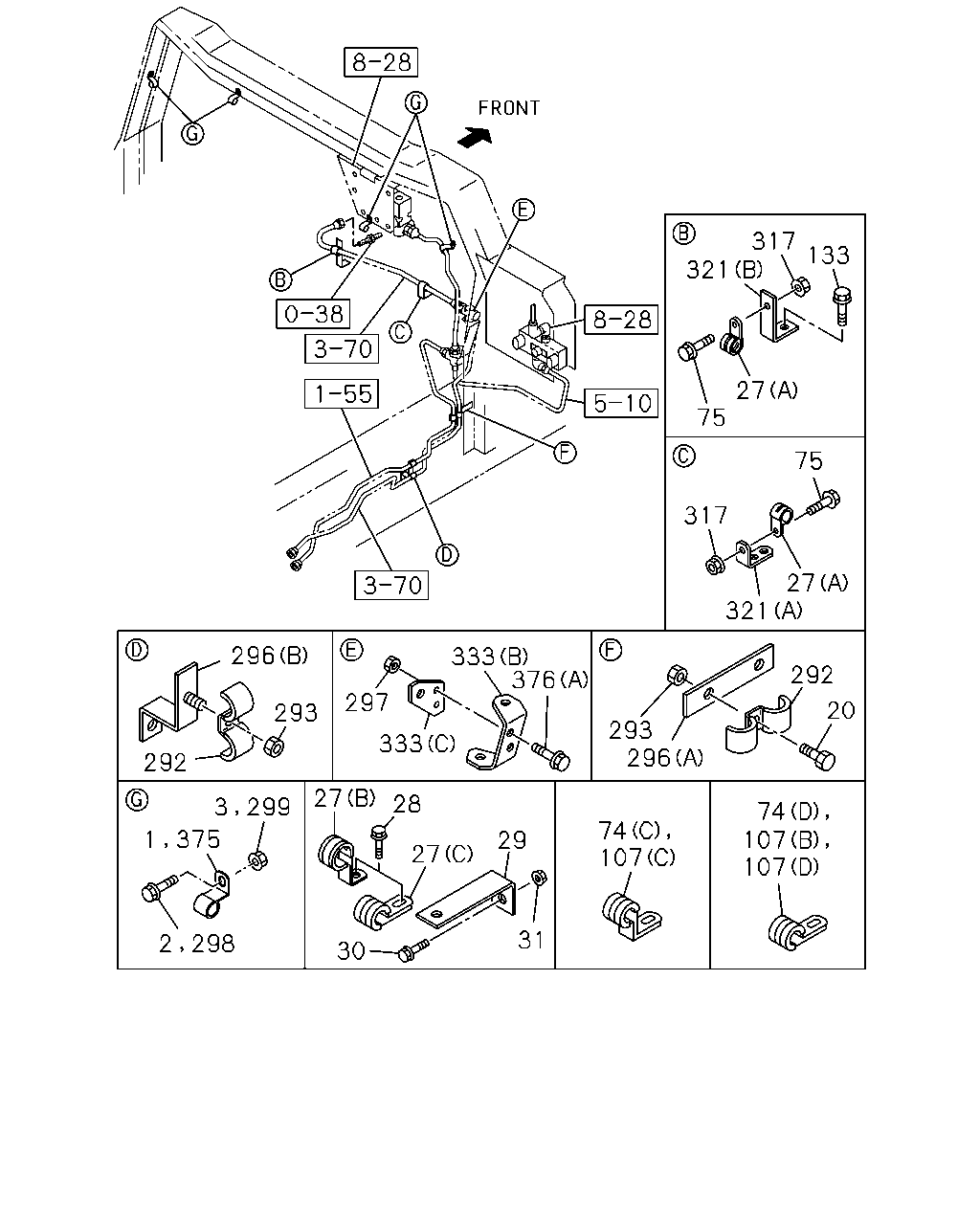

çizim 24896
317 321 133 27 75 75 317 27 321 296 333 376 292 297 20 293 293 296 333 292 27 28 299 74 107 107 74 107 375 1 29 27 31 30 3 298 2
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0310-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 03 1 0309-0309
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0310-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0310-
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0309-
20 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0309-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0309-
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0309-0311
27 CLIP; FLEX HOSE
(C) ID=26 L=27 		1-09701-006-0 01 1 0312-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0309-0311
27 CLIP; FLEX HOSE
EXC. MIXER TRUCK<RA2> (A) ID=15 L=28 		1-09701-216-0 02 1 0312-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 0309-
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47479-123-0 01 1 0309-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0309-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0309-
74 CLIP; NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 01 1 0309-0309
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0310-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 03 1 0309-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0309-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0309-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0309-0311
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 02 1 0312-
107 CLIP; NYLON TUBE
(E) ID=12 H=24 L=20 		1-09700-605-0 01 1 0309-
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0309-0309
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0310-
107 CLIP; NYLON TUBE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0309-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0309-0309
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0309-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0309-0311
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28080-610-0 01 1 0312-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0309-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 18 1 0309-0309
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0310-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 11 1 0309-0309
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 15 1 0310-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0309-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0309-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0309-
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 19 1 0310-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0309-0309
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0310-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 25 1 0309-0309
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 18 1 0310-
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 01 1 0312-
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0312-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309-0311
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 02 1 0312-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0309-0311
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 0312-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0309-0311
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 0312-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0309-0309
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 02 1 0310-
333 BRACKET; BRK AIR PIPE
MIXER TRUCK<RA2> (C) 		1-47479-480-0 01 1 0312-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0309-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0309-
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> ID=6 H=20 L=20 		1-09700-603-0 01 1 0312-
376 BOLT; BRKT
MIXER TRUCK<RA2> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0312-
376 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0309-0311
376 BOLT; BRKT
EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0312-

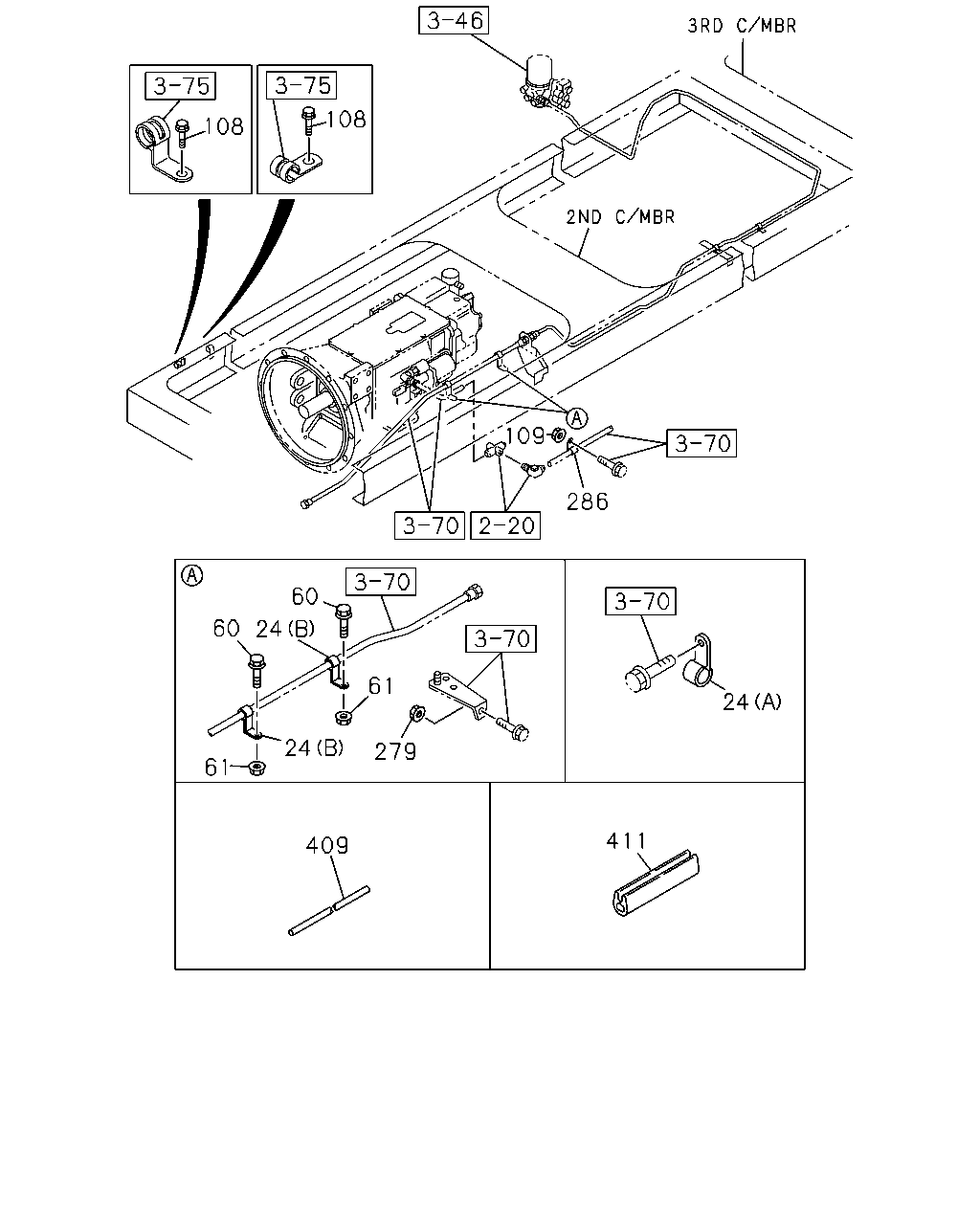

çizim 82233
108 108 109 286 60 60 24 61 24 24 279 61 411 409
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0309-
24 CLIP; PIPE
(A) ID=19 L=20 		9-09525-836-0 01 1 0309-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0309-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0309-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 09 1 0309-0309
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 07 1 0310-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0309-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0309-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0309-
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) M8 FLANGE 		0-91150-108-0 01 1 0309-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0309-0309
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0310-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0309-
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) ID=18 L=28 		1-09701-067-0 01 1 0309-
286 CLIP; NYLON TUBE
ID=12 H=24 L=20 		1-09700-605-0 01 1 0309-
409 TUBE; DISTANCE
L=22 		9-22159-024-0 01 1 0309-
411 SLEEVE; RUBBER
L=60 		8-97865-346-0 01 1 0309-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
