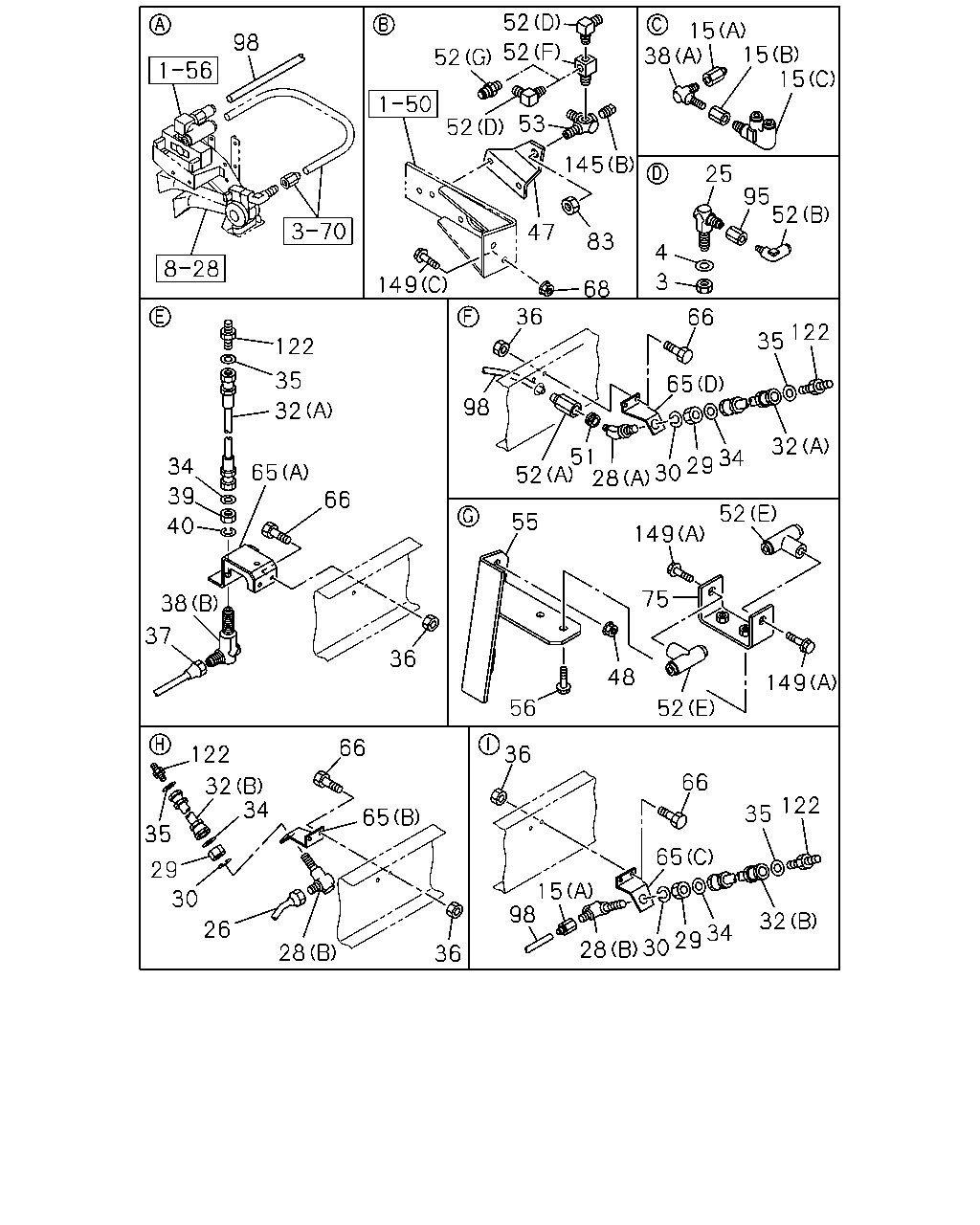

3-75 — BRAKE PIPING; AIR,FRONT (#25631) — 110 parça
çizim 25649
52 15 38 15 15 98 52 52 53 52 145 25 95 52 47 83 4 3 149 68 36 66 122 35 122 35 65 98 32 32 51 28 34 29 30 34 65 52 39 66 52 55 40 149 75 38 37 36 48 149 56 52 36 66 122 66 32 34 122 35 65 35 65 29 15 98 30 32 26 34 29 28 36 30 28
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
M20 		9-99111-420-0 01 1 0309-
4 WASHER; LK,PIPE UNION
ID=20.2 		9-09150-520-0 01 1 0309-
15 CONNECTOR; AIR PIPE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0309-
15 CONNECTOR; AIR PIPE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0309-
15 CONNECTOR; AIR PIPE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0309-
25 UNION; AIR PIPE
M20 		9-09235-212-1 01 1 0309-
26 PIPE; AIR,UNION TO FLEX HOSE
L=1317 SERVICED BY L=1450 		1-49115-489-0 01 1 0309-0401
26 PIPE; AIR,UNION TO FLEX HOSE
L=1296 SERVICED BY L=1300 		1-49115-488-0 01 1 0402-
28 NIPPLE; AIR PIPE
(B) M20 & M20 ELBOW 		1-09654-128-1 02 1 0309-
28 NIPPLE; AIR PIPE
(A) M20 		1-09654-199-2 01 1 0309-
29 NUT; NIPPLE
M20 		9-99111-420-0 03 1 0309-
30 WASHER; LK,NIPPLE
ID=20.2 		9-09150-520-0 03 1 0309-
32 HOSE; FLEX,FRT
(B) L=430 		0-07847-430-1 02 1 0309-
32 HOSE; FLEX,FRT
(A) L=500 		0-07847-500-1 02 1 0309-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0309-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0309-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 08 1 0309-
37 PIPE; AIR,UNION TO FLEX HOSE
L=1618 SERVICED BY L=1800 		1-49115-491-0 01 1 0309-
38 UNION; AIR PIPE
(B) M20 & M20 ELBOW 		1-09654-128-1 01 1 0309-
38 UNION; AIR PIPE
(A) M20 		9-09235-212-1 01 1 0309-
39 NUT; PIPE UNION
M20 		9-99111-420-0 02 1 0309-
40 WASHER; LK,PIPE UNION
ID=20.2 		9-09150-520-0 02 1 0309-
47 BRACKET; PIPE UNION 1-47479-930-0 01 1 0309-
48 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-
48 NUT; UNION BRKT
M12 FLANGE 		0-91150-212-0 02 1 0310-
51 GROMMET; NYLON TUBE
ID=24 OD=30 T=17 		9-09956-092-1 01 1 0309-
52 CONNECTOR; NYLON TUBE
(G) FLARE M20 PT3/8 		9-09231-812-1 01 1 0402-
52 CONNECTOR; NYLON TUBE
(D) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 0309-0401
52 CONNECTOR; NYLON TUBE
(D) M20 & PT3/8 ELBOW 		1-09650-439-0 01 1 0402-
52 CONNECTOR; NYLON TUBE
(F) PT3/8 3WAY 		1-09661-300-0 01 1 0309-
52 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 01 1 0309-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0309-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
52 CONNECTOR; NYLON TUBE
(E) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0309-
53 UNION; ELBOW 1-09656-403-1 01 1 0309-
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0310-
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0309-
65 BRACKET; FLEX HOSE
(D) 		1-47477-369-1 01 1 0309-
65 BRACKET; FLEX HOSE
(B) 		1-47479-605-0 01 1 0309-
65 BRACKET; FLEX HOSE
(C) 		1-47479-676-0 01 1 0309-
65 BRACKET; FLEX HOSE
(A) 		1-47479-793-0 01 1 0309-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0309-
66 BOLT; HOSE BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0309-
68 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0309-
75 BRACKET; UNION 1-47479-768-0 01 1 0309-
83 NUT; PIPE UNION
M20 		9-99111-420-0 01 1 0309-
95 ADAPTER; BRKT
M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0309-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0309-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-0 02 1 0309-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-0 02 1 0309-
145 PLUG
(B) PT3/8 		9-09204-517-0 01 1 0309-
145 PLUG
(A) OD=12 		1-09661-617-0 01 1 0309-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0309-
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0309-
149 BOLT; UNION
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0309-

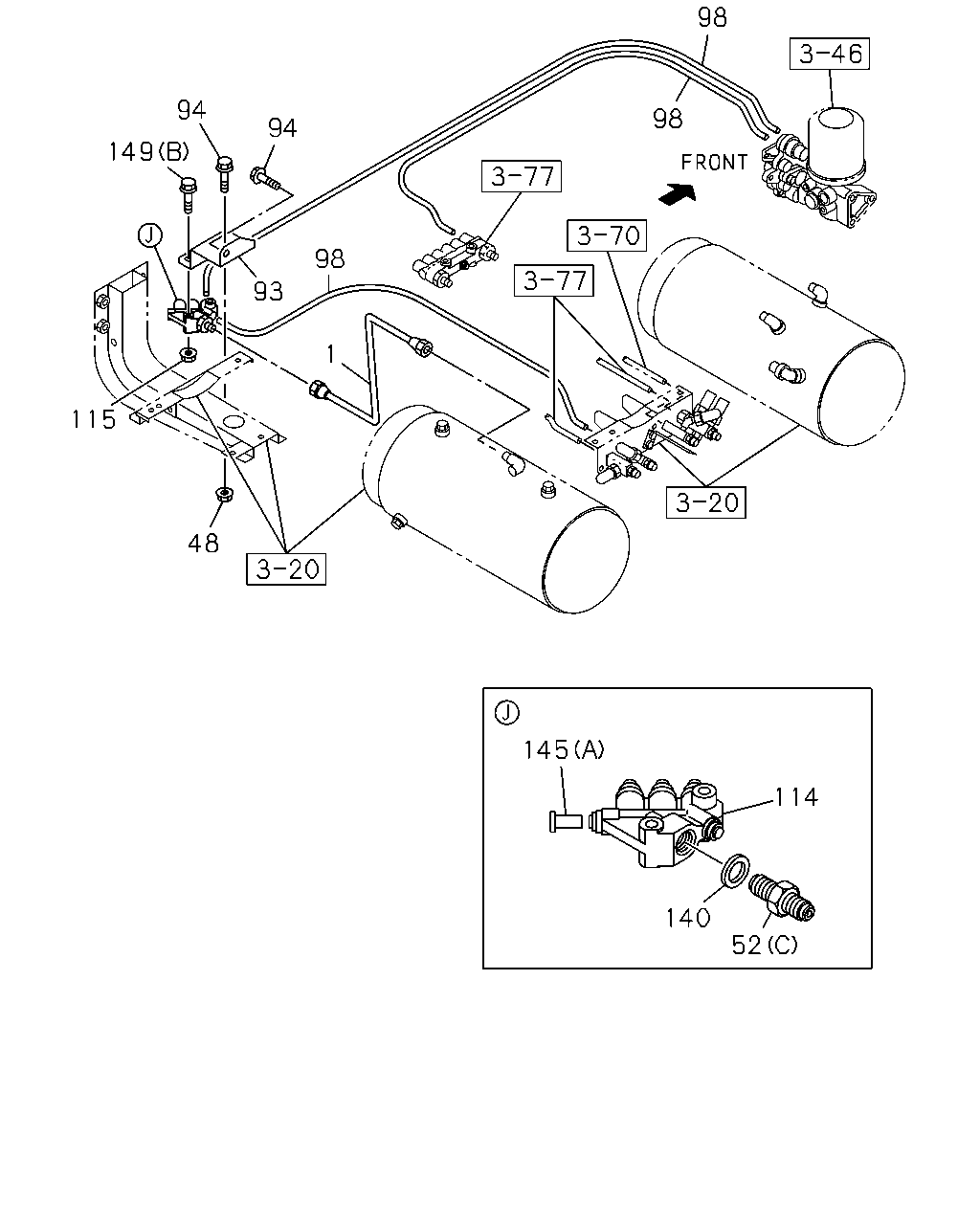

çizim 84718
98 94 98 94 149 98 93 1 115 48 145 114 140 52
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION 1-49123-986-0 01 1 0309-
48 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-
48 NUT; UNION BRKT
M12 FLANGE 		0-91150-212-0 02 1 0310-
52 CONNECTOR; NYLON TUBE
(G) FLARE M20 PT3/8 		9-09231-812-1 01 1 0402-
52 CONNECTOR; NYLON TUBE
(D) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 0309-0401
52 CONNECTOR; NYLON TUBE
(D) M20 & PT3/8 ELBOW 		1-09650-439-0 01 1 0402-
52 CONNECTOR; NYLON TUBE
(F) PT3/8 3WAY 		1-09661-300-0 01 1 0309-
52 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 01 1 0309-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0309-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
52 CONNECTOR; NYLON TUBE
(E) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0309-
93 BRACKET; UNION,TUBE 1-47479-678-0 01 1 0309-
94 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0309-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0309-
114 UNION; NYLON TUBE 1-09661-611-0 01 1 0309-
115 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0309-
140 GASKET; CONNECTOR 9-09572-022-0 01 1 0309-
145 PLUG
(B) PT3/8 		9-09204-517-0 01 1 0309-
145 PLUG
(A) OD=12 		1-09661-617-0 01 1 0309-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0309-
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0309-
149 BOLT; UNION
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0309-

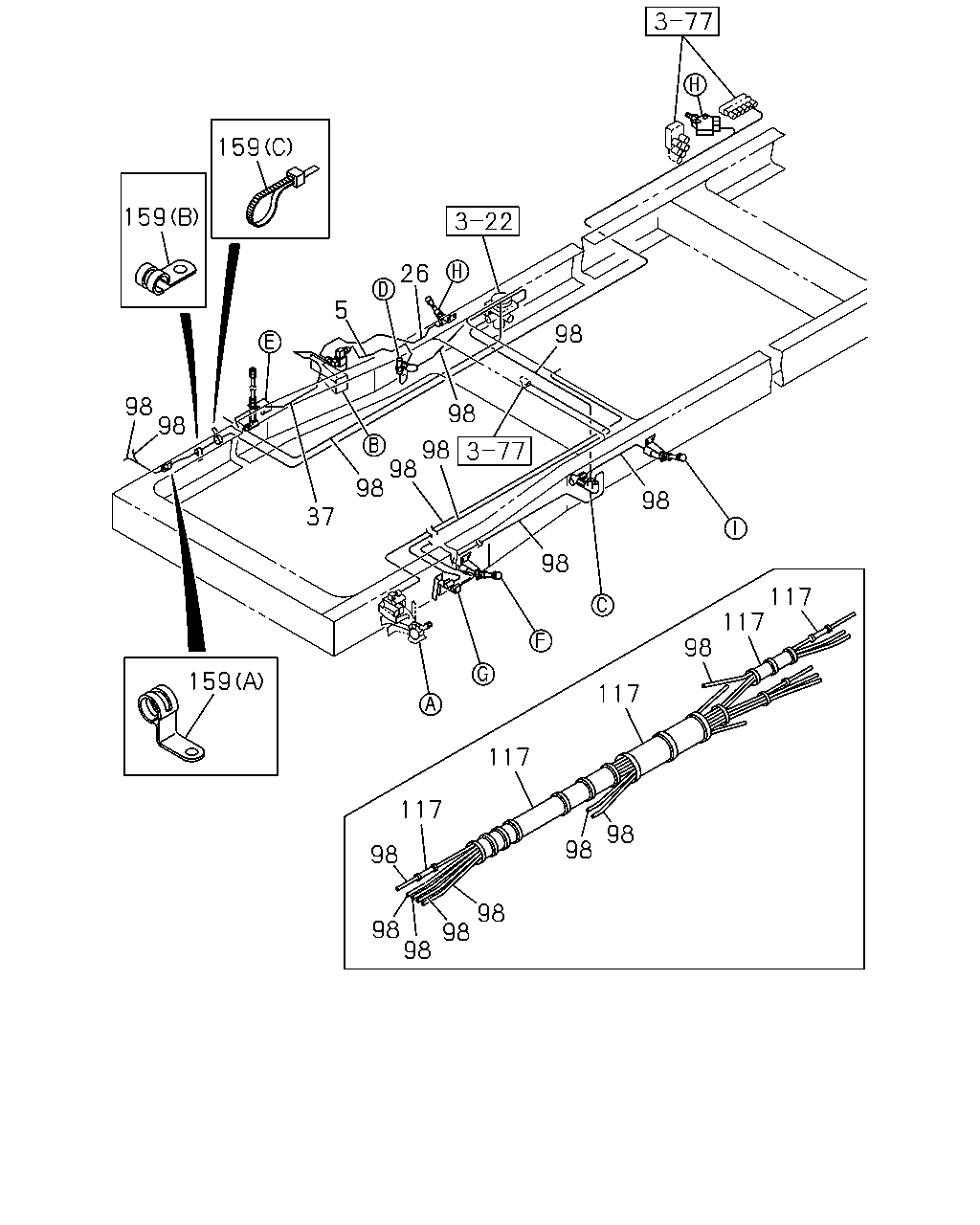

çizim 85186
159 159 26 5 98 98 98 98 98 98 98 98 37 98 117 117 98 159 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO UNION
L=1176 		1-49124-258-0 01 1 0309-
26 PIPE; AIR,UNION TO FLEX HOSE
L=1317 SERVICED BY L=1450 		1-49115-489-0 01 1 0309-0401
26 PIPE; AIR,UNION TO FLEX HOSE
L=1296 SERVICED BY L=1300 		1-49115-488-0 01 1 0402-
37 PIPE; AIR,UNION TO FLEX HOSE
L=1618 SERVICED BY L=1800 		1-49115-491-0 01 1 0309-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0309-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0309-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0309-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0309-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0309-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 0309-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0309-
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0309-
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=28 L=40 		1-09701-261-0 03 1 0309-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 11 1 0309-
159 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0309-
159 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 L=50 		1-09701-019-0 03 1 0309-
