◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#25630) — 228 parça

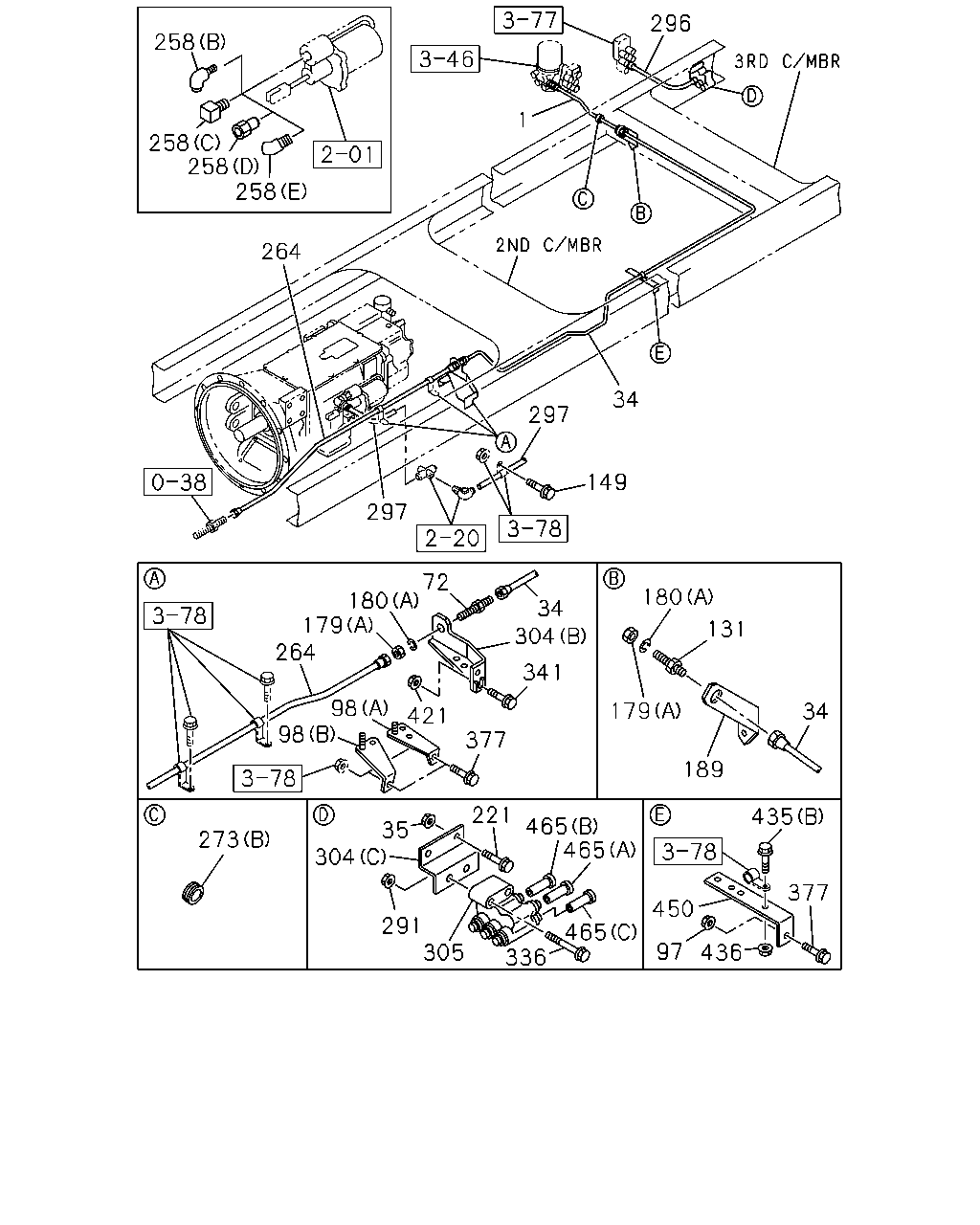

çizim 25650
296 258 1 258 258 258 264 34 297 149 297 72 180 180 179 264 34 304 131 341 98 98 179 34 421 377 189 221 435 465 465 35 304 273 377 450 291 305 465 97 436 336
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0309-
34 PIPE; AIR
L=1205 		1-49124-248-0 01 1 0309-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-
72 UNION; AIR PIPE 1-48320-039-2 01 1 0309-
97 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0309-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0309-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0309-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0309-
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28680-820-0 01 1 0309-
149 BOLT; TUBE CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 0309-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0309-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0309-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0309-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0309-
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0309-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0309-0309
221 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0310-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0309-
273 GROMMET
(A) 		1-09332-135-0 01 1 0309-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0309-
291 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0309-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0311-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0309-
304 BRACKET; UNION
(B) 		1-47479-682-1 01 1 0309-
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0309-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0309-
305 UNION ASM; NYLON TUBE 1-09661-613-0 01 1 0309-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0309-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0309-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 0309-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0309-
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0309-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309-
450 BRACKET; CLIP 1-82698-358-0 01 1 0309-
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0309-0309
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0309-0309
465 PLUG
EXC. MJT7 M/T<Y9E> (B) OD=8 		1-09661-616-0 01 1 0309-0309
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0310-
465 PLUG
EXC. BRAKE SYSTEM HSA<SLD> (B) OD=8 		1-09661-616-0 01 1 0310-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0309-
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 0309-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) OD=6 L=27 		1-09661-615-0 01 1 0309-
465 PLUG
EXC. MJT7 M/T<Y9E> (C) OD=12 		1-09661-617-0 01 1 0309-0309

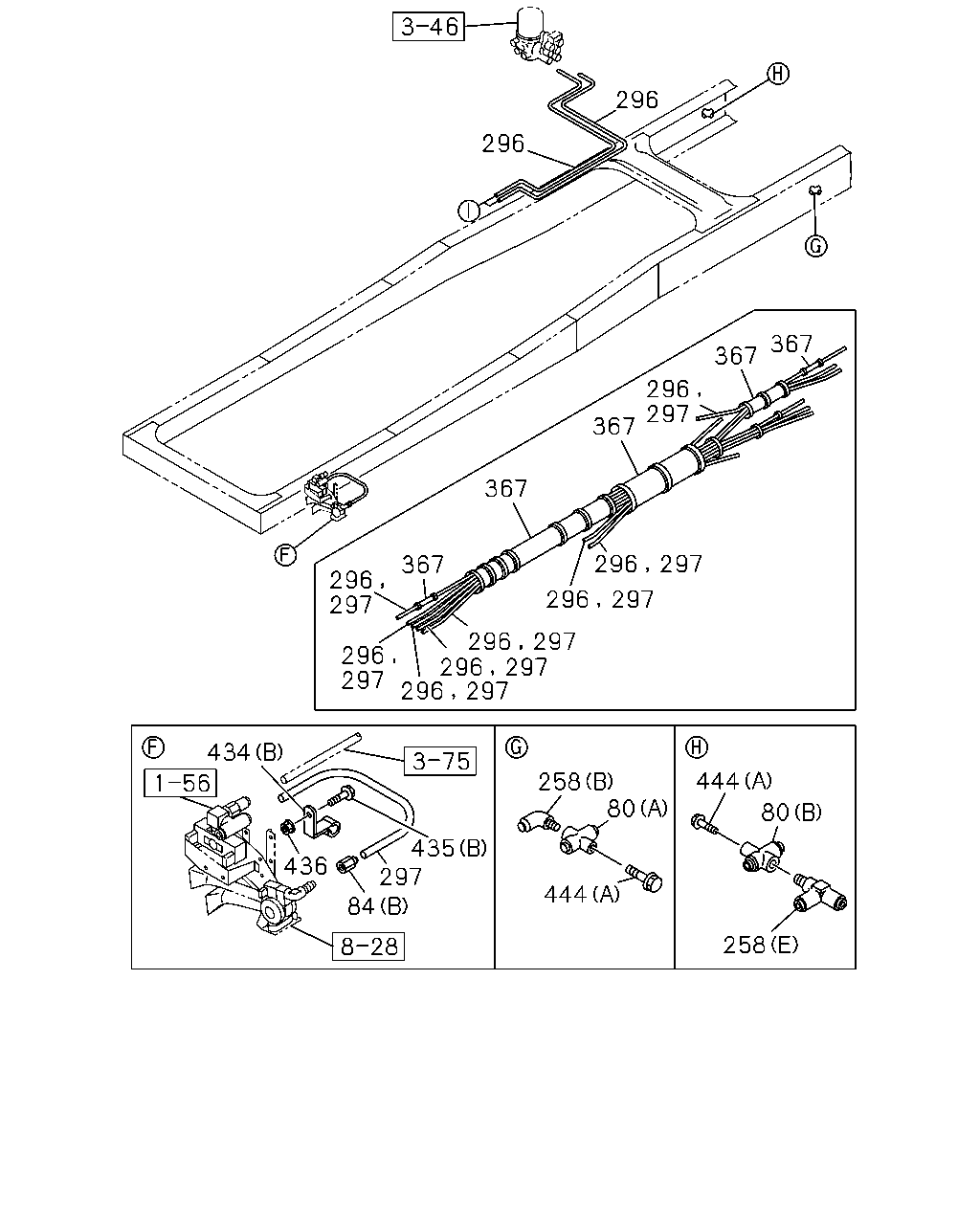

çizim 25950
296 296 367 367 296 297 367 367 367 296 297 296 297 434 444 258 80 80 435 297 84 436 444 258 297 296 297 296 297 296 297 296 297 296
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
MJX16P M/T(Y3Z) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0309-
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0309-
84 UNION; NYLON TUBE
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0309-
84 UNION; NYLON TUBE
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0309-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0311-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0309-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0309-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0309-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0309-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0309-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0309-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0309-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309-
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0309-
444 BOLT; UNION
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0309-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0309-

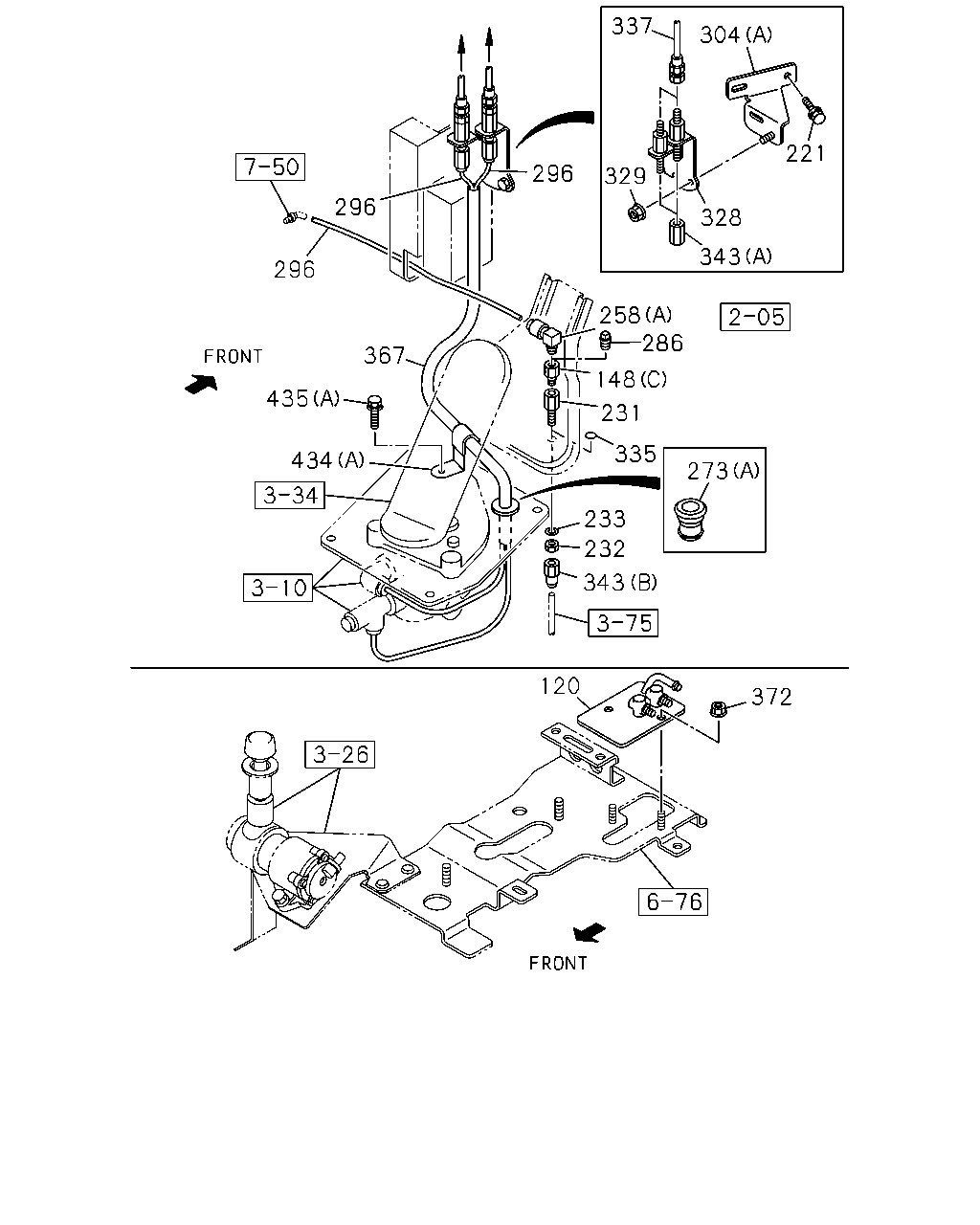

çizim 79757
337 304 221 296 329 296 328 343 296 258 286 367 148 435 231 335 434 273 233 232 343 120 372
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
EXC. FULL TRACTOR TRUCK<RD6> 		1-47470-492-1 01 1 0309-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 0309-
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0309-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0309-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0309-0309
221 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0310-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0309-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0309-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0309-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0309-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
273 GROMMET
(A) 		1-09332-135-0 01 1 0309-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0309-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0309-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0311-
304 BRACKET; UNION
(B) 		1-47479-682-1 01 1 0309-
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0309-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0309-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0309-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0309-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0309-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0309-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0309-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0309-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0309-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0309-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0309-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0309-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0309-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0309-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0309-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0309-

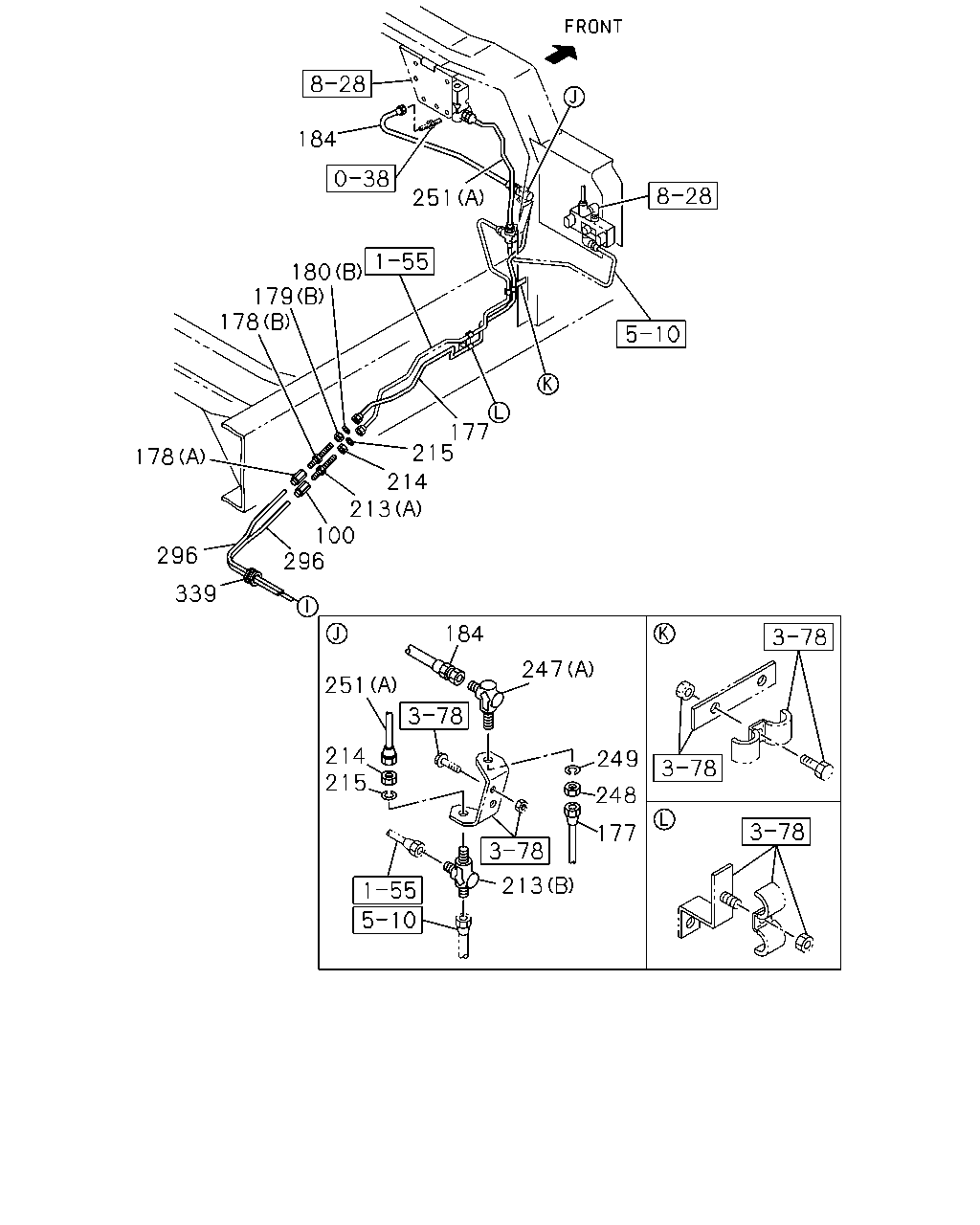

çizim 80151
184 251 180 179 178 177 215 178 214 213 100 296 296 339 184 247 251 214 215 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0312-
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0309-0311
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0312-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0309-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0309-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0309-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0309-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0309-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0312-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0309-0311
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0312-
213 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0309-
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0309-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0309-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0309-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		9-09223-306-1 01 1 0312-
247 UNION; AIR PIPE
(A) M12 ELBOW 		9-09225-206-1 01 1 0309-0311
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		9-09225-206-1 01 1 0312-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0309-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0309-
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> (B) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0312-0401
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> (B) L=734 SERVICED BY L=800 		1-47428-812-0 01 1 0402-
251 PIPE; AIR,UNION TO MAG VLV
(A) 		1-49121-779-0 01 1 0309-0311
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-49121-779-0 01 1 0312-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0311-
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0309-0401

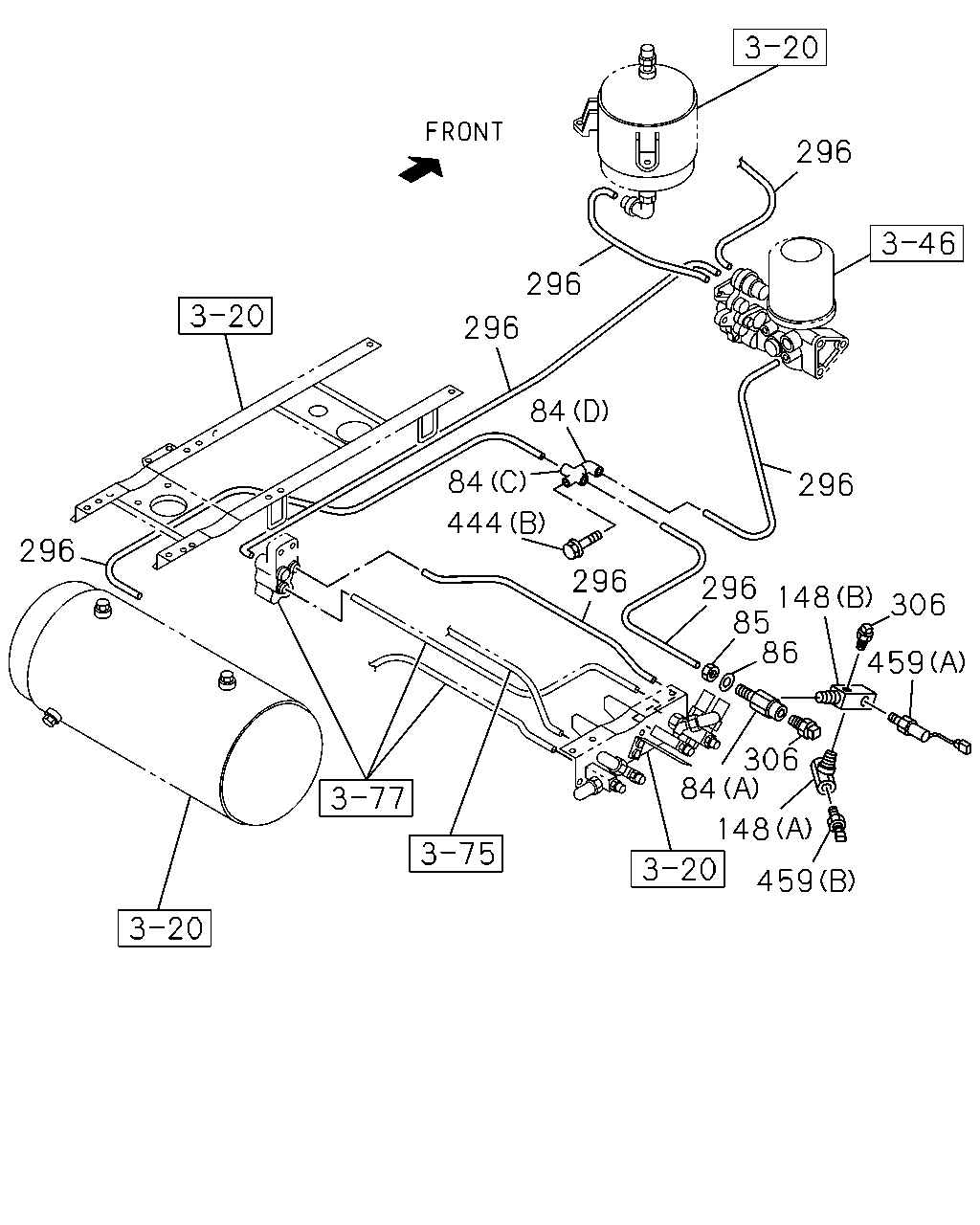

çizim 80554
296 296 296 84 84 296 444 296 296 296 148 85 86 306 459 306 84 148 459
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0309-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0309-
84 UNION; NYLON TUBE
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0309-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-
85 NUT; UNION
M18 		9-99110-518-0 01 1 0309-
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0309-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 0309-
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0309-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0309-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0311-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0309-
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0309-
444 BOLT; UNION
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0309-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0309-
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0309-
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0309-

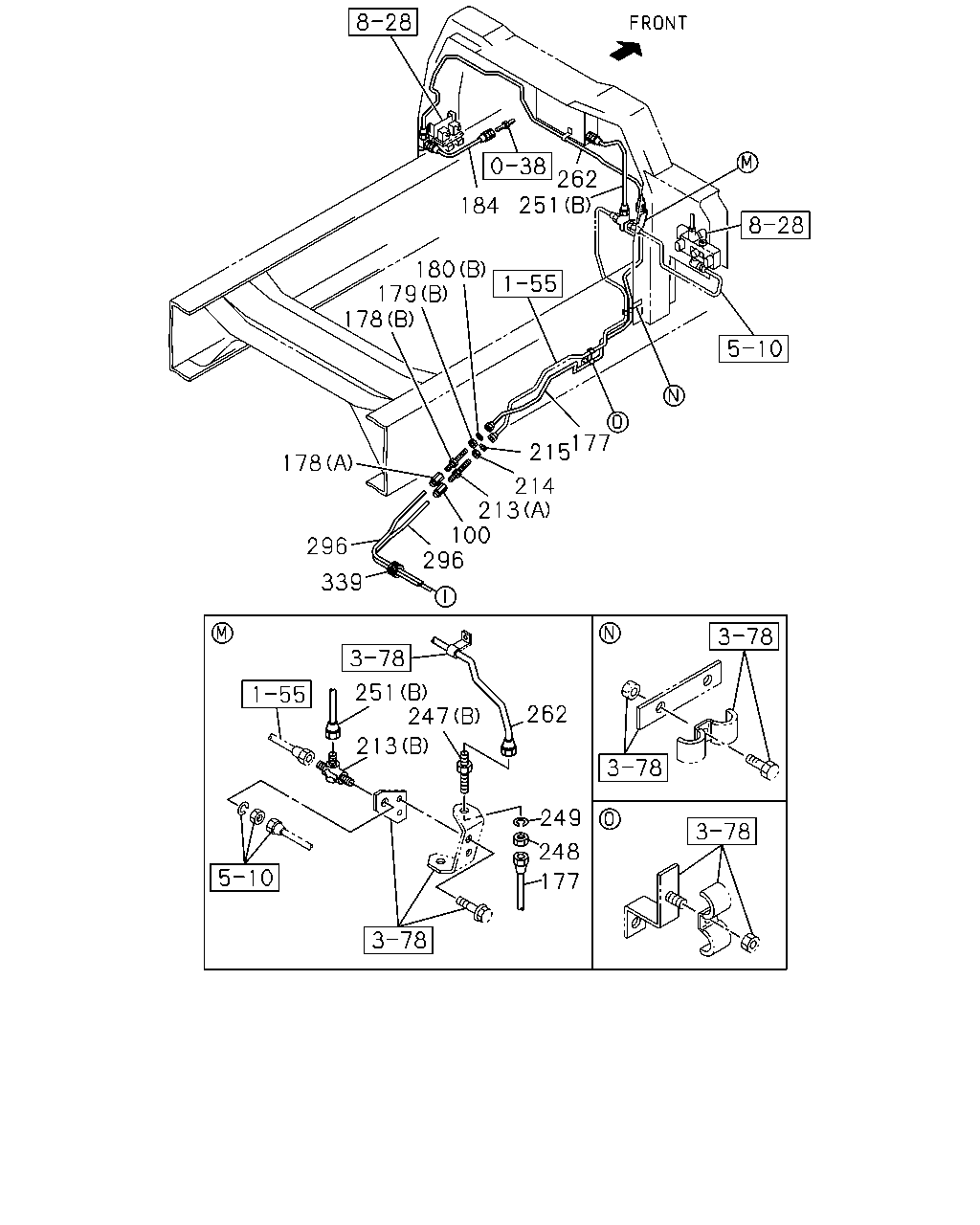

çizim 85243
262 251 184 180 179 178 177 215 178 214 213 100 296 296 339 251 247 262 213 249 248 177
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0312-
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0309-0311
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0312-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0309-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0309-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0309-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0309-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0309-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0312-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0309-0311
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0312-
213 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0309-
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0309-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0309-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0309-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		9-09223-306-1 01 1 0312-
247 UNION; AIR PIPE
(A) M12 ELBOW 		9-09225-206-1 01 1 0309-0311
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		9-09225-206-1 01 1 0312-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0309-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0309-
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> (B) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0312-0401
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> (B) L=734 SERVICED BY L=800 		1-47428-812-0 01 1 0402-
251 PIPE; AIR,UNION TO MAG VLV
(A) 		1-49121-779-0 01 1 0309-0311
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-49121-779-0 01 1 0312-
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-345-0 01 1 0312-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0309-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0311-
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0309-0401
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
