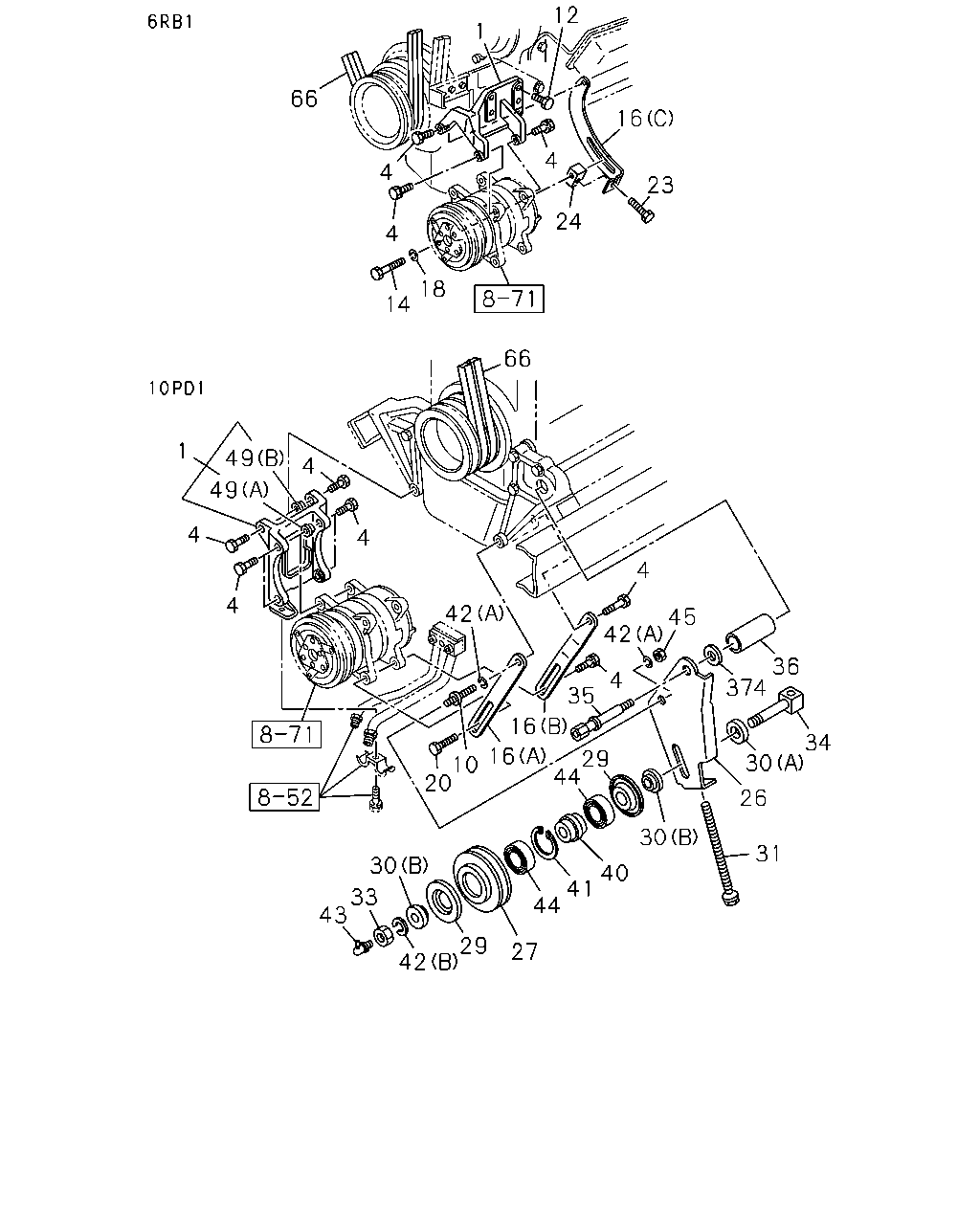

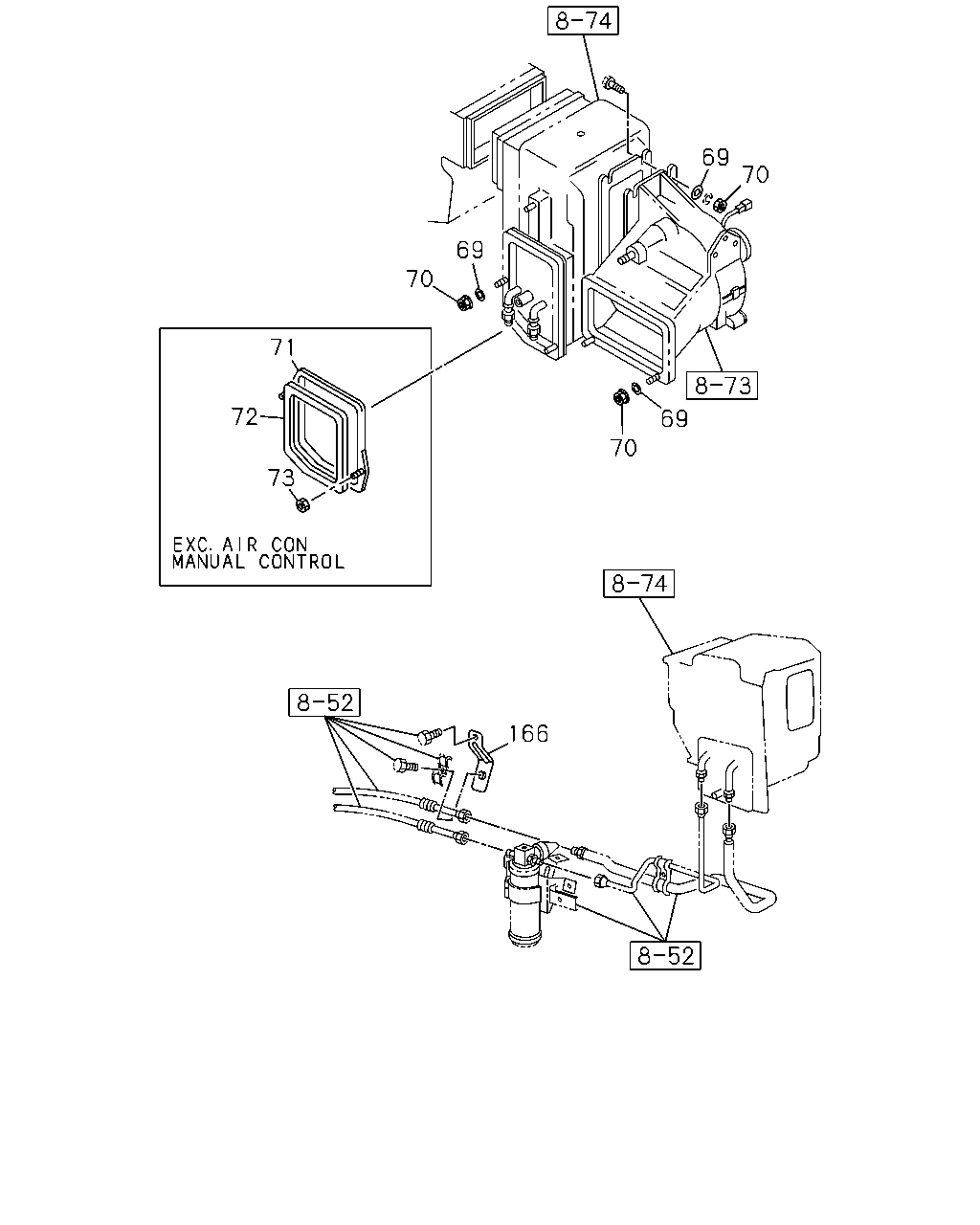

8-50 — AIR CONDITIONING SYSTEM; FRONT (#2563) — 60 parça

12 1 66 16 4 4 23 24 4 18 14 66 1 49 4 49 4 4 4 4 42 45 42 36 374 4 35 16 34 16 29 44 30 10 20 26 30 31 30 40 41 44 33 43 29 42 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9002-
1	BRACKET; A/C 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-316-0	01	1	9002-9306
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X20	0-28021-020-0	02	1	9002-9002
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE	0-28081-020-0	02	1	9003-
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M12X40 FLANGE	0-28021-240-0	01	1	9002-9005
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M12X40 FLANGE	0-28081-240-0	01	1	9006-
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER	9-01911-040-0	02	1	9002-
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M12X25	9-01911-225-0	01	1	9002-9005
4	BOLT; A/C CMPR BRKT 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M12X25 W/LK WASHER	0-50041-225-0	01	1	9006-
4	BOLT; A/C CMPR BRKT 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35	9-01911-235-0	01	1	9002-9005
4	BOLT; A/C CMPR BRKT 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 W/LK WASHER	0-50041-235-0	01	1	9006-9306
4	BOLT; A/C CMPR BRKT 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK WASHER	9-01991-035-0	04	1	9002-9002
4	BOLT; A/C CMPR BRKT 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9003-9306
10	BOLT; ADJ PLATE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M12X19,M12X19 L=60	1-09029-055-3	02	1	9002-
12	BOLT; ADJ,CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-1	01	1	9002-9306
14	BOLT; CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X50	9-01056-050-0	01	1	9002-9004
14	BOLT; CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X50	0-10806-050-0	01	1	9005-9306
14	BOLT; CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01911-045-0	02	1	9002-9002
14	BOLT; CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 W/LK WASHER	0-50041-045-0	02	1	9003-9306
16	PLATE; ADJ,CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9002-
16	PLATE; ADJ,CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9002-
16	PLATE; ADJ,CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-114-2	01	1	9002-9306
18	WASHER; LK,CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	9002-9306
20	BOLT; ADJ PLATE TO CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-1	01	1	9002-
23	BOLT; ADJ PLATE TO BRKT 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M12X40	9-01911-240-0	01	1	9002-9005
23	BOLT; ADJ PLATE TO BRKT 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M12X40 W/LK WASHER	0-50041-240-0	01	1	9006-9306
24	PIECE; SLIDING 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13679-010-0	01	1	9002-9306
24	PIECE; SLIDING 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9504-
26	BRACKET; IDLE PULLEY,A/C 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-023-4	01	1	9002-
27	PULLEY; IDLE,A/C 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-0	01	1	9002-
29	COVER; DUST,IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-126-0	02	1	9002-
30	COLLAR; IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	9002-
30	COLLAR; IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-022-0	02	1	9002-
31	BOLT; ADJ,IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-0	01	1	9002-
33	NUT; IDLER PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	9002-
34	SHAFT; IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9002-
35	BOLT; IDLER PULLEY TO C/BL 10PD1 STD ENG(40L) M12X94	1-13669-132-0	01	1	9002-
36	PIECE; DIST,PULLEY TO C/BL 10PD1 STD ENG(40L)	1-13666-023-1	01	1	9002-
40	BUSHING; IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	9006-
41	RING; SNAP,IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	9002-
42	WASHER; PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9002-
42	WASHER; PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9002-
43	NIPPLE; IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	9002-
44	BEARING; IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	9002-
45	NUT; BOLT,IDLE PULLEY 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	9002-
49	COLLAR; BRKT,CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-601-0	02	1	9002-
49	COLLAR; BRKT,CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-602-0	01	1	9002-
66	BELT; A/C CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=1356	1-13671-119-0	01	1	9002-9111
66	BELT; A/C CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-209-0	01	1	9112-
66	BELT; A/C CMPR 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	1-13671-217-0	01	1	9002-9306
374	SPACER; STAY 10PD1 STD ENG(40L) EXC. AIR CONDITIONER MANUAL CONTROL(C60)	9-09851-211-0	01	1	9002-

69 70 69 70 71 72 69 70 73 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	WASHER; PL,EVAP AIR CONDITIONER MANUAL CONTROL(C60) OD=20	1-09509-047-0	01	1	9002-
69	WASHER; PL,EVAP AIR CONDITIONER MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9002-
70	NUT; EVAP,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	03	1	9002-
71	COVER; EVAP,A/C EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-71997-460-1	01	1	9002-
72	SEAL; COVER,EVAP EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-71997-462-1	01	1	9002-9210
72	SEAL; COVER,EVAP EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-71998-221-0	01	1	9211-
73	NUT; COVER,A/C EVAP EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	02	1	9002-
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-266-1	01	1	9002-
