3-46 — AIR DRYER (#25627) — 27 parça

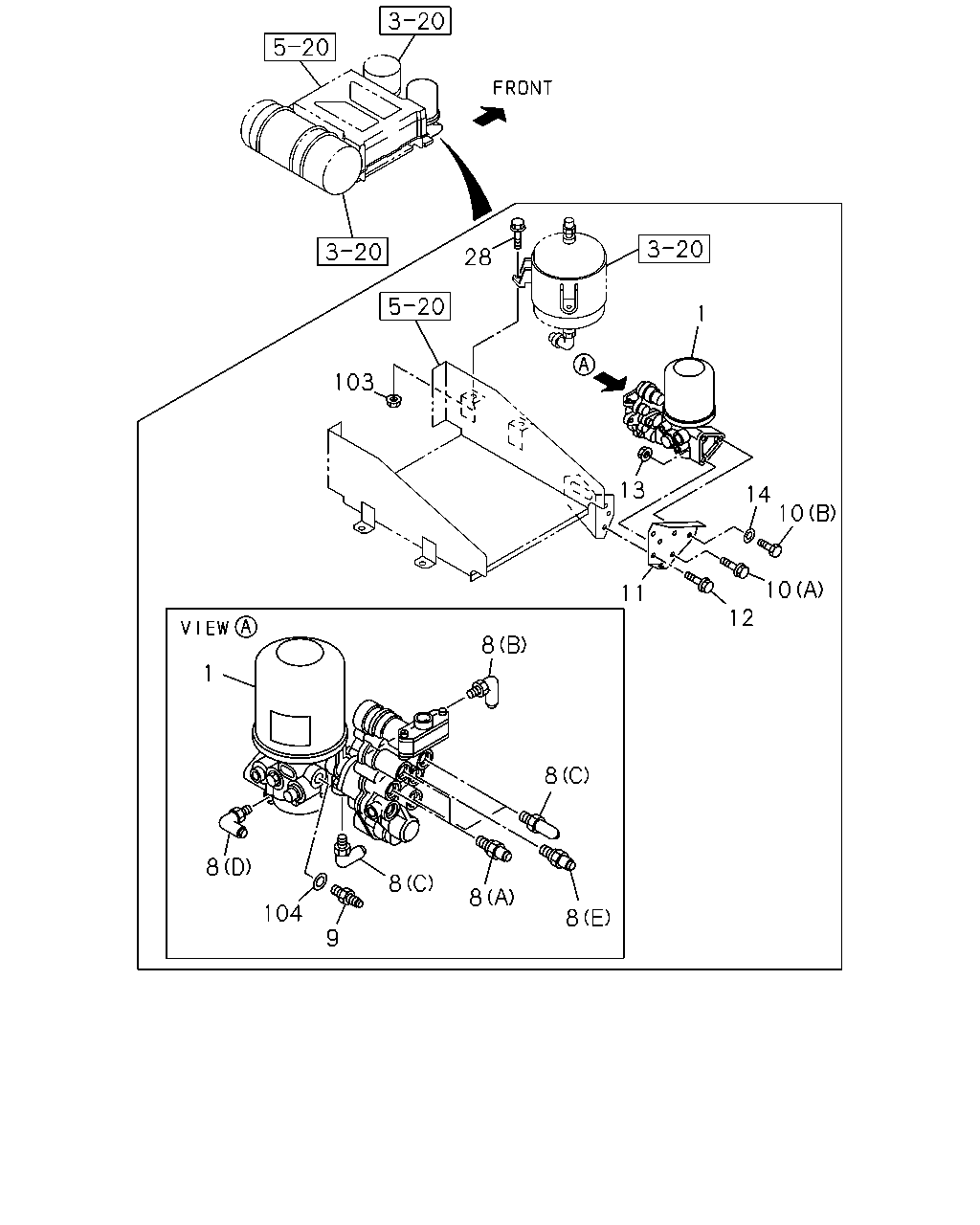

çizim 80024
28 1 103 13 14 10 10 11 12 8 1 8 8 8 8 104 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-326-2 01 1 0309-
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0309-
8 CONNECTOR; OUT,AIR DRYER
(E) DIN8 & M22 STRAIGHT 		1-09661-091-0 01 1 0309-
8 CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 0309-
8 CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW 		1-09661-521-0 03 1 0309-
8 CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW 		1-09661-574-0 01 1 0309-
9 CONNECTOR; PIPE,AIR DRYER 1-09654-416-1 01 1 0309-
10 BOLT; AIR DRYER
(A) M12X50 FLANGE 		0-28081-250-0 01 1 0309-
10 BOLT; AIR DRYER
(B) M12X25 		1-09009-081-0 02 1 0309-
11 BRACKET; AIR DRYER 1-48316-019-0 01 1 0309-
12 BOLT; BRKT
M12X30 FLANGE 		0-28681-230-0 03 1 0309-
13 NUT; AIR DRYER
M12 FLANGE 		0-91150-212-0 01 1 0309-
14 WASHER; PL,AIR DRYER
ID=12.5 		9-09160-512-0 02 1 0309-
28 BOLT; PURGE TANK
M10X25 FLANGE 		0-28681-025-0 02 1 0309-
103 NUT; PURGE TANK
M10 FLANGE 		0-91150-210-0 02 1 0309-
104 GASKET 9-09572-022-0 01 1 0309-
120 TAPPET 1-87411-310-0 01 1 0309-

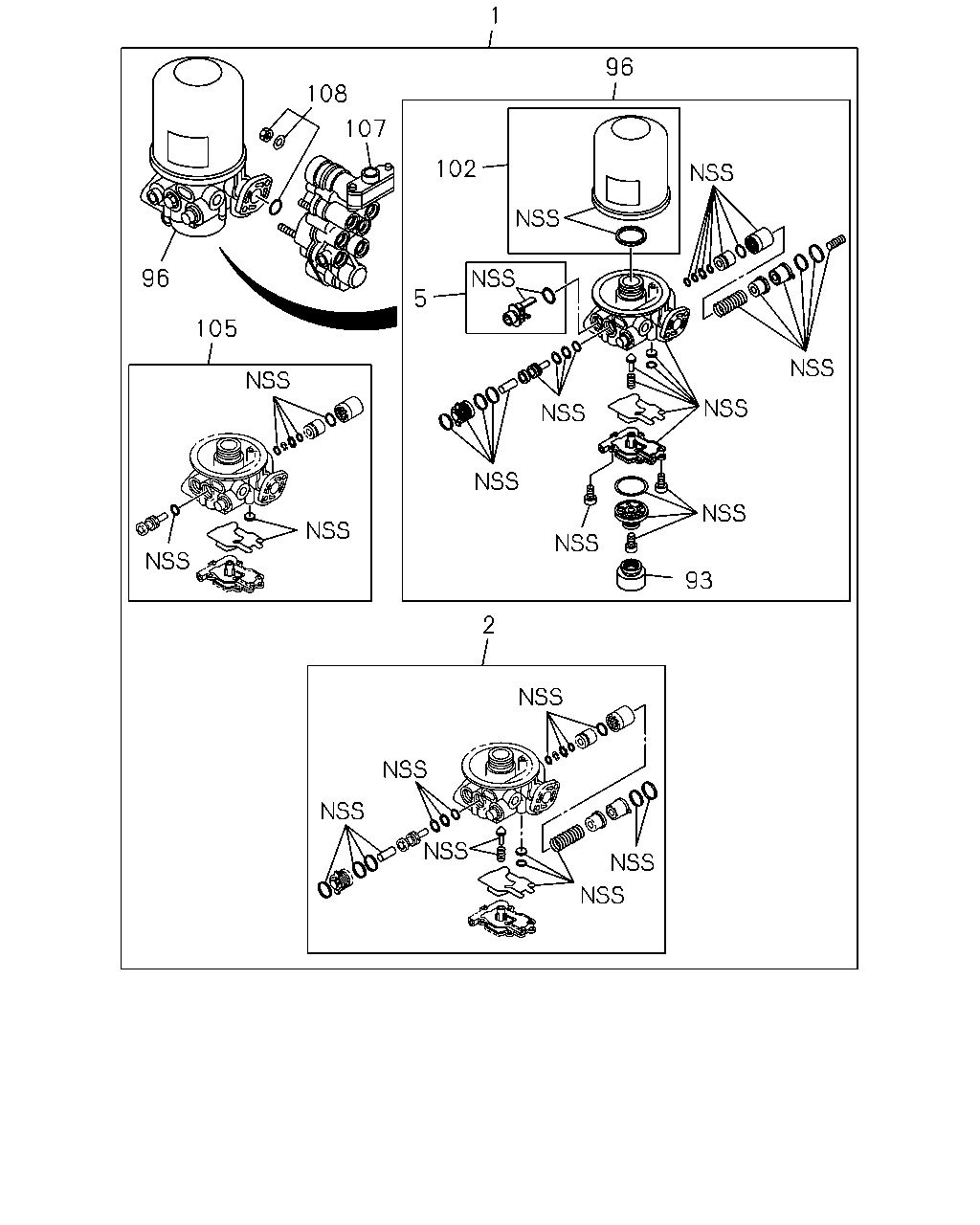

çizim 82230
1 96 108 107 102 96 5 105 93 2
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-326-2 01 1 0309-
2 REPAIR KIT; AIR DRYER 1-85576-367-0 01 1 0309-
5 HEATER ASM; AIR DRYER 1-85576-363-0 01 1 0309-
93 SILENCER; AIR DRYER 1-85576-362-0 01 1 0309-
96 DRYER KIT; AIR 1-85576-370-0 01 1 0309-
102 CARTRIDGE; AIR DRYER 1-85576-365-0 01 1 0309-
105 SEAL KIT; AIR DRYER 1-85576-366-0 01 1 0309-
107 VALVE ASM; PROTECTION,AIR DRYER 1-85576-369-0 01 1 0309-
108 FIXING KIT; PROTECTION,AIR DRYER 1-85576-371-0 01 1 0309-
120 TAPPET 1-87411-310-0 01 1 0309-
