3-41 — REAR BRAKE POWER CHAMBER (#25626) — 54 parça

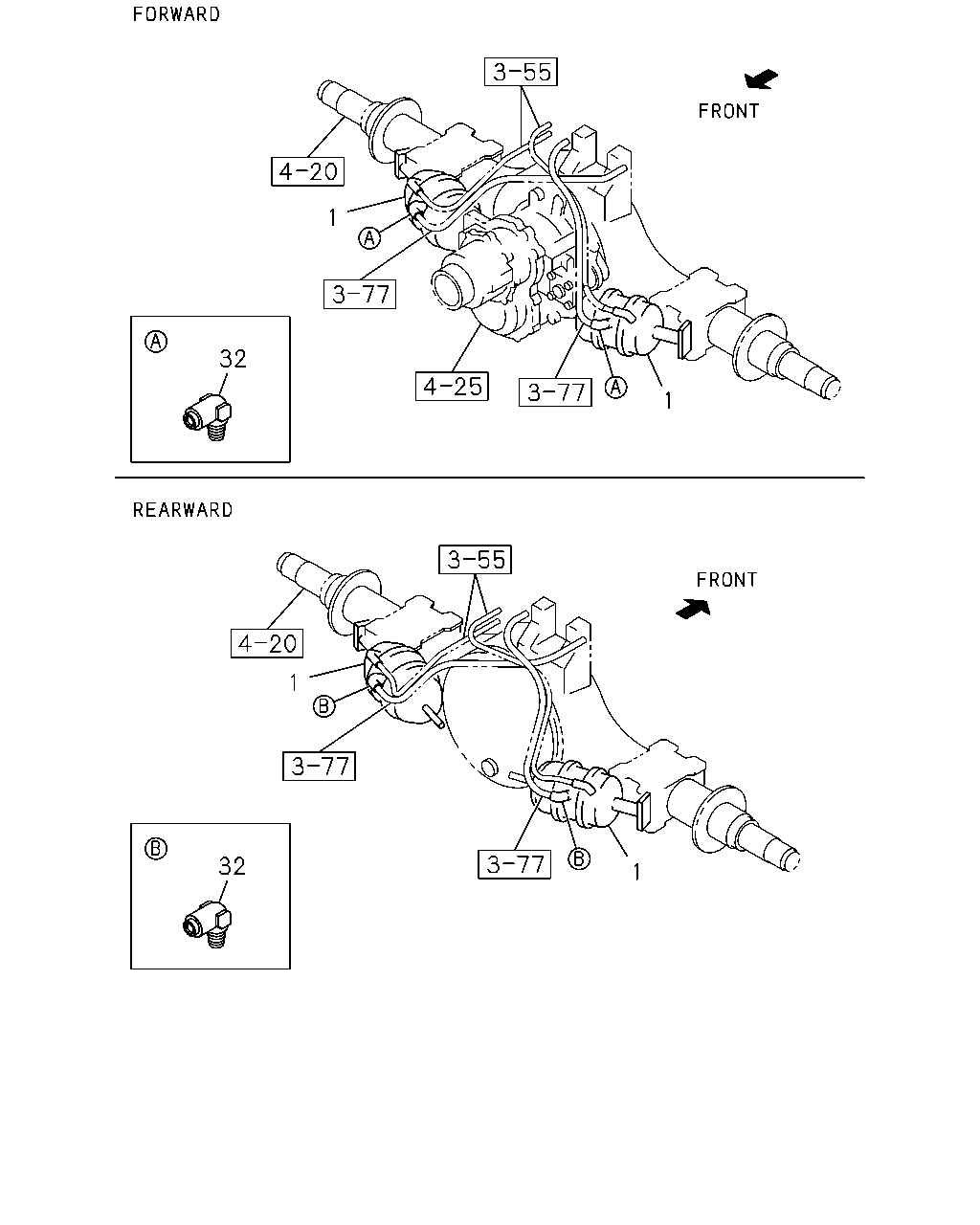

1 32 1 1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-816-1	01	1	0403-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-816-1	01	1	0403-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-817-1	01	1	0403-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-817-1	01	1	0403-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0309-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0309-

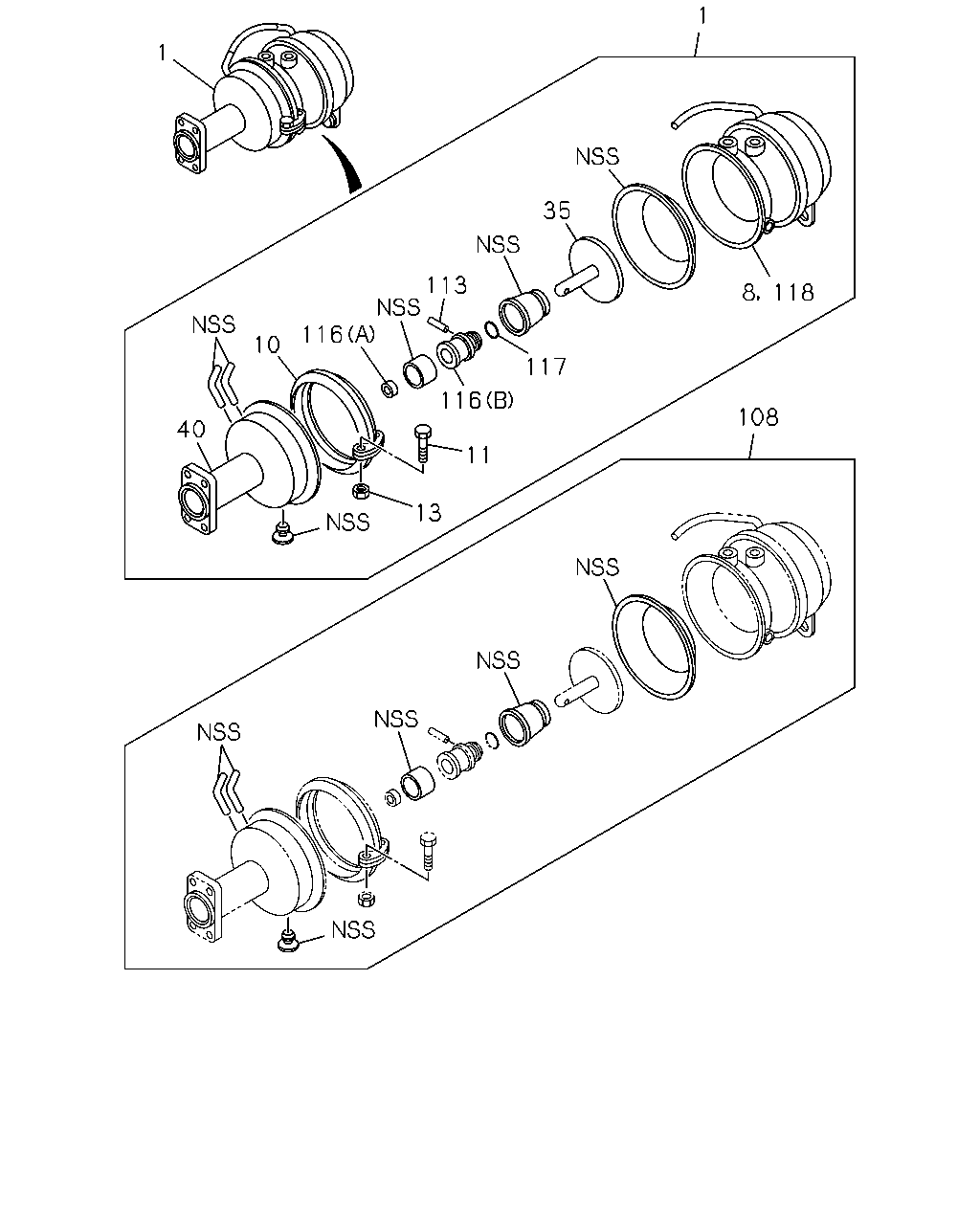

1 1 35 113 8 118 116 10 117 116 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-816-1	01	1	0403-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-816-1	01	1	0403-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0309-0402
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-817-1	01	1	0403-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-817-1	01	1	0403-
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-1	01	1	0403-
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-1	01	1	0403-
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-1	01	1	0403-
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-1	01	1	0403-
10	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0309-
10	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0309-
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0309-
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0309-
13	NUT; CLAMP RING	1-48269-147-0	04	1	0309-
13	NUT; CLAMP RING	1-48269-147-0	04	1	0309-
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0309-0402
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0309-0402
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0403-
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0403-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-0	01	1	0309-0402
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-0	01	1	0309-0402
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-0	01	1	0309-0402
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-0	01	1	0309-0402
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-0	01	1	0403-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0309-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0309-
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0309-
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0309-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0309-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0309-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0309-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0309-
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0309-
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0309-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-092-0	01	1	0309-0402
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-092-0	01	1	0309-0402
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-093-0	01	1	0309-0402
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-093-0	01	1	0309-0402
