◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#25616) — 48 parça
çizim 22287
250 305 250 153 322 317 318
BalonParca AdiParca NoAdetTipApplied Date
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> M8 FLANGE 		0-91150-108-0 01 1 0309-
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0311-
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0311-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0309-0310
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0311-
250 TUBE; NYLON
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0311-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0309-0310
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0311-
250 TUBE; NYLON
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0311-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0309-
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> ID=11 L=16 		9-09525-025-0 01 1 0309-
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> M8X25 FLANGE 		0-28680-825-0 01 1 0309-
322 UNION
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-

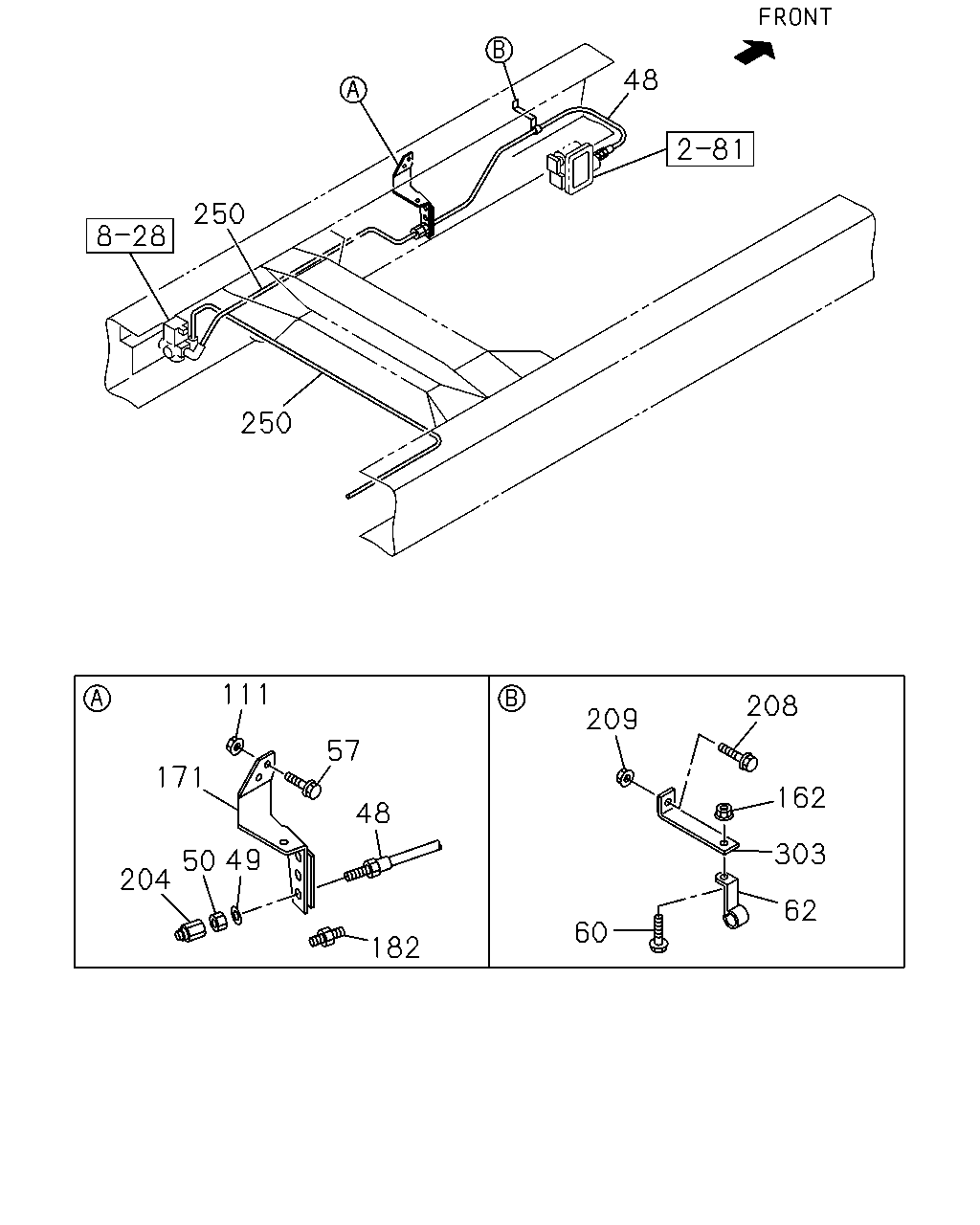

çizim 79851
48 250 250 111 208 209 57 171 162 48 303 204 62 60 182 50 49
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MJT7 M/T<Y9E> TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> L=360 		1-09363-823-0 01 1 0309-0309
48 HOSE; FLEX,PTO
MJT7 M/T<Y9E> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=760 		1-09363-715-0 01 1 0309-
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2 		9-09150-512-0 01 1 0309-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 		9-09840-280-0 01 1 0309-
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 FLANGE 		0-28680-830-0 02 1 0309-
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE 		0-28680-820-0 01 1 0309-
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15 L=22 H=30 		1-09701-215-1 01 1 0309-
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE 		0-91150-108-0 02 1 0309-
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE 		0-91150-108-0 01 1 0309-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-47479-634-1 01 1 0309-
182 CONNECTOR; FLARE
TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 L=56.5 		9-09223-106-1 01 1 0309-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0309-0309
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER<SH5> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0310-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 FLANGE 		0-28680-830-0 01 1 0309-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE 		0-91150-108-0 01 1 0309-
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0311-
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0311-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0309-0310
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0311-
250 TUBE; NYLON
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0311-
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0309-0310
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY<BBC> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0311-
250 TUBE; NYLON
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0311-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-82698-358-0 01 1 0309-0402
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER<SH5> L=95 		1-82699-085-0 01 1 0403-
çizim 85285
1 3 246 217 132 3 3 1 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
MIXER TRUCK<RA2> (B) 		1-79907-039-1 01 1 0309-0309
1 LEVER ASM; PTO & DUMP CONT
MIXER TRUCK<RA2> (B) 		1-79907-048-1 01 1 0310-
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 0309-
3 BOLT; BRKT,DUMP CONT LEVER
MIXER TRUCK<RA2> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0309-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0309-
55 GROMMET; CABLE
EXC. MIXER TRUCK<RA2>,DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 0309-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0309-
139 BRACKET; CONT BOX
MIXER TRUCK<RA2> 		1-79907-044-0 01 1 0309-
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 0309-
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 0309-
