2-53 — TRANSMISSION OIL COOLER SYSTEM (#25614) — 117 parça

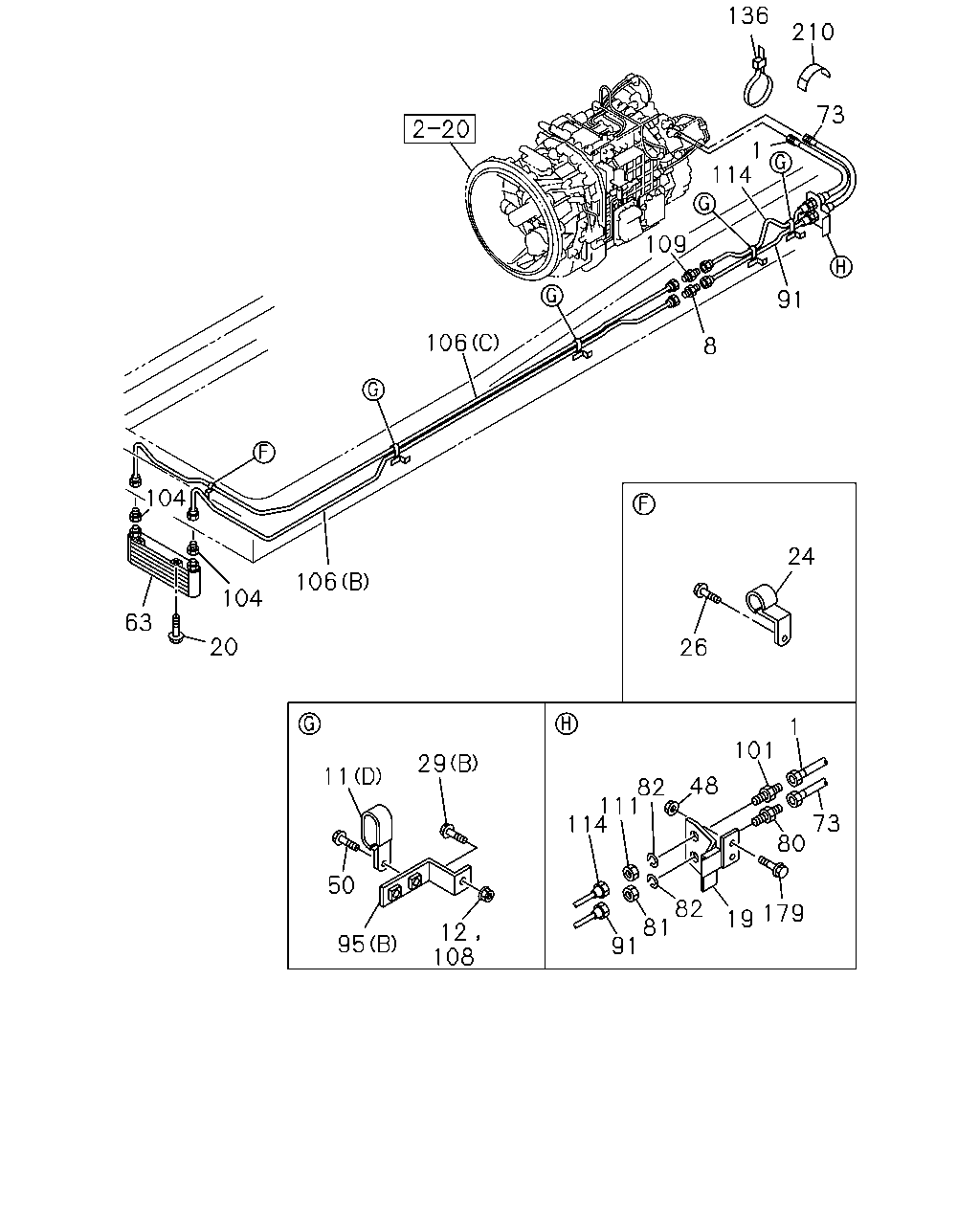

136 210 73 1 114 109 91 106 8 104 24 106 104 63 20 26 1 101 29 11 48 82 111 114 73 80 50 82 81 91 179 19 12 108 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	0309-
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0309-
8	UNION MJX16P M/T(Y3Z) M22	9-09233-015-1	01	1	0309-
8	UNION MJT7 M/T<Y9E> M16 L=42	9-09233-010-1	01	1	0309-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	9-09535-535-0	05	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	01	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	0309-0401
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	0402-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0309-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0309-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-613-1	01	1	0309-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-612-0	01	1	0309-
20	BOLT; COOLER TO BRKT MJX16P M/T(Y3Z) M10X20 FLANGE	0-28081-020-0	02	1	0309-
24	CLIP; OIL PIPE MJX16P M/T(Y3Z) ID=15 H=24 L=20	1-09700-606-0	01	1	0309-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	5-09700-351-0	02	1	0309-
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0309-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28681-030-0	02	1	0309-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28680-830-0	04	1	0309-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X16 FLANGE	0-28080-816-0	01	1	0402-
50	BOLT; CLIP MJX16P M/T(Y3Z) M8X25 FLANGE	0-28680-825-0	05	1	0309-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28680-820-0	01	1	0309-
50	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0309-0401
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28680-825-0	03	1	0309-0401
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28680-825-0	04	1	0402-
63	COOLER; OIL	1-21700-290-0	01	1	0309-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=570	1-09365-236-0	01	1	0309-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0309-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-1	01	1	0309-
81	NUT; UNION MJX16P M/T(Y3Z) M22	9-09111-422-0	01	1	0309-
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	9-09150-522-0	02	1	0309-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=896	1-49166-940-1	01	1	0309-0311
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=916	1-49167-189-0	01	1	0312-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=859	1-49166-857-1	01	1	0309-0311
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=874 SERVICED BY L=900	1-47428-873-0	01	1	0312-
95	BRACKET; CLIP (B)	1-47479-482-0	01	1	0309-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	0309-
95	BRACKET; CLIP (B)	1-47479-482-0	04	1	0309-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-1	01	1	0309-
104	CONNECTOR; COOLER MJX16P M/T(Y3Z)	1-09654-398-0	02	1	0309-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1739	1-49166-967-0	01	1	0309-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) CAB UP +110MM<TGG> (C) L=2349	1-49166-969-0	01	1	0309-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A) L=2341 SERVICED BY L=2500	1-47428-883-0	01	1	0309-
108	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0309-
109	UNION MJX16P M/T(Y3Z) M22	9-09233-015-1	01	1	0309-
109	UNION MJT7 M/T<Y9E> M16 L=42	9-09233-010-1	01	1	0309-
111	NUT; UNION MJX16P M/T(Y3Z) M22	9-09111-422-0	01	1	0309-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=817	1-49166-956-0	01	1	0309-0311
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=832	1-49167-190-0	01	1	0312-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=816 SERVICED BY L=900	1-47428-873-0	01	1	0309-0311
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=834 SERVICED BY L=900	1-47428-873-0	01	1	0312-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	0309-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0309-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0309-

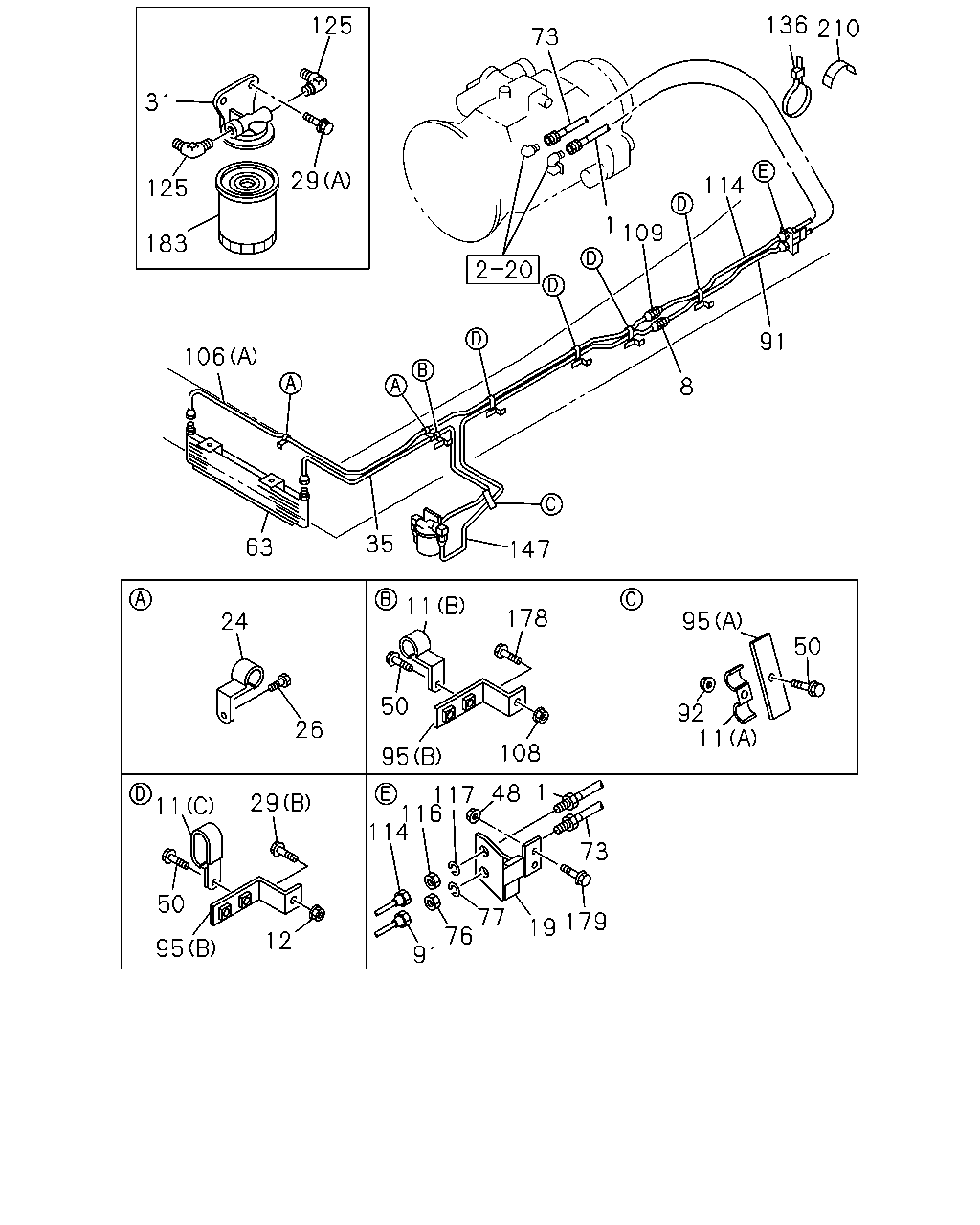

136 210 125 73 31 29 114 125 1 109 183 91 106 8 35 63 147 11 178 95 24 50 50 92 11 26 108 95 1 48 117 116 114 29 11 73 50 77 76 91 179 19 12 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	0309-
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0309-
8	UNION MJX16P M/T(Y3Z) M22	9-09233-015-1	01	1	0309-
8	UNION MJT7 M/T<Y9E> M16 L=42	9-09233-010-1	01	1	0309-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	9-09535-535-0	05	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	01	1	0309-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	0309-0401
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	0402-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0309-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0309-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-613-1	01	1	0309-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-612-0	01	1	0309-
24	CLIP; OIL PIPE MJX16P M/T(Y3Z) ID=15 H=24 L=20	1-09700-606-0	01	1	0309-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	5-09700-351-0	02	1	0309-
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0309-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28681-030-0	02	1	0309-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28680-830-0	04	1	0309-
31	BRACKET; OIL FILTER MJT7S M/T(Y3E)	1-33119-222-0	01	1	0309-
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1321 SERVICED BY L=1400	1-47428-878-0	01	1	0309-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X16 FLANGE	0-28080-816-0	01	1	0402-
50	BOLT; CLIP MJX16P M/T(Y3Z) M8X25 FLANGE	0-28680-825-0	05	1	0309-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28680-820-0	01	1	0309-
50	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0309-0401
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28680-825-0	03	1	0309-0401
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28680-825-0	04	1	0402-
63	COOLER; OIL	1-21700-290-0	01	1	0309-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=570	1-09365-236-0	01	1	0309-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0309-
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	9-99111-416-0	01	1	0309-
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	9-09150-516-0	01	1	0309-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=896	1-49166-940-1	01	1	0309-0311
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=916	1-49167-189-0	01	1	0312-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=859	1-49166-857-1	01	1	0309-0311
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=874 SERVICED BY L=900	1-47428-873-0	01	1	0312-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91150-108-0	02	1	0309-0401
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91150-108-0	01	1	0402-
95	BRACKET; CLIP (B)	1-47479-482-0	01	1	0309-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	0309-
95	BRACKET; CLIP (B)	1-47479-482-0	04	1	0309-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1739	1-49166-967-0	01	1	0309-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) CAB UP +110MM<TGG> (C) L=2349	1-49166-969-0	01	1	0309-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A) L=2341 SERVICED BY L=2500	1-47428-883-0	01	1	0309-
108	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0309-
109	UNION MJX16P M/T(Y3Z) M22	9-09233-015-1	01	1	0309-
109	UNION MJT7 M/T<Y9E> M16 L=42	9-09233-010-1	01	1	0309-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=817	1-49166-956-0	01	1	0309-0311
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=832	1-49167-190-0	01	1	0312-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=816 SERVICED BY L=900	1-47428-873-0	01	1	0309-0311
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=834 SERVICED BY L=900	1-47428-873-0	01	1	0312-
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	9-99111-416-0	01	1	0309-
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	9-09150-516-0	01	1	0309-
125	CONNECTOR; OIL FILTER MJT7S M/T(Y3E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0309-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	0309-
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=1736 SERVICED BY L=1900	1-47428-881-0	01	1	0309-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28680-830-0	01	1	0309-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0309-
183	CARTRIDGE; OIL FILTER MJT7S M/T(Y3E)	8-94459-700-1	01	1	0309-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0309-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
