2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#25611) — 74 parça
çizim 84207
112 112 24 24 15 25 25 15 22 25 25 22 24 24 22 25 25 15 28 22 28
BalonParca AdiParca NoAdetTipApplied Date
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (D) L=474 		1-33652-803-1 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (E) L=446 		1-33652-998-1 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (A) L=355 		1-33652-999-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
(B) L=88 		1-33652-740-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +50MM<W60> (C) L=485 		1-33652-713-1 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +50MM<W60> (A) L=345 		1-33652-736-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +50MM<W60> (E) L=464 		1-33652-885-2 01 1 0309-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0309-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0309-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0309-0309
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0310-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0310-
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +110MM<TGG> (C) M10 		9-09111-410-0 02 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 LH THREAD 		9-09840-167-0 01 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 LH THREAD 		9-09840-167-0 01 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +50MM<W60> (C) M10 		9-09111-510-0 02 1 0309-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0309-0309
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0310-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0310-
112 JOINT; RUBBER 1-33670-413-1 01 1 0309-
112 JOINT; RUBBER 1-33670-413-1 01 1 0309-

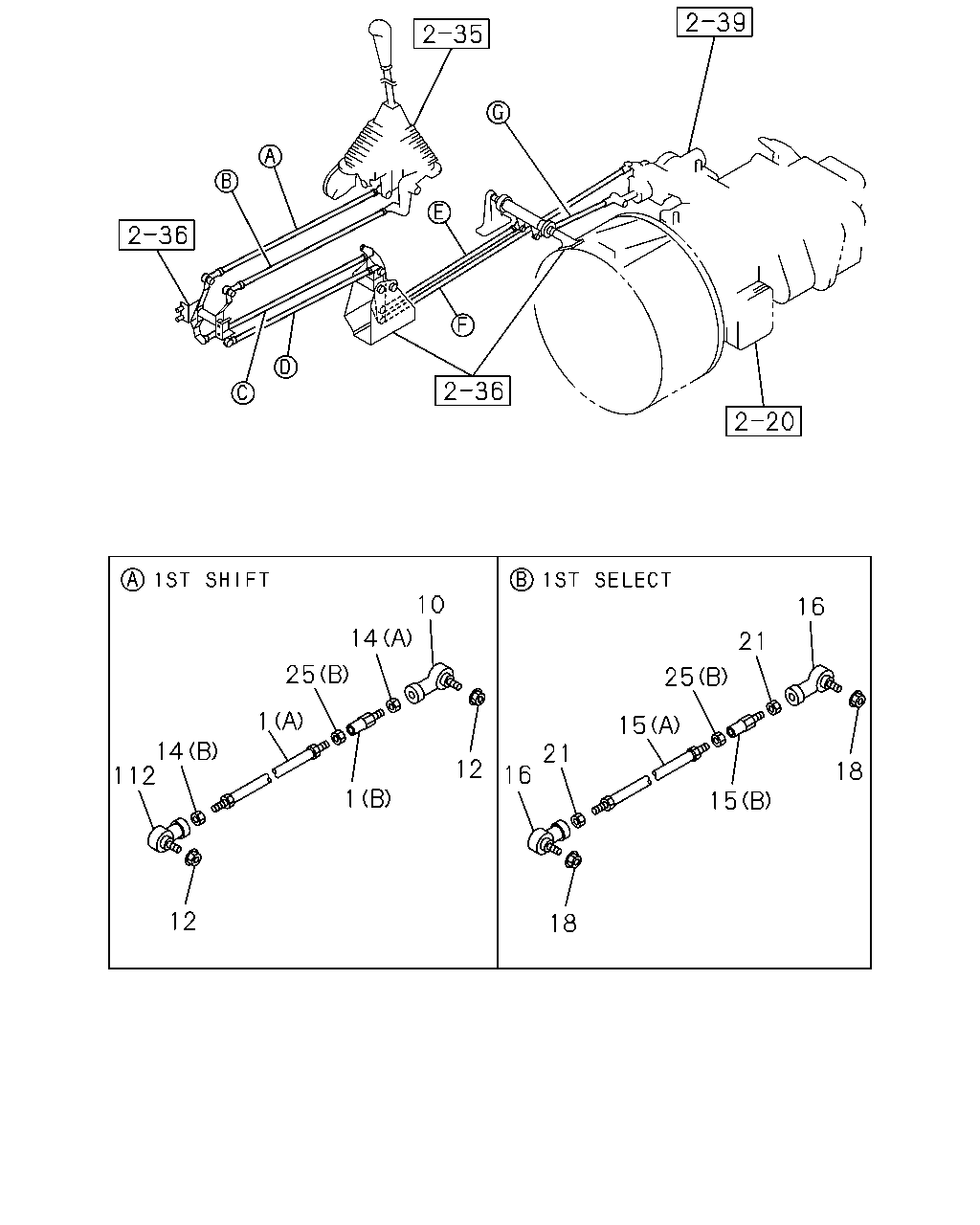

çizim 84676
10 16 14 21 25 25 1 15 14 112 21 12 18 16 1 15 12 18
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
(A) L=421 		1-33652-738-0 01 1 0309-
1 ROD; LINK,1ST SHIFT
(B) L=88 		1-33652-740-0 01 1 0309-
10 JOINT ASM; BALL,SELECT ROD 1-09760-124-0 01 1 0309-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0309-
14 NUT; LK,RIGHT SCREW,LINK ROD
(A) M10 		9-09111-410-0 01 1 0309-
14 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (D) L=474 		1-33652-803-1 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (E) L=446 		1-33652-998-1 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (A) L=355 		1-33652-999-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
(B) L=88 		1-33652-740-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +50MM<W60> (C) L=485 		1-33652-713-1 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +50MM<W60> (A) L=345 		1-33652-736-0 01 1 0309-
15 ROD; LINK 1ST SHIFT
CAB UP +50MM<W60> (E) L=464 		1-33652-885-2 01 1 0309-
16 JOINT ASM; BALL,CONT ROD 1-09760-109-0 02 1 0309-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0309-
21 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +110MM<TGG> (C) M10 		9-09111-410-0 02 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 LH THREAD 		9-09840-167-0 01 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 LH THREAD 		9-09840-167-0 01 1 0309-
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +50MM<W60> (C) M10 		9-09111-510-0 02 1 0309-
112 JOINT; RUBBER 1-33670-413-1 01 1 0309-
112 JOINT; RUBBER 1-33670-413-1 01 1 0309-
çizim 84704
45 49 30 35 47 32 5 30 49 8 47 45 44 36 6 38 38 44 36 32 35
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=1190 		1-33652-922-0 01 1 0309-0309
5 ROD; LINK,3RD SHIFT
MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=1190 		1-33652-922-0 01 1 0310-
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2> L=1120 		1-33652-603-0 01 1 0309-0309
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2> L=1120 		1-33652-603-0 01 1 0310-
6 ROD; LINK,3RD SELECT
MJX16P M/T(Y3Z) L=1692 		1-33662-004-0 01 1 0309-0309
6 ROD; LINK,3RD SELECT
MJX M/T<Y9N> L=1692 		1-33662-004-1 01 1 0310-
6 ROD; LINK,3RD SELECT
MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=1722 		1-33662-003-1 01 1 0309-
6 ROD; LINK,3RD SELECT
MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=1652 		1-33652-935-1 01 1 0310-
6 ROD; LINK,3RD SELECT
MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=1652 		1-33652-935-0 01 1 0309-0309
8 ROD; LINK,4TH SHIFT
MJX16P M/T(Y3Z) L=410 		1-33652-947-0 01 1 0309-0309
8 ROD; LINK,4TH SHIFT
MJX M/T<Y9N> L=410 		1-33652-947-0 01 1 0310-
8 ROD; LINK,4TH SHIFT
MJT7S M/T(Y3E) L=370 		1-33652-654-1 01 1 0309-0309
8 ROD; LINK,4TH SHIFT
MJT7 M/T<Y9E> L=370 		1-33652-654-1 01 1 0310-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0309-0309
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0310-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0309-0309
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0310-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0309-0309
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0310-
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0309-0309
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0310-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0309-0309
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0310-
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0309-0309
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0310-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0309-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0309-0309
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0310-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0309-
