2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#25610) — 110 parça

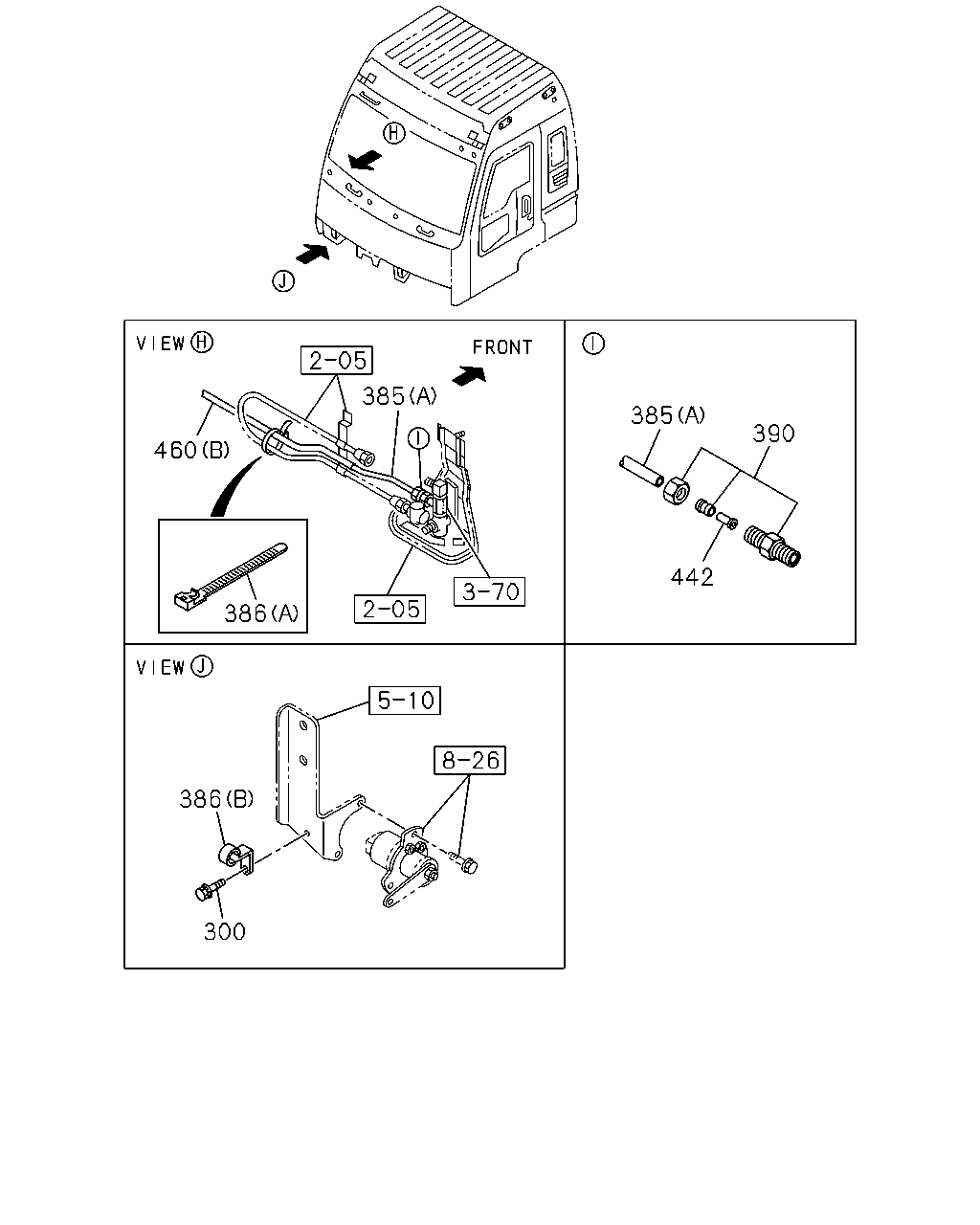

çizim 23351
385 385 390 460 442 386 386 300
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; CLIP
MJX16P M/T(Y3Z) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0309-0309
300 BOLT; CLIP
MJX16P M/T(Y3Z) M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0310-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-0311
385 TUBE; NYLON
MJX16P M/T(Y3Z) (C) L=1930 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0312-
386 CLIP; CONT CABLE & TUBE
MJX16P M/T(Y3Z) (A) L=140 		5-09707-031-1 01 1 0309-
386 CLIP; CONT CABLE & TUBE
MJX16P M/T(Y3Z) (B) ID=11 H=20 L=20 		9-09527-010-0 01 1 0309-0309
386 CLIP; CONT CABLE & TUBE
MJX16P M/T(Y3Z) (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0310-
390 CONNECTOR; STRAIGHT,TRANS SIDE
MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 0309-
442 INSERT; NYLON TUBE
MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18 		1-09669-100-0 06 1 0309-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (A) L=250 SERVICED BY L=2000 		1-83129-031-1 01 1 0309-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (B) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0309-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (C) L=1050 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0309-0311
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (C) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0312-

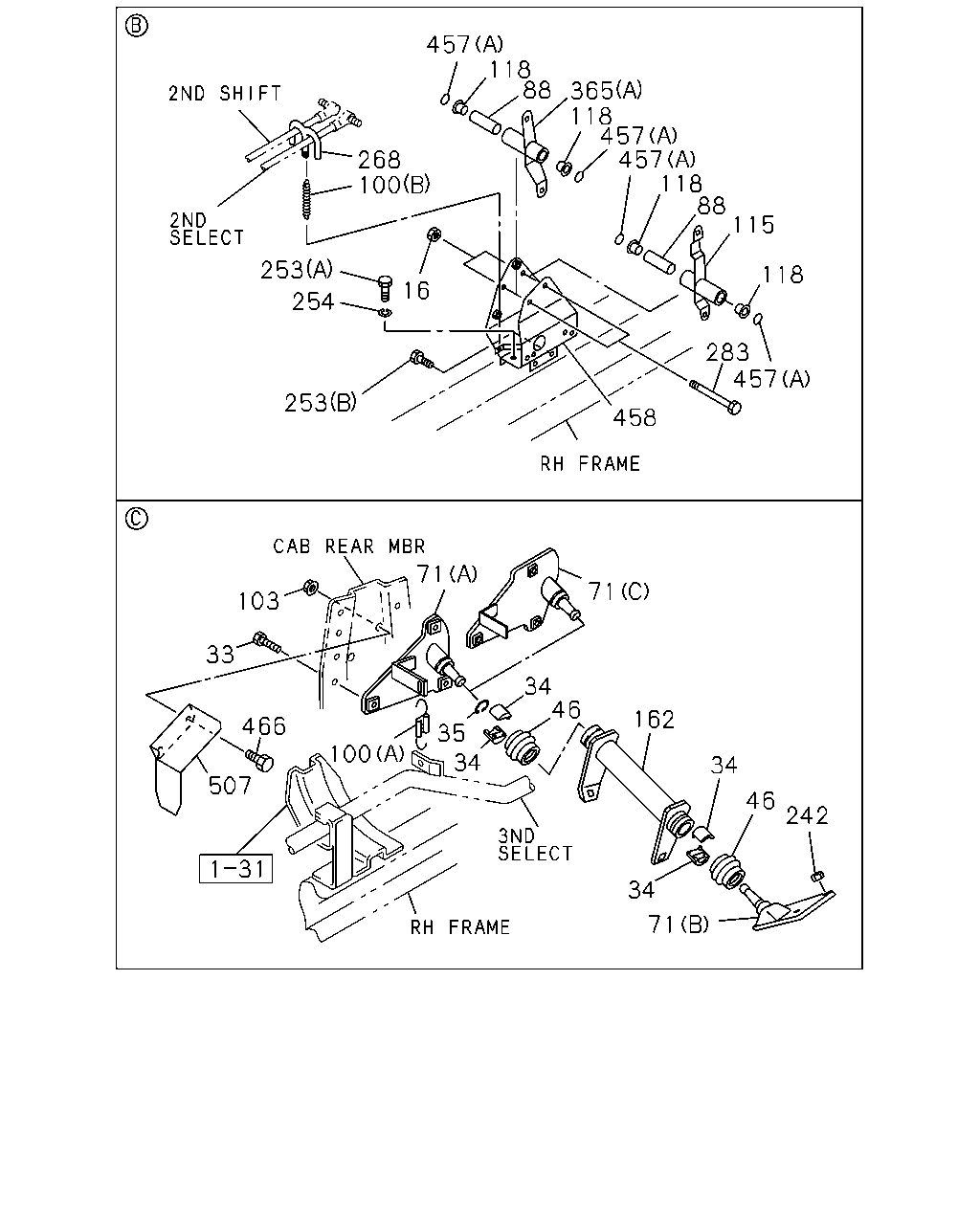

çizim 25004
457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0309-0310
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0311-
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0309-0309
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0310-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0309-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0309-
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 0309-
71 BRACKET; 3RD RELAY LEVER,FRAME
MIXER TRUCK<RA2> (C) 		1-33657-827-0 01 1 0309-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0309-
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. MIXER TRUCK<RA2> (A) 		1-33657-706-0 01 1 0309-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0309-0310
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0311-
100 SPRING
(A) 		1-09583-319-0 01 1 0309-0309
100 SPRING
(A) 		1-09583-319-0 01 1 0310-
100 SPRING
(B) 		1-09583-351-0 01 1 0309-0309
100 SPRING
(B) 		1-09583-351-0 01 1 0310-
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0309-0309
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0310-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-0 01 1 0309-0310
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0311-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0309-0310
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0311-
162 LEVER; RELAY 1-33651-625-1 01 1 0309-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0310-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0309-0309
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0309-0309
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0310-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28081-025-0 02 1 0309-0309
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28081-025-0 02 1 0310-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0309-0309
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0310-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0309-0309
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0310-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0309-0310
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0311-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-0 01 1 0309-0310
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0311-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0309-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0309-
457 GASKET
(A) 		1-09623-594-0 04 1 0309-0310
457 GASKET
(A) 		1-09623-594-0 04 1 0311-
457 GASKET
MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0309-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0309-0310
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0311-
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0310-
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0309-0309
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0309-0309
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0310-
çizim 25053
496 465 192 509 468
BalonParca AdiParca NoAdetTipApplied Date
192 COVER 1-79907-090-0 01 1 0309-
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0309-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0309-
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0309-
509 SEAL; BRKT 1-47477-825-2 01 1 0309-0401
509 SEAL; BRKT 1-47479-978-0 01 1 0402-

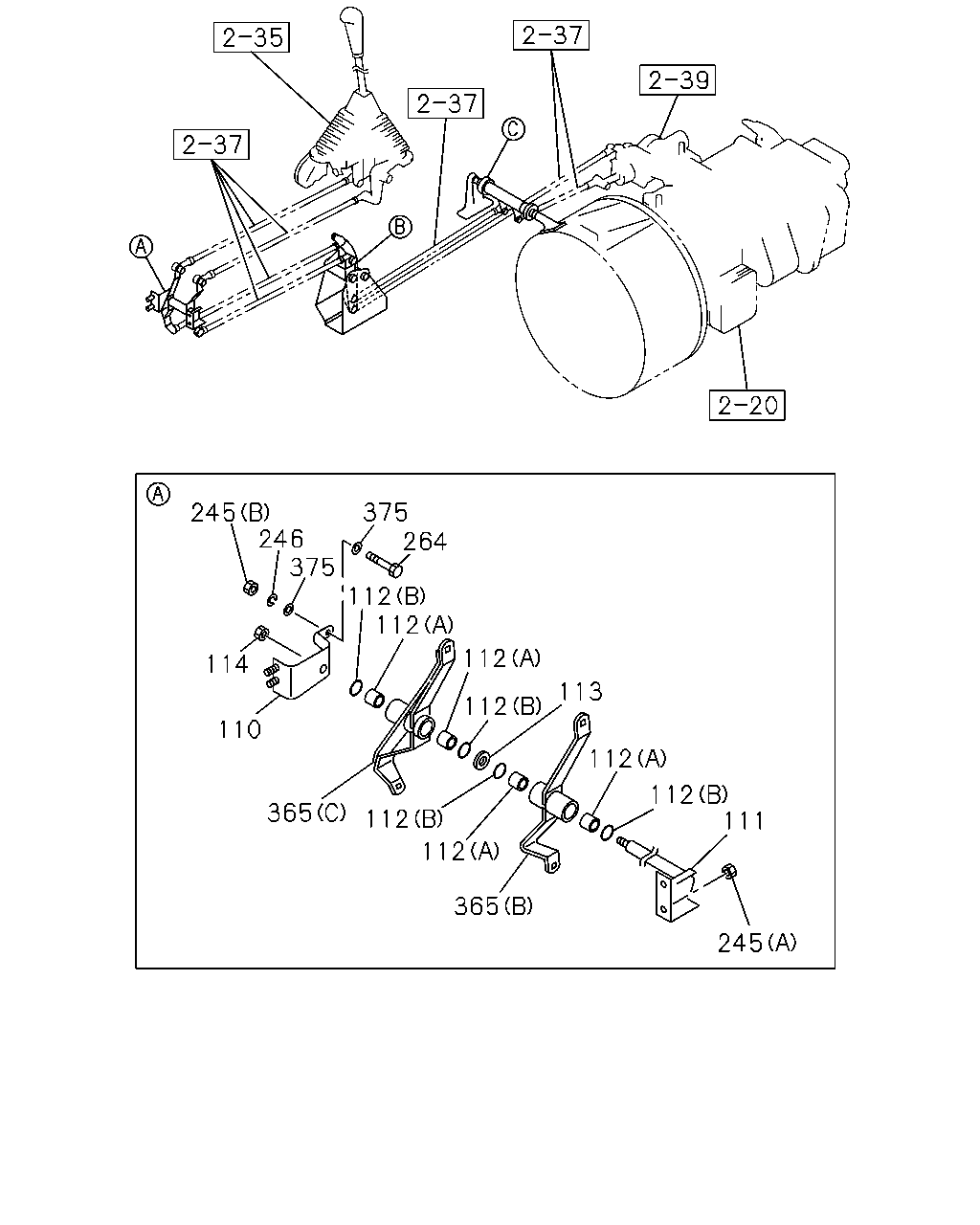

çizim 80115
375 264 245 246 375 112 112 112 114 113 112 110 112 112 111 365 112 112 365 245
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0309-
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0309-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0309-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0309-
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0309-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0309-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 0309-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0309-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0309-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0309-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-0 01 1 0309-0310
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0311-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0309-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0309-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0309-

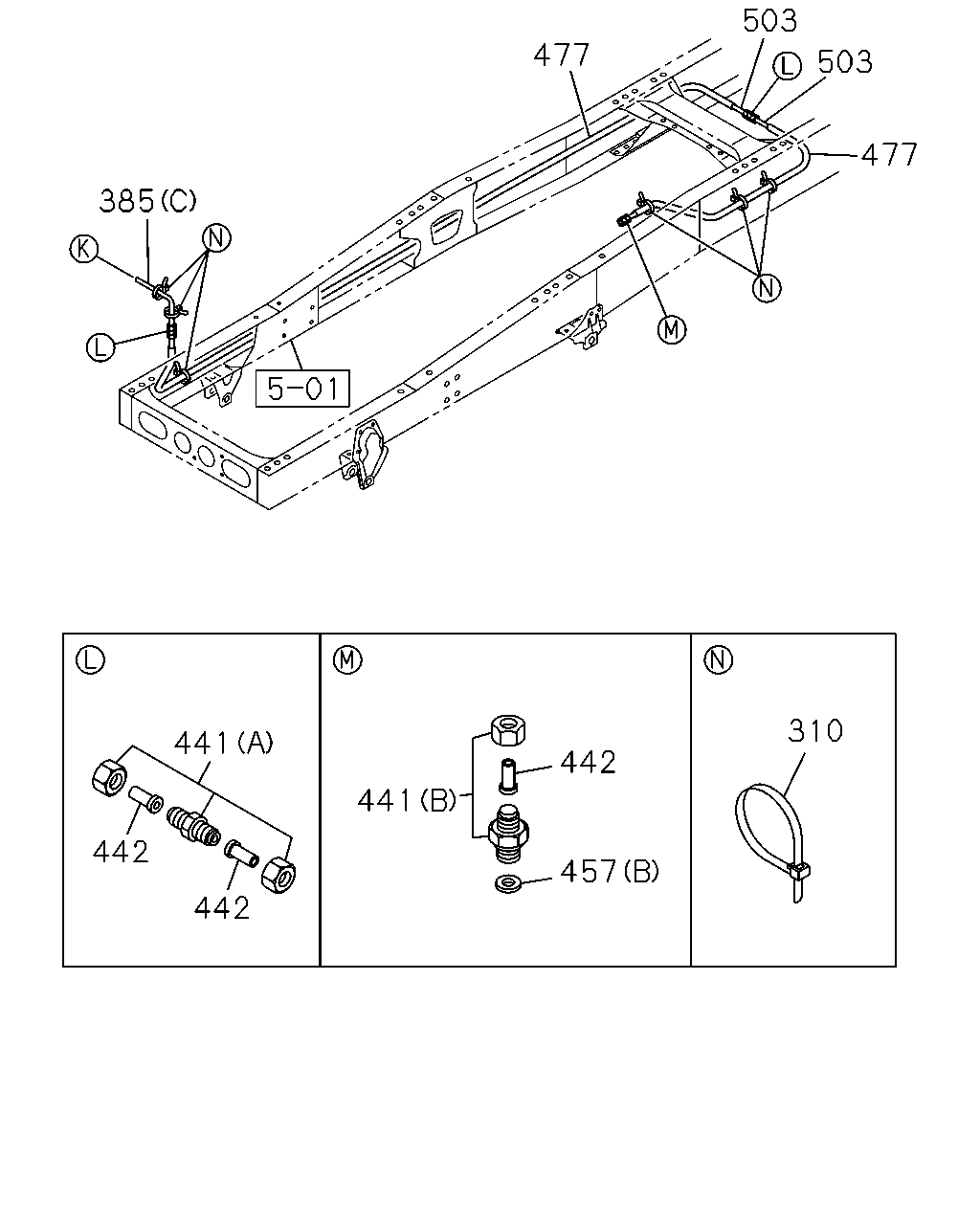

çizim 83515
503 477 503 477 385 310 441 442 441 442 457 442
BalonParca AdiParca NoAdetTipApplied Date
310 CLIP; TUBE
MJX16P M/T(Y3Z) L=250 		1-09707-126-0 06 1 0309-0311
310 CLIP; TUBE
MJX16P M/T(Y3Z) L=350 		1-09707-183-0 15 1 0312-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-0311
385 TUBE; NYLON
MJX16P M/T(Y3Z) (C) L=1930 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0312-
441 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (B) 		1-09660-466-0 01 1 0309-
441 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT 		1-09660-512-0 02 1 0309-
442 INSERT; NYLON TUBE
MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18 		1-09669-100-0 06 1 0309-
457 GASKET
(A) 		1-09623-594-0 04 1 0309-0310
457 GASKET
(A) 		1-09623-594-0 04 1 0311-
457 GASKET
MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0309-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0309-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 0309-
503 TUBE; NYLON
MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0309-
503 TUBE; NYLON
MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 0309-
çizim 83994
501 387 460 385 385 460 460 385
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-
385 TUBE; NYLON
MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000 		1-09369-762-0 01 1 0309-0311
385 TUBE; NYLON
MJX16P M/T(Y3Z) (C) L=1930 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0312-
387 GROMMET; CONT TUBE,FULLER
MJX16P M/T(Y3Z) 		1-09332-102-0 01 1 0309-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (A) L=250 SERVICED BY L=2000 		1-83129-031-1 01 1 0309-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (B) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0309-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (C) L=1050 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0309-0311
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (C) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0312-
501 SEAL; HARNESS PROTECTOR
MJX16P M/T(Y3Z) 100X40 		1-72498-022-0 04 1 0309-
