8-40 — HEATER SYSTEM (#2561) — 43 parça

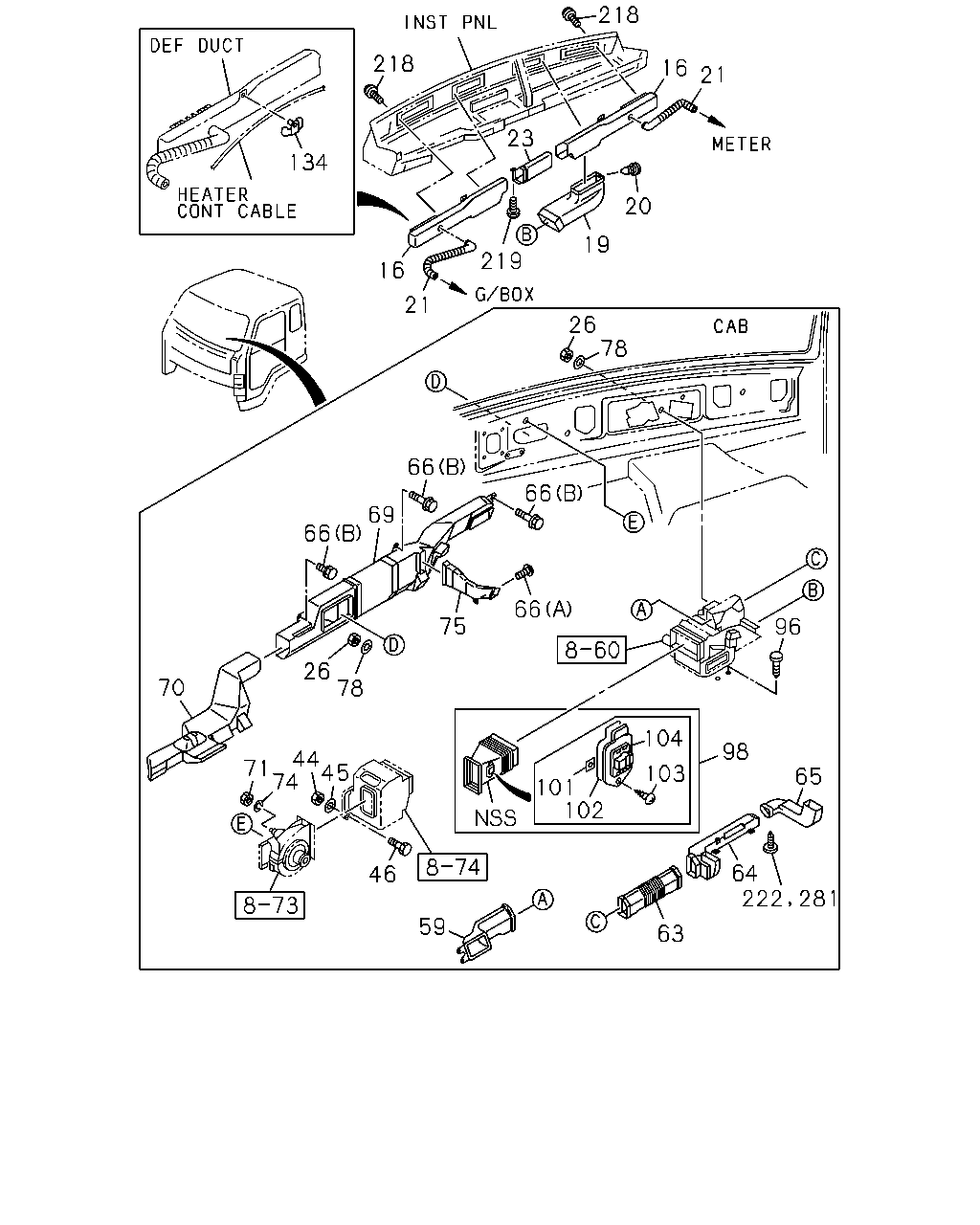

çizim 29291
218 218 16 21 23 134 20 219 19 16 21 26 78 66 66 69 66 66 75 96 26 78 70 104 98 44 71 45 103 65 101 102 64 46 59 63 74 222 281
BalonParca AdiParca NoAdetTipApplied Date
16 DUCT ASM; DEFROSTER 1-76377-072-5 01 1 9002-
16 DUCT ASM; DEFROSTER 1-76377-071-6 01 1 9002-
19 DUCT; DEFROSTER,HTR JOINT 1-76377-076-2 01 1 9002-
20 FASTENER; DEFROSTER DUCT,HTR JOINT 1-09987-144-0 01 1 9002-
21 HOSE; DEFROSTER,DRIVER SIDE
WO/URETHANE 		1-76377-085-4 02 1 9002-
23 DUCT ASM; DEFROSTER,JOINT CTR 1-76377-087-4 01 1 9002-
26 NUT; HTR
M6 FLANGE 		1-09984-141-0 03 1 9002-
44 NUT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 02 1 9002-
45 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14 		9-09160-606-0 04 1 9002-
46 BOLT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 		9-02040-625-0 02 1 9002-9204
46 BOLT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 		0-20800-625-0 02 1 9205-
59 DUCT; VENT,ASSIST SIDE 1-76377-083-2 01 1 9002-
63 DUCT; VENT,DRIVER JOINT 1-76377-082-5 01 1 9002-
64 DUCT; VENT,DRIVER SIDE 1-76377-080-2 01 1 9002-
65 DUCT; VENT,DRIVER SIDE 1-76377-078-3 01 1 9002-
66 BOLT; DUCT
(A) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204
66 BOLT; DUCT
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-
66 BOLT; DUCT
(B) M6X16 W/LK&PL WASHER 		9-01960-616-0 03 1 9002-9204
66 BOLT; DUCT
(B) M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9205-
69 DUCT; ROOM 1-83542-047-0 01 1 9002-
70 DUCT; ROOM 1-83542-044-1 01 1 9002-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		1-09984-141-0 03 1 9002-
74 WASHER; PL,BLOWER UNIT TO DASH
OD=20 		1-09509-047-0 01 1 9002-
74 WASHER; PL,BLOWER UNIT TO DASH
OD=14 		1-09509-048-0 02 1 9002-
75 DUCT; ROOM 1-83542-045-0 01 1 9002-
78 WASHER; PL,HTR UNIT
OD=20 		1-09509-047-0 01 1 9002-
78 WASHER; PL,HTR UNIT
OD=14 		1-09509-048-0 02 1 9002-
96 PLUG; DUMMY,HTR UNIT BRKT
D4.7X11 		1-76378-154-0 02 1 9002-9306
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83542-048-3 01 1 9002-
101 NUT; RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-047-0 01 1 9002-
102 LINING; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-049-0 01 1 9002-
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-048-0 01 1 9002-
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-028-0 01 1 9002-
134 CLIP; CONT CABLE 1-09987-147-0 01 1 9002-
218 SCREW; DEFROSTER DUCT
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002-
219 SCREW; DEFROSTER DUCT,CTR
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002-
222 FASTENER; DUCT
BLACK 		8-94104-935-0 01 1 9408-
281 FASTENER; VENT DUCT,DRIVER SIDE
BLACK 		8-94104-935-0 04 1 9407-
çizim 29387
83 93 86 91 92
BalonParca AdiParca NoAdetTipApplied Date
83 SEAL; COVER,HTR HOLE 1-71997-456-3 01 1 9002-
86 NUT; COVER,HTR HOLE
M6 FLANGE 		1-09984-141-0 03 1 9002-
91 GRILLE ASM; AIR OUTLET,METER CLUSTER 1-76367-050-1 02 1 9002-
92 BUSHING; AIR OUTLET GRILLE,METER CLUST 1-72547-048-1 02 1 9002-
93 COVER; HTR CORE 1-71997-891-0 01 1 9002-
