2-07 — CLUTCH BOOSTER; MINIPACK (#25602) — 130 parça

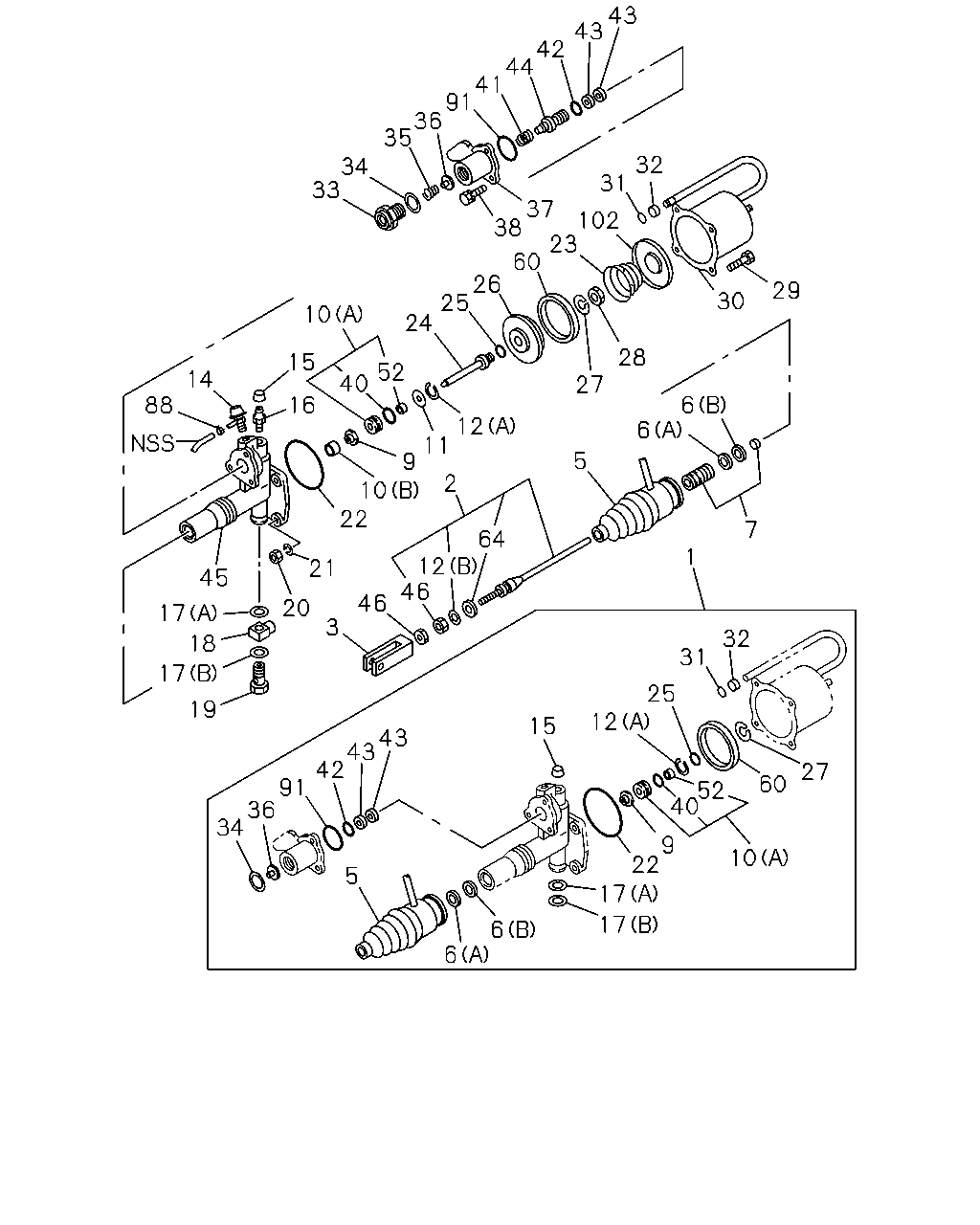

çizim 24773
43 43 42 44 41 91 36 35 32 34 33 31 37 38 102 23 60 26 25 24 29 30 10 28 15 52 40 14 27 6 88 16 12 6 11 5 9 10 22 2 7 64 12 46 1 21 45 46 20 17 3 32 18 31 17 25 19 12 15 43 43 42 27 60 91 36 34 52 40 9 22 17 10 5 17 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 0309- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0309- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0309- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0309- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0309- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0309- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0309- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0309- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0309- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0309- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0309- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0309- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0309- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0309- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0309- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0309- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0309- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0309- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0309- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0309- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0309- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0309- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0309- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0309- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0309- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0309- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0309- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0309- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0309- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0309- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0309- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0309- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0309- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0309- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0309- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0309- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0309- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0309- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0309- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0309- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0309- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0309- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0309- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0309- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0309- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0309- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0309- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0309- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0309- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0309- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0309- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0309- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0309- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0309- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0309- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0309- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0309- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0309- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0309- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0309- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0309- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 0309- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 0309- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0309- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 0309- ●

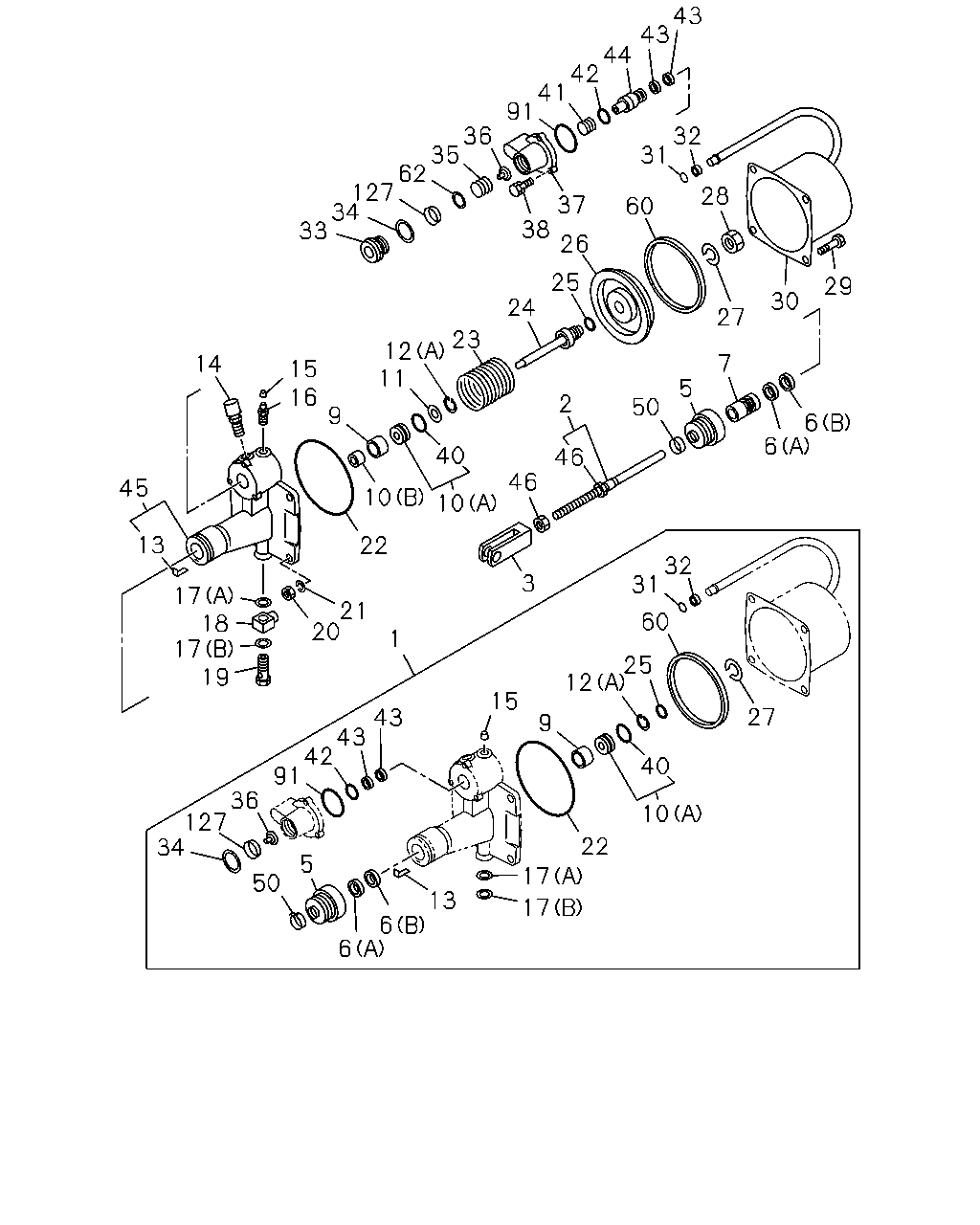

çizim 25208
43 43 44 42 41 91 36 35 62 127 34 33 32 31 28 37 38 60 26 25 29 30 24 27 23 12 11 7 14 15 16 5 2 50 9 6 6 40 46 46 45 10 10 13 22 32 31 3 17 18 17 19 21 20 60 1 25 12 15 27 43 43 42 91 9 40 36 127 34 10 22 17 5 50 13 6 17 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 0309- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0309- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0309- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0309- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0309- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0309- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0309- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0309- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0309- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0309- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0309- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0309- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0309- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0309- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0309- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0309- ●
13 PIN; SPR 1-31829-109-0 01 1 0309- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0309- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0309- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0309- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0309- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0309- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0309- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0309- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0309- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0309- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0309- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0309- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0309- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0309- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0309- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0309- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0309- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0309- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0309- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0309- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0309- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0309- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0309- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0309- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0309- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0309- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0309- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0309- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0309- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0309- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0309- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0309- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0309- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0309- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0309- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0309- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0309- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0309- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0309- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0309- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0309- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0309- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0309- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0309- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0309- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0309- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0309- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0309- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 0309- ●
