2-05 — CLUTCH PIPING (#25601) — 104 parça

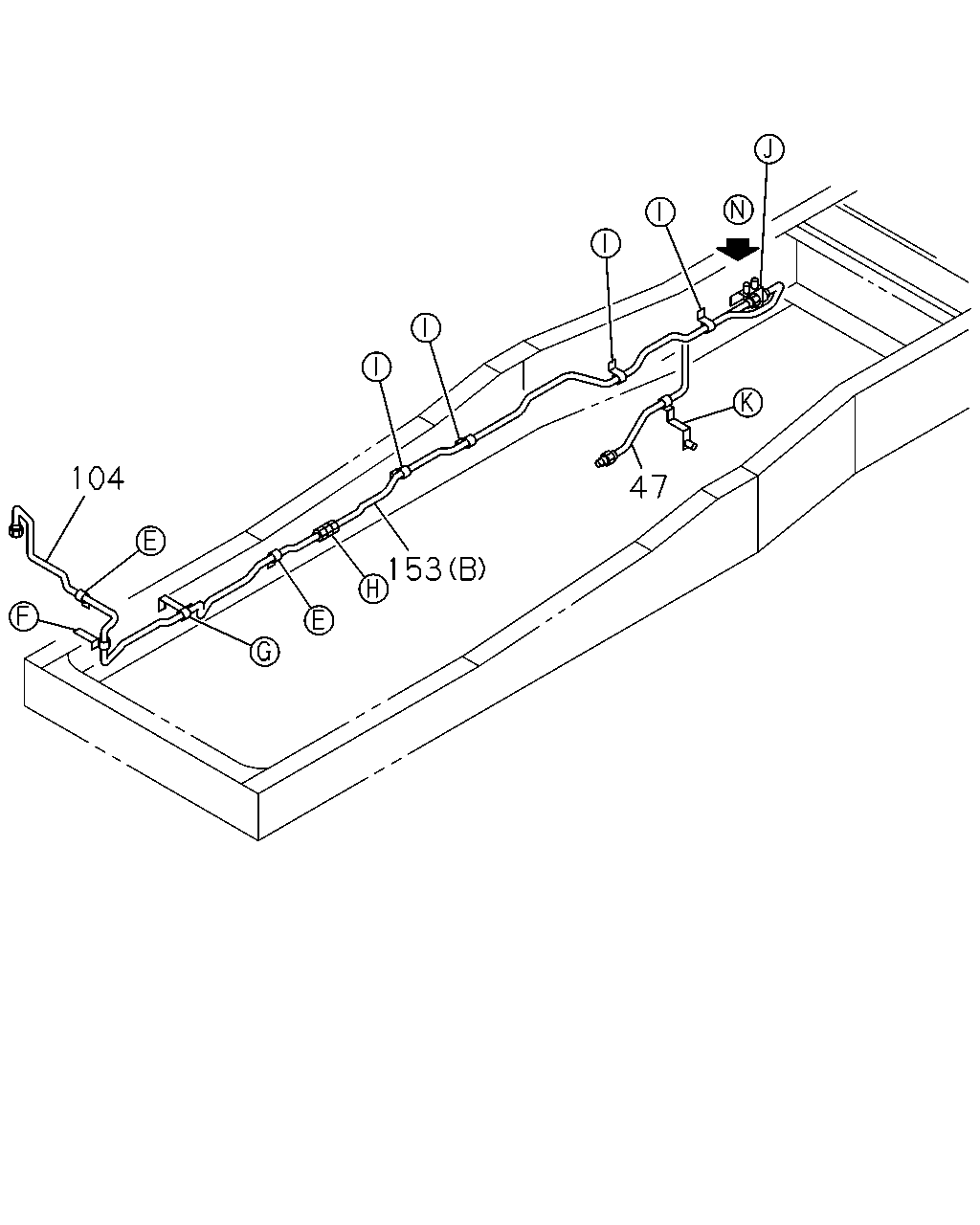

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	0312-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0309-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> L=600	1-09364-705-0	01	1	0309-0311
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0312-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0309-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	0309-0310
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0311-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	0309-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=464	1-47424-530-2	01	1	0309-

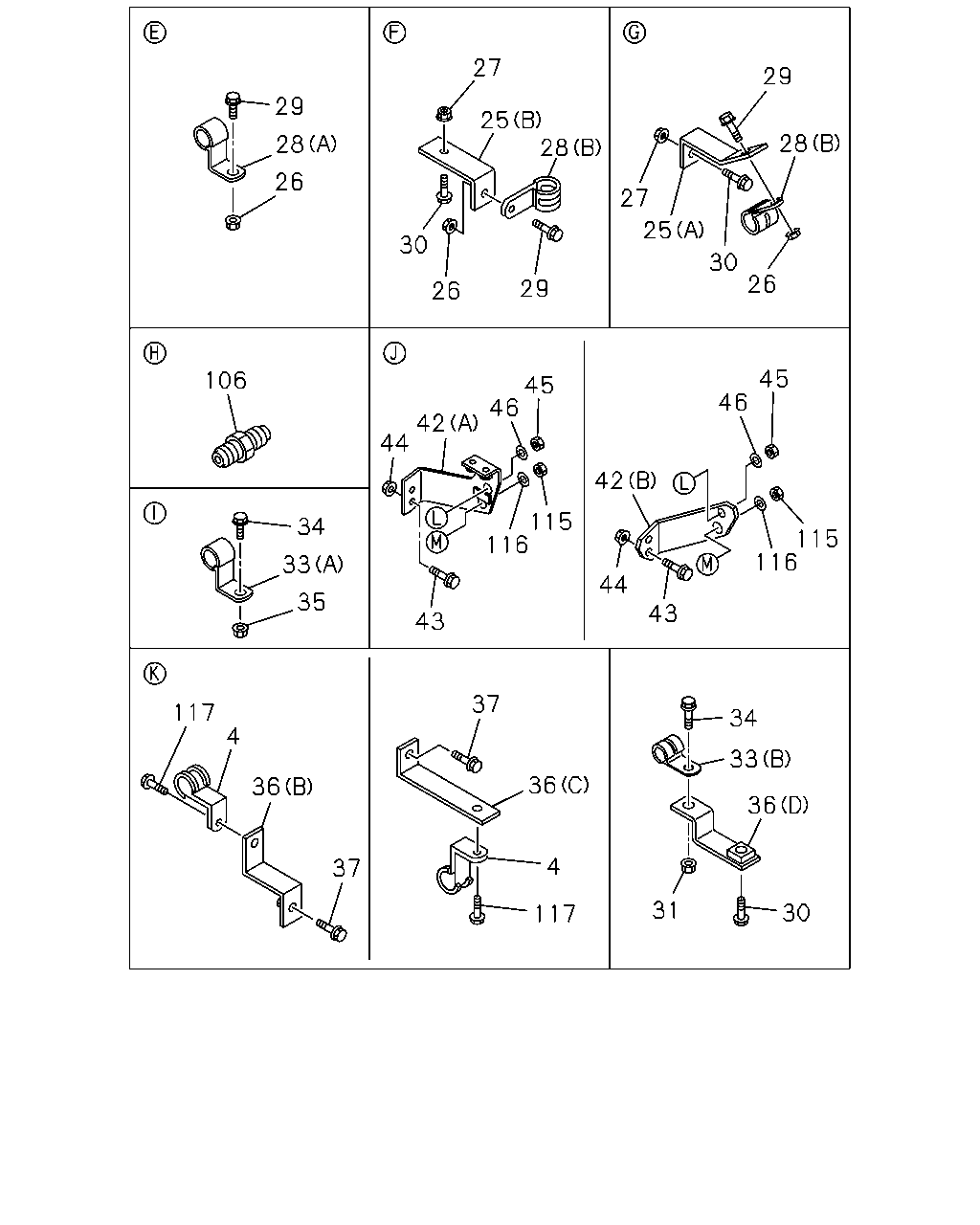

27 29 29 25 28 28 28 26 27 25 30 30 26 29 26 45 106 45 46 46 42 44 42 115 116 34 115 116 33 44 35 43 43 37 117 34 4 33 36 36 36 4 37 31 30 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0309-
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0309-
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0309-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0309-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0309-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0309-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0309-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0309-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0309-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0309-
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0309-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0309-
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0309-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0309-
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0309-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0309-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0309-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0309-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=145 B=25	1-47479-123-0	01	1	0309-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0309-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0309-
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	0309-
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	01	1	0309-
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X18 FLANGE	0-28181-018-0	01	1	0309-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	1-47479-831-0	01	1	0309-
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (A)	1-47479-795-0	01	1	0309-0310
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (A)	1-47479-920-0	01	1	0311-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0309-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0309-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0309-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0309-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0309-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	0309-

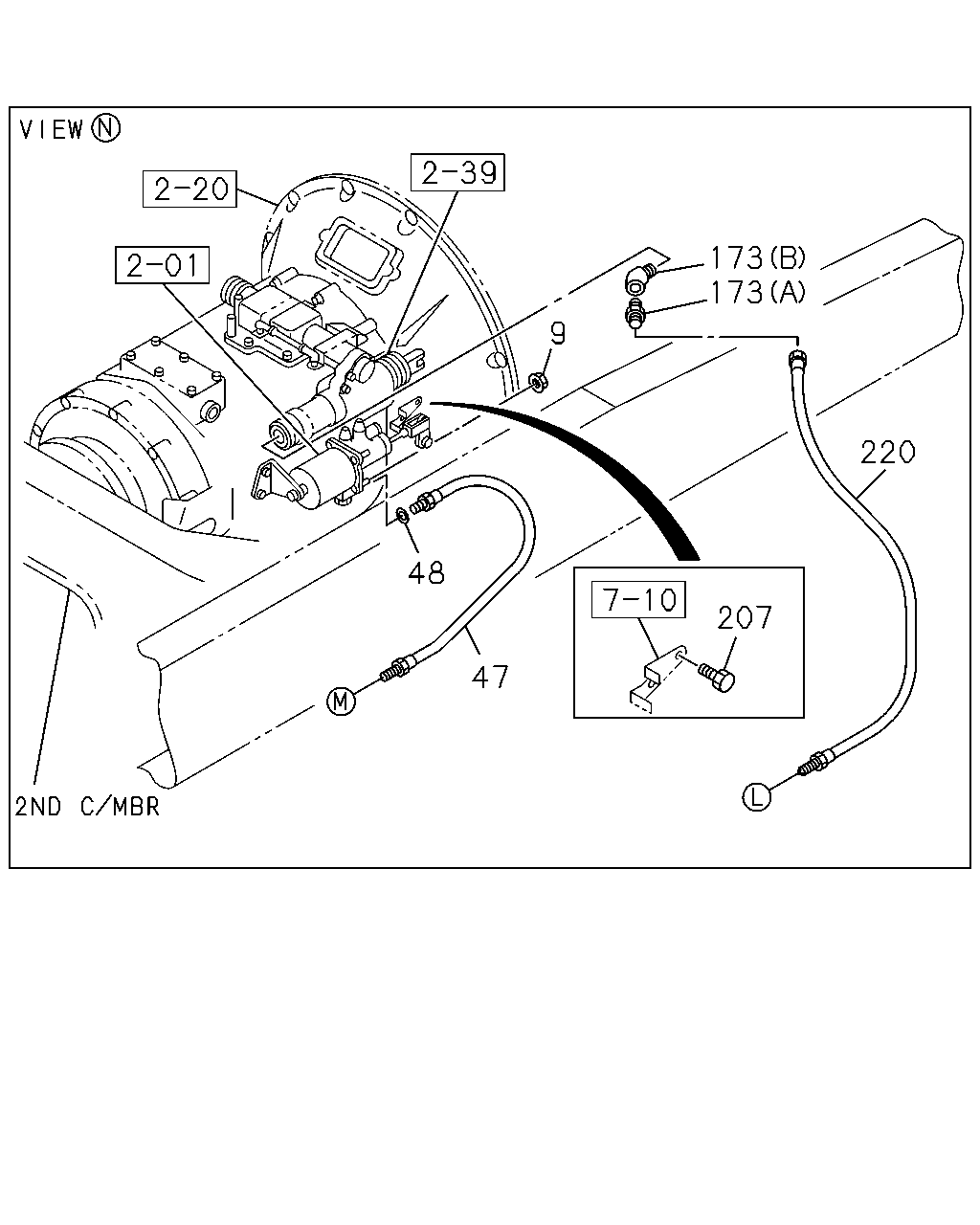

173 173 9 220 48 207 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91150-210-0	02	1	0309-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	0312-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0309-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> L=600	1-09364-705-0	01	1	0309-0311
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0312-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0309-
173	CONNECTOR MJT7 M/T<Y9E> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0309-
173	CONNECTOR MJT7 M/T<Y9E> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0309-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0309-
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	0312-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=320	1-09363-656-0	01	1	0309-
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> L=360	1-09363-823-0	01	1	0309-0311
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	0312-

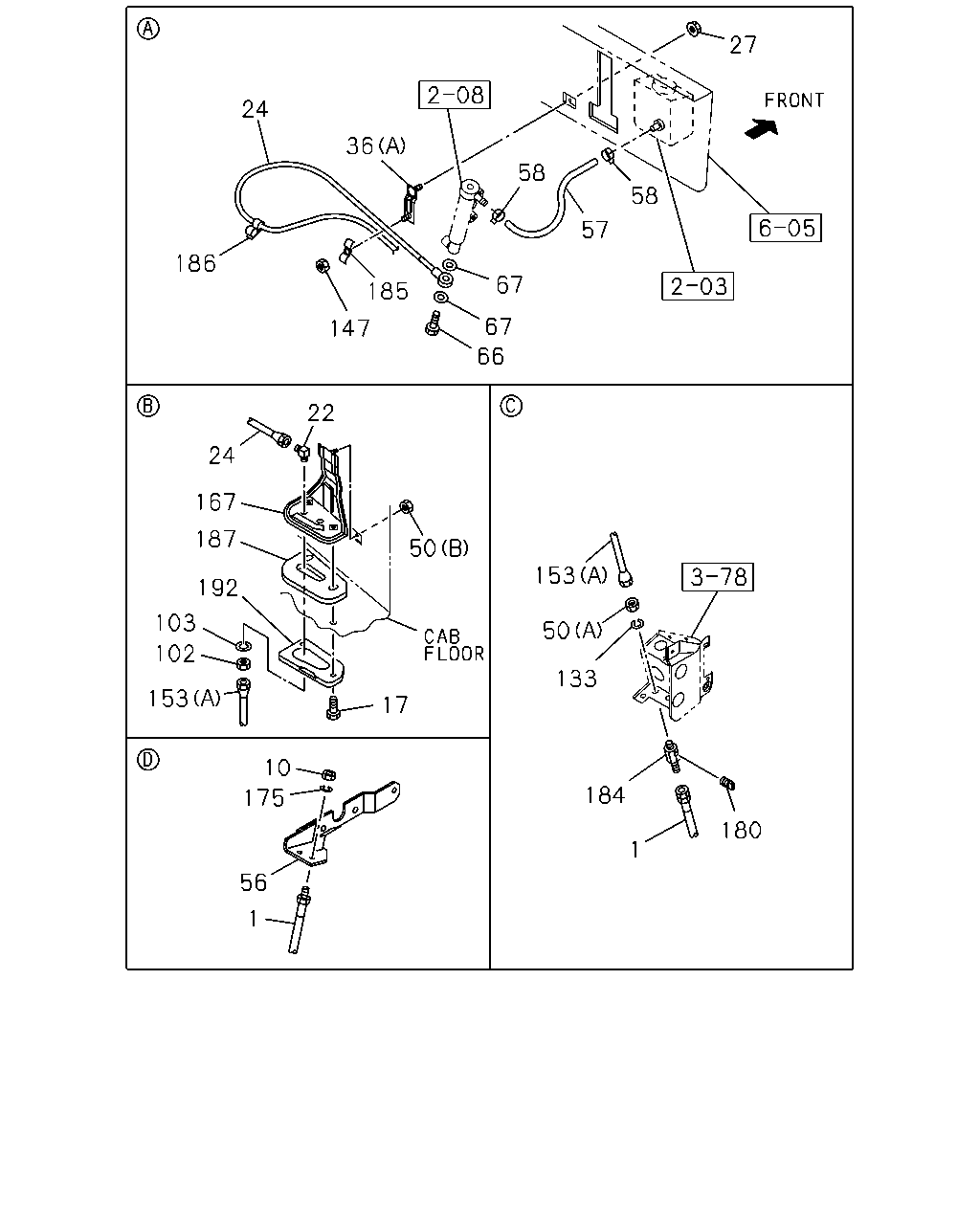

27 24 36 58 58 57 186 67 185 67 147 66 22 24 167 187 50 153 192 103 50 102 133 153 17 10 184 175 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	0309-
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	0309-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0309-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0309-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0309-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0309-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0309-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=145 B=25	1-47479-123-0	01	1	0309-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0309-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0309-
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	0309-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0309-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0309-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0309-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0309-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0309-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0309-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0309-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0309-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	0309-0310
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0311-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	0309-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=464	1-47424-530-2	01	1	0309-
167	BRACKET; UNION	1-71117-183-3	01	1	0309-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-
180	PLUG; PIPE EXC. BRAKE SYSTEM HSA<SLD>	9-09204-510-0	01	1	0309-
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0309-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0309-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0309-
187	SEAL; BRKT	1-71117-222-0	01	1	0309-
192	PLATE	1-71117-221-0	01	1	0309-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	0309-
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	0309-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0309-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0309-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0309-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	0309-0310
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0311-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	0309-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=464	1-47424-530-2	01	1	0309-
167	BRACKET; UNION	1-71117-183-3	01	1	0309-
