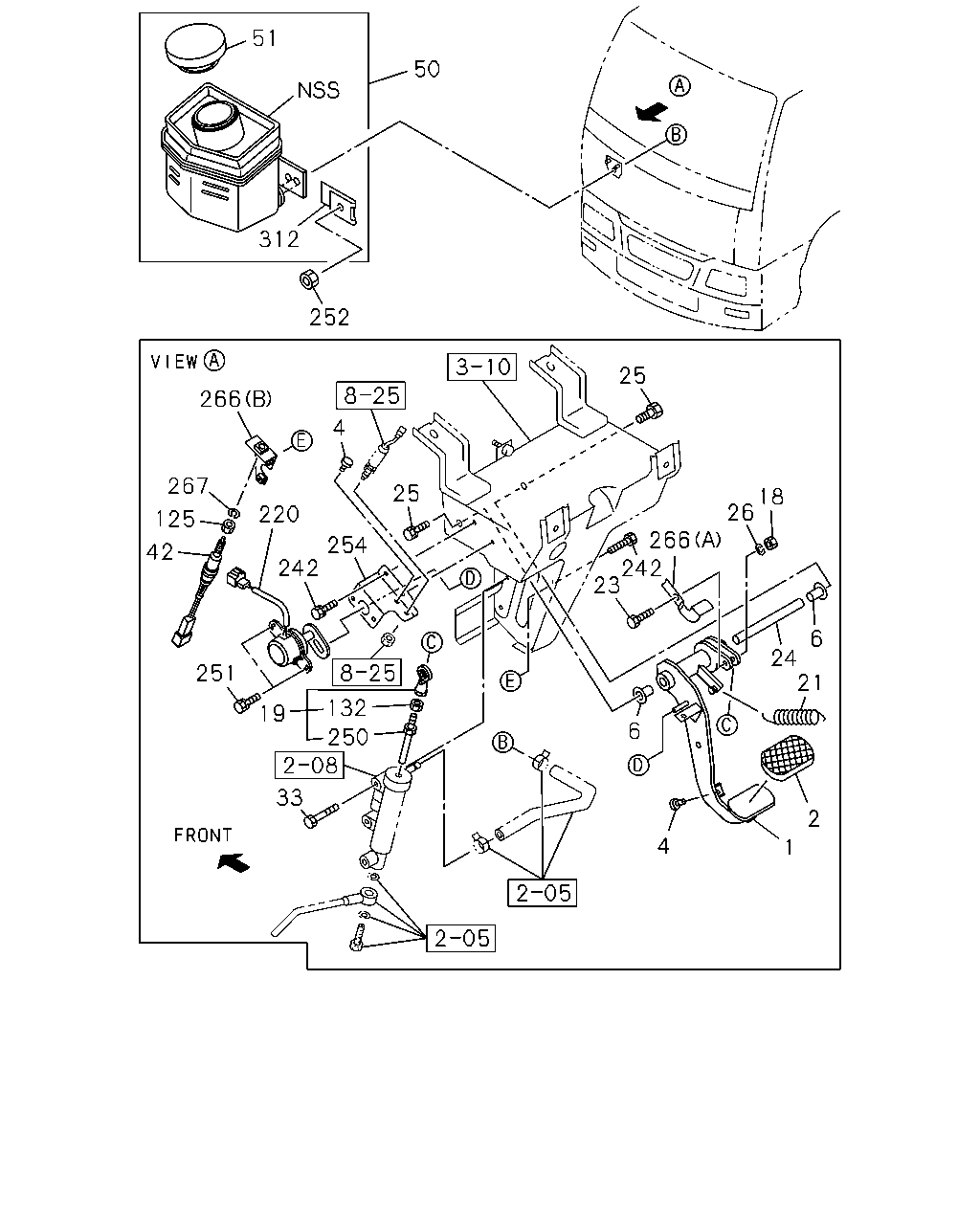

2-03 — CLUTCH PEDAL AND CONTROL
(#25600) — 30 parça
51
50
312
252
25
266
4
267
25
18
26
220
125
266
254
242
42
242
23
6
24
21
251
132
19
6
250
33
2
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
MJT7S M/T(Y3E)
1-73907-321-4
01
1
0309-
1
PEDAL; CLU
MJX16P M/T(Y3Z)
1-73907-469-1
01
1
0309-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0309-
4
STOPPER; CLU PEDAL
1-47319-014-1
02
1
0309-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0309-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
0309-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
0309-
21
SPRING; RETURN,CLU PEDAL
MJT7S M/T(Y3E)
1-73908-265-0
01
1
0309-
21
SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z)
1-73907-445-0
01
1
0309-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
0309-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0309-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0309-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
0309-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
0309-
42
SWITCH; CLU
MJX16P M/T(Y3Z)
1-82380-114-2
01
1
0309-
50
TANK; OIL,CLU
1-47530-182-0
01
1
0309-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0309-
125
NUT; CLU SWITCH
MJX16P M/T(Y3Z) M10
9-09110-510-0
01
1
0309-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
0309-
220
SENSOR; CLUTCH
BRAKE SYSTEM HSA<SLD>
1-80250-014-0
01
1
0309-
242
BOLT; BRKT,CLUTCH
MJT7S M/T(Y3E) M6X16 W/LK WASHER
0-50040-616-0
02
1
0309-
242
BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) M6X16 W/LK WASHER
0-50040-616-0
04
1
0309-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0309-
251
BOLT; SENSOR
BRAKE SYSTEM HSA<SLD> M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0309-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0309-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0309-
266
BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) (A)
1-73907-395-1
01
1
0309-
266
BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) (B)
1-73908-354-0
01
1
0309-
267
WASHER; LK,CLU SWITCH
MJX16P M/T(Y3Z) ID=10.2
9-09150-510-0
01
1
0309-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0309-
