◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#2560) — 67 parça
çizim 29713
67 94 356 54 52 52
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-010-0 01 1 9002-9112
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		8-97061-718-0 01 1 9201-9306
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-052-0 01 1 9307-
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 		9-01911-025-0 01 1 9002-9002
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		0-50041-025-0 01 1 9003-9006
67 BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4>,EXH HEAT WARNING<W50> 		1-83460-032-0 01 1 9002-
94 SCREW; CONSENT TO BLIND PNL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002-
356 DIODE; TRAILER HAND BRK
1.1A 2P 		8-94249-985-0 01 1 9002-

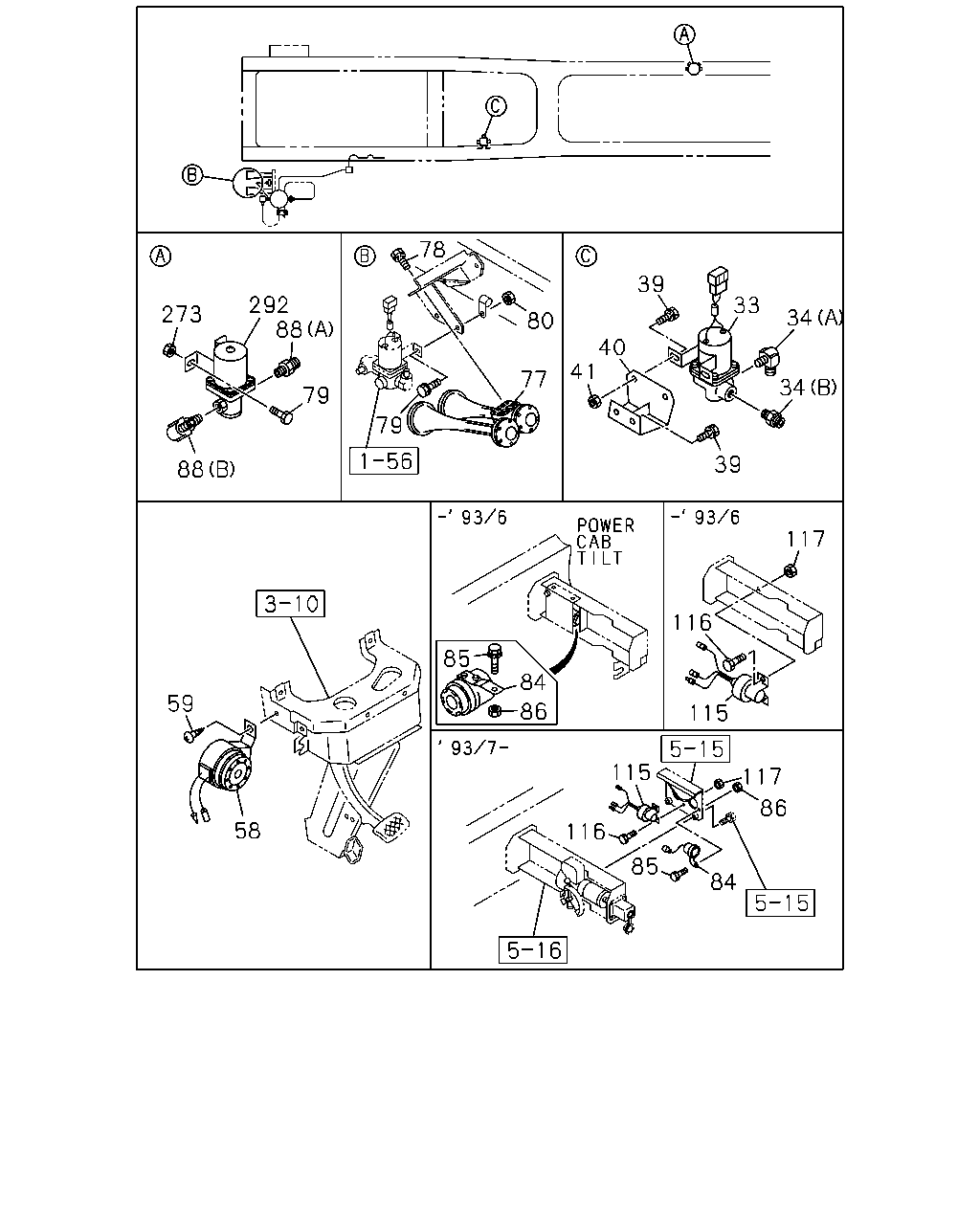

çizim 93629
78 39 292 88 33 273 34 80 40 41 77 34 79 79 39 88 117 116 85 84 59 86 115 115 117 86 58 116 85 84
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> 		1-82563-305-0 01 1 9002-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4 		9-09902-386-0 01 1 9002-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE 		0-28080-820-0 02 1 9303-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9204
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE 		0-28080-830-0 02 1 9303-
40 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> 		1-47476-464-1 01 1 9002-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8 		9-09110-408-0 04 1 9002-
58 BUZZER; AIR PRESSURE WARNING 1-83460-029-0 01 1 9002-
59 SCREW; BUZZER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002-
77 HORN ASM 1-83430-017-0 01 1 9002-
78 BOLT; AIR HORN
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204
78 BOLT; AIR HORN
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28080-820-0 02 1 9303-
79 BOLT; MAG VLV
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204
79 BOLT; MAG VLV
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
79 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9303-
79 BOLT; MAG VLV
NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE 		0-28080-825-0 02 1 9401-
80 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9002-
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-83460-033-3 01 1 9002-9306
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> NIKKO 		1-83460-054-0 01 1 9307-
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9204
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9205-9304
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9305-9306
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
86 NUT; BUZZER
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002-
88 CONNECTOR; MAG VLV
NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW 		1-09660-551-0 01 1 9401-
88 CONNECTOR; MAG VLV
NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 		1-09660-573-0 01 1 9401-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> NIKKO 		1-81171-034-1 01 1 9206-9306
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> NIKKO 		1-81171-071-0 01 1 9307-
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9206-9306
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
117 NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9206-
273 NUT; MAG VLV
NYLON TUBE AIR PIPING<Z29> M8 		9-09110-408-0 02 1 9401-
292 VALVE; MAG SPR BRK
NYLON TUBE AIR PIPING<Z29> 		1-82563-433-0 01 1 9401-

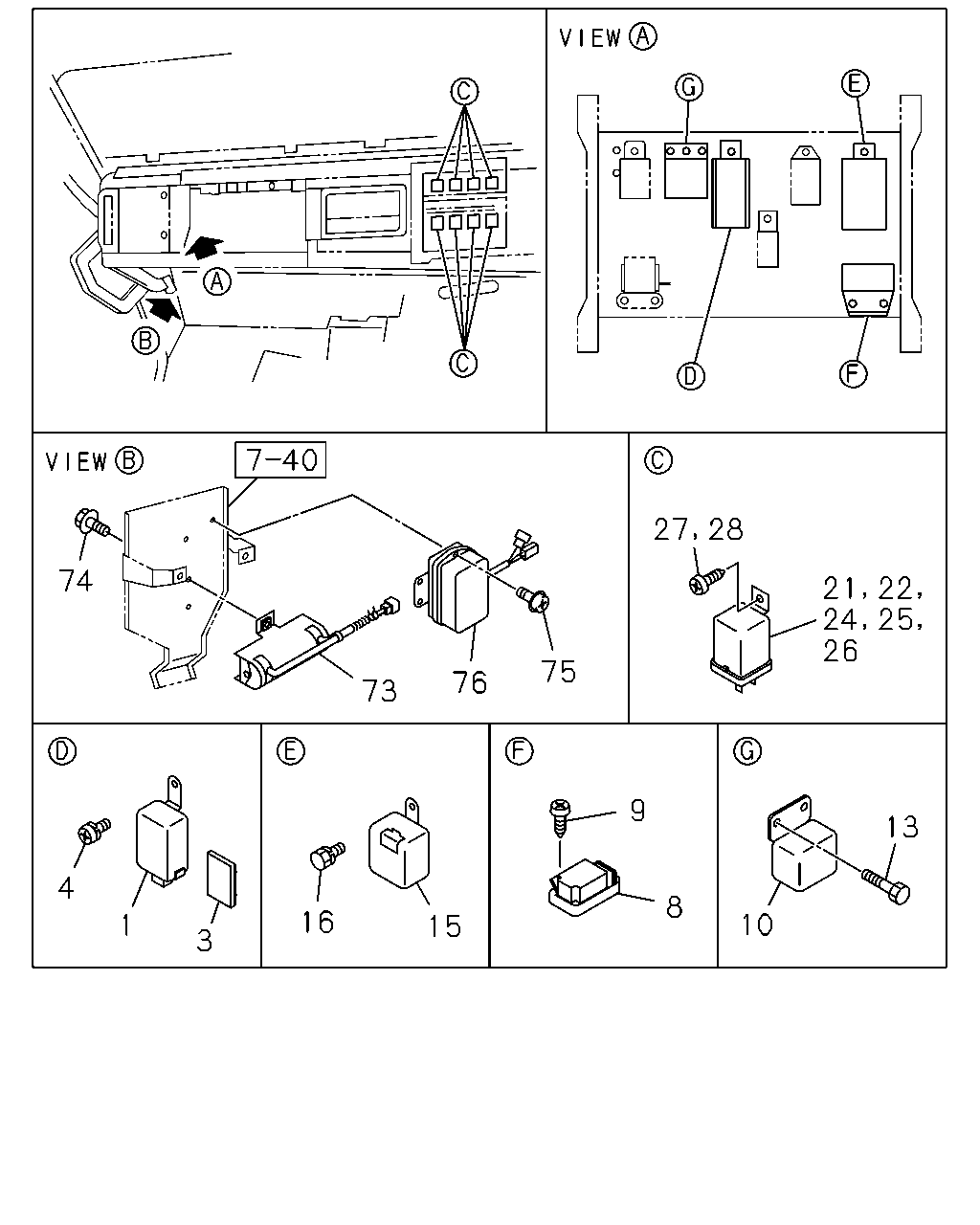

çizim 96451
74 26 75 76 73 9 13 4 8 16 10 1 15 3 27 28 21 22 25 24
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-030-0 01 1 9002-
3 SEAL; SILENT,RELAY 1-73368-001-0 01 1 9002-
4 SCREW; FLASHER UNIT
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		1-82550-095-3 01 1 9002-
9 SCREW; WIPER RELAY
INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-
10 DETECTOR ASM; FUEL 1-81553-001-0 01 1 9002-
13 BOLT; FUEL DETECTOR
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9203-
15 RELAY; STOP & TAIL WARNING 1-82550-143-2 01 1 9002-
16 SCREW; RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 03 1 9002-
21 RELAY; TRAILER TAIL
GREEN 		1-82550-146-0 01 1 9002-
22 RELAY; STOP LAMP
GREEN 		1-82550-146-0 01 1 9002-
24 RELAY; LIGHTING
GREEN 		1-82550-146-0 02 1 9002-
25 RELAY; TAIL LAMP
GREEN 		1-82550-146-0 01 1 9002-
26 RELAY; CONSENT
GREEN 		1-82550-146-0 01 1 9002-
27 SCREW; SET,LIGHTING RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-
28 SCREW; SET,TAIL LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
73 RESISTOR; RELAY
INTAKE HEATER<SL2> 		1-81375-004-1 01 1 9002-
74 SCREW; RESISTOR
INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 04 1 9002-
75 SCREW; STOP LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
76 TIMER; INT HTR
INTAKE HEATER<SL2> 		1-82550-132-1 01 1 9002-
