◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#2559) — 46 parça

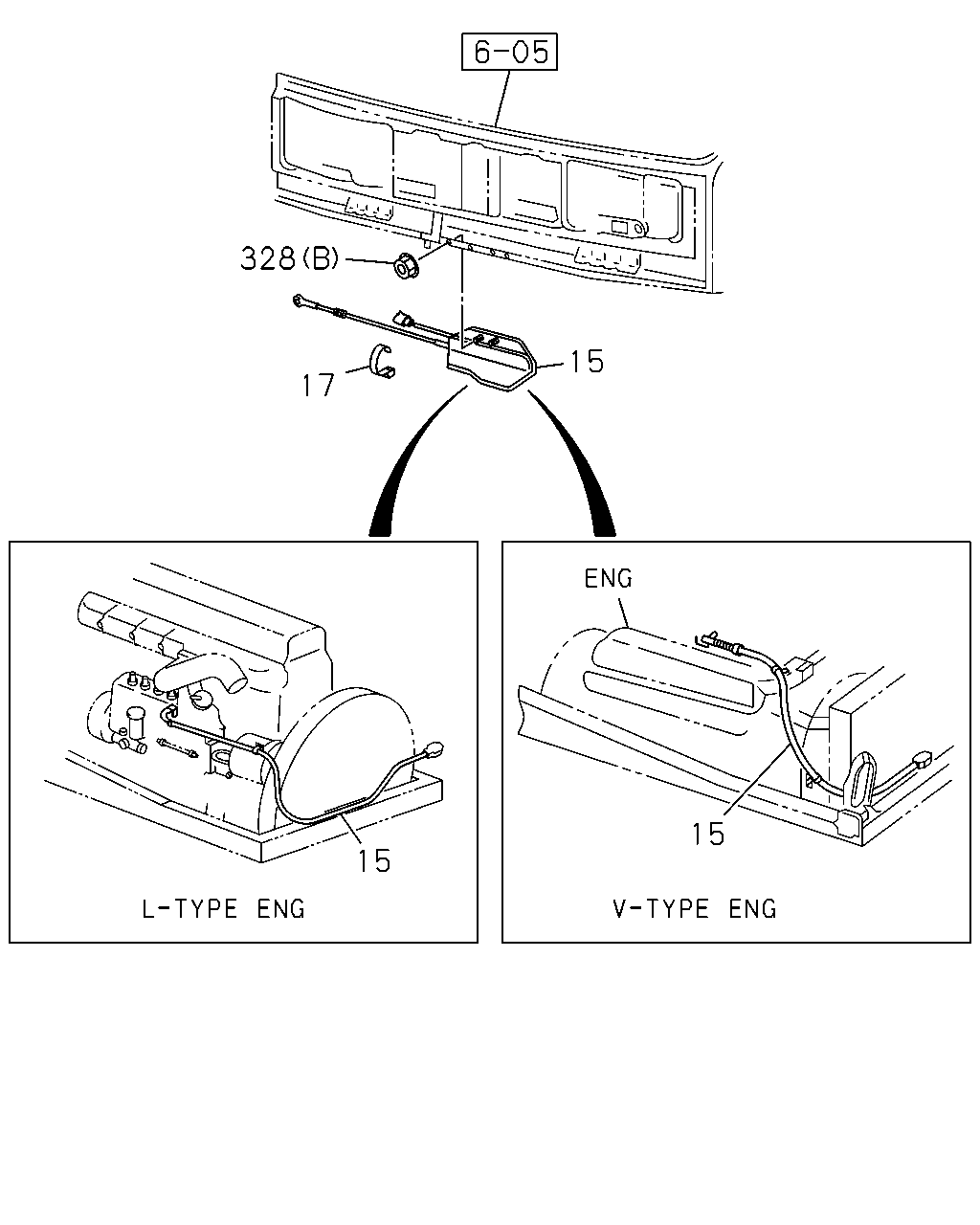

çizim 29179
328 15 17 15 15
BalonParca AdiParca NoAdetTipApplied Date
15 ACTUATOR; ENG STOP
L TYPE ENG<90L> AUTO ENG SHUTOFF(KB6) 		1-82840-135-0 01 1 9307-9310
15 ACTUATOR; ENG STOP
L TYPE ENG<90L> AUTO ENG SHUTOFF(KB6) 		1-82840-083-7 01 1 9311-9401
15 ACTUATOR; ENG STOP
L TYPE ENG<90L> AUTO ENG SHUTOFF(KB6) 		1-82840-135-2 01 1 9402-
15 ACTUATOR; ENG STOP
V TYPE ENG<91L> AUTO ENG SHUTOFF(KB6) 		1-82840-080-7 01 1 9307-
17 CLIP; ACTUATOR TO HARNESS
AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-1 01 1 9307-
328 NUT
AUTO ENG SHUTOFF(KB6) (B) 		8-94279-504-1 02 1 9307-
328 NUT
INTAKE HEATER<SL2> (A) 		1-09449-037-1 01 1 9002-

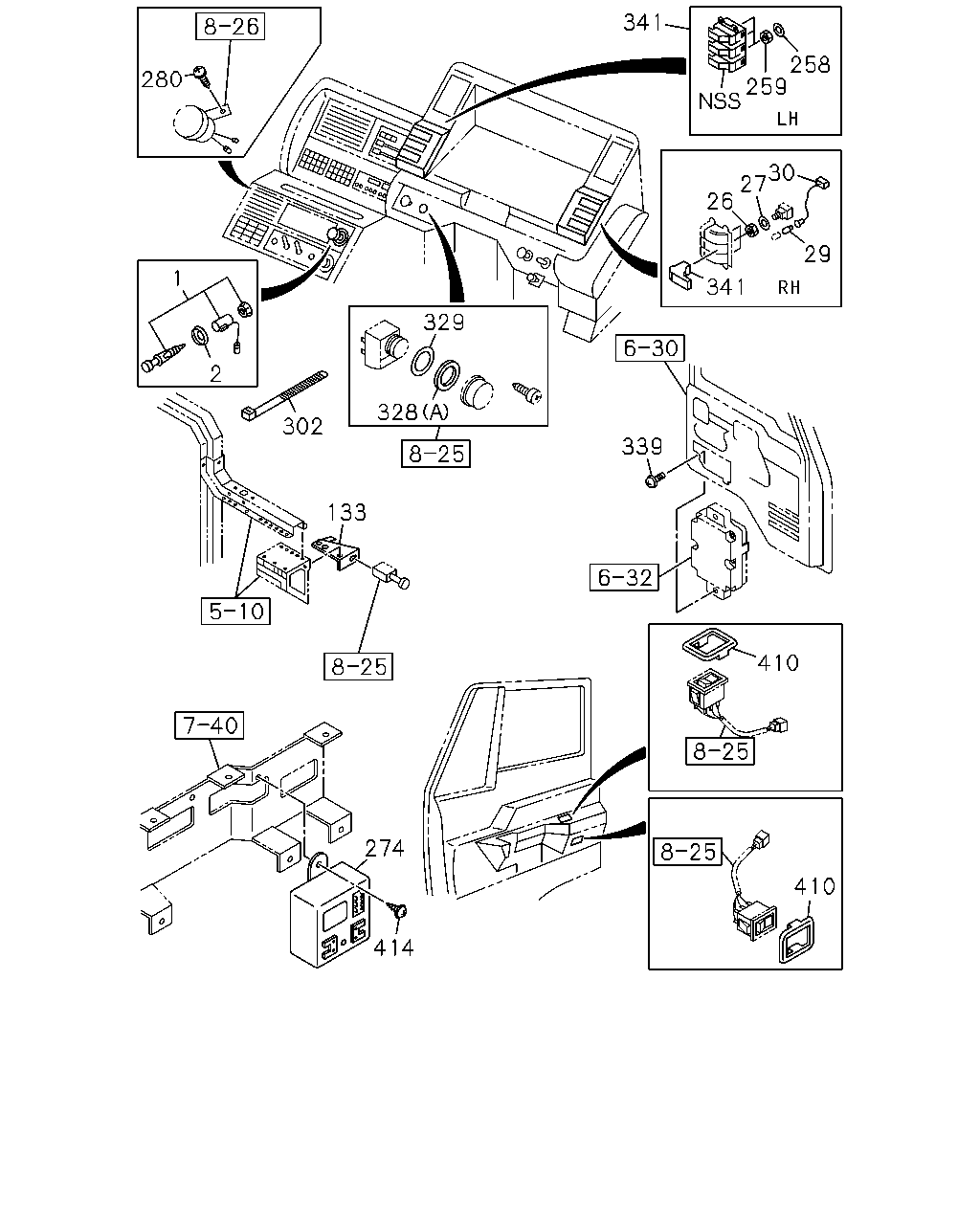

çizim 95169
341 258 259 280 30 27 26 29 1 341 329 2 328 302 339 133 410 274 410 414
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9002-
2 BEZEL; CIGAR LIGHTER 8-94232-213-1 01 1 9002-
26 NUT; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) M12 		1-09400-066-0 03 1 9002-
26 NUT; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M12 		1-09400-066-0 02 1 9002-
27 WASHER; WAVE,SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09550-006-0 03 1 9002-
27 WASHER; WAVE,SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-09550-006-0 02 1 9002-
29 BULB; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 03 1 9002-
29 BULB; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 02 1 9002-
30 CORD ASM; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-034-0 01 1 9002-
30 CORD ASM; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-033-0 01 1 9002-
133 BRACKET; SWITCH 1-82345-021-0 01 1 9002-
258 WASHER; WAVE,HOLE COVER 1-09550-006-0 01 1 9002-
259 NUT; HOLE COVER
M12 		1-09400-066-0 01 1 9002-
274 UNIT; CORNERING LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-83470-044-1 01 1 9307-
280 SCREW; BUZZER,SEAT BELT
ENGINE OVERRUN BUZZER<SK4>,EXH HEAT WARNING<W50> M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002-
302 CLIP; A/C HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 01 1 9002-
328 NUT
AUTO ENG SHUTOFF(KB6) (B) 		8-94279-504-1 02 1 9307-
328 NUT
INTAKE HEATER<SL2> (A) 		1-09449-037-1 01 1 9002-
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9002-
339 SCREW; ACTUATOR
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-176-0 02 1 9211-9302
339 SCREW; ACTUATOR
POWER WINDOW<A30> M4X30 		8-94279-360-0 02 1 9303-
341 COVER ASM 1-82353-011-0 01 1 9002-
341 COVER ASM
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-059-0 01 1 9002-
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-381-0 03 1 9205-9306
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-381-0 02 1 9307-
414 SCREW; CORNERING LAMP UNIT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9307-

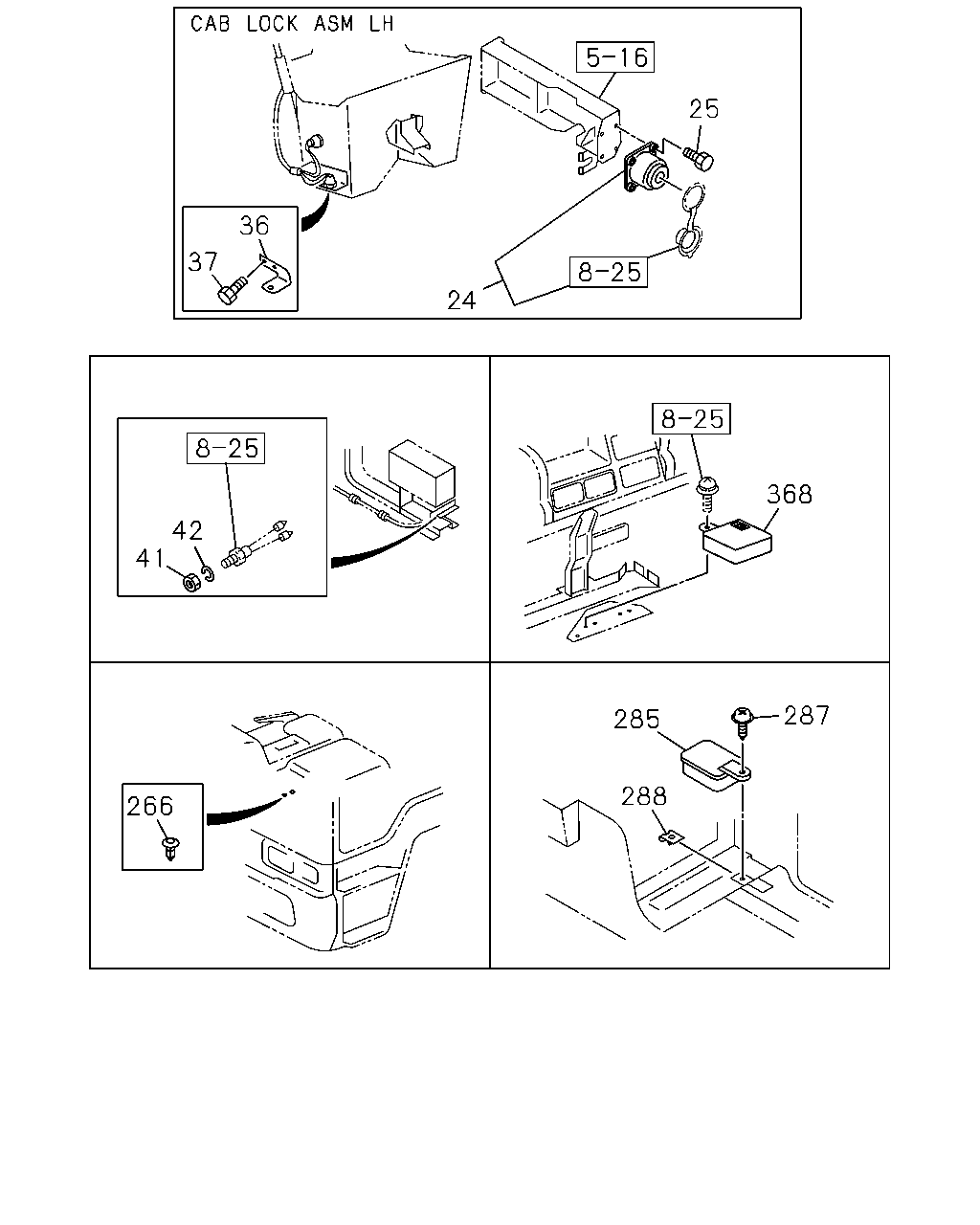

çizim 95455
25 36 37 24 368 42 41 287 285 288 266
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 9002-
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		9-01960-620-0 04 1 9002-9204
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9205-
36 BRACKET; LIMIT SW
AUTO CAB TILT<WV2> 		1-82385-003-0 01 1 9002-
37 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER 		0-50000-616-0 02 1 9002-9204
37 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER 		0-50080-616-0 02 1 9205-
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9002-9306
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9002-9306
266 PLUG; BRKT HOLE,CONT UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) D4.7X11 		1-76378-154-0 04 1 9002-
285 BUZZER ASM; ALARM CLOCK
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 		1-83460-053-0 01 1 9308-
287 SCREW; BUZZER
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 		1-09981-388-1 01 1 9308-
288 NUT; SPIRE
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> M5 SPIRE NUT 		8-94279-051-0 01 1 9308-
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94437-633-1 01 1 9203-
